PM Hydraulic Winch

PM Hydraulic Winch 3D print model

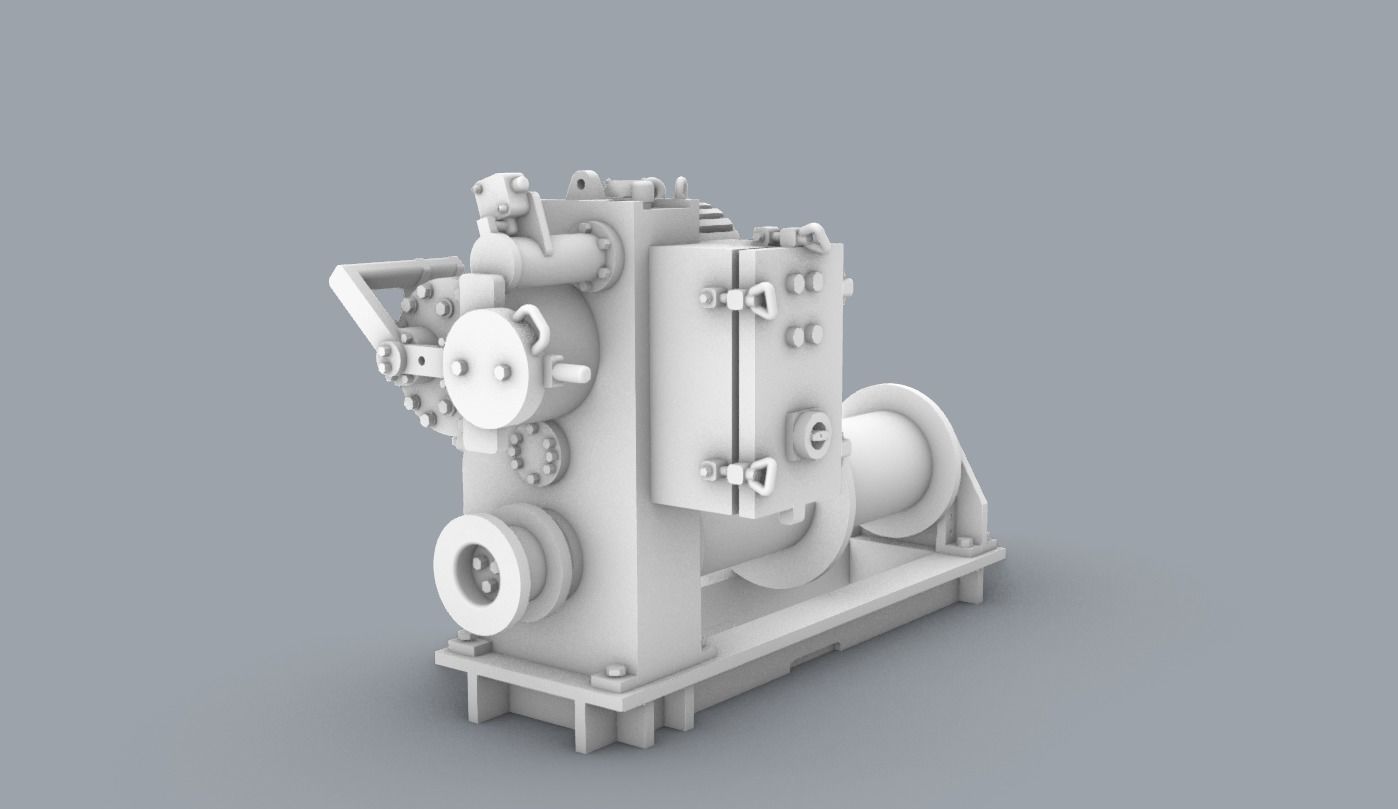

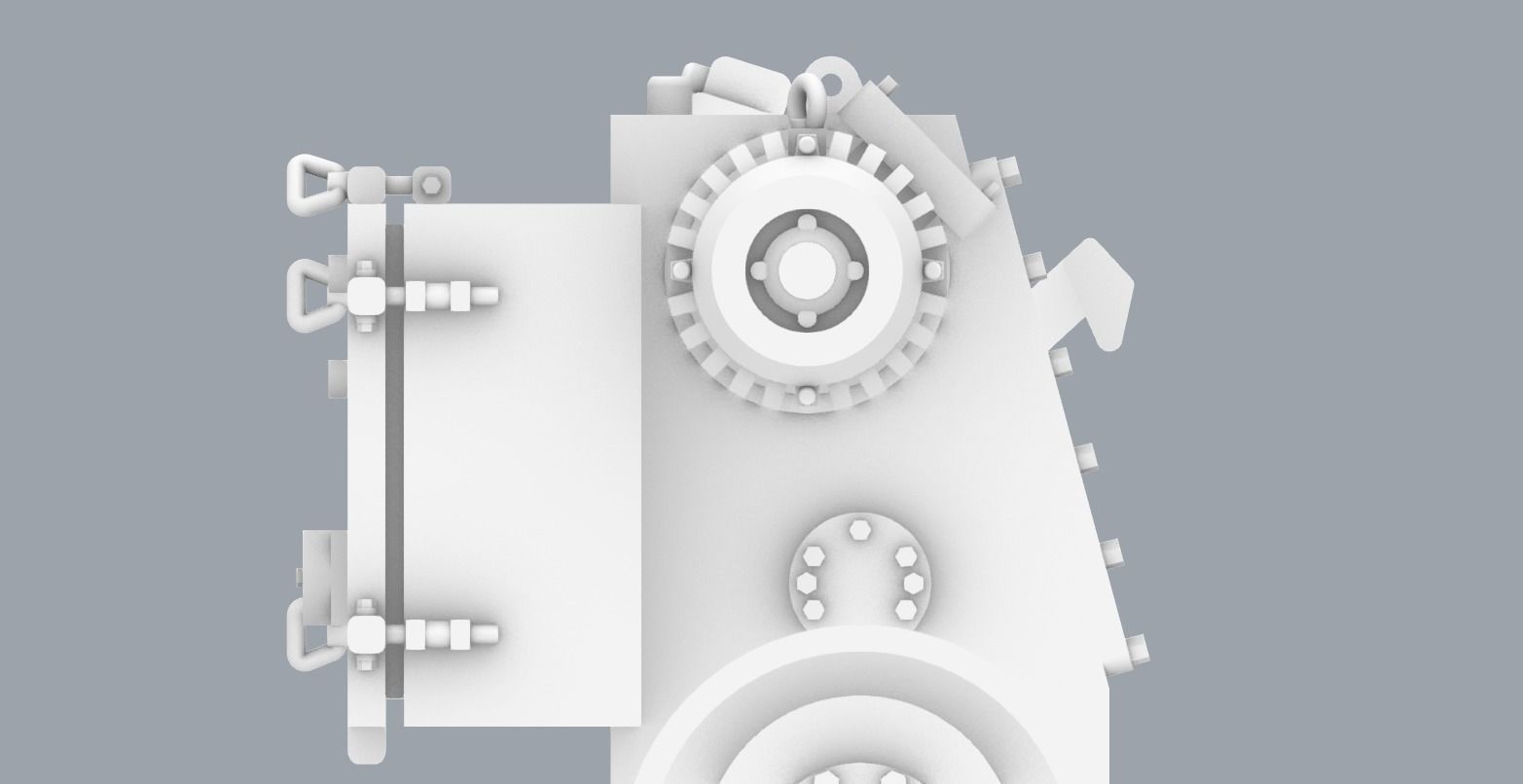

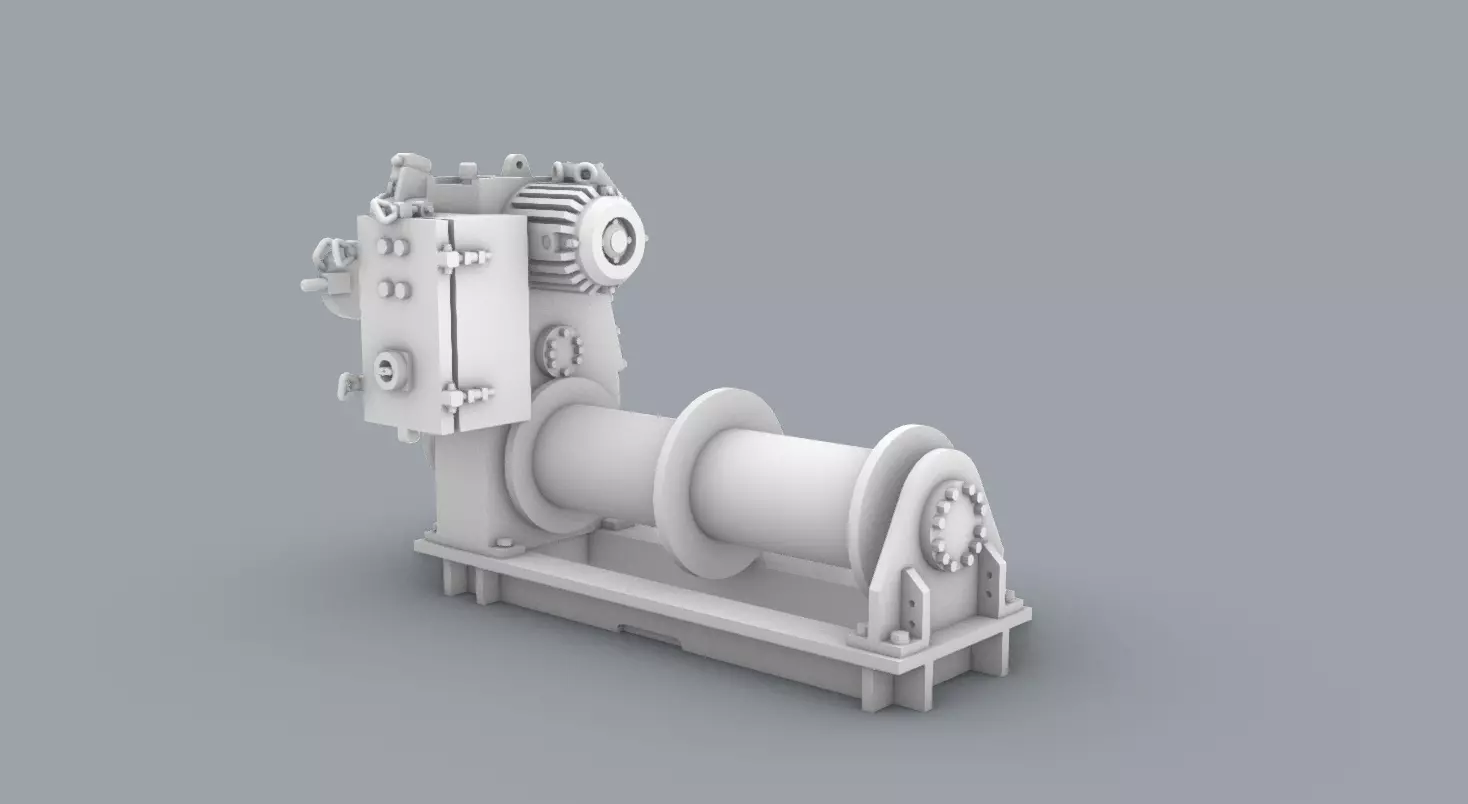

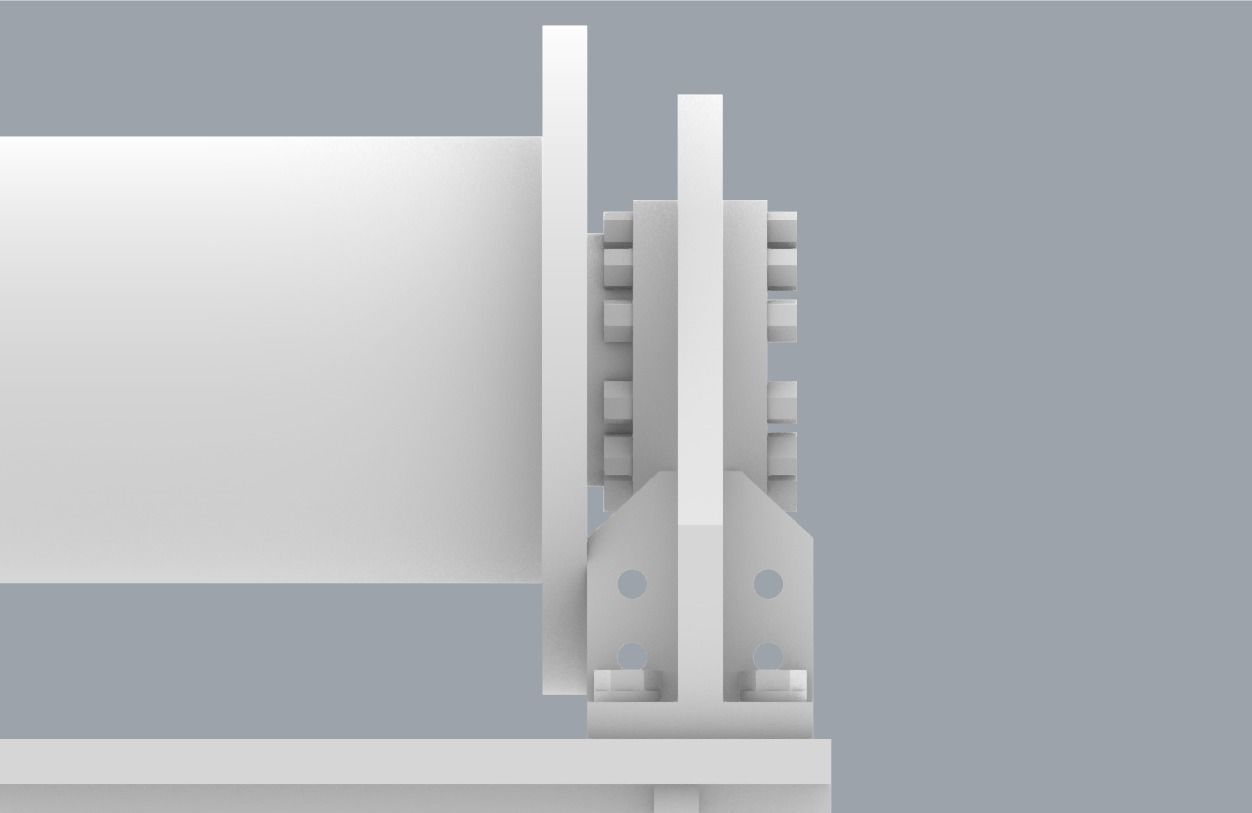

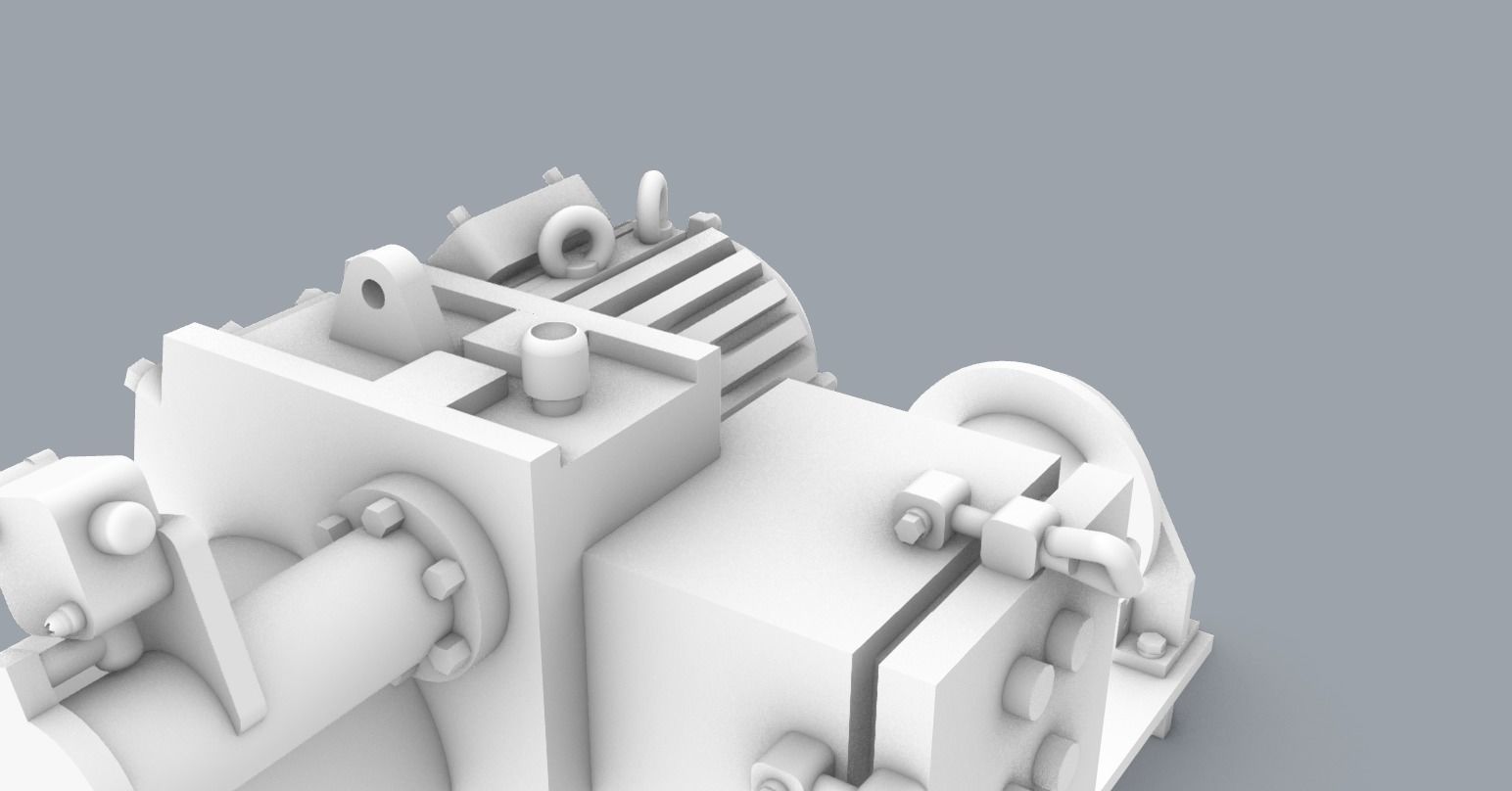

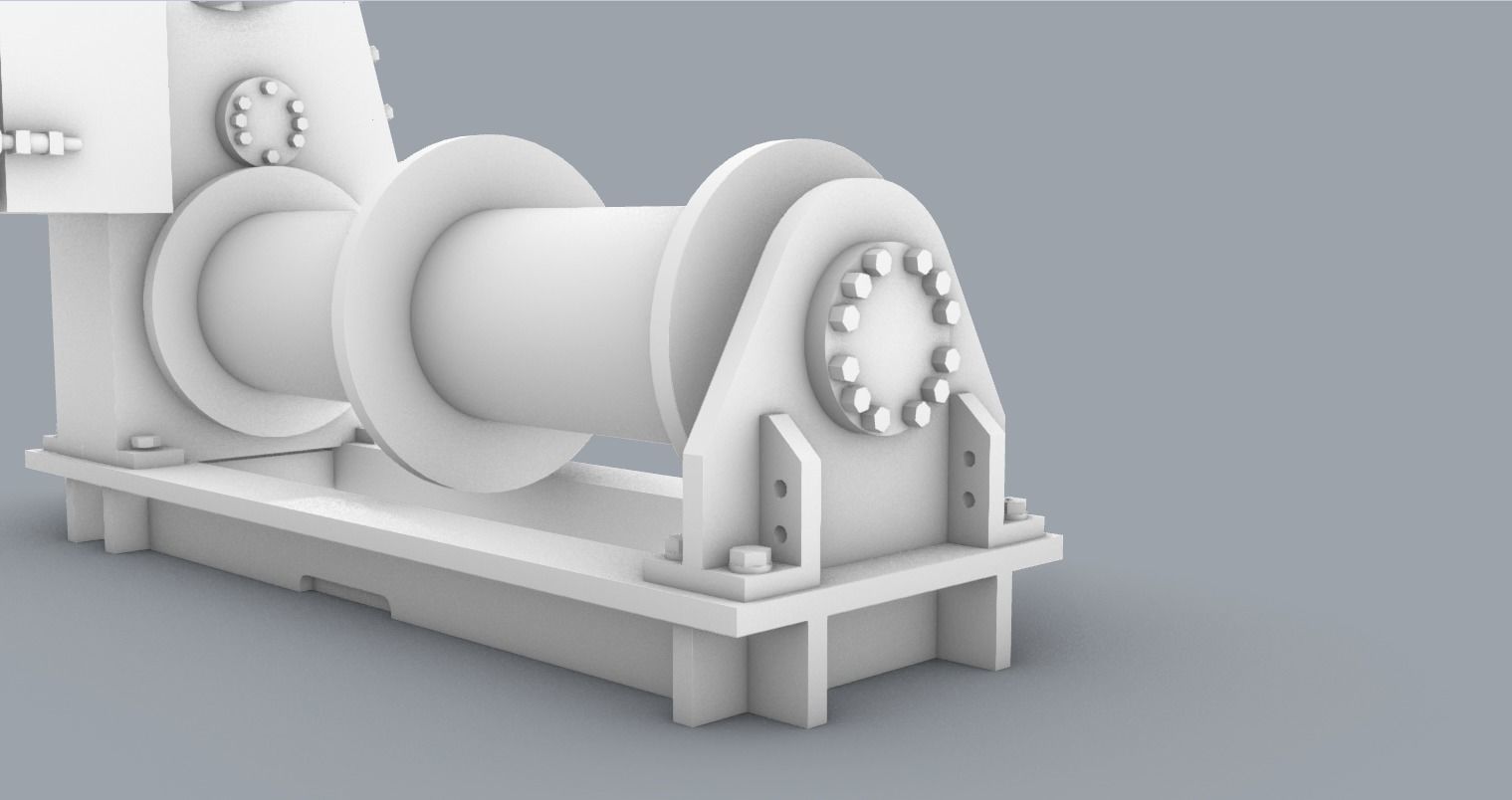

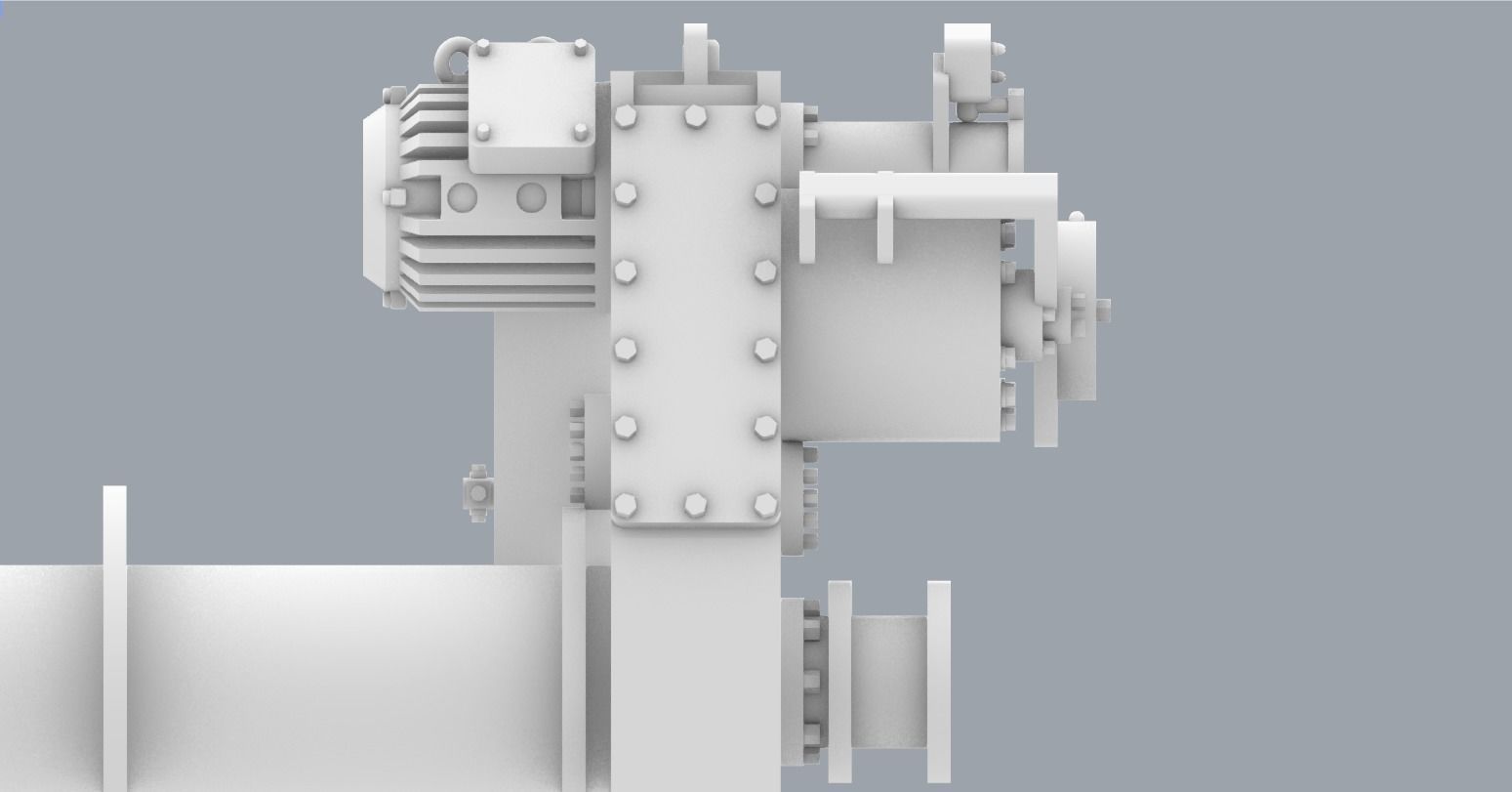

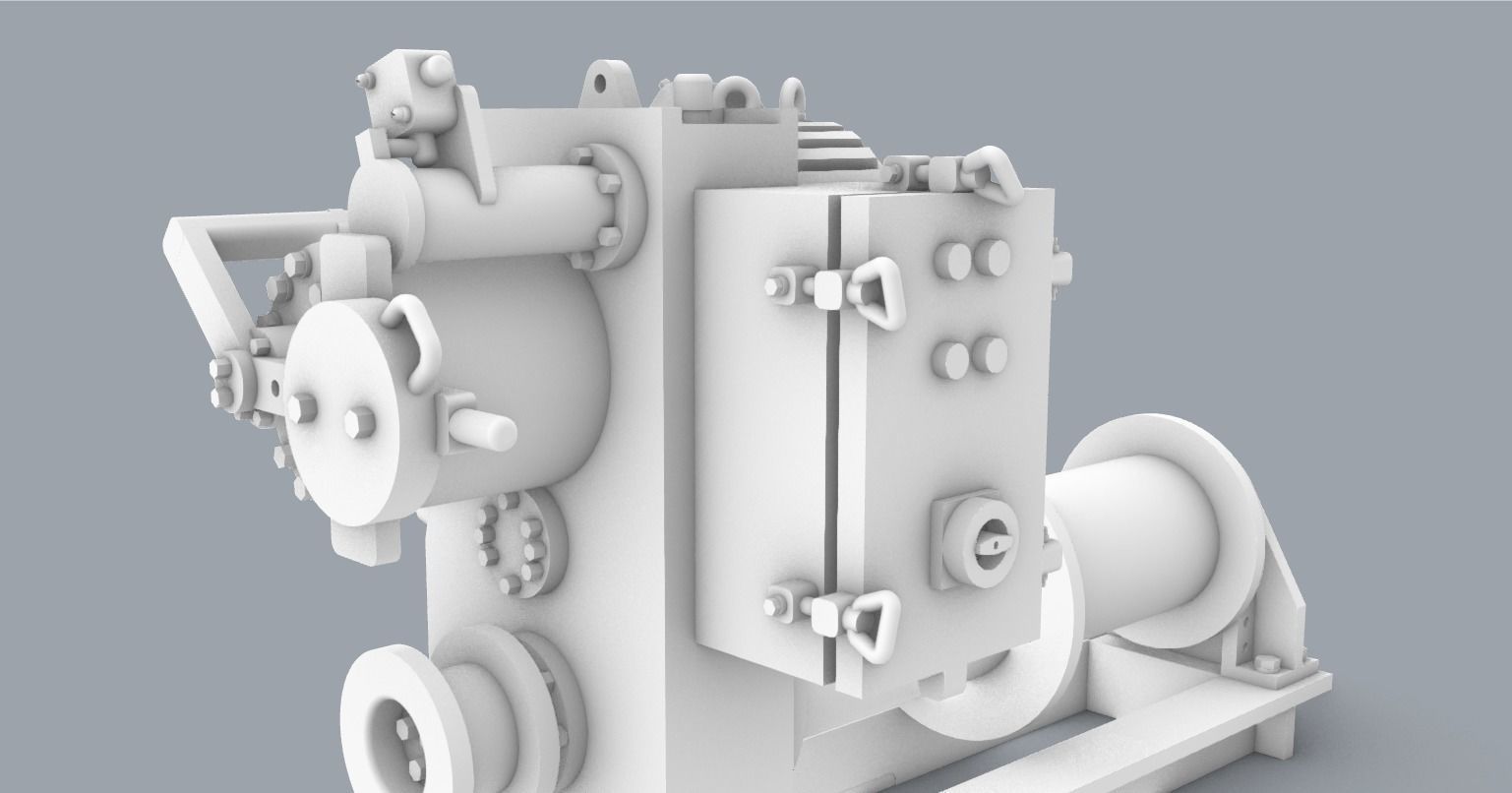

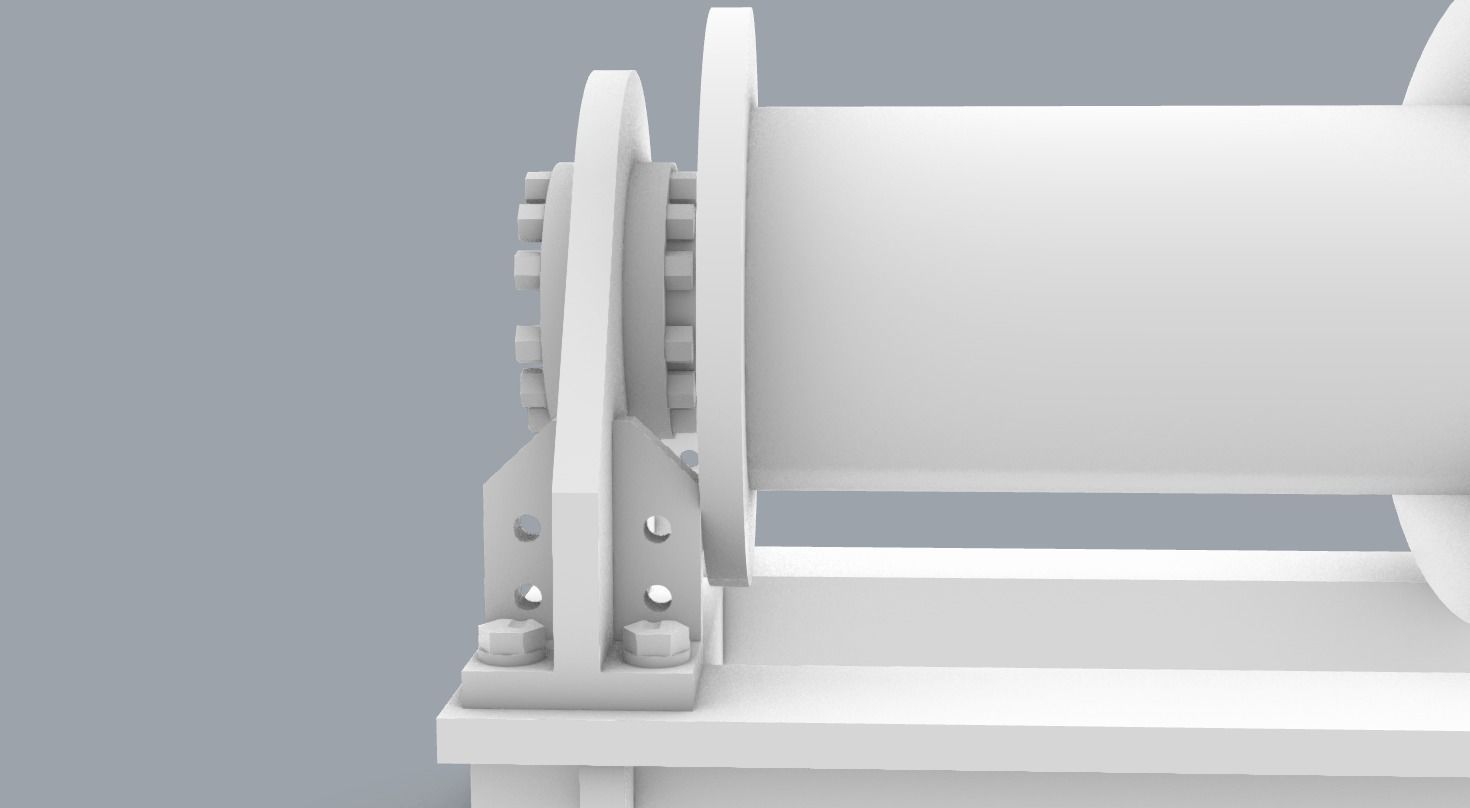

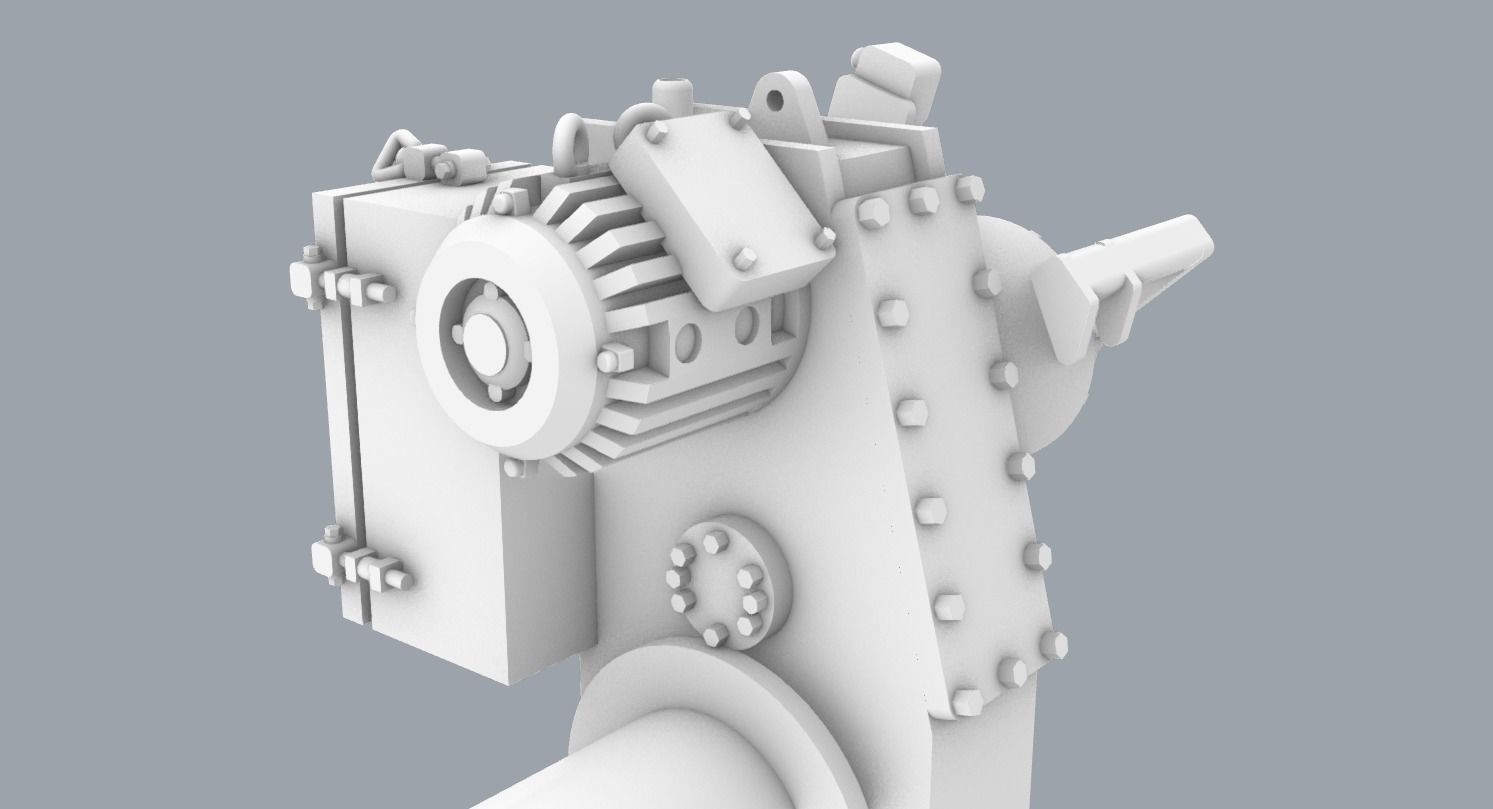

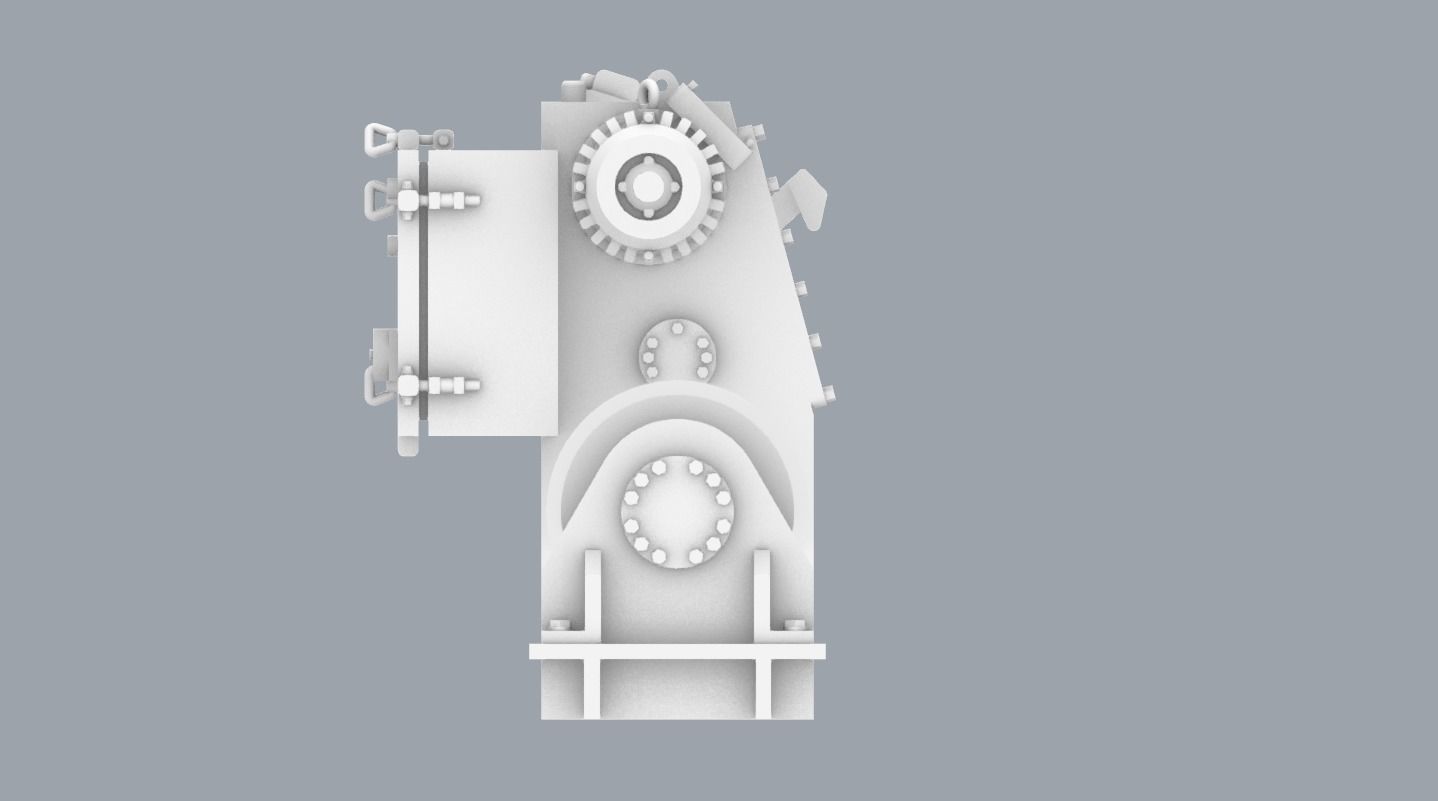

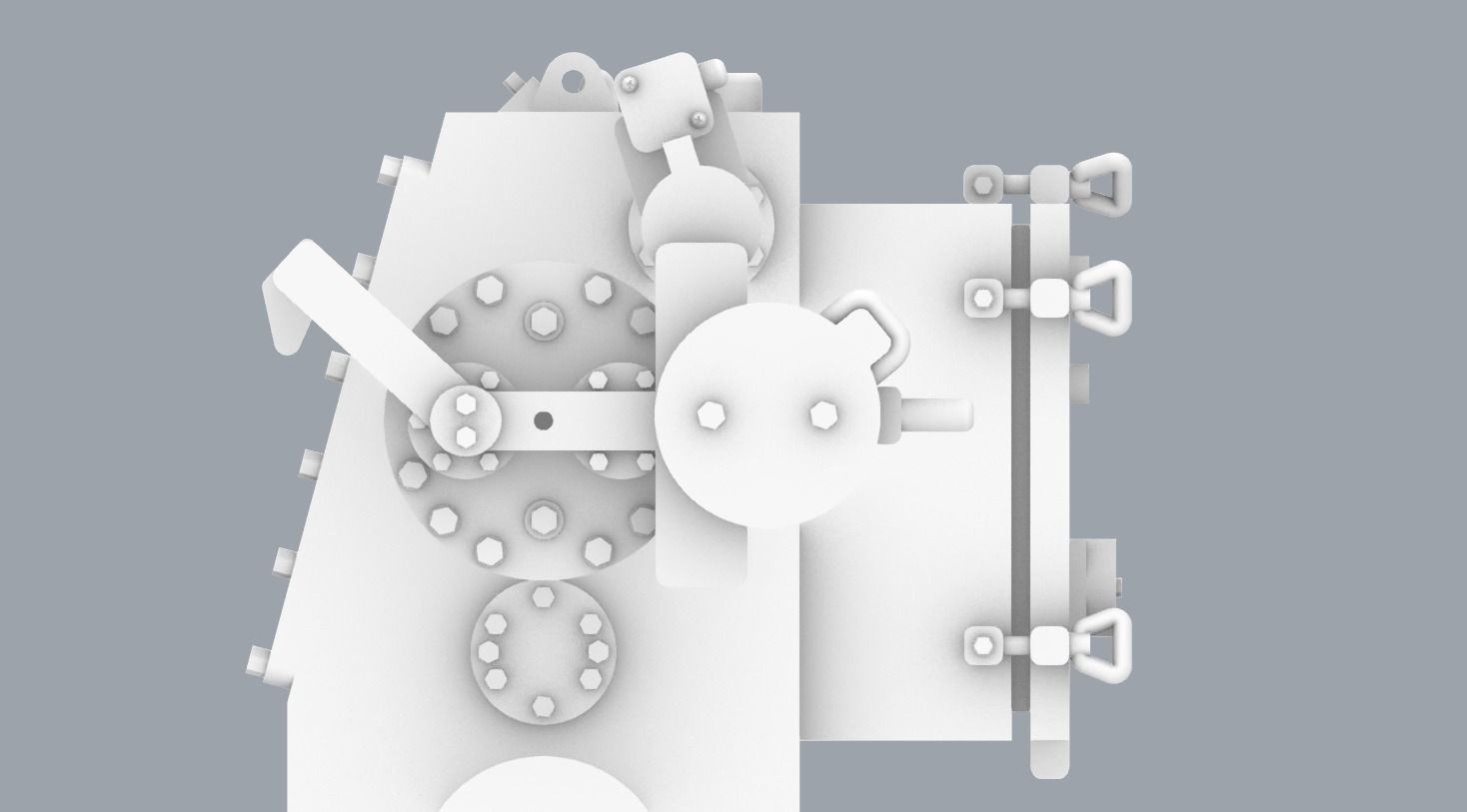

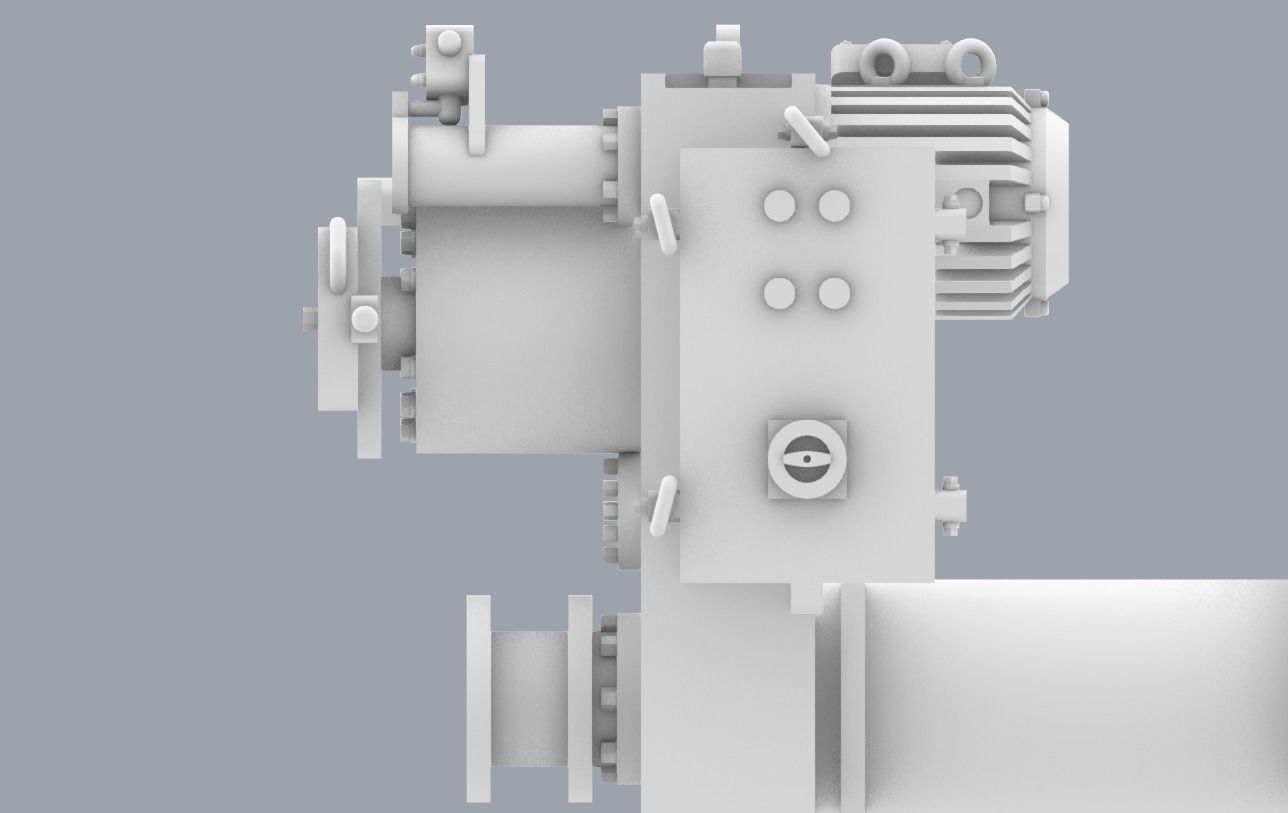

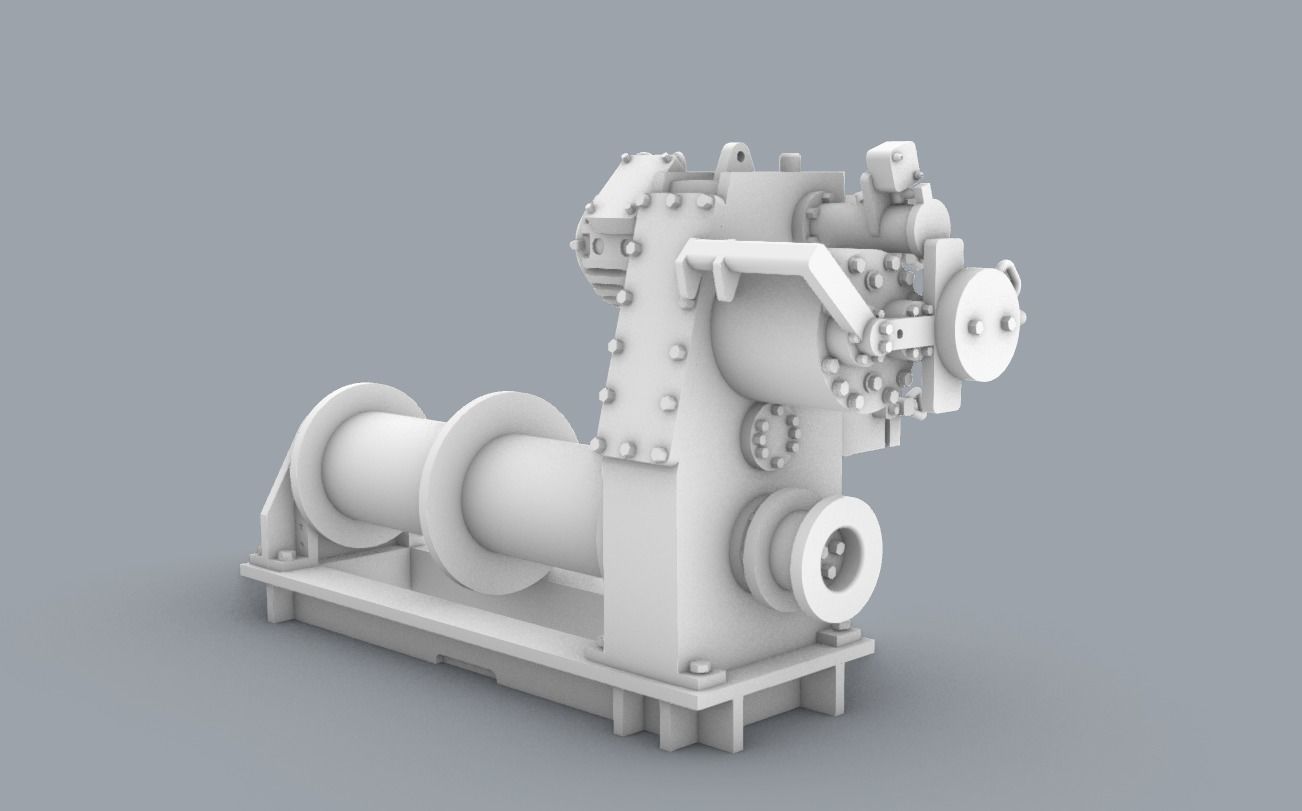

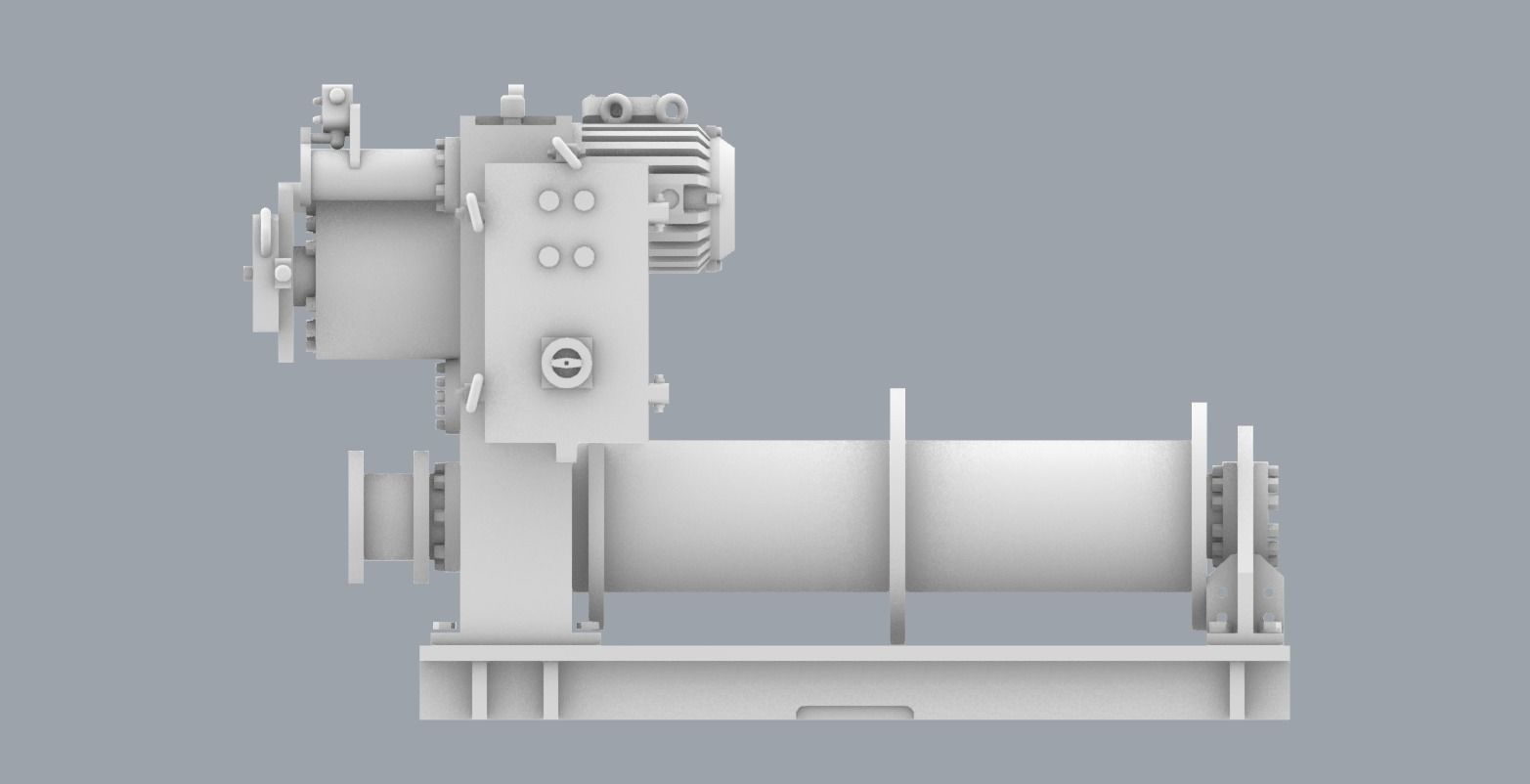

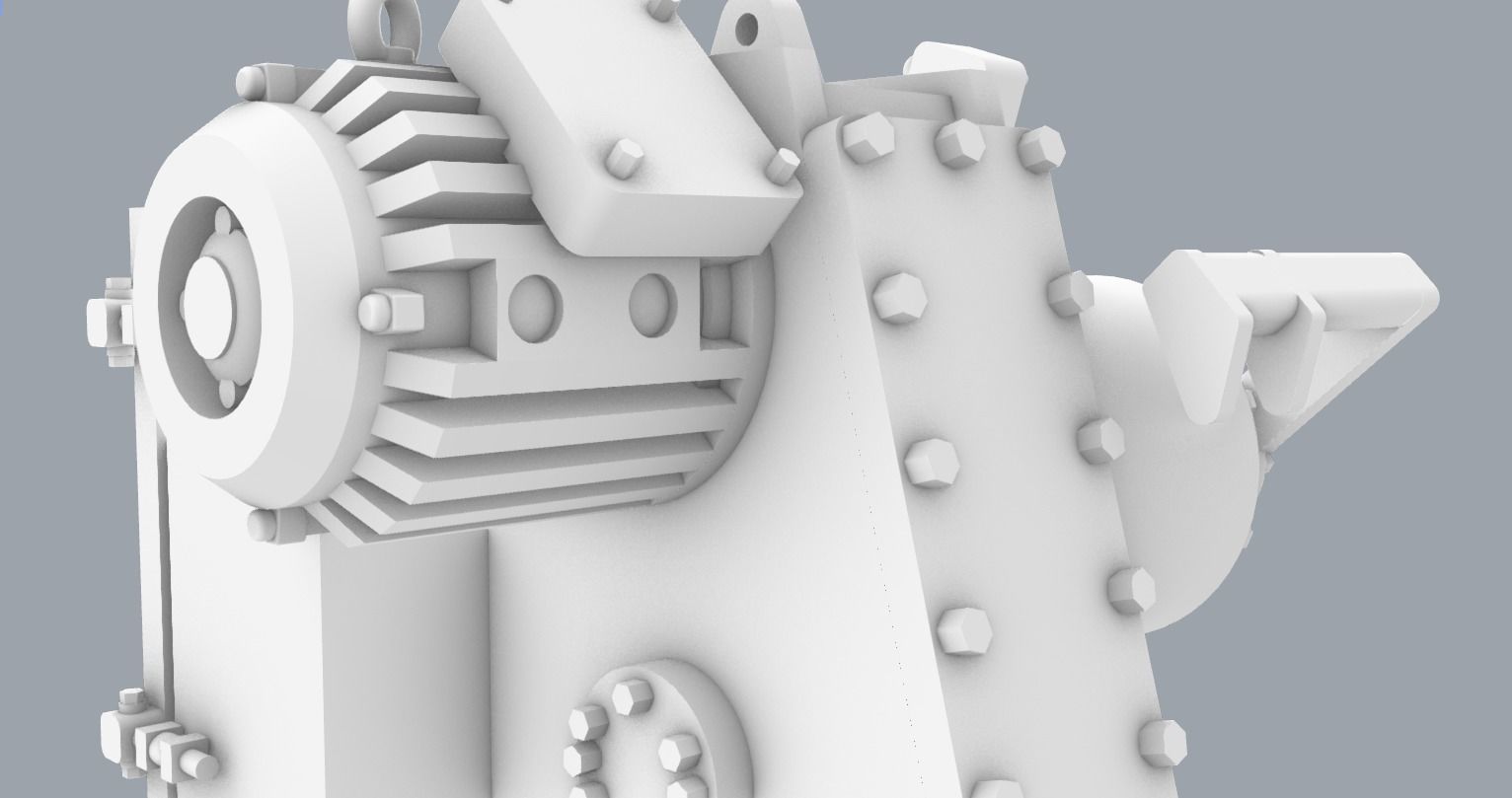

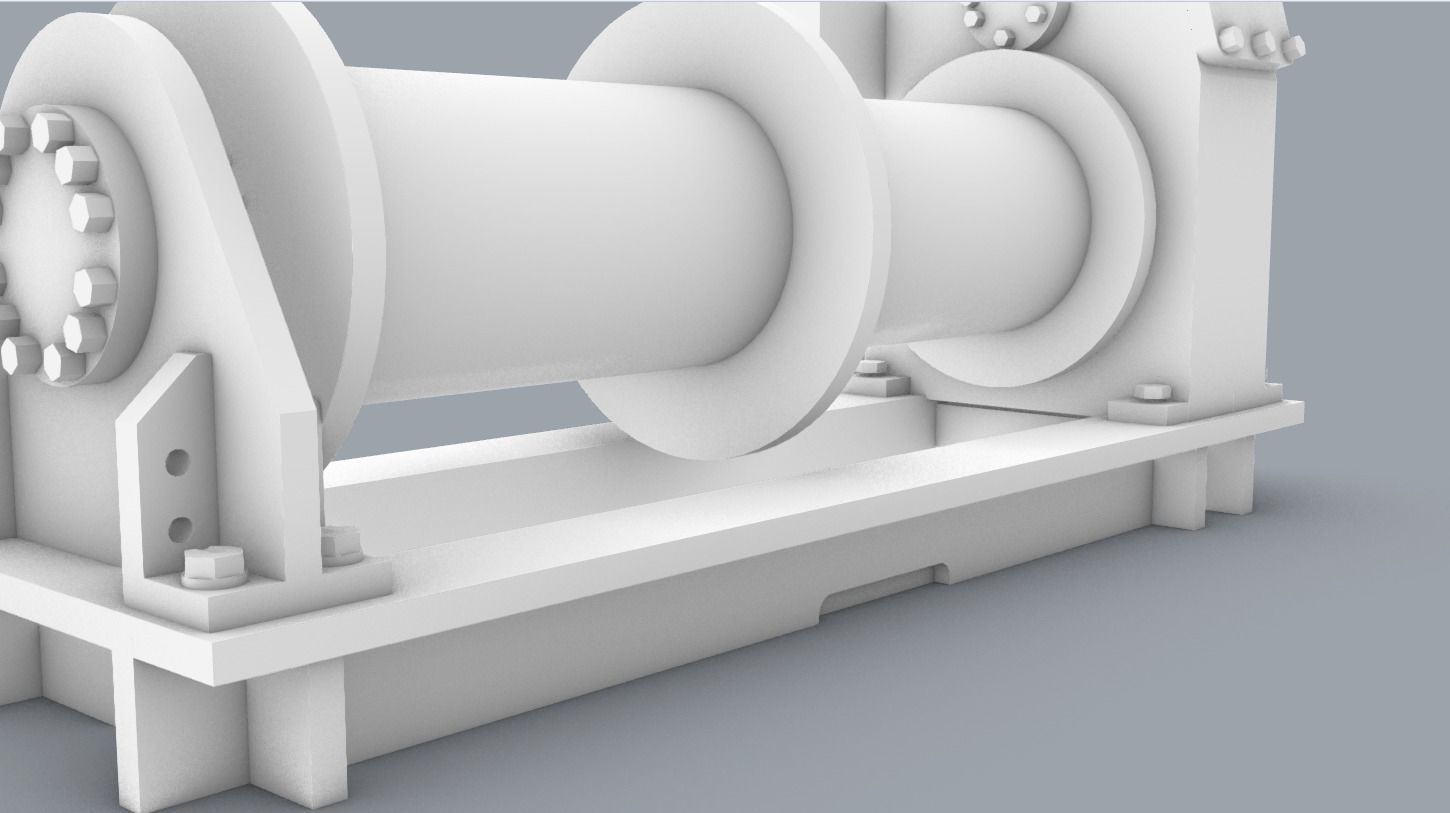

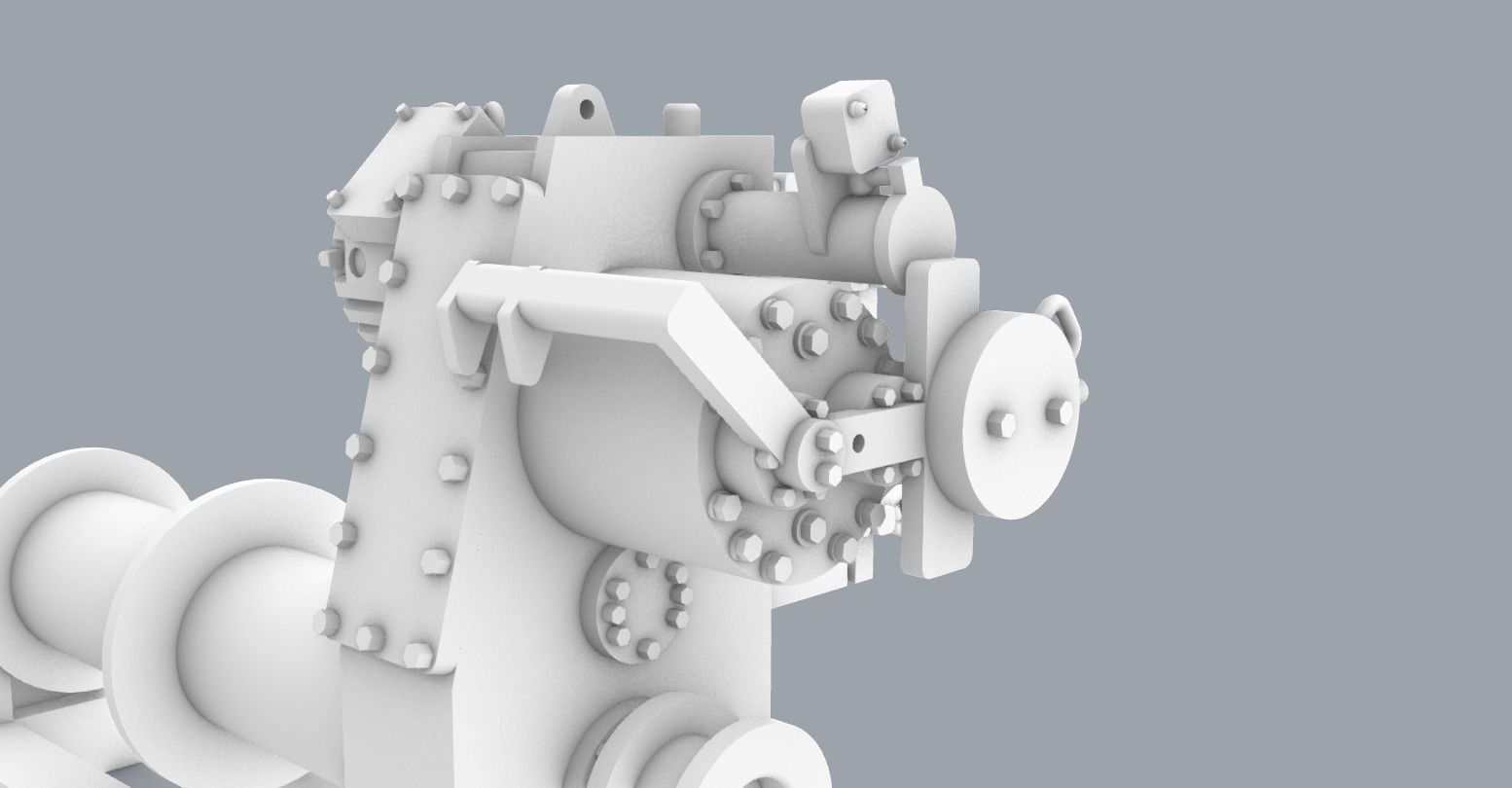

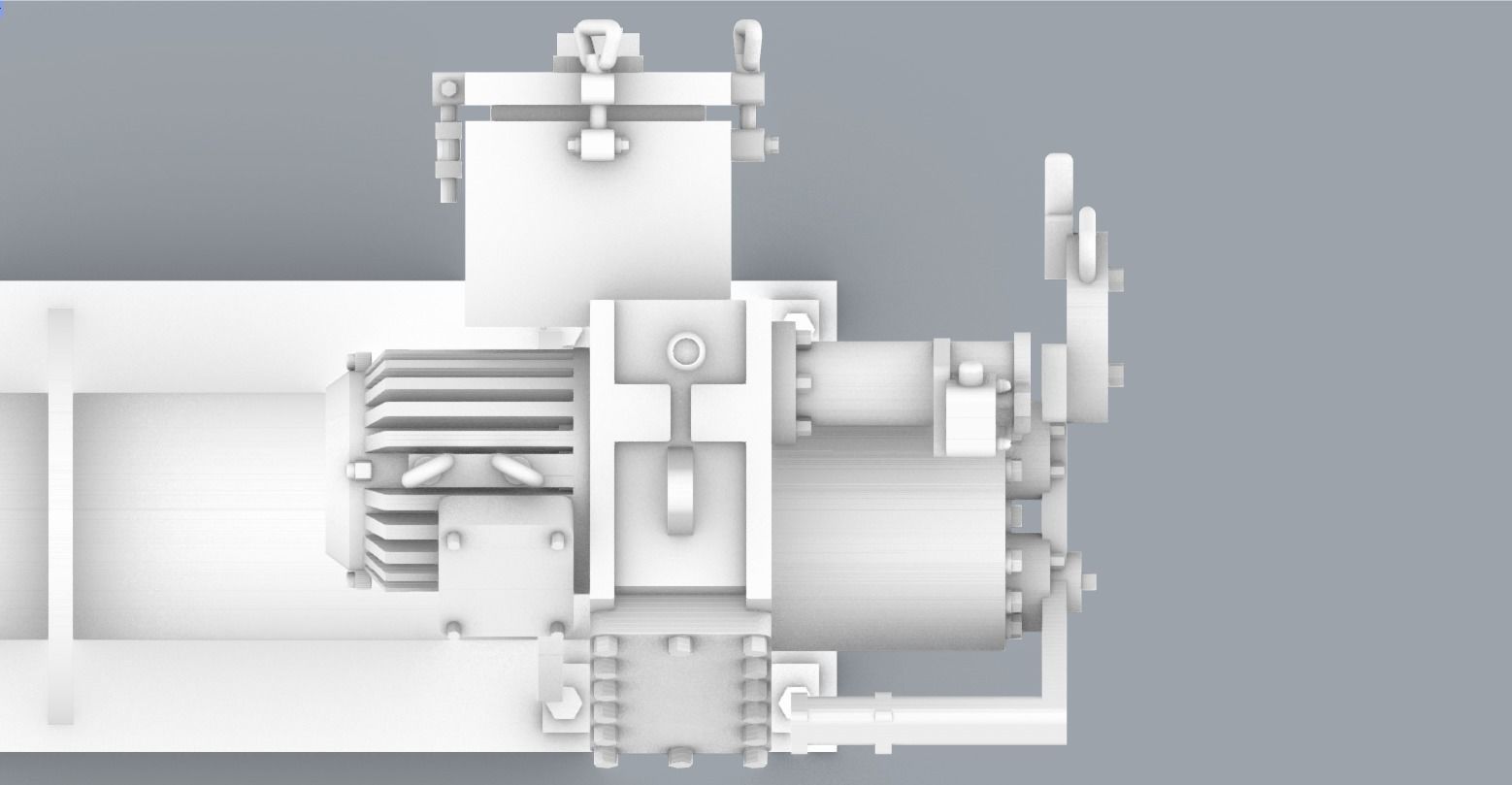

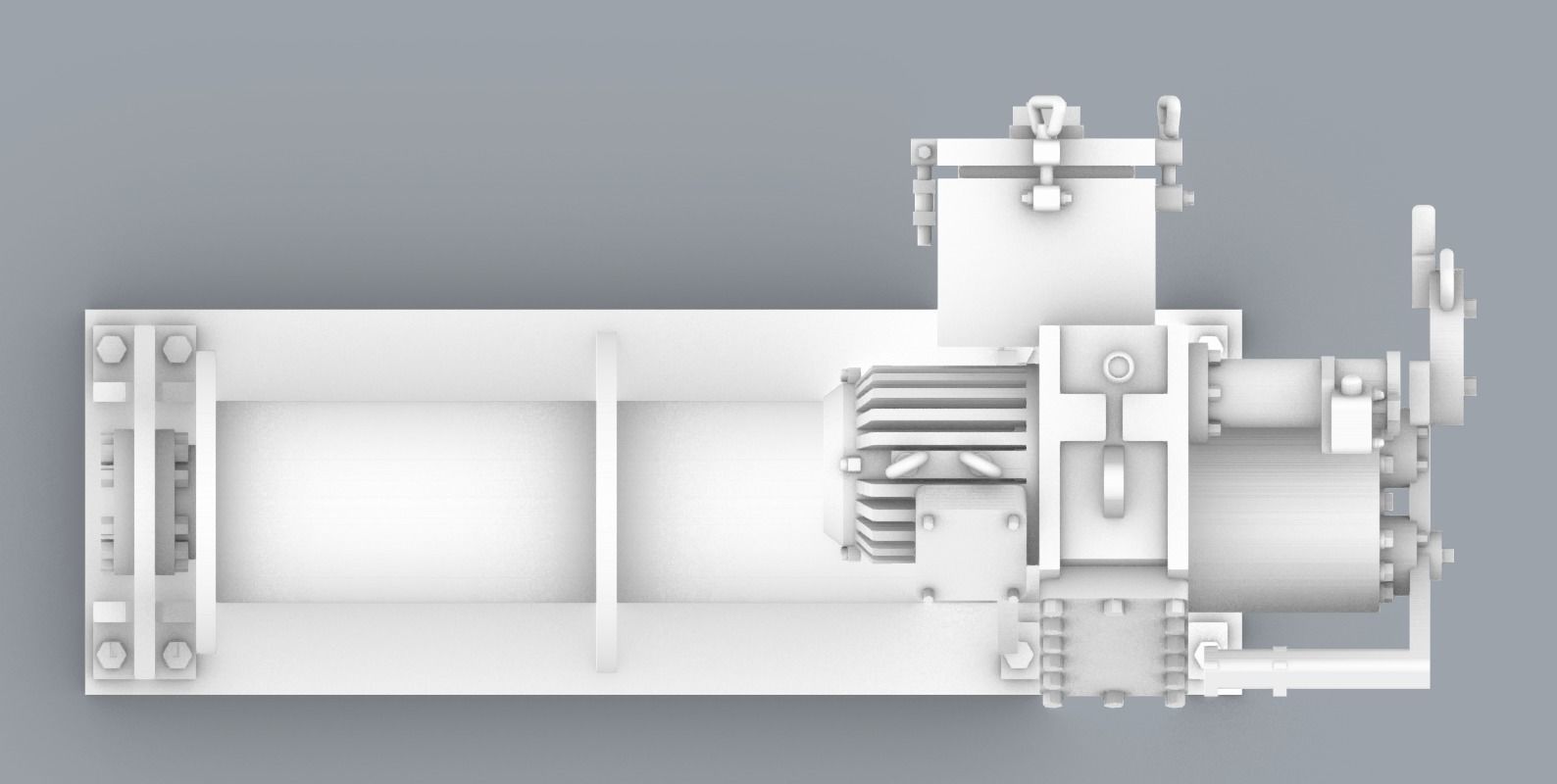

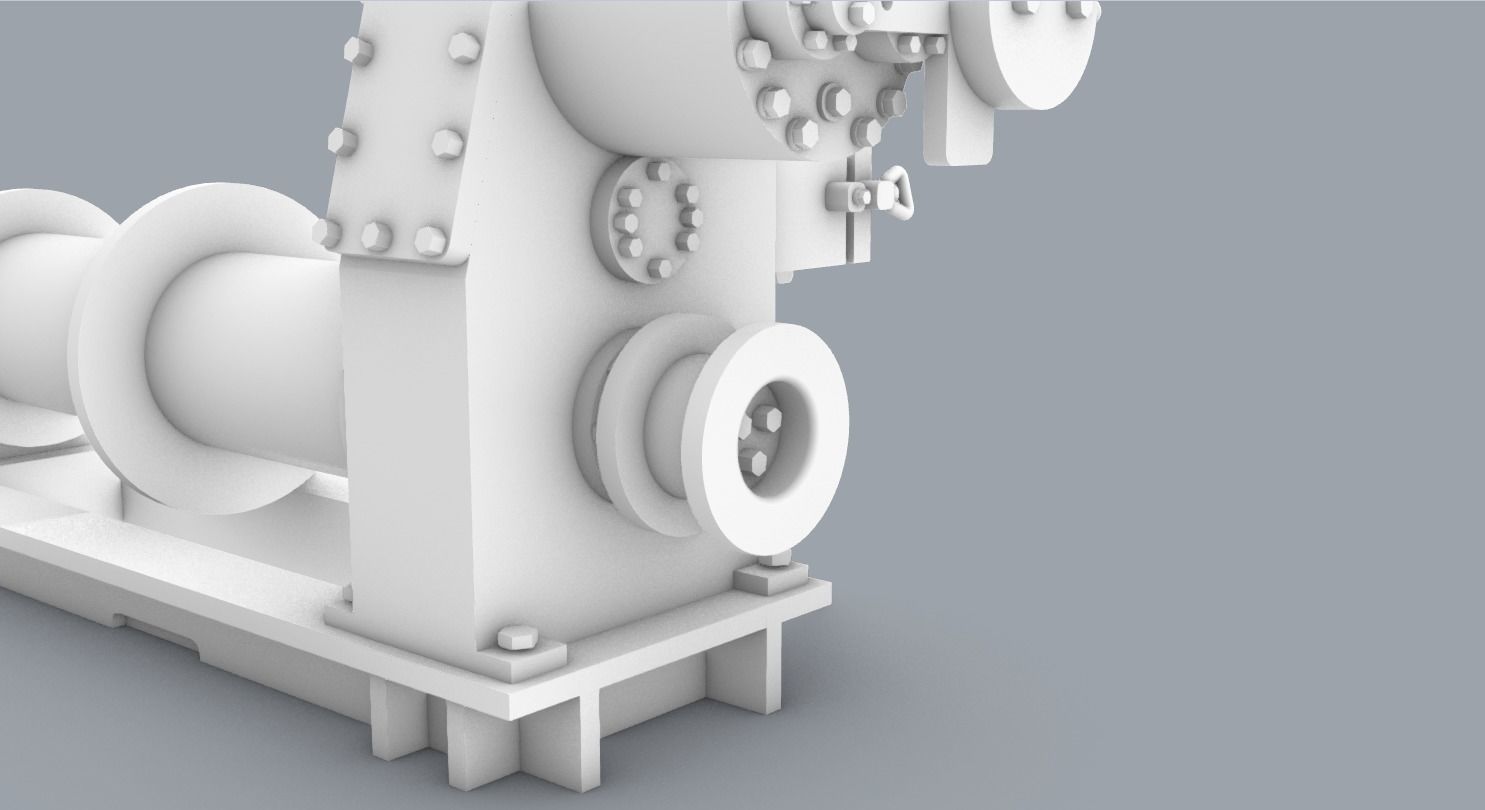

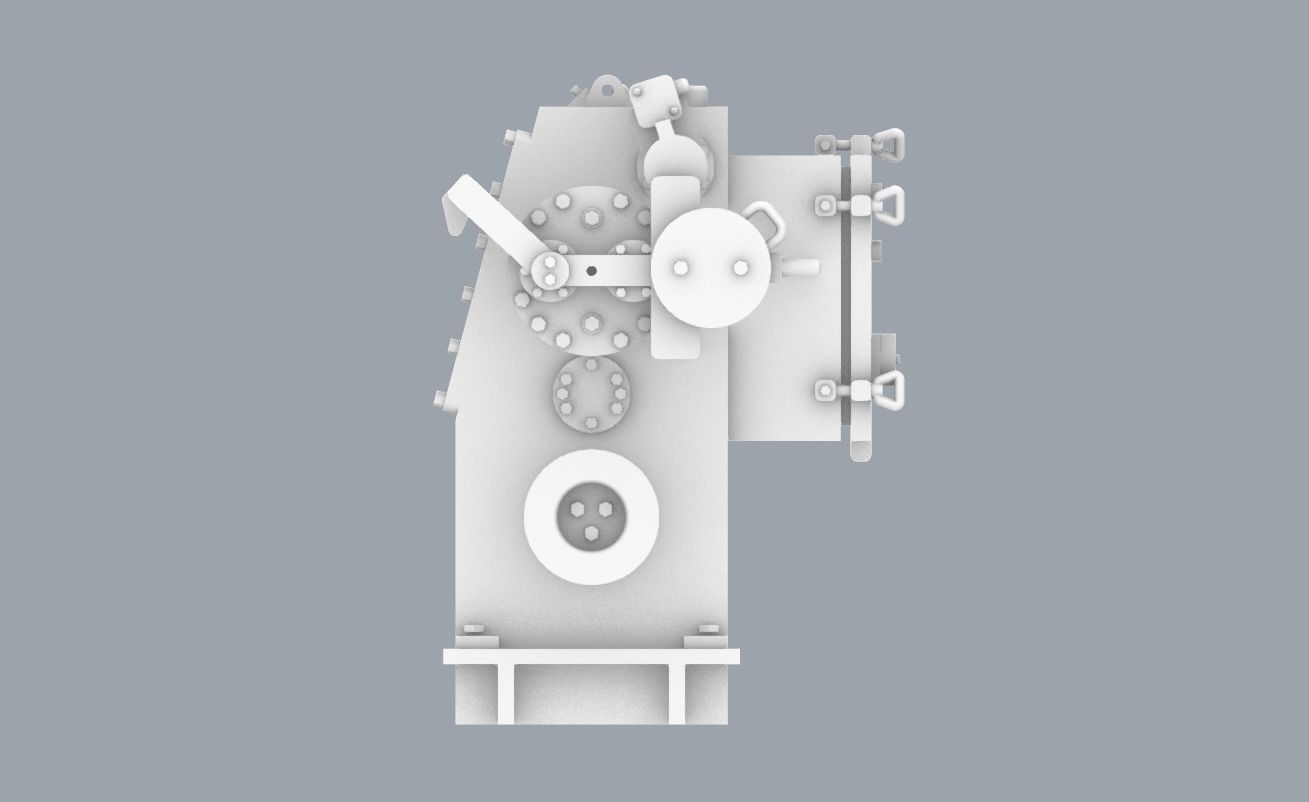

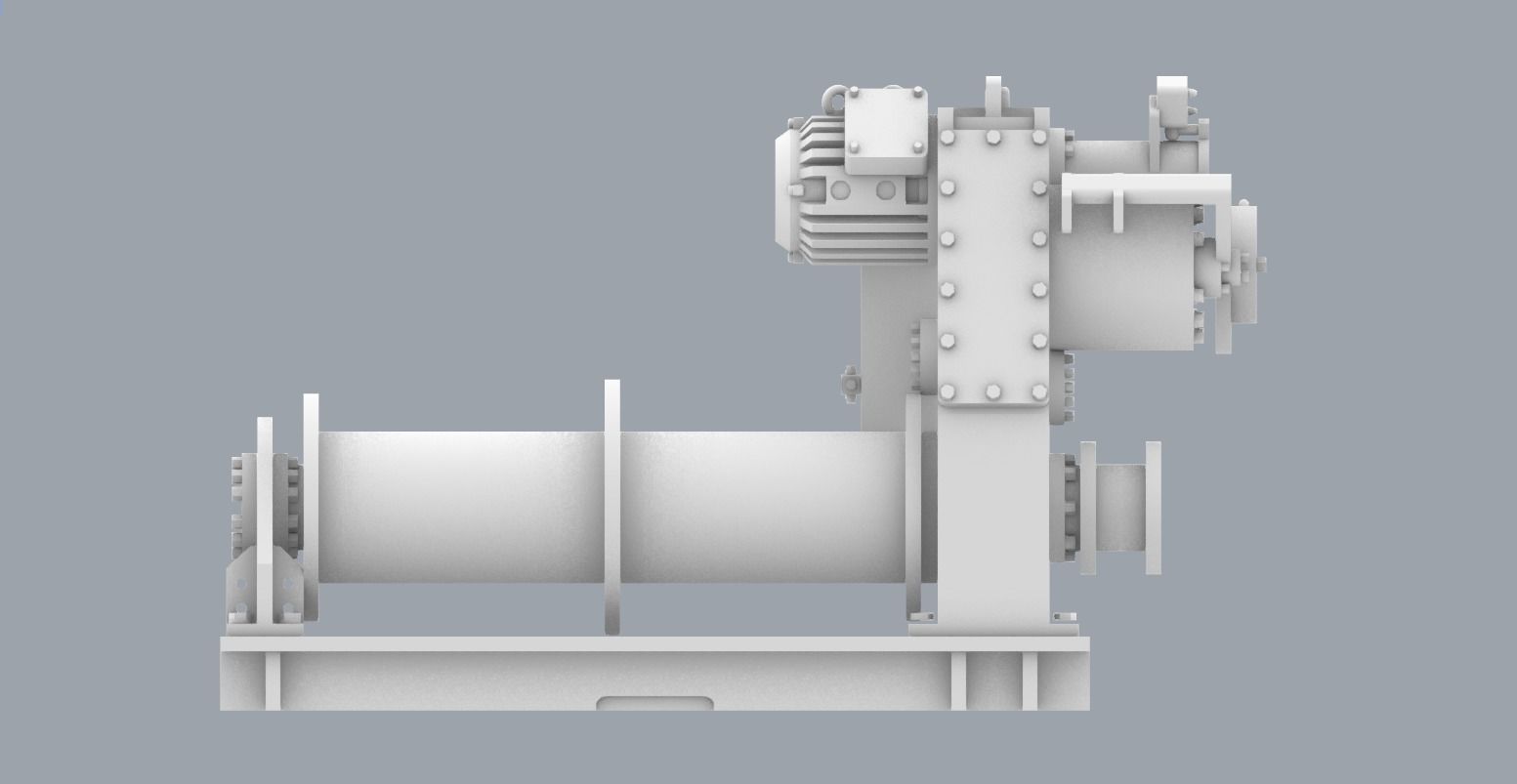

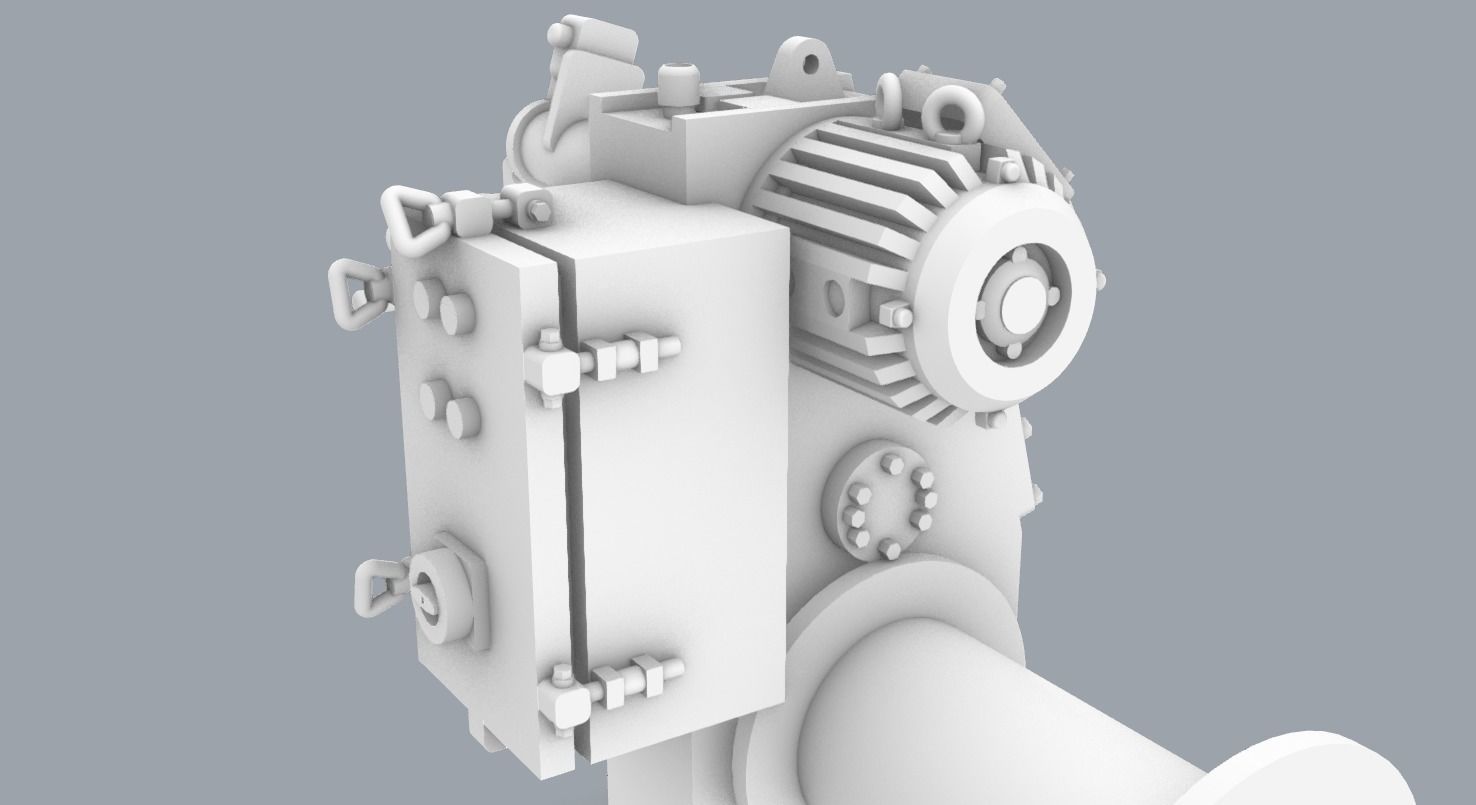

3D Model of Hydraulic Winch, made for 3D Model of Car Carrier.

Model is ready to be used in 3D Printing, Design, CNC..


All models are preprinted in order to get highest quality possible.

Model is simplified for printing.


Length: 20.62mm

Width: 9.38mm

Height: 12.52mm

Includes OBJ and STL file.


A hydraulic winch is powered by a hydraulic system. This means that hydraulic winches use fluid power to work which utilizes hydraulic systems and a motor pump between the generator set and the winch. Hydraulic winches were built to withstand big jobs and were designed with plenty of power to handle all heavy-duty jobs.A standard hydraulic winch uses fluid, typically oil, to perform properly. It utilizes fluid power using a hydraulic system and a motor pump between the generator and the machine. The power steering pump creates a pressure that transmits the power through the pressure inside the oil. Sometimes, a motor is not enough to perform a heavy job, so you can complete the winch with a gearbox. Gearboxes connect the winch and the cables that carry the load. Usually, a winch’s motor does not have any speed options. Because you cannot change the speed, the gearbox allows you to use custom speeds for your job.A basic hydraulic winch comes with a low or high-speed motor. They have a closed multi-disc brake, a support shaft, a drum, and a planetary gearbox. There is also a clutch, which is an optional part. The drum usually holds the brake and the planetary gearbox. The motor has a large starting torque and is extremely efficient. Depending on the job you can connect to different distributors. You can also incorporate valves into the oil distributor if needed.

Item rating
0 0
PM Hydraulic Winch
Royalty Free License
PM Hydraulic Winch
Royalty Free License
Response 100% in 14.0h
3D Modeling
3D Print Modeling
Low-poly Modeling
Hire me

3D Model formats

Format limitations
  • Stereolithography (.stl) (4 files)7.86 MB
  • OBJ (.obj, .mtl) (4 files)30.2 MB

3D Model details

  • Publish date2023-06-09
  • Model ID#4558756
  • Ready for 3D Printing
