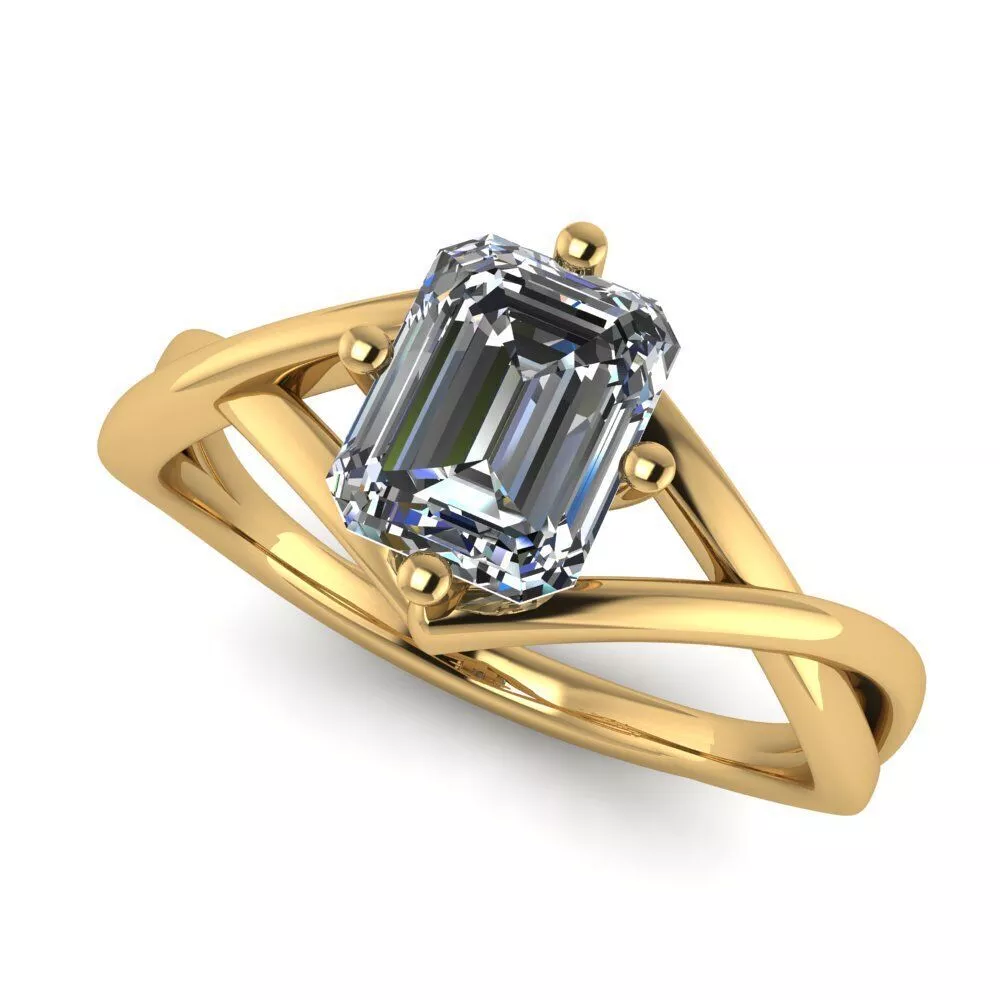

Main DescriptionThis professional-grade jewelry CAD asset features a sophisticated solitaire engagement ring design characterized by an emerald cut center stone held in a secure four-prong setting. The architectural highlight of the model is a fluid, intertwined bypass split-shank that seamlessly integrates with the basket layout. This design maximizes structural durability while maintaining an elegant, continuous profile, ensuring that the final physical piece offers excellent balance and comfort on the finger.

Engineered strictly according to modern jewelry manufacturing constraints, the model guarantees uniform wall thickness and optimal material distribution. The sweeping wire profiles avoid thin, brittle cross-sections, minimizing porosity risks during vacuum casting. Prongs are intentionally left elongated and upright to provide setting masters with sufficient material to seat, trim, and burnish over the emerald cut gemstone flawlessly.

The model's geometric integrity has been completely optimized and verified using industrial software. All contact zones between the bypass shank and the central basket are completely booleand and unified. This strict engineering approach ensures a reliable transition from digital file to high-resolution resin or wax 3D printing, eliminating the casting failures common with unoptimized models.

Technical SpecificationsRing Size: US 6.5 / Inside Diameter: 16.92 mm

Gemstone Configuration: 1 Center Stone | Cut: Emerald Cut (Step Cut) | Dimensions: 6.50 mm x 5.00 mm | Total Weight: 0.95 tw

Setting Type: Classic 4-Prong Setting

Shank Architecture: Intertwined Bypass Split-Shank (Bottom Width: 2.00 mm | Profile Thickness: 1.60 mm to 1.70 mm)

Total Height (Base to Crown): 4.15 mm clearance above the finger line

Estimated Metal Weights:

Silver 925 Sterling: 2.23 grams

Yellow Gold 14KY: 2.77 grams

Yellow Gold 18KY: 3.32 grams

White Gold 14KW: 2.71 grams

White Gold 18KW: 3.16 grams

Platinum PLAT: 4.33 grams

Quality Control: The mesh geometry has been thoroughly processed and verified through Materialise Magics. It is certified 100% watertight with zero naked edges, zero inverted normals, and no overlapping intersections, guaranteeing failure-free 3D printing and precise casting.

Files Included in .RAR ArchiveNative CAD Format: .3dm (Rhinoceros source geometry preserves curves, history, and editability)

Interchangeable Formats: .stl (High-density, closed polygon mesh optimized for immediate 3D printing slicing), .obj, and .fbx (Clean topology with standard material mapping)

Render Asset File: A dedicated, organized .3dm file with pre-assigned shading materials and render layers optimized for quick V-Ray or MatrixGold product rendering

Technical Documentation: High-resolution screenshots showing wireframes, clean bounding boxes, exact dimensions, and orthopedic views exported from Rhinoceros and Materialise Magics for production planning

Custom Design & Freelance ServicesAs an experienced professional jewelry CAD designer, I specialize in developing manufacturing-ready digital assets under strict mechanical tolerances. If you require specialized modifications to this file (such as ring resizing, altering prong configurations for alternative stone dimensions, or adjustments for specific metal shrinkage coefficients), please contact me directly. I am currently open to custom design commissions, comprehensive collections development, and long-term freelance contracts for international manufacturers and boutique retailers.
