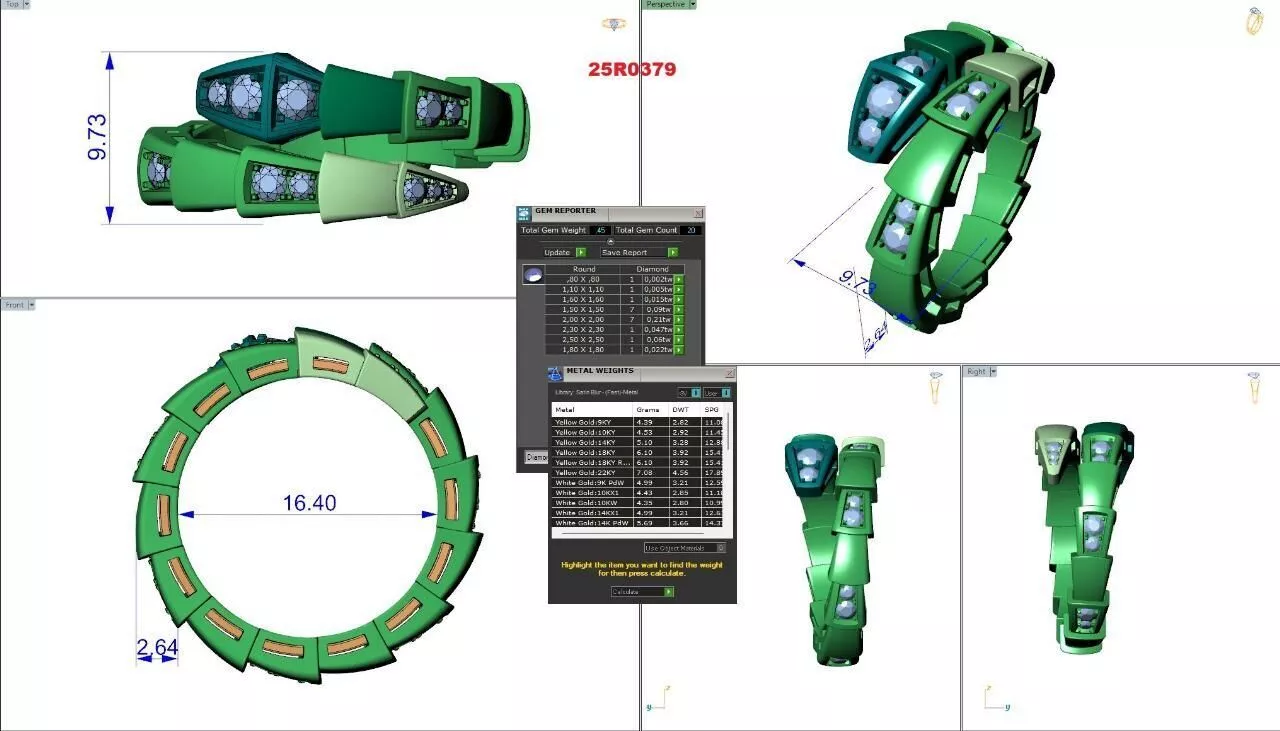

A segmented profile defines this articulated serpent ring, which achieves flexibility through a series of hinged links. The ring is constructed from distinct components—a head, a tail, and two sets of seven repeating body segments—each featuring faceted top surfaces with flush-set round stones. This modular CAD asset provides the individual patterns necessary for 3D printing and investment casting, allowing for size customization by altering the number of links in the assembly. The base model is configured for a 16.5mm inner diameter and requires a 1.6 x 0.65mm steel core for articulation.

GemsBased on the provided stone report, this model requires a total of 18 stones, with a total carat weight of approximately 0.45 ct.

Type: Round DiamondSetting: Flush / Bead Set

• Quantity: 1 (one), Size: 2.50mm
• Quantity: 1 (one), Size: 2.30mm
• Quantity: 2 (two), Size: 2.00mm
• Quantity: 1 (one), Size: 1.80mm
• Quantity: 7 (seven), Size: 1.60mm
• Quantity: 2 (two), Size: 1.10mm
• Quantity: 2 (two), Size: 1.00mm
• Quantity: 2 (two), Size: 0.80mm

Dimensions

• Outer Width: 9.73 mm
• Shank Height (at bottom): 2.64 mm
• Base Inner Diameter: 16.5 mm (Corresponds to approx. US Size 6)
• Required Steel Core: 1.6 mm x 0.65 mm
• Core Length (for base size): 67 mm

WeightEstimated weights for the base size (16.5mm inner diameter) as provided in the design file:

• Yellow Gold 14K: 1.7 g
• Yellow Gold 18K: 1.9 g
• White Gold 14K: 1.5 g
• White Gold 18K (Palladium): 1.7 g
• Platinum (90% Iridium): 2.6 g
