Premium Jewelry Pendant Bails 3D CAD Model Collection – 5 Elegant Styles for Jewelry Manufacturing
*** All Files Types Include

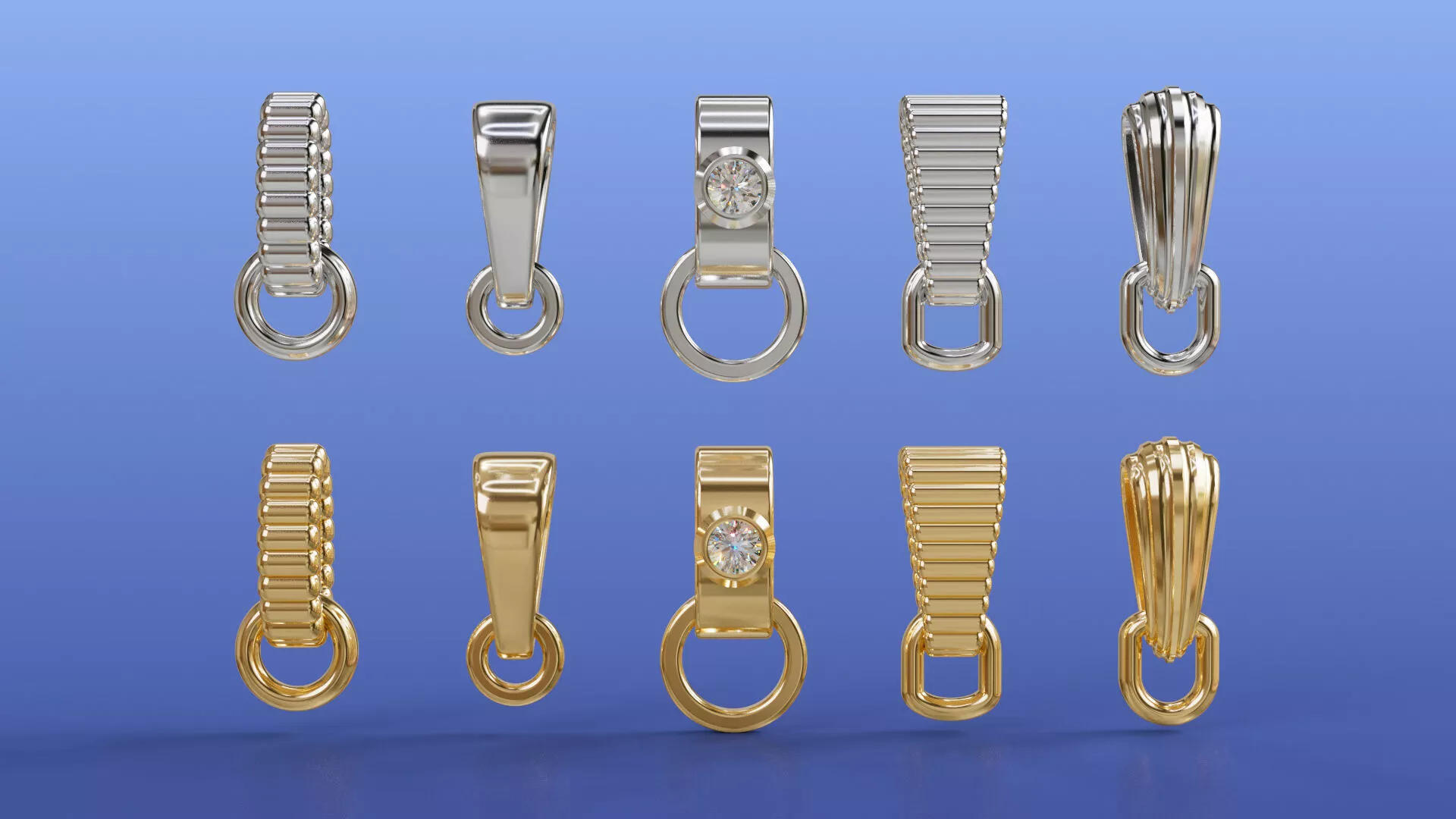

DescriptionAbout the DesignThis premium 3D CAD collection features five uniquely styled jewelry pendant bails designed to elevate any custom necklace or charm project. As showcased in the realistic color renderings of 217 3dm.jpg and 217 B.jpg, the set offers a versatile array of aesthetics to match diverse consumer tastes. The collection includes a classic horizontal ribbed bail, a sleek and minimalist smooth tapered bail, a modern bezel-set gemstone accent bail, a bold geometric tiered ribbed bail, and a highly sophisticated fluted Art Deco-style fan bail. Available in options that render beautifully in yellow gold, white gold, and rose gold, these essential findings bridge the gap between your custom pendant centerpieces and high-end chains.
About the 3D ModelingEngineered specifically for professional jewelry CAD designers and 3D modeling enthusiasts, this asset pack guarantees clean topology and precise tolerances. As illustrated in the perspective wireframe breakdown of 217 bail parts - (8).jpg, each style is expertly constructed with independent upper loops and bottom connecting jump rings for seamless modification and movement simulation. According to the technical drafting specifications visible in 217 bail parts - (9).jpg, the bails are meticulously proportioned with heights varying from 4.50 mm to 5.20 mm and top widths ranging from 1.40 mm to 2.40 mm. Additionally, the middle accented style is built with a pre-cut bezel setting configured for a single round accent stone measuring exactly 1.20 mm x 1.20 mm, as verified by the native software's gem data panel in 217 bail parts - (10).jpg.
About ManufacturingThis downloadable bundle is completely optimized for direct manufacturing workflows, including 3D printing (SLA/DLP) and traditional investment casting. The digital files are provided in multiple versatile extensions—such as native Rhino .3dm, .stl, and .obj—ensuring total compatibility with industry-standard slicing softwares and manufacturing setups. Jewelers can confidently estimate material costs before production, thanks to the thorough pre-calculated density metrics featured in 217 bail parts - (1).jpg, 217 bail parts - (11).jpg, 217 bail parts - (12).jpg, 217 bail parts - (13).jpg, and 217 bail parts - (14).jpg. These spreadsheets outline the precise gram weights across multiple popular alloys, including 9K to 18K white gold, rose gold, and .925 sterling silver, ensuring lightweight yet highly durable outcomes.
About SalesExpand your digital inventory and streamline your custom design studio workflow by purchasing this all-in-one jewelry finding 3D asset bundle on your favorite 3D stock websites. Perfect for bench jewelers, independent CAD designers, and large-scale jewelry manufacturing firms, this package eliminates the time spent modeling everyday structural components from scratch. By purchasing this asset, you receive production-ready files that guarantee error-free printability and casting results, giving you a competitive edge and allowing you to deliver finished goods to your clients faster than ever.
