Emerald Cut Bezel Pendant – 4 Sizes Set with Gemstone Bail Accent | 3D Jewelry CAD Model for Pendants & Necklaces
*** All Files Types Include
Design Overview

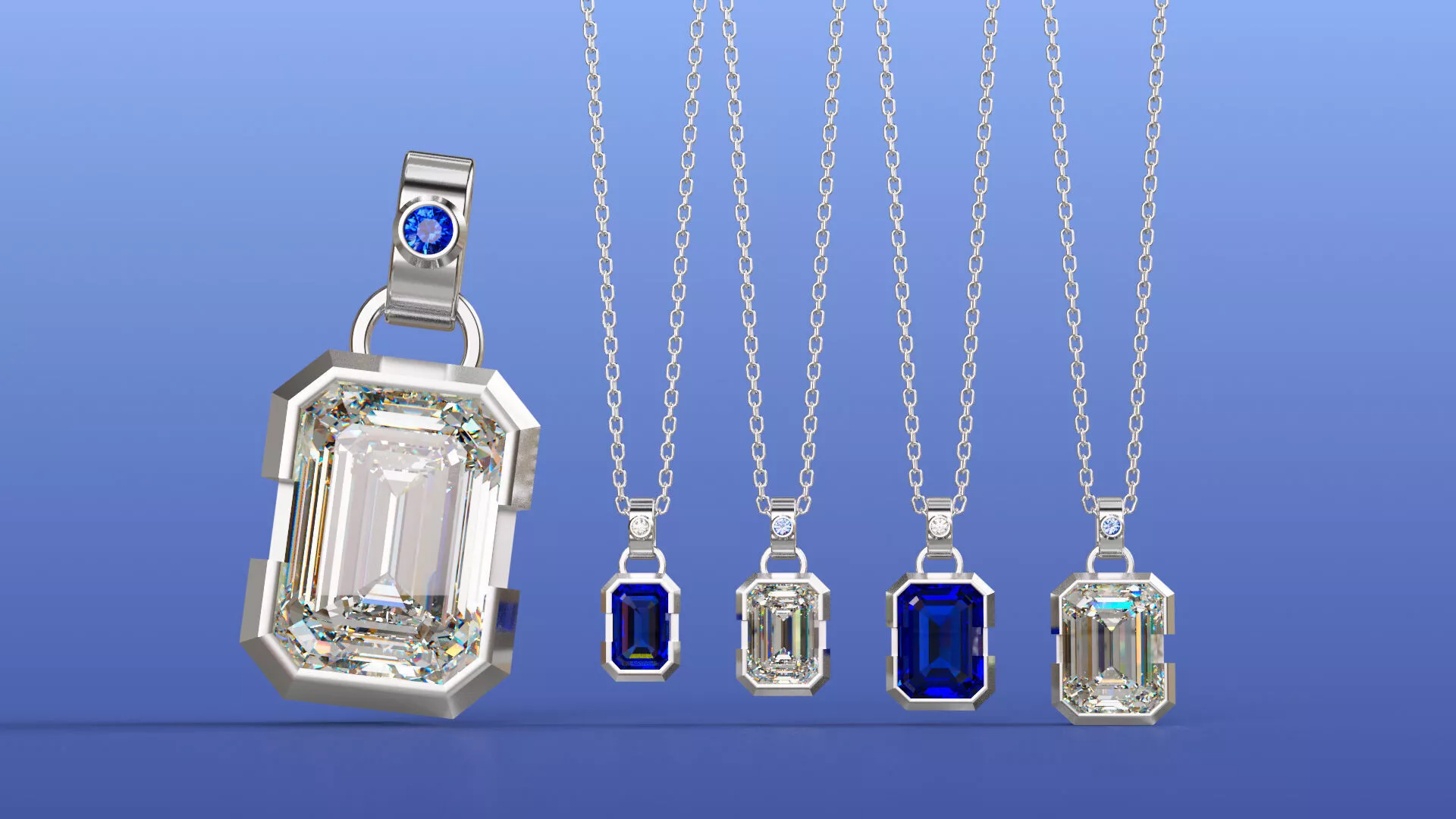

This listing features a classic emerald-cut bezel pendant, thoughtfully engineered as a complete set of four graduated sizes: 4x6mm, 5x7mm, 6x8mm, and 7x9mm. Each pendant showcases a step-cut emerald shape center stone held securely within a sleek, faceted bezel setting with distinctive notched corner detailing that adds a modern, architectural edge to a timeless silhouette. A hinged bail sits above each pendant, accented with its own small round-cut gemstone, tying the accent stone color into the overall design. The pendants are shown rendered in both yellow gold with emerald center stones and white metal with diamond and sapphire center stones, demonstrating the versatility of the design across metal and gemstone combinations. The clean lines, symmetrical proportions, and graduated sizing make this file well suited for solitaire pendants, layering necklace sets, birthstone collections, and gift-ready everyday jewelry lines.
3D Modeling Details
The design was modeled with precision using industry-standard jewelry CAD software, with full attention to wearability, stone security, and manufacturability. Gemstone data has been generated and verified using a professional gem reporting tool, confirming a total gem weight of approximately 5.82 carats across 8 stones: four emerald-cut center stones (9x7mm, 8x6mm, 7x5mm, and 6x4mm) totaling approximately 5.81tw, plus four round accent stones at 1.20x1.20mm totaling approximately 0.026tw. Metal weight calculations have been run across a full range of alloys, including white gold (9K–18K, PdW and standard alloys), yellow gold, rose gold, sterling silver, platinum, and palladium, giving buyers accurate reference weights for costing and quoting before production. The file includes clean, printable wireframe geometry, accurate bail hinge construction, and properly seated bezel walls for each stone size, all verified in perspective, front, and technical dimensioned views.
Manufacturing Information
This CAD file is manufacturing-ready and suitable for both traditional lost-wax casting and direct 3D metal printing. The bezel walls, prongs, and bail structure have been designed with realistic wall thicknesses and stone-seat depths appropriate for setting natural or lab-grown gemstones, cubic zirconia, or simulants by hand after casting. The model is compatible with resin 3D printers for wax or castable resin printing, as well as direct metal laser sintering (DMLS) production, and can be scaled or resized within CAD software to accommodate custom gemstone dimensions or chain-drop preferences. Files are typically provided in formats such as 3DM, STL, and OBJ (with other formats available on request depending on the platform), making the design accessible to jewelers, casting houses, and manufacturers using a range of CAD and printing software.
Sales & Licensing Information
This 3D pendant design is offered as a digital download intended for jewelry designers, manufacturers, 3D printing services, and independent jewelers looking to expand their catalog with a ready-to-produce, market-tested pendant style. Buyers receive the full four-size pendant set, allowing for immediate use in size-run production or curated collection building. The file is ideal for private label jewelry lines, made-to-order pendant shops, and print-on-demand fine jewelry businesses. As with most stock CAD files, standard commercial usage terms typically apply for resale of physical jewelry produced from the design; buyers should review the specific license terms provided by the seller or marketplace before use in mass production or resale of the digital file itself.
