Baroque Pavé Luxury — Production-Ready CAD Model for JewelersSome designs whisper.This one speaks in heritage and brilliance.

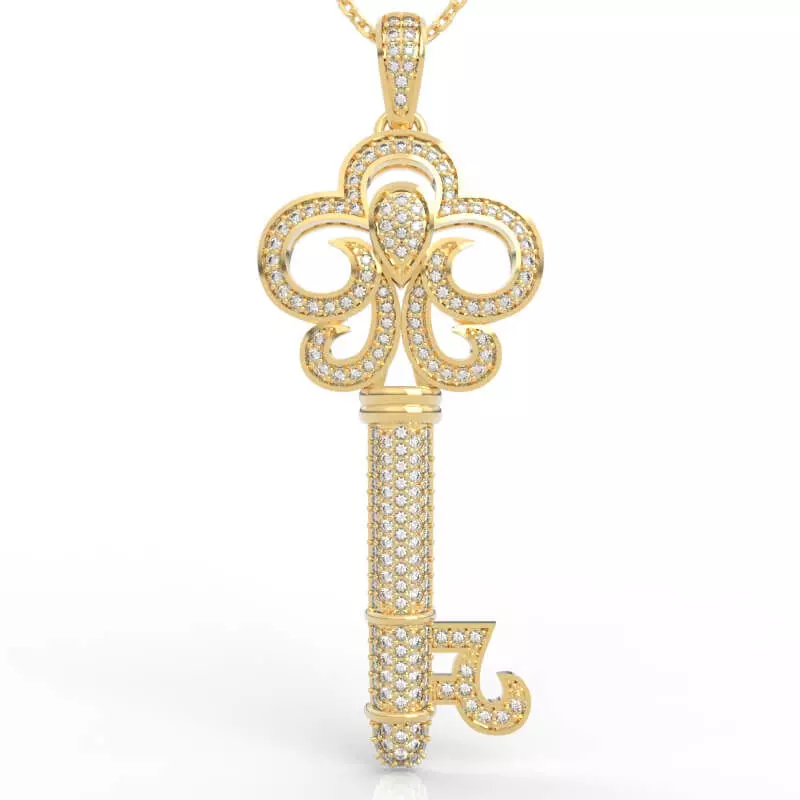

The Fleur de Lis Diamond Key Pendant Necklace 3D jewelry model merges the regal authority of the fleur-de-lis with flowing baroque scrollwork. It is not merely decorative. It is architectural.

Designed specifically for jewelry manufacturers and CAD-driven designers, this model eliminates the most time-consuming stage of custom production: rebuilding complex symmetry and pavé distribution from zero.

You receive geometry that’s already disciplined.

Design Language: French Baroque Meets Modern PavéThe key head forms a three-petal fleur-de-lis, each petal sculpted in elegant S-curved scroll lines. The interior remains openwork, creating strong negative space contrast against the pavé diamond borders.

Below the head:

A single-section thick cylindrical key shaft

Six vertical rows of pavé diamonds

Smooth metal separator rings for structural reinforcement

An “F”-shaped baroque key tooth, fully pavé set

The aesthetic blends 17th–18th century French court ornamentation with contemporary diamond saturation. It is refined—but visually powerful.

Dimensions & WearabilitySpecification MeasurementTotal Height 54.63 mm (≈ 5.5 cm)Maximum Width 20.48 mm (≈ 2.0 cm)Thickness 4.22 mmAt 5.5 cm tall, this is the tallest design in the key series.Despite its height, the 4.22 mm slim profile ensures elegant drape and balanced weight when worn on medium to heavy chains.

The tapered pavé bail aligns proportionally with the elongated silhouette, eliminating the need for resizing adjustments during production.

Diamond Configuration & Carat ConversionTotal Stones: 186 round brilliant diamonds

Stone Size Quantity Approx. Carat (Each) Estimated Total1.0 mm 136 pcs ≈ 0.005 ct ~0.68 ct0.9 mm 50 pcs ≈ 0.003 ct ~0.15 ctEstimated Total Carat Weight ~0.83 ct(Original reference total: 0.694 ct. Based on calibrated round brilliant conversion tables, production yield typically approaches ~0.80–0.85 ct depending on depth ratio.)

Pavé Structure1.0 mm stones define petal borders, central core, and full shaft coverage

0.9 mm stones refine scroll edges and curved transitions

Openwork scroll interiors framed with polished metal lines for depth contrast

Symmetrical drill map optimized for micro-pavé setting accuracy

This layout ensures efficient stone seat drilling and consistent spacing tolerance.

Included File Formats

3DM (Rhino-compatible)

STL (casting/printing ready)

Meshes are watertight. Surfaces are clean. Undercuts are controlled for reliable casting flow.

Why This Model Matters to Your WorkshopCustom CAD on a design like this requires:

Reconstructing mirrored scroll symmetry

Calibrating 180+ micro-stone placements

Adjusting pavé spacing along curved S-lines

Reinforcing openwork structures for casting integrity

That’s not creative work.That’s time leakage.

With this Fleur de Lis Diamond Key Pendant Necklace model, the structural math is already solved. You move directly to production—casting, setting, finishing.

Less CAD friction. More finished pieces.
