Floral Sparkler Cluster Pendant — Round Flower Ball Diamond & Gem Necklace (3D CAD Jewelry Design File)
*** All Files Types Include
Product DescriptionThe Design

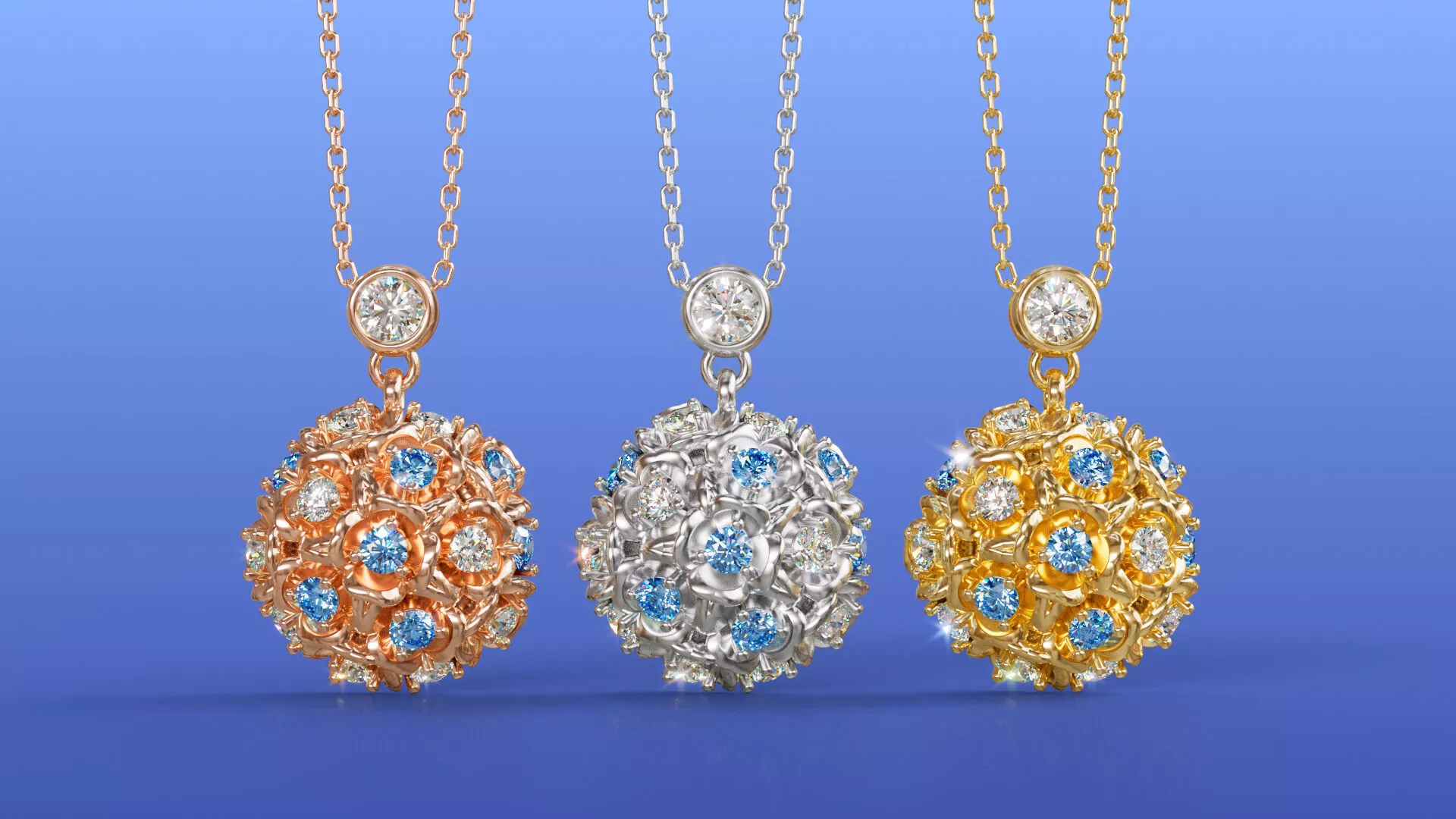

This pendant is built around a spherical flower cluster motif — a dome of interlocking rose-shaped prong settings arranged so that seventeen round stones catch the light from every angle. Sixteen accent stones alternate between crisp white round diamonds and vivid blue gems, nestled into individual floral cups, while a single larger round stone sits at the very center of the bail, held in a clean bezel setting above a delicate jump ring and cable chain. The layered, sculptural blossoms give the cluster real depth and movement rather than a flat pave surface, so the piece reads as a soft, rounded sparkler ball from every viewing angle. The design has been rendered in white gold, yellow gold, and rose gold to show how the floral detailing and gemstone contrast hold up across metal tones, making it equally suited to a refined everyday pendant or a brighter statement piece.
The 3D Modeling
The pendant is modeled as precision jewelry CAD, built with accurate prong, bezel, and bail geometry rather than a purely decorative sculpt, so every flower head, gem seat, and connecting link is production-correct. Gem placement was verified with a gem-reporting workflow confirming a total of 17 round stones (sixteen at 2.5 x 2.5mm and one at 3.5 x 3.5mm, totaling roughly 1.10ct on a standard diamond basis), and the file has been checked for wall thickness, undercuts, and stone-seat depth to keep it castable and printable at scale. Full technical documentation is included: labeled orthographic views, a scaled dimension drawing (16.00mm pendant diameter, approximately 8.00mm depth/profile, 3.50–4.50mm bail width, 5.00mm bail height), and multiple shaded and wireframe perspective renders so buyers can inspect the flower cluster construction from the front, side, and back before committing to production. Metal-weight calculations are also provided across a range of alloys, giving manufacturers a reliable starting point for costing before scaling the design.
Manufacturing
The design is manufacturing-ready for both traditional lost-wax casting and modern 3D-printed wax/resin workflows, with prong and bezel walls sized to survive casting, polishing, and stone setting without distortion. Reference metal weights are supplied for a wide range of alloys — 9K, 10K, 14K, and 18K white gold (including palladium white variants), sterling silver (.925 and Continuum), and 10K rose gold, with yellow gold easily added using the same base geometry — giving jewelers an immediate reference for material cost estimates before a single piece is cast. The stone layout (2.5mm rounds with a 3.5mm center/bail stone) follows standard commercial gem sizing, so sourcing melee diamonds, sapphires, topaz, or lab-grown alternatives for the blue accents is straightforward, and the floral prong cups are built to standard setter tolerances for hand or machine setting. Because the geometry is clean and NURBS/mesh-verified, the file also scales reliably for matching earrings, rings, or bracelet components should a manufacturer want to extend it into a full collection.
Sales & Licensing
This listing includes the complete pendant CAD file delivered in industry-standard formats — 3DM, STL, and OBJ, with additional formats (such as STEP or 3DS) available on request — so it opens cleanly in Rhino, Matrix, ZBrush, Blender, and most jewelry design or general 3D software. It is intended for jewelry manufacturers, independent designers, 3D printing and casting service bureaus, and online sellers who want a print-ready floral cluster pendant without starting the model from scratch, and it is equally suited to instant digital download shops, made-to-order production, or as a base design for custom stone and metal variations. Buyers receive a technically accurate, gem- and metal-verified file backed by full documentation (dimensions, gem report, and metal weights), reducing the guesswork and revision time typically needed before a design goes into production. As with any CAD purchase, buyers should confirm the specific usage rights (personal, commercial, or resale/redistribution) listed at time of purchase before manufacturing or reselling finished jewelry made from this file.
