Emerald Pendant – Elegant Design 3D CAD ModelProduct TitleEmerald Cut Solitaire Pendant with Pavé Diamond Bail – 3D CAD Model (258)
*** All Files Types Include
DescriptionDesign OverviewThis pendant design centers on a bold emerald-cut gemstone (10.00 x 8.00 mm) held securely in a four-prong setting, offering a clean, timeless silhouette that lets the center stone take center stage. Rising above the main stone is a sculptural, tapered bail fully accented with a mix of round pavé melee in three graduated sizes, creating a channel of texture and sparkle that transitions smoothly from the gallery into the chain. The prongs are finished with a subtle claw detail for a refined, jewelry-house quality look. Overall dimensions measure approximately 19.00 mm in length, 8.00 mm in width, and 7.75 mm in depth, making this well-suited for a classic pendant necklace in a range of finished sizes. The gem report shows a total gem weight of approximately 4.16 ct across 27 stones, combining the emerald-cut center with round melee accents, giving buyers precise specs for costing and production.
3D Modeling DetailsThe model was constructed in a professional jewelry CAD environment with fully closed, watertight, manufacture-ready geometry. Prong, bail, and pavé bead placements are modeled with accurate gemstone libraries and true-to-size seat cuts, ensuring gems sit correctly with proper depth and girdle contact. The file includes clean quad/tri topology suitable for smoothing and rendering, along with a complete gem report and metal weight table (calculated across 9K, 10K, 14K, and 18K white gold, sterling silver, and rose gold options) so buyers can estimate cost and material usage before production. Files are typically supplied in native 3DM format along with export-ready OBJ, STL, and other common mesh formats compatible with most CAD, rendering, and 3D printing software.

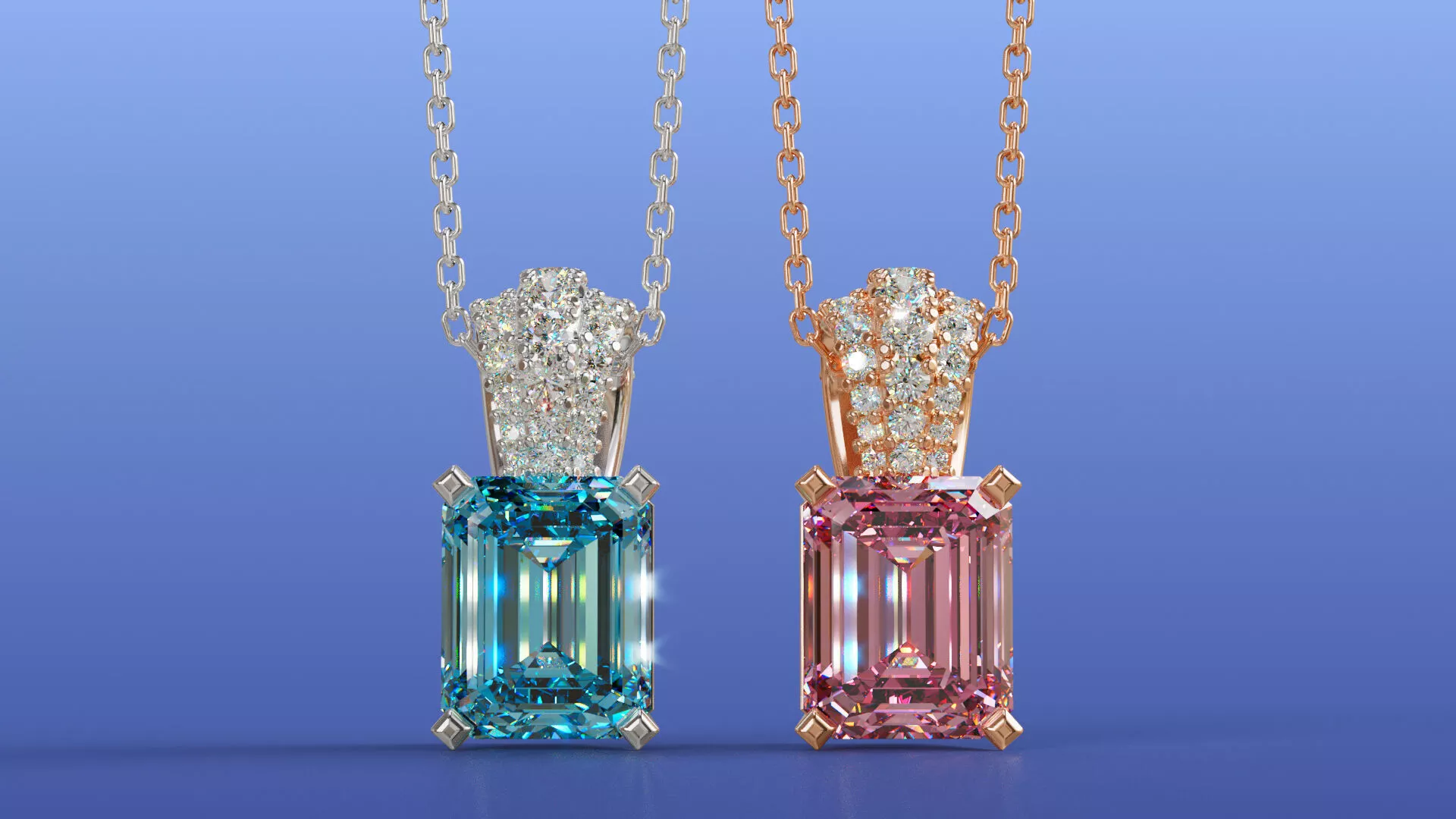

Manufacturing SuitabilityThis design is optimized for both traditional lost-wax casting and direct resin 3D printing for investment casting, making it suitable for small studios and larger manufacturing houses alike. Wall thicknesses, prong widths, and bail structure have been designed with castability in mind, reducing the risk of breakage during the casting, polishing, and stone-setting process. The pendant can be produced in a wide range of precious metals, including yellow, white, and rose gold in various karats, platinum, and sterling silver, and is adaptable to different gemstone choices such as diamond, emerald, sapphire, ruby, morganite, and topaz, as demonstrated in the accompanying colored-stone renders.9Sales & LicensingThis CAD file is offered for commercial use by jewelry designers, manufacturers, casting houses, and 3D printing services looking to add a ready-to-produce pendant design to their catalog. It is ideal for online jewelry stores, custom order businesses, and print-on-demand jewelry platforms seeking print-and-cast-ready files without the need for in-house modeling. Buyers receive a production-tested file set intended to save design time and reduce costly rework, allowing for fast turnaround from digital file to finished, sellable piece.
