Geometric Floral Mandala Pendant - 3D Jewelry CAD Model
*** Gemstones & Diamond SizeMain - Round Cut 3.0mm : 1pc
*** Estimated Gold Weight9K : 1.75g14K : 2.00g18K : 2.18g
*** All Files Types Include

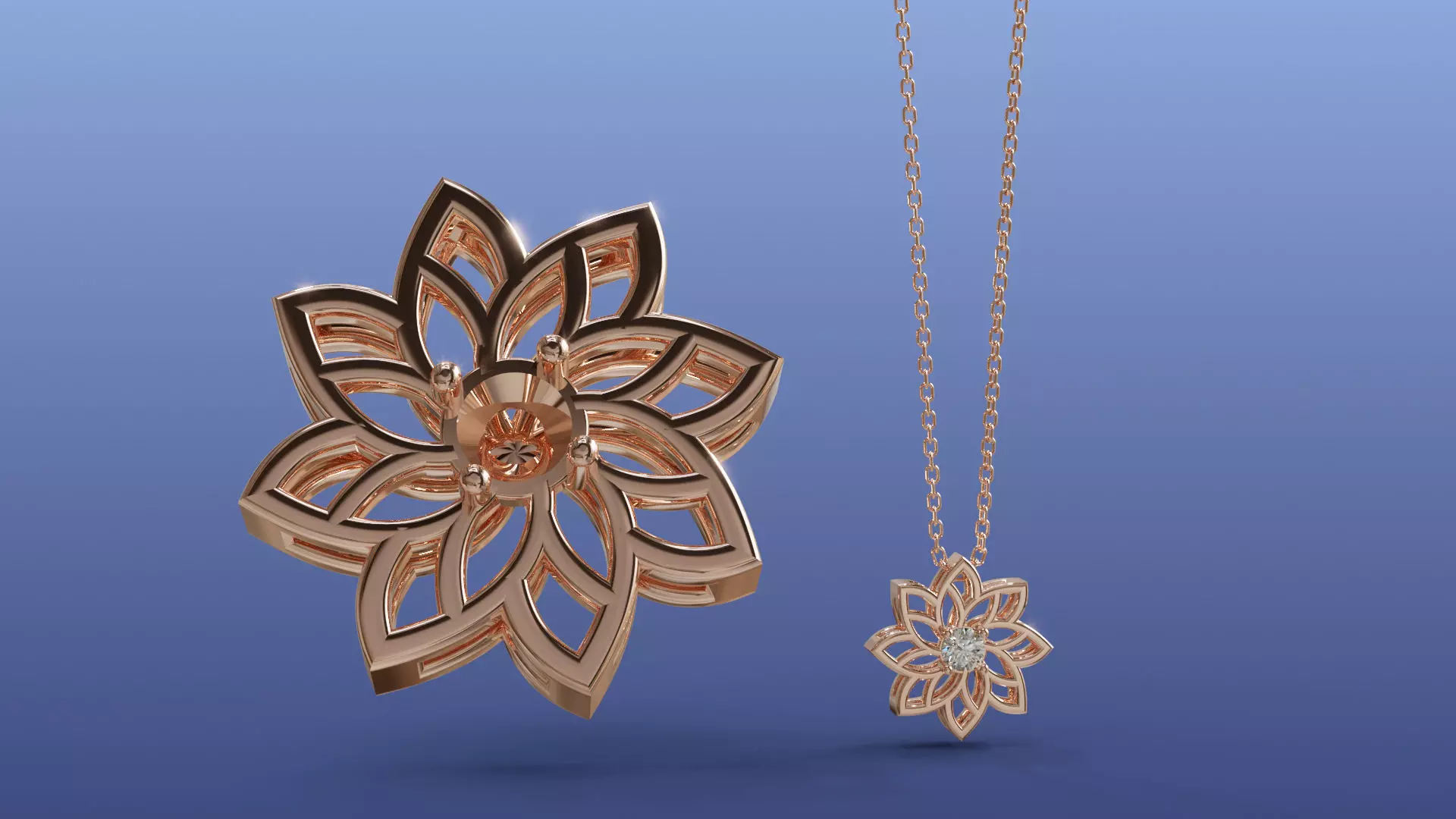

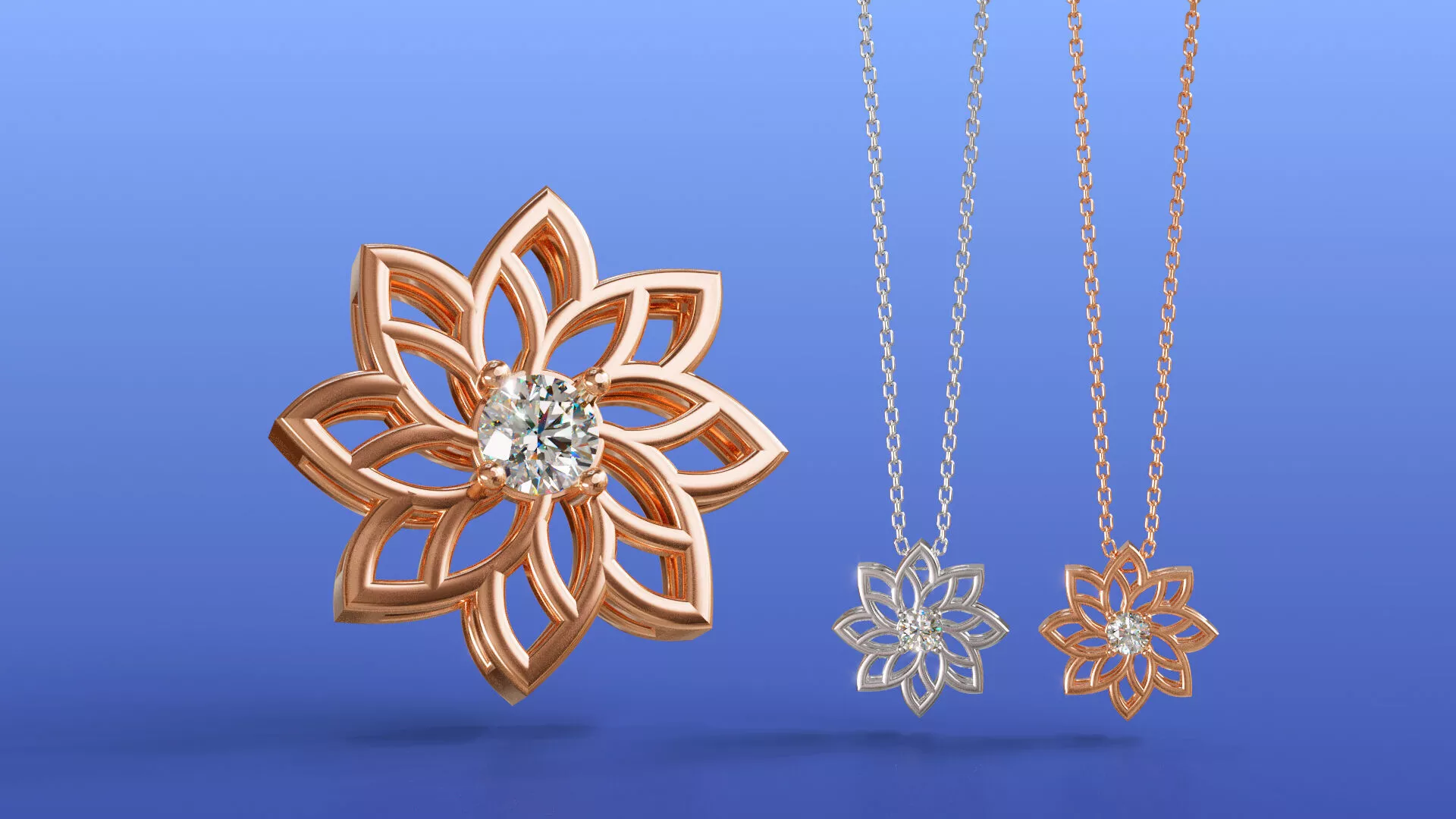

DescriptionThis high-quality 3D jewelry CAD model features a sophisticated Geometric Floral Mandala Pendant, blending organic inspiration with modern architectural precision. The design showcases an eight-petaled lotus-style motif with intricate overlapping latticework, creating a sense of depth and movement. At its heart lies a prominent 3.0mm center stone setting, held securely by four elegant prongs. This digital asset is optimized for professional jewelry manufacturing, offering a balanced aesthetic that works perfectly in yellow gold, white gold, or platinum.
Design InspirationThe design draws from sacred geometry and the timeless beauty of the lotus flower. The double-layered effect of the petals provides a bold, structural silhouette while maintaining an airy, light-catching quality through its delicate cutouts. Measuring 13mm in diameter and 4mm in depth, this pendant is designed to be a versatile statement piece—substantial enough to be noticed, yet refined enough for everyday luxury. It is an ideal choice for designers looking to offer contemporary spiritual or floral-themed collections.
3D Modeling & Technical SpecsThis model has been meticulously crafted using industry-standard jewelry CAD software to ensure manifold geometry and error-free production. The files are provided in multiple formats, including 3DM (native Rhino), STL (ready for 3D printing), and OBJ, ensuring compatibility with various rendering and modeling platforms. The stone setting is precisely calibrated for a 3.0mm round brilliant cut, and the integrated hidden bail allows the chain to pass through the structure seamlessly, preserving the clean lines of the mandala.
Manufacturing & Weight EstimatesEngineered with the jeweler in mind, the model features optimal wall thicknesses to ensure successful casting and easy polishing. The 3D CAD data includes precise metal weight estimations to assist with production planning:
14K Gold: Approx. 1.75g - 2.00g
18K Gold: Approx. 2.04g - 2.18g
Silver .925: Approx. 1.44gThe STL file is water-tight and pre-checked for high-resolution resin or wax 3D printing (SLA/DLP), minimizing the need for extensive manual cleanup after casting.
Sales & LicensingThis digital download is perfect for independent jewelers, 3D printing enthusiasts, and large-scale manufacturers looking to expand their digital catalog. Upon purchase, you receive a royalty-free license to manufacture and sell the physical jewelry produced from these files. Whether you are looking to add a new best-seller to your e-commerce store or need a high-fidelity model for a custom client presentation, this Geometric Floral Mandala Pendant delivers professional-grade results.
