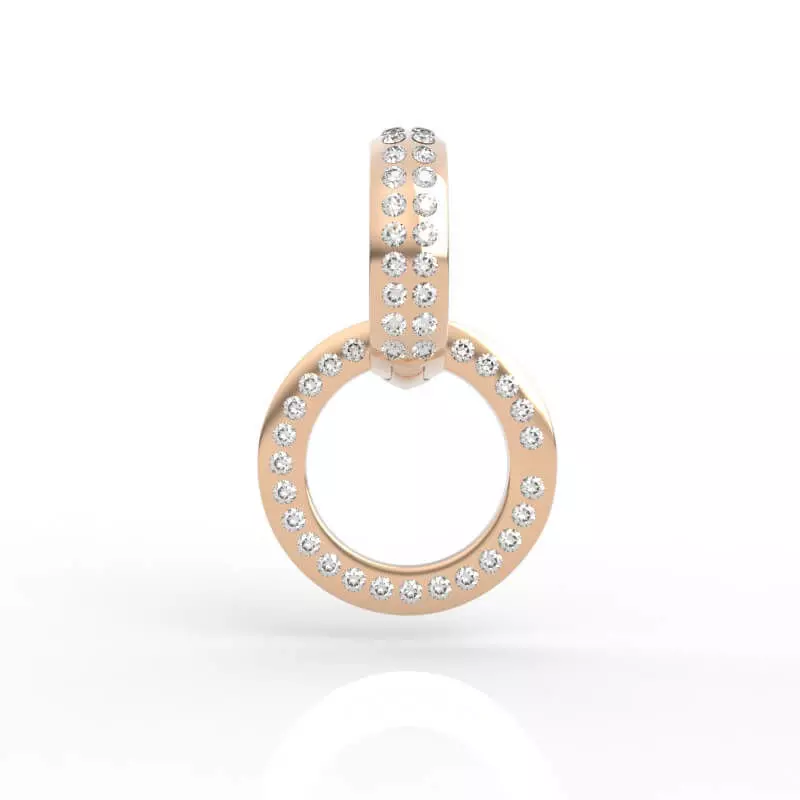

Some components hide. This one performs.The Pavé Diamond Connector elevates a functional clasp into a statement of light. Built from a perfect circular ring and a sculpted connector bar, every surface is engineered to carry brilliance—turning a practical link into a visual centerpiece for fine jewelry.

Designed for professional jewelers and jewelry designers, this Pavé Diamond Connector 3D model blends mechanical reliability with couture-level detailing. The hinge-ready joint delivers smooth articulation. The pavé geometry maximizes scintillation under studio lights and storefront spots alike. What was once “just hardware” becomes the detail clients notice first.

Dimensions & Precision StructureRing (outer diameter): approx. 9–10mm

Connector bar width: 9.91mm

Connector bar height (thickness): 6.04mm

Overall length: 16.40mm

Overall construction: Circular ring + rectangular connector with hinge

Connection port: Drilled hole on the bar for chain, cord, or jump ring

Mechanism: Articulated hinge for smooth opening and secure closure

Pavé Diamond Setting (Carat Conversion Included)Total diamonds: 46 round diamonds

Diamond size: 0.8mm each

Approx. 0.002 ct per stone (melee size)

Total diamond weight: 0.092 CT

Setting method: Pavé setting (micro pavé)

Distribution:

Ring: approx. 20–24 diamonds in a full halo

Connector bar: double-row pavé with approx. 22–26 diamonds

Design & Production AdvantagesLuxury Hardware Aesthetic

Full pavé coverage turns a connector into a signature detail

Works as a focal clasp or decorative charm

Manufacturing-First Geometry

Casting-safe wall thickness

Stone seats optimized for pavé consistency

Hinge tolerances balanced for durability and smooth movement

Versatile Applications

Necklace center clasp or rear statement closure

Bracelet toggle connector

Pendant adapter

Modular charm system

High-end DIY components

Included 3D Files

3DM

STL

Ready for CAD refinement, resin printing, and lost-wax casting workflows.
