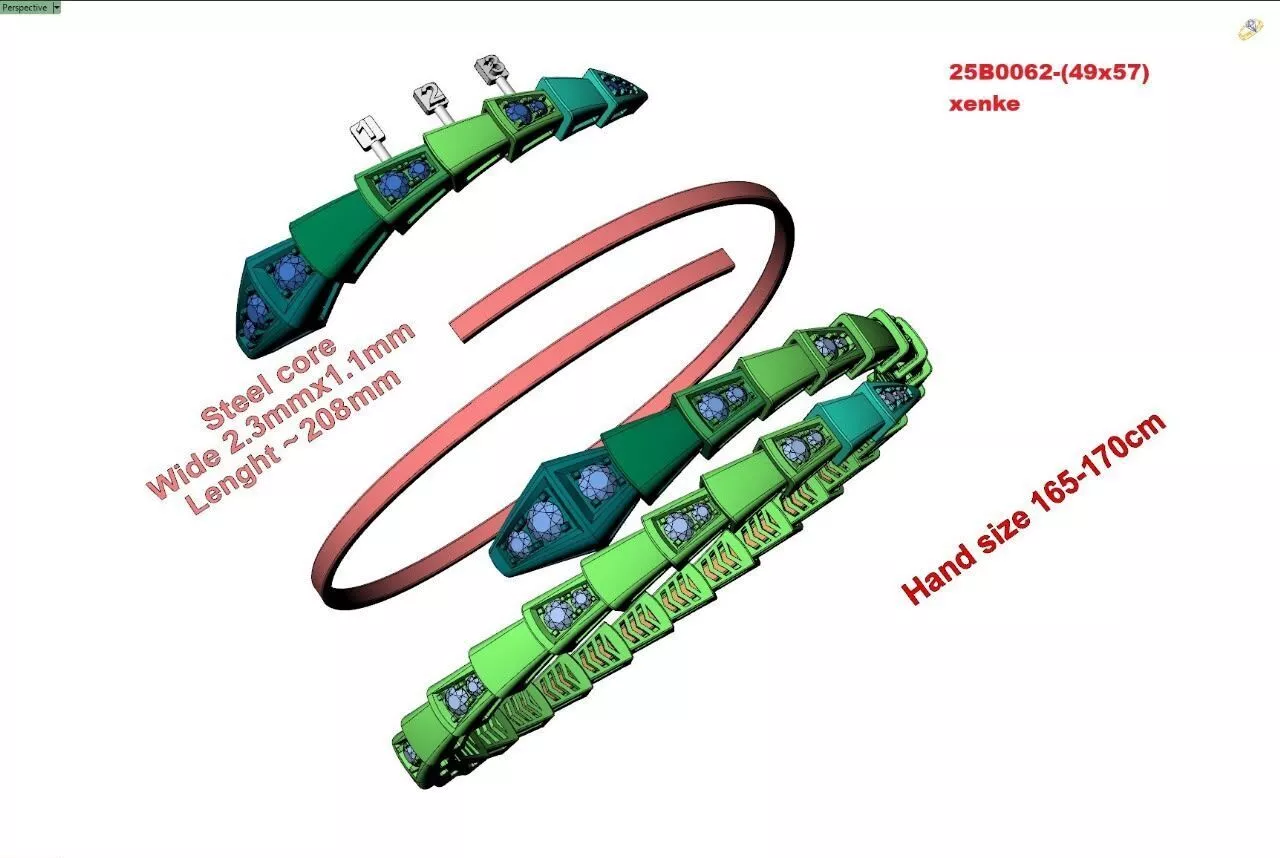

Graduated custom-cut diamonds are channel-set along the articulated spine of this serpent-form coil bracelet. The design features a series of interlocking scales that create a flexible structure, culminating in a stylized serpent head set with larger diamonds for the eyes. Smaller round diamonds accent the sides of the body segments, adding detail to the under-gallery of each scale. This detailed digital jewelry model is engineered for producing a multi-part master pattern via 3D printing, intended for assembly and investment casting.

GemsTotal Quantity: 57 (fifty-seven) Diamonds

Stone Group 1: Custom-Cut DiamondQuantity: 33 (thirty-three)Cut: Custom Kite/ShieldSetting: ChannelSizes & Weights:

• 2 stones: 4.10 x 2.90 mm (0.170ct total)
• 1 stone: 3.50 x 2.50 mm (0.058ct total)
• 13 stones: 3.20 x 2.40 mm (0.442ct total)
• 13 stones: 2.90 x 2.20 mm (0.338ct total)
• 2 stones: 2.60 x 1.90 mm (0.054ct total)
• 2 stones: 2.30 x 1.70 mm (0.042ct total)

Stone Group 2: Round DiamondQuantity: 24 (twenty-four)Cut: Round BrilliantSetting: Bead/PavéSizes & Weights:

• 22 stones: 1.50 mm diameter
• 1 stone: 1.50 mm diameter (0.015ct total)
• 1 stone: 1.30 mm diameter

Dimensions

• Inner Dimensions: 49.50 mm x 57.50 mm
• Recommended Hand/Wrist Size: 165 mm to 170 mm
• Approximate Length: 208 mm
• Maximum Height: 14.26 mm
• Serpent Head Width: 8.64 mm
• Minimum Band Width: 4.73 mm
• Internal Steel Core: 2.3 mm x 1.1 mm

WeightThe following are approximate weights for the main bracelet structure, excluding the internal steel core:

• Silver 925: 14.2 g
• Yellow Gold 9K (375): 18.5 g
• Yellow Gold 10K (417): 19.3 g
• White Gold 10K (417): 19.5 g
• White Gold 14K (585): 21.0 g
• Yellow Gold 14K (585): 22.5 g
• White Gold 18K (750): 24.0 g
• Yellow Gold 18K (750): 27.6 g
• Platinum 950: 33.4 g
