Foldable drink table 3D print model

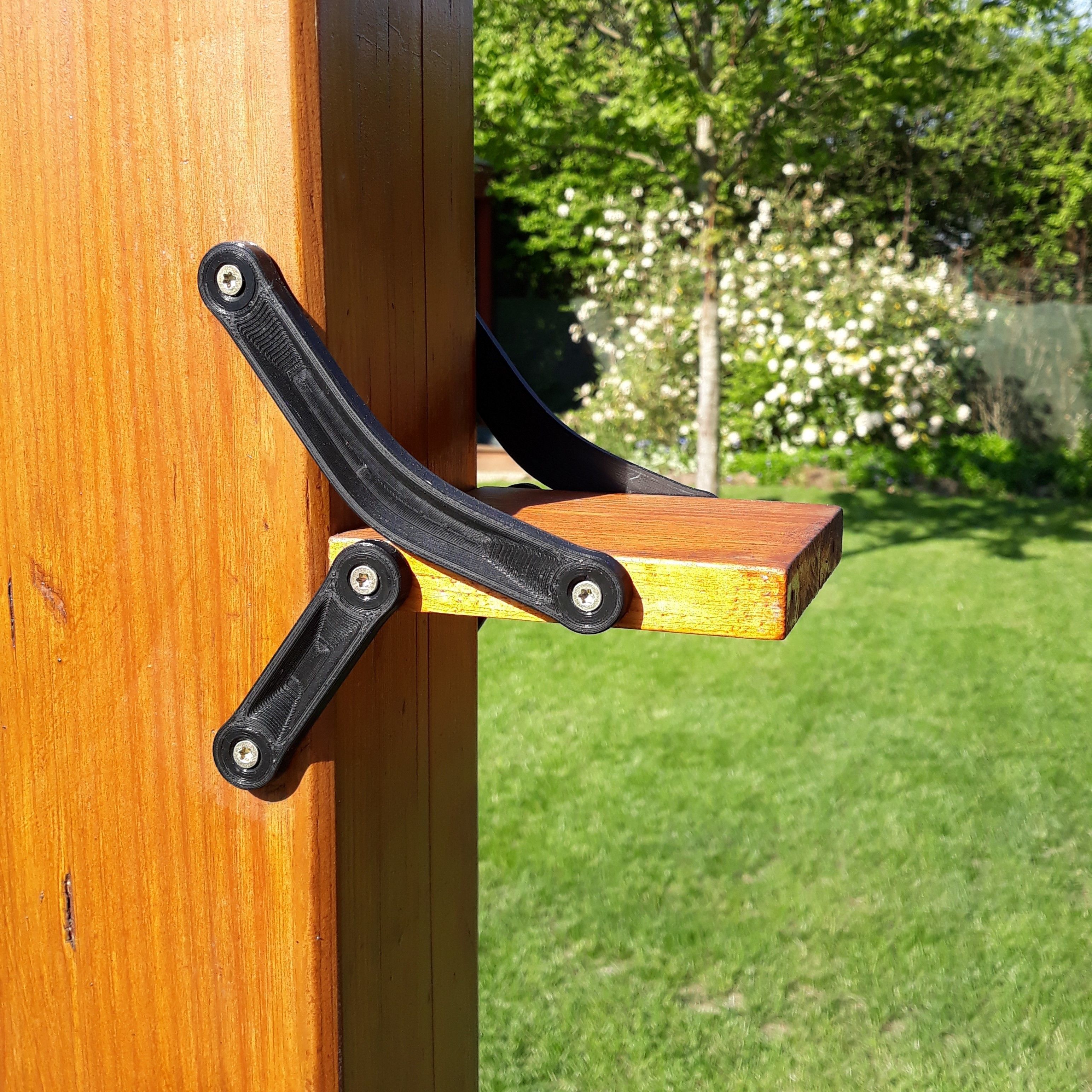

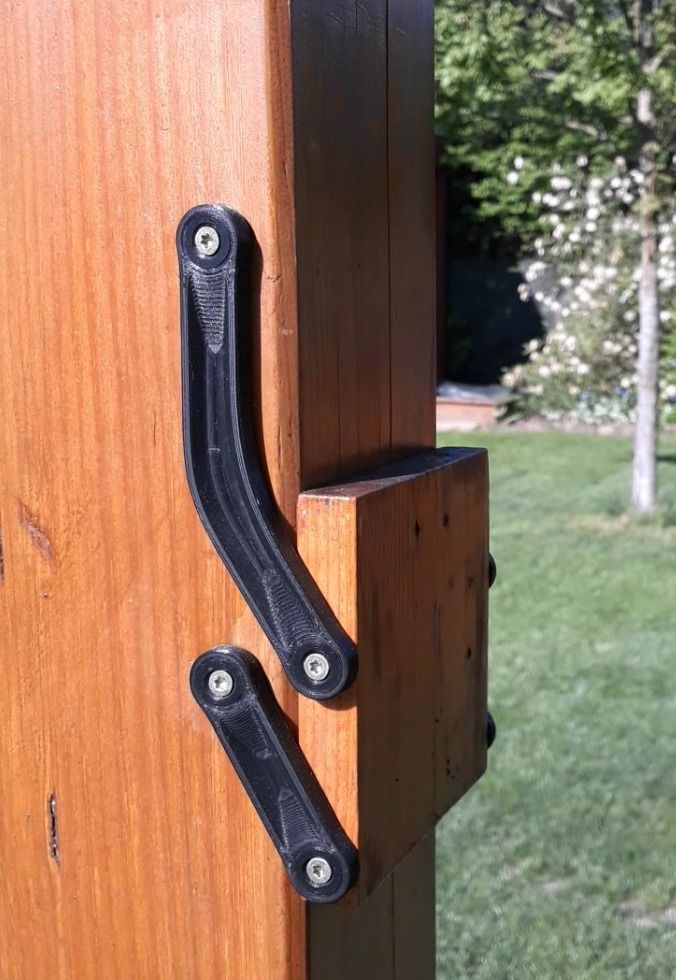

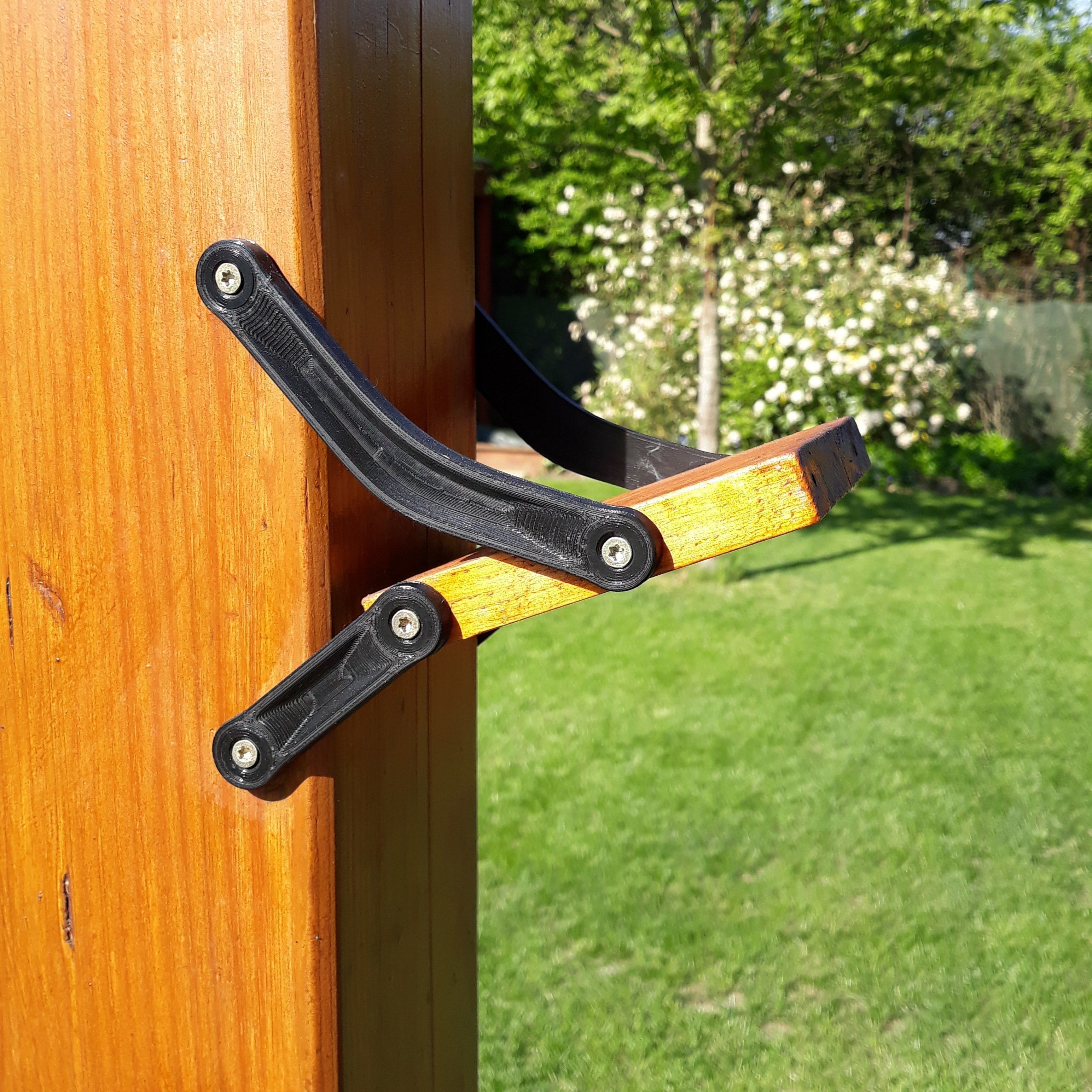

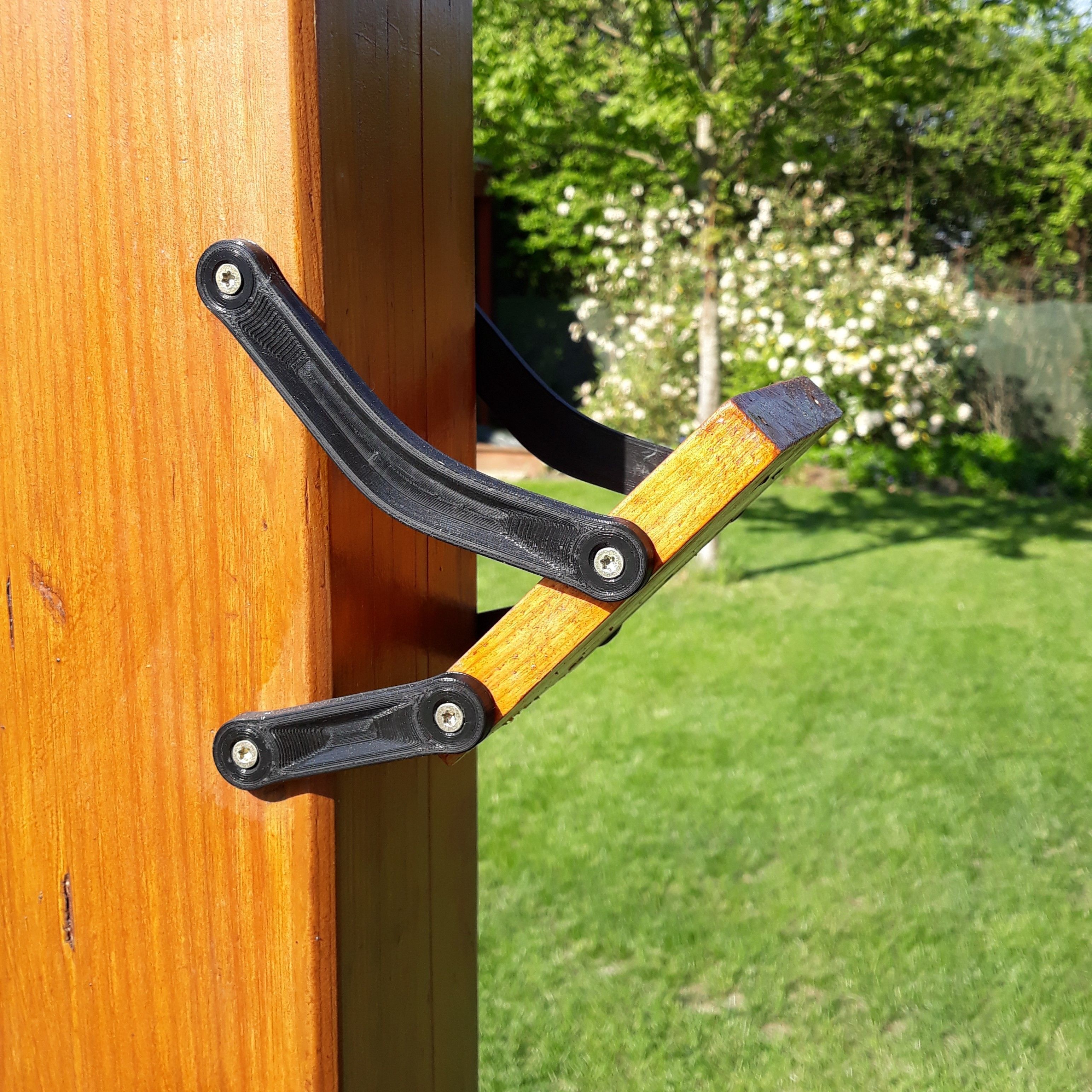

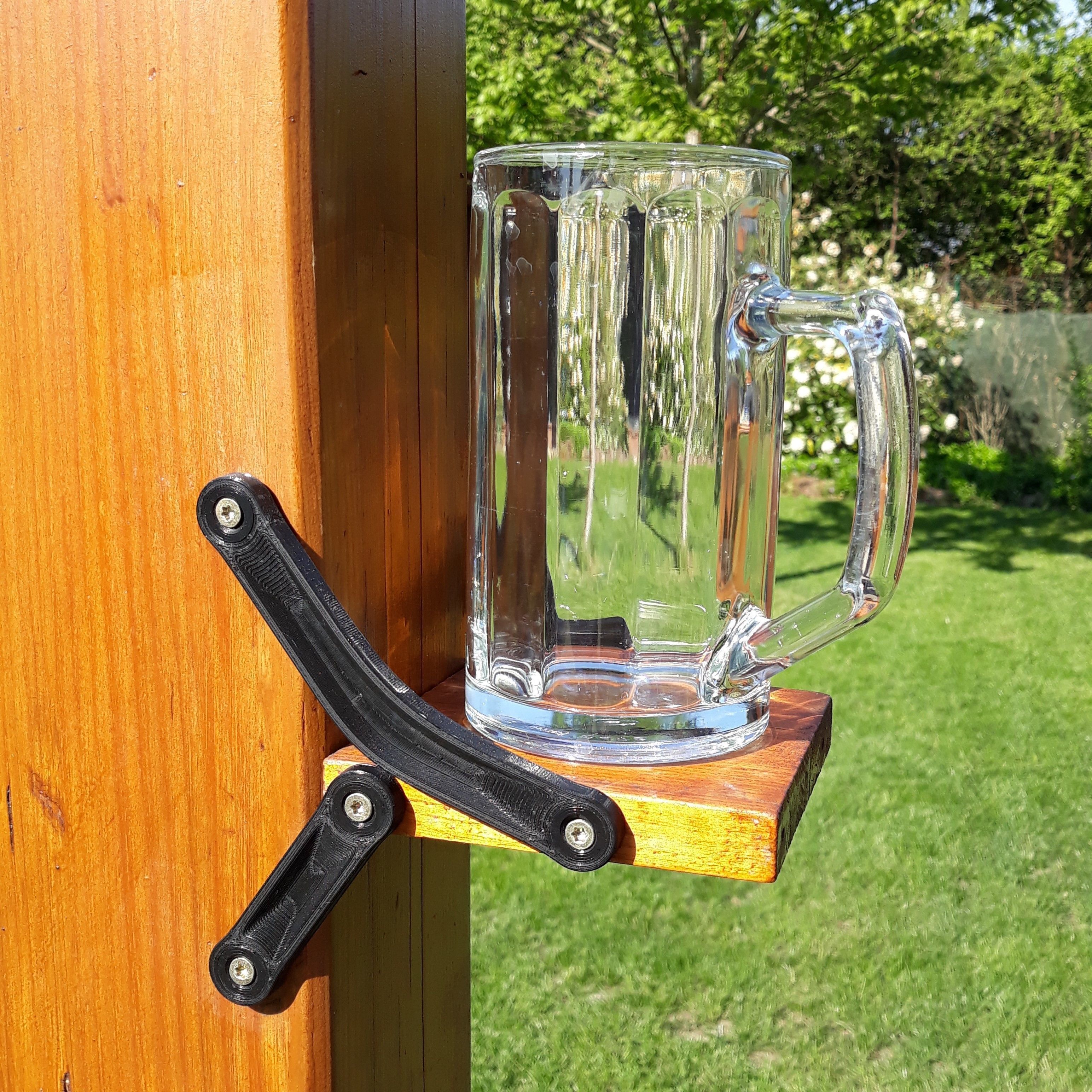

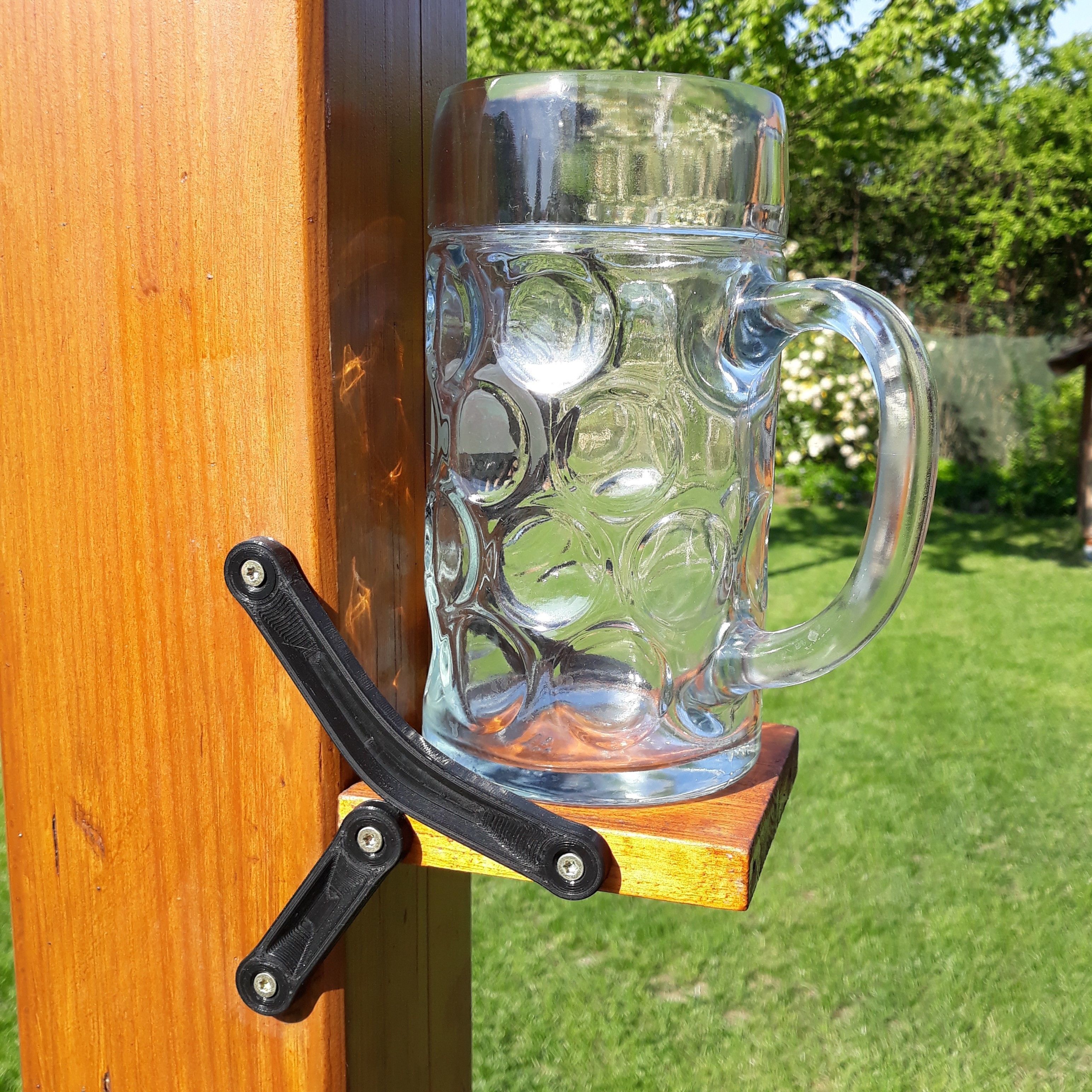

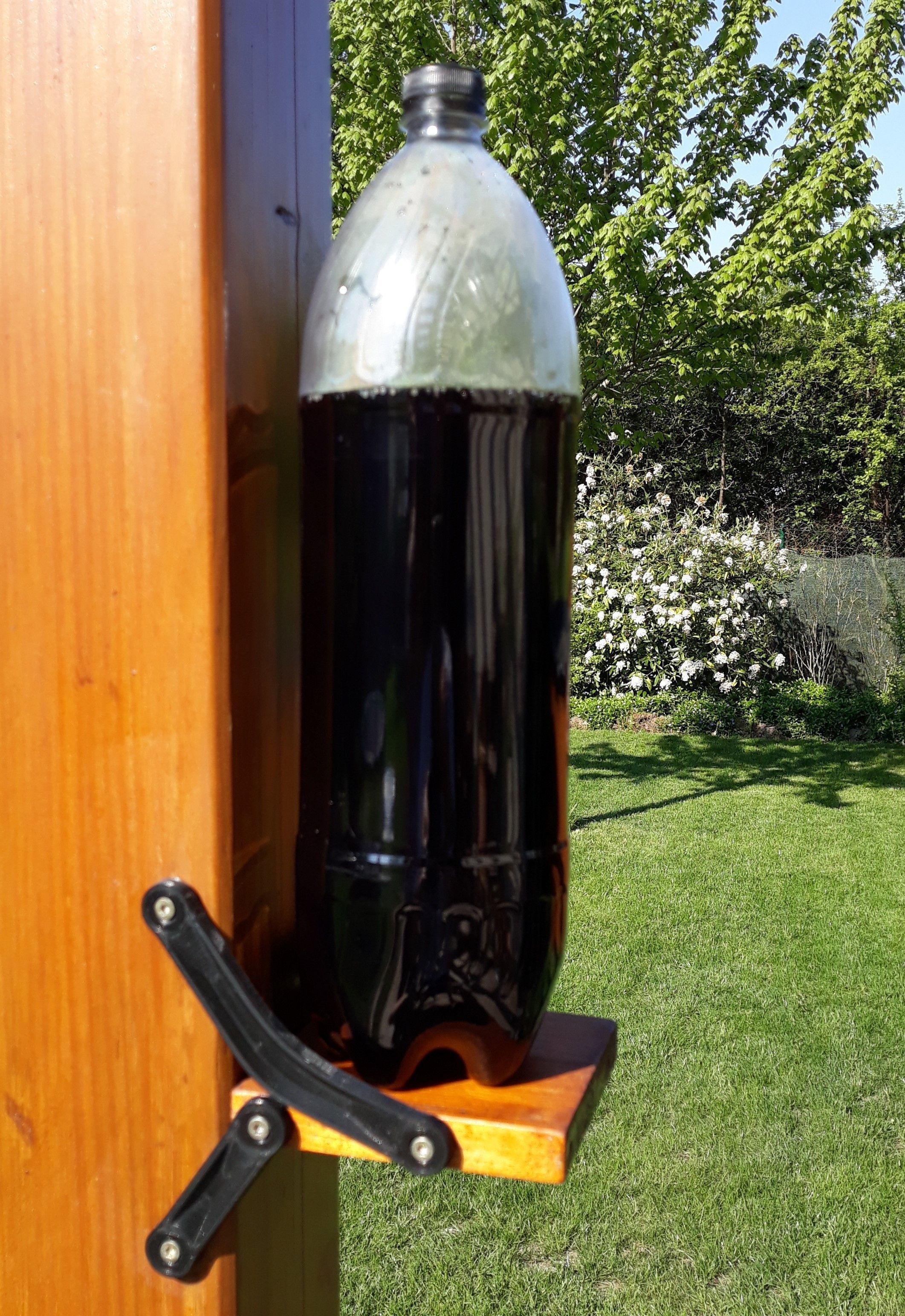

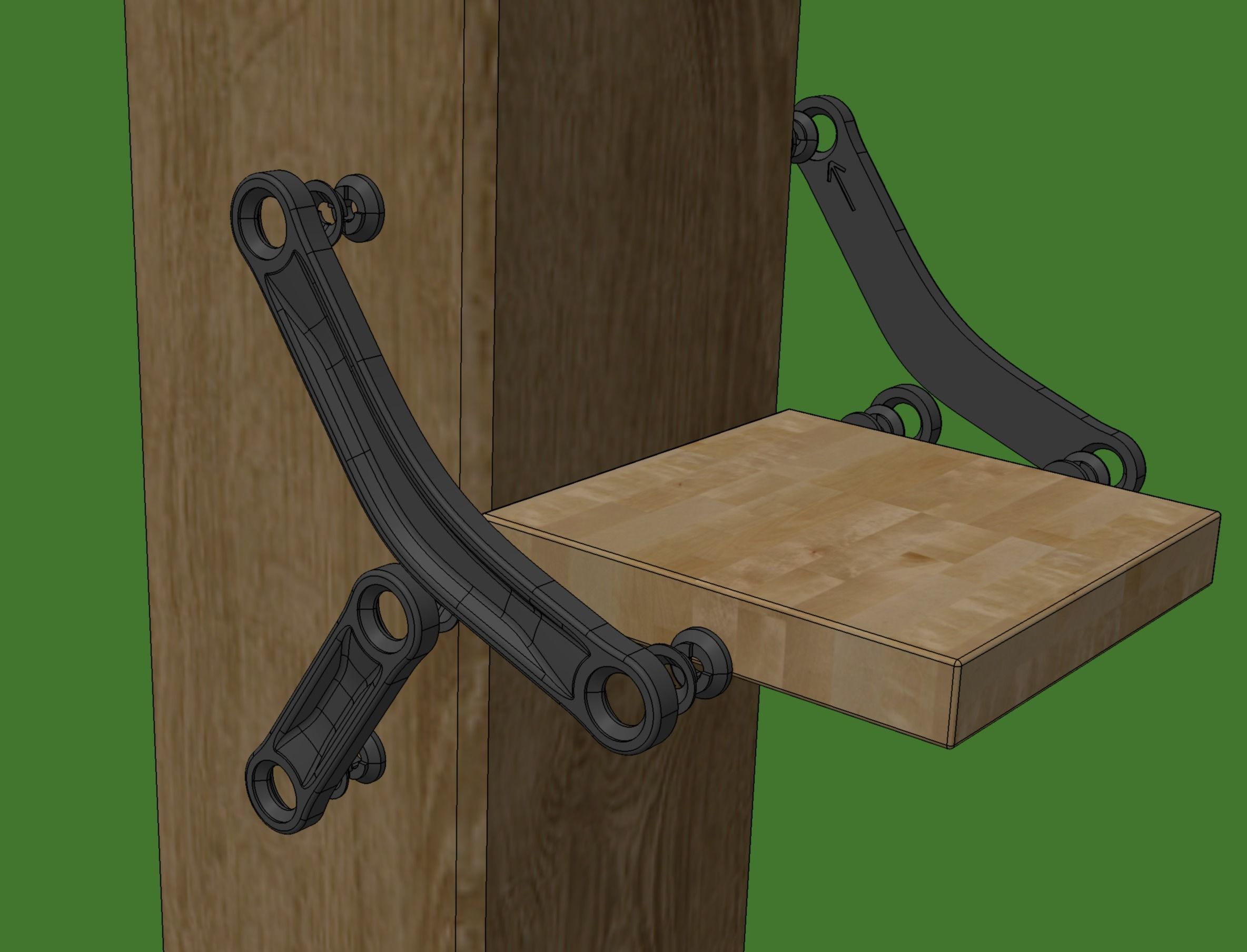

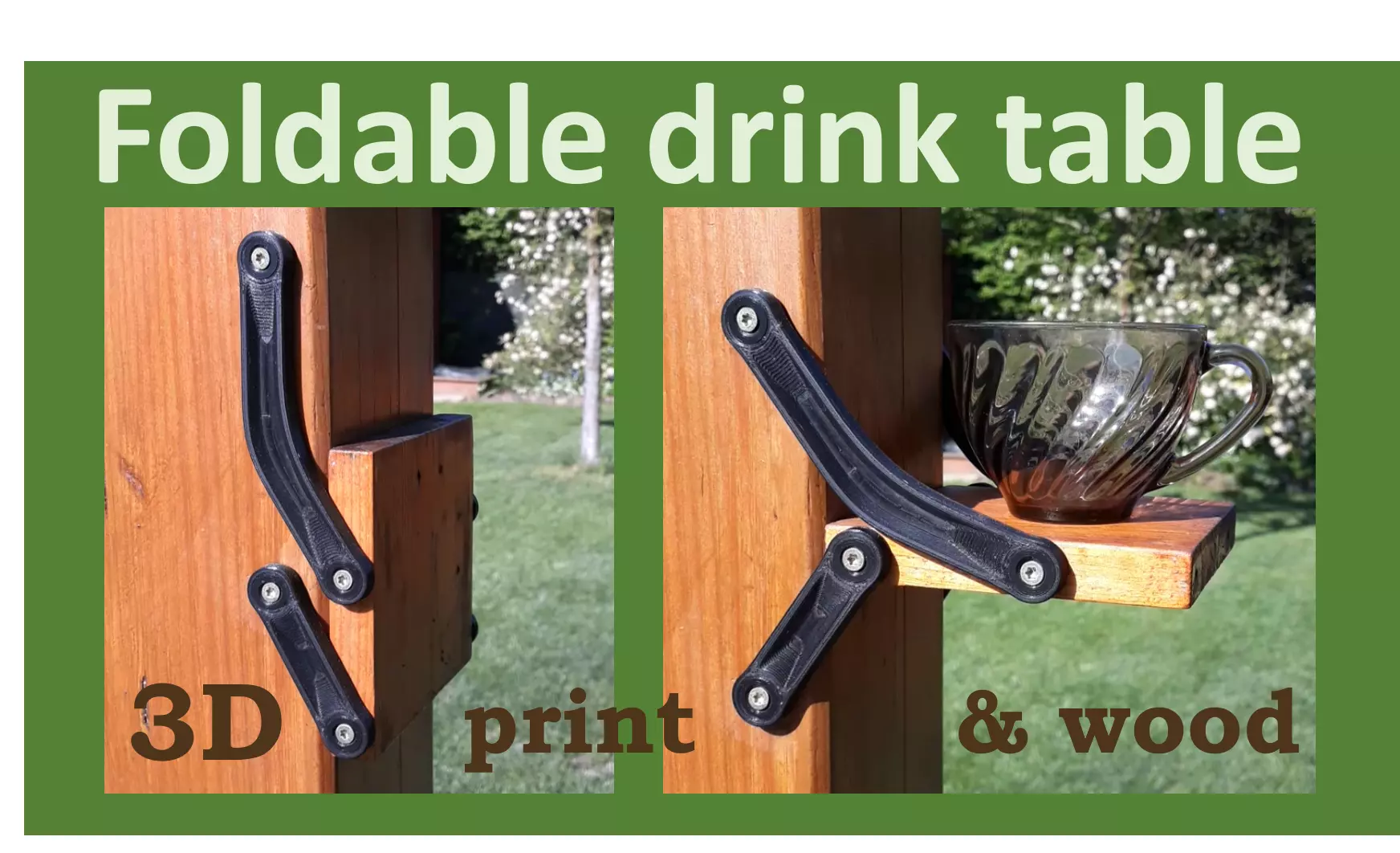

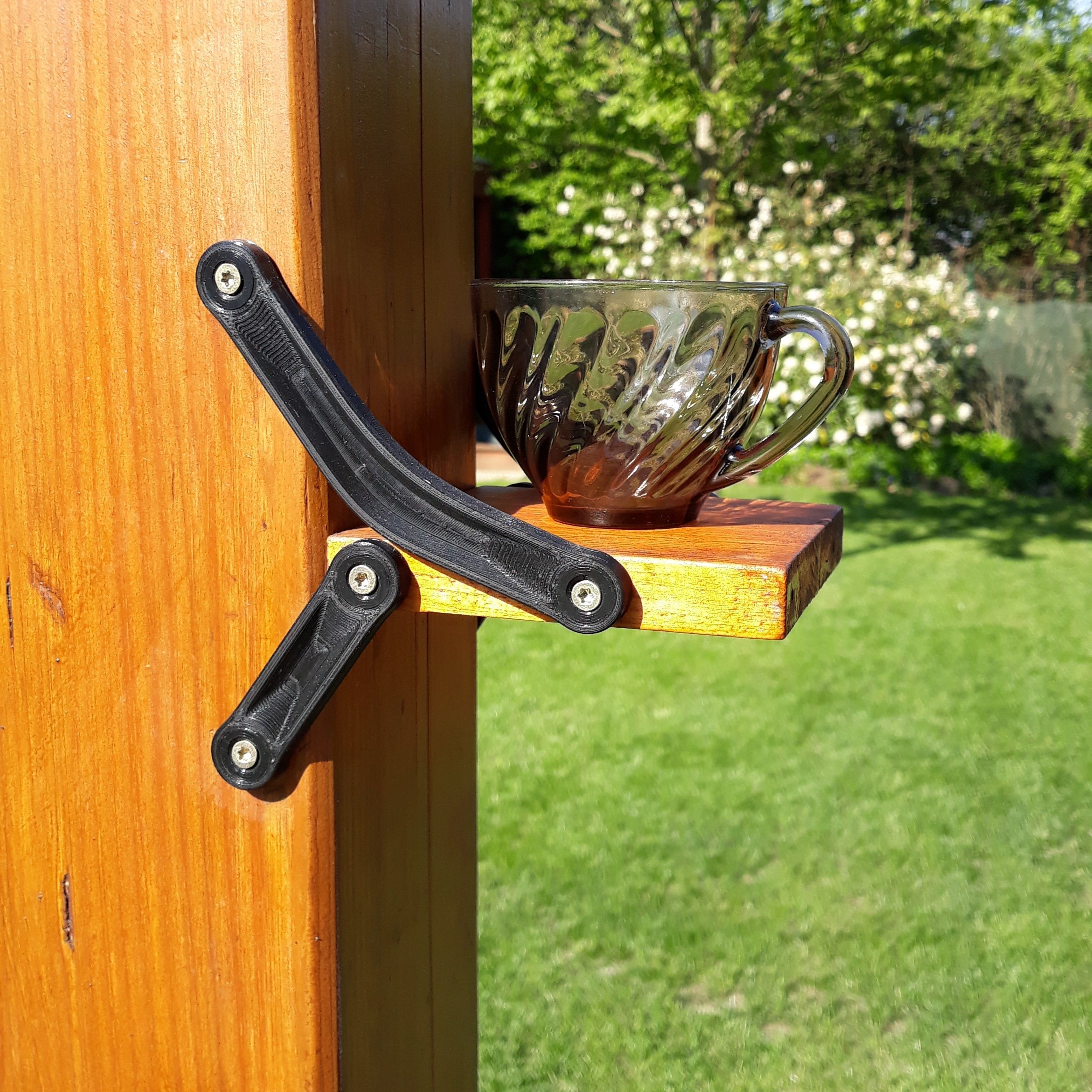

Hi, this is a model of a handy drink table that can be attached to any wooden pillar in the garden, for example on the terrace. It can be folded to the pillar so that it does not get in the way. In the ready position it is able to carry a full 2L bottle. The links, pins and jigs are 3D printed parts and then you just need 8 screws (diameter 4mm) and piece of wooden board. YT short video - https://youtu.be/DVbVd4tUmbE

Assembly:

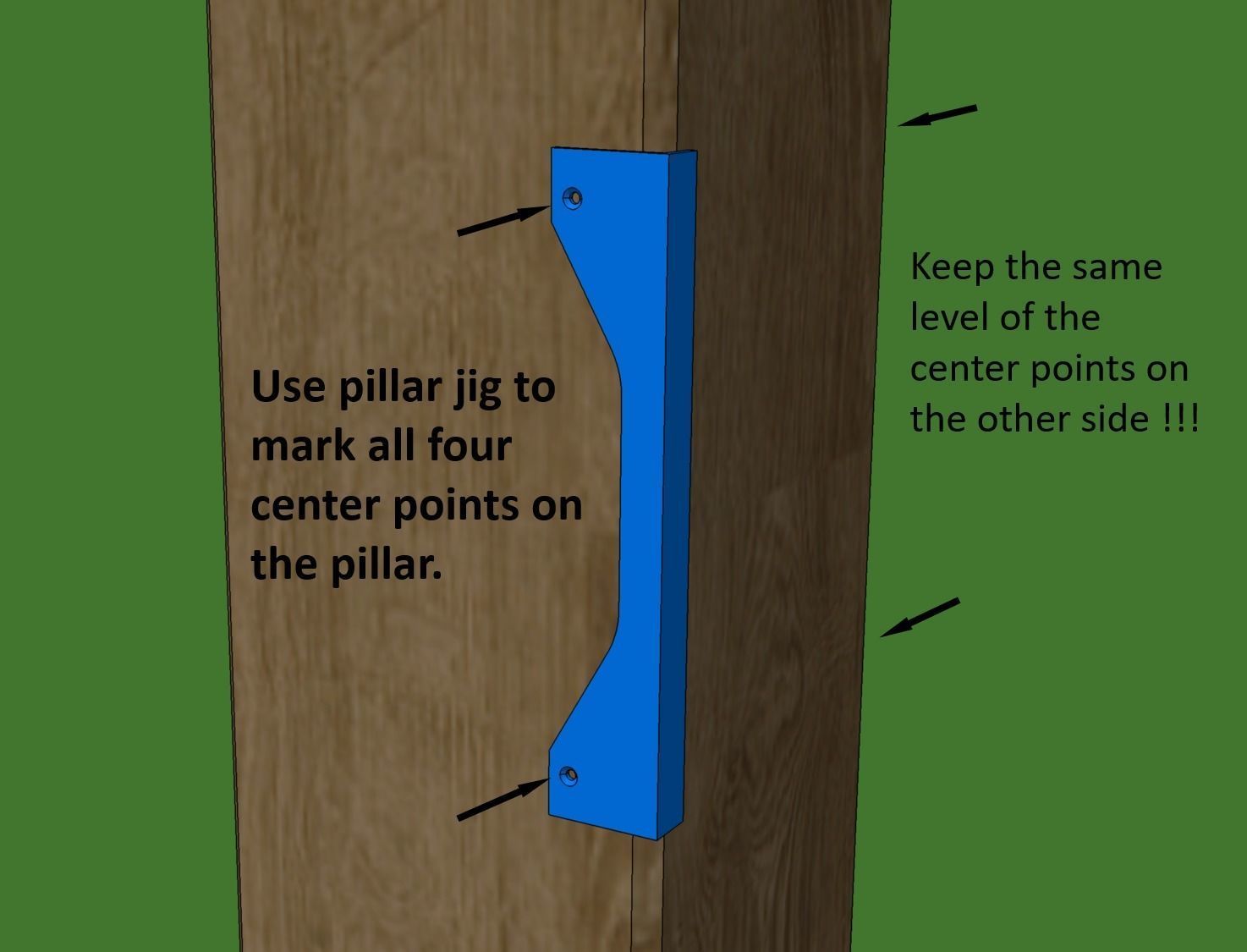

1/ Take the pillar jig and mark center points of the pillar pins (you can also drill holes about 2mm in diameter straight away). Pay attention to make it the same level on the other side.

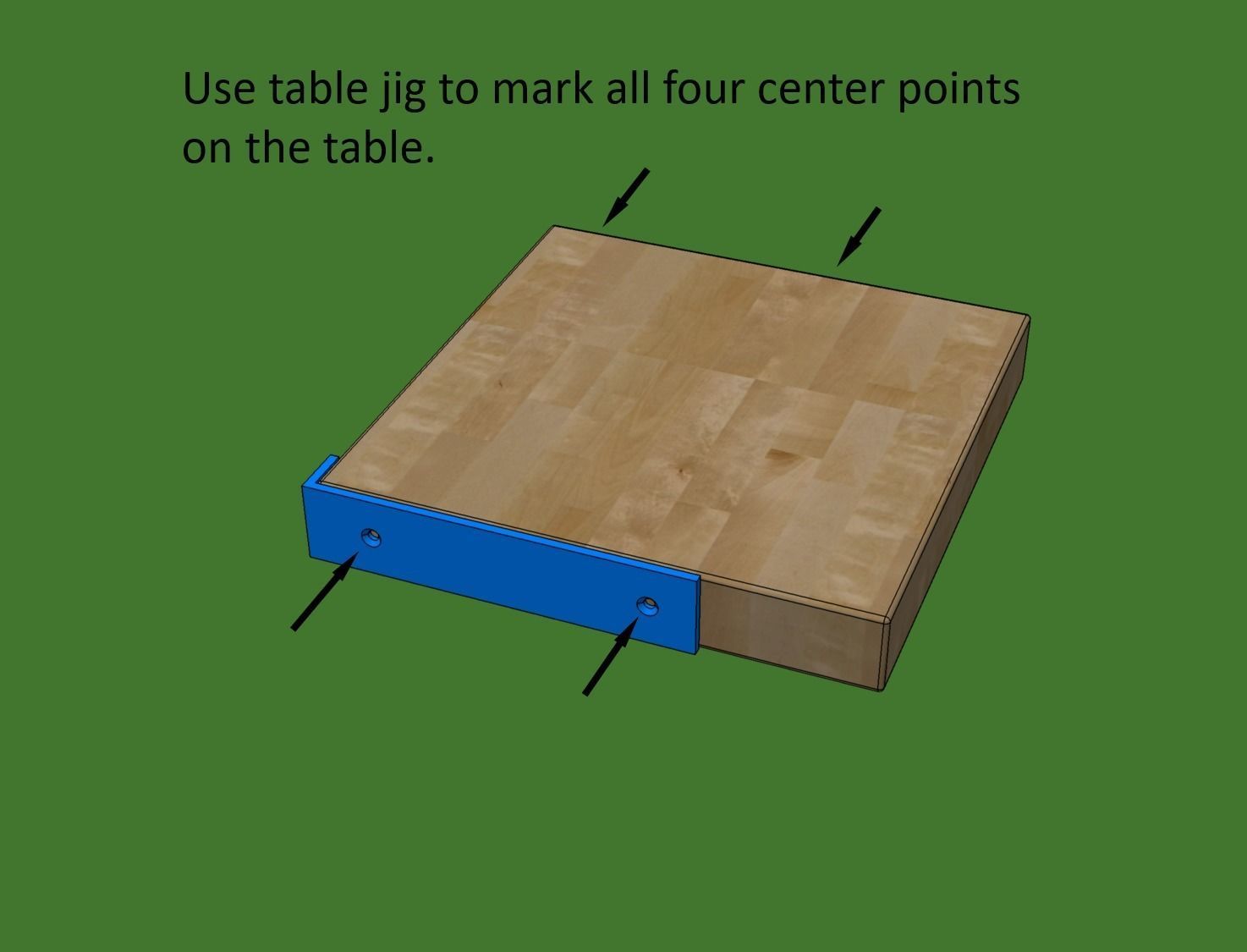

2/ Take the table jig and mark center points of the table pins (you can also drill holes about 2mm in diameter straight away). Make it also on the other side.

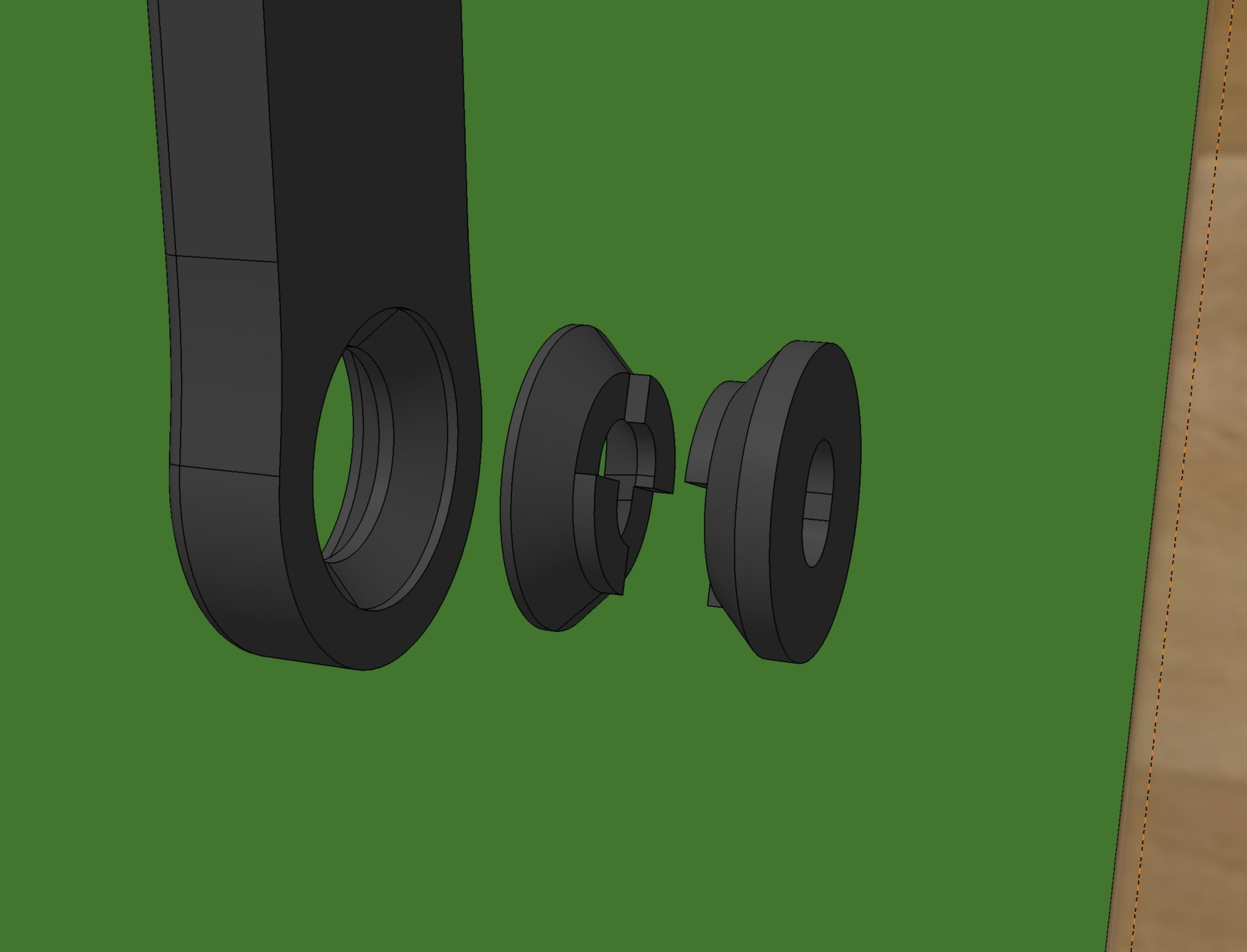

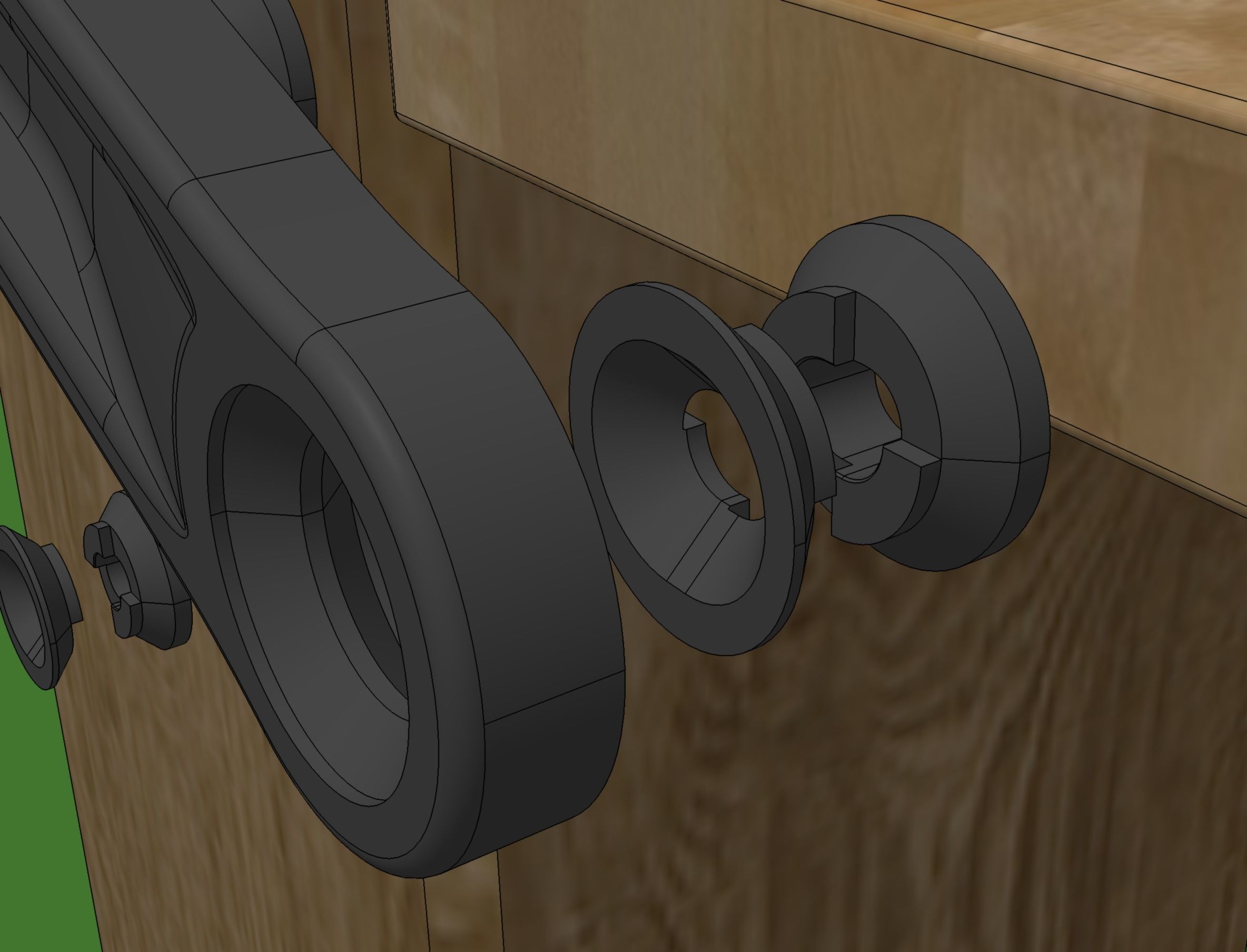

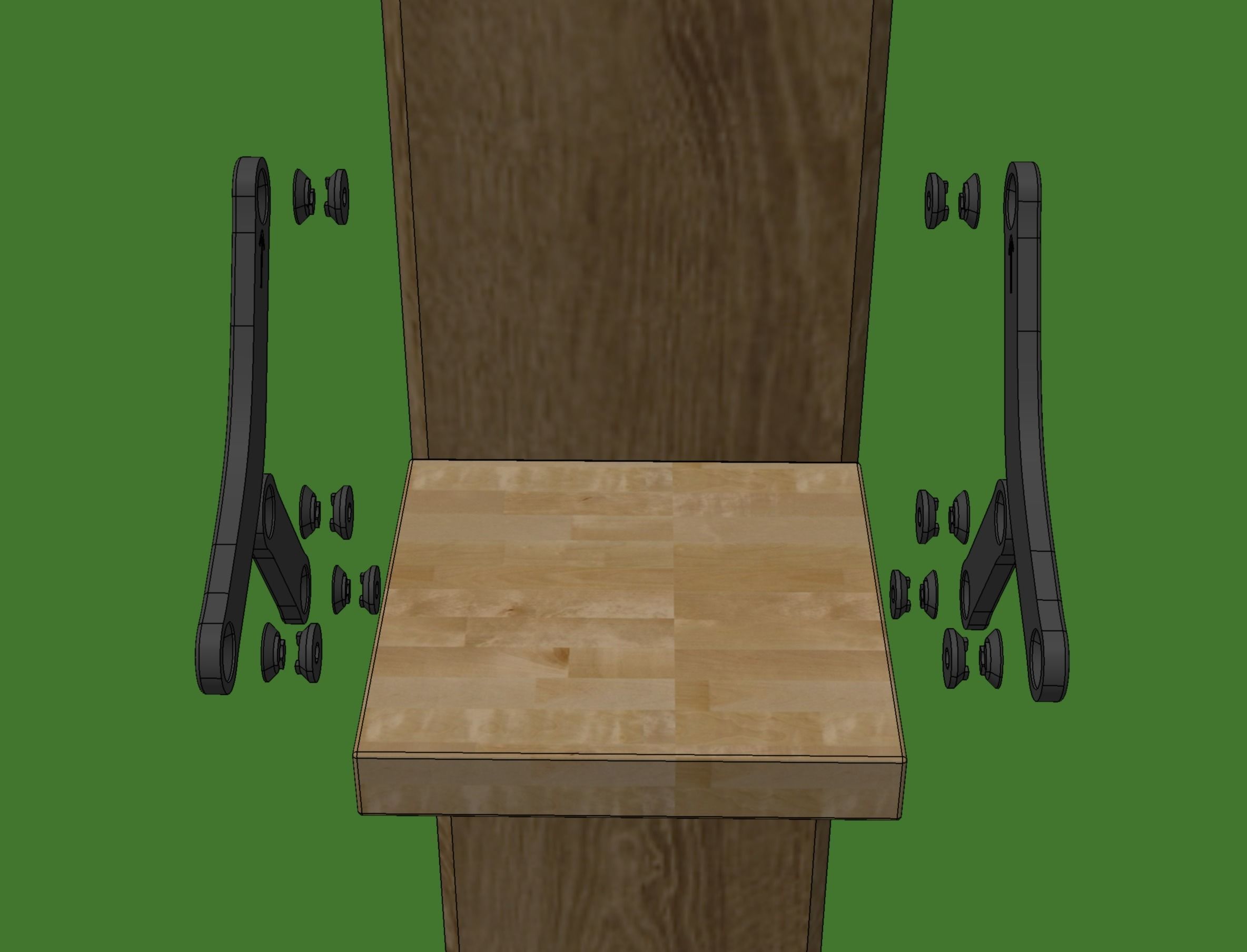

3/ Screw pins and links in the correct order (see info pdf in the files) on table and on pillar. Do not tighten the screws yet.

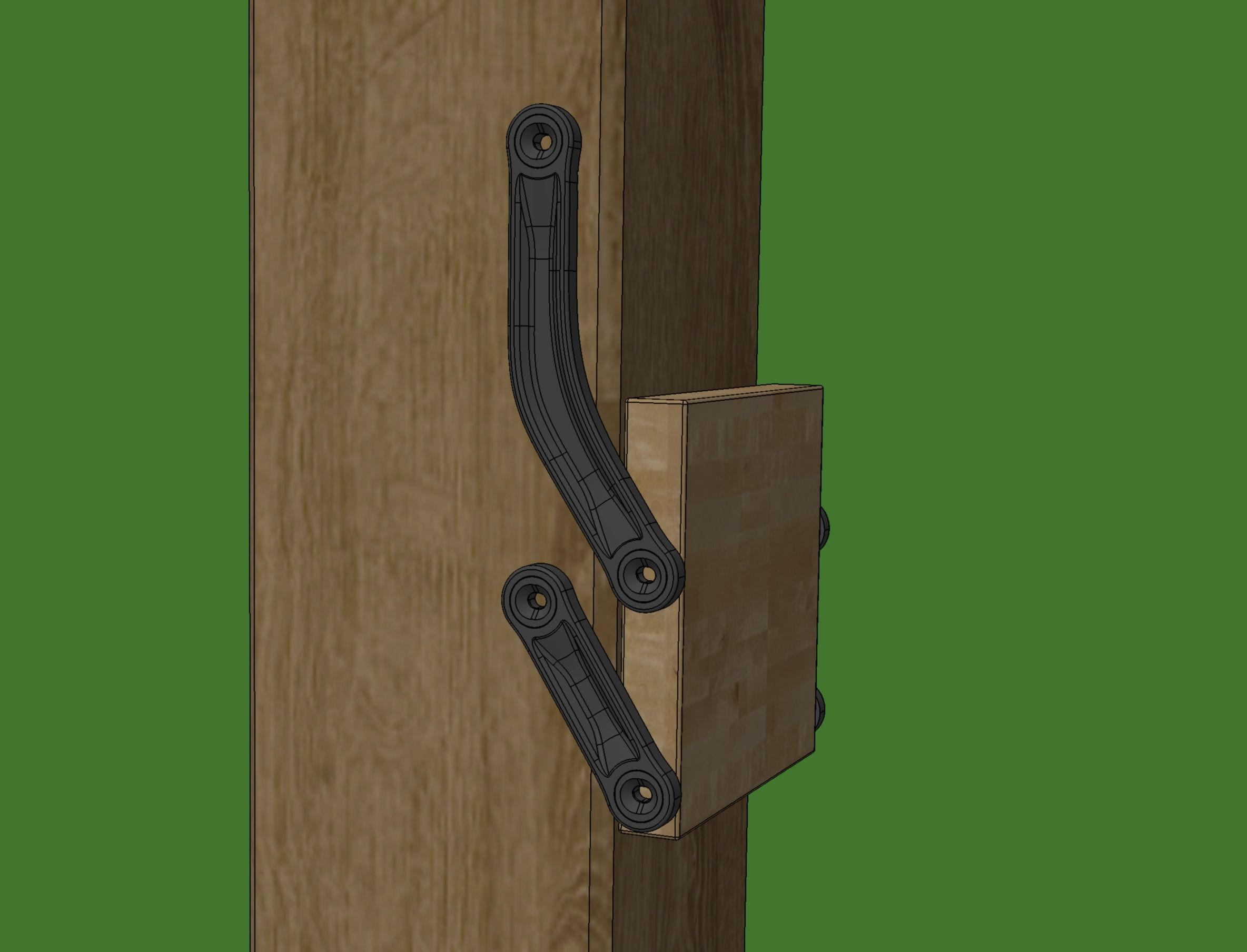

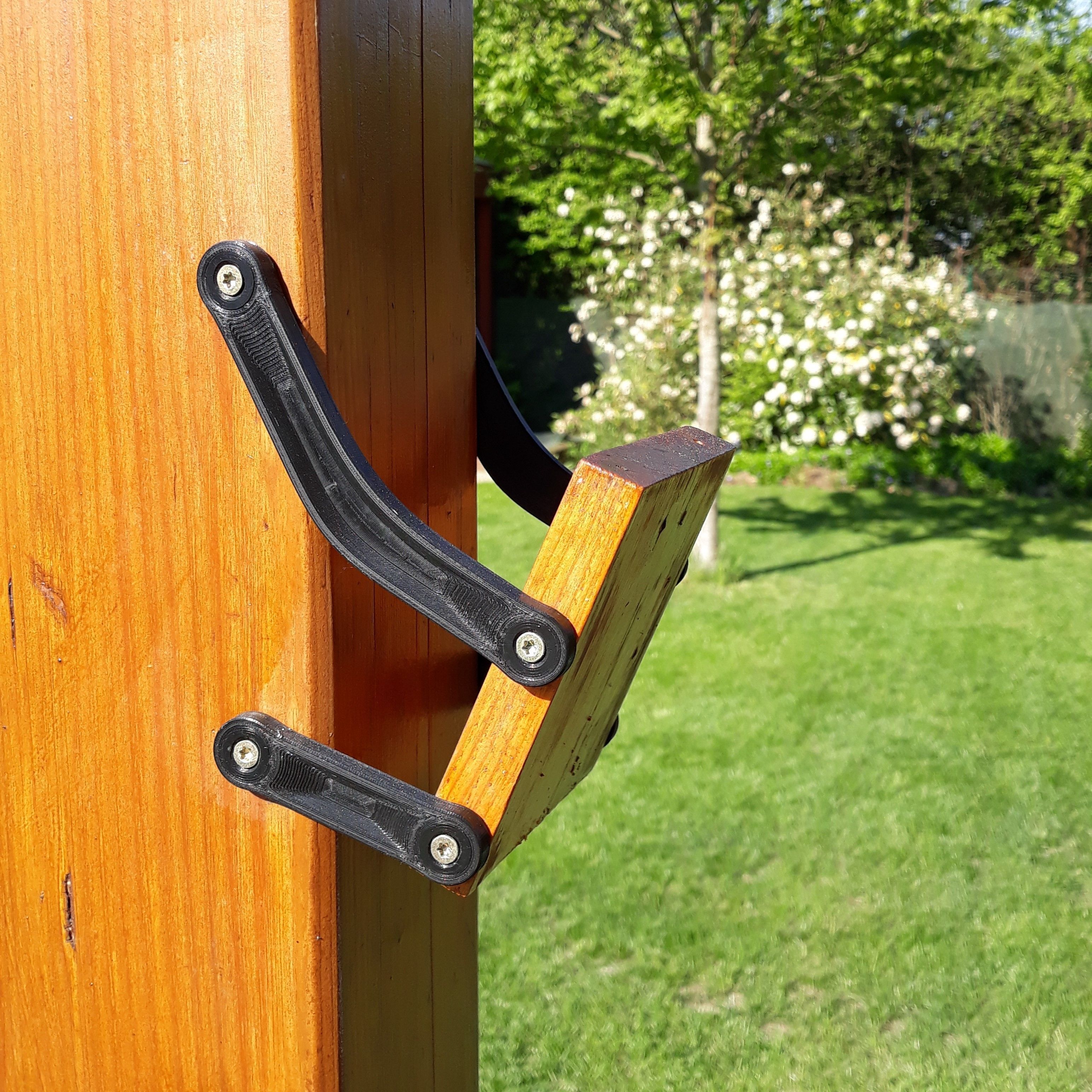

4/ Put the table in the rest position by the pillar and tighten the screws.

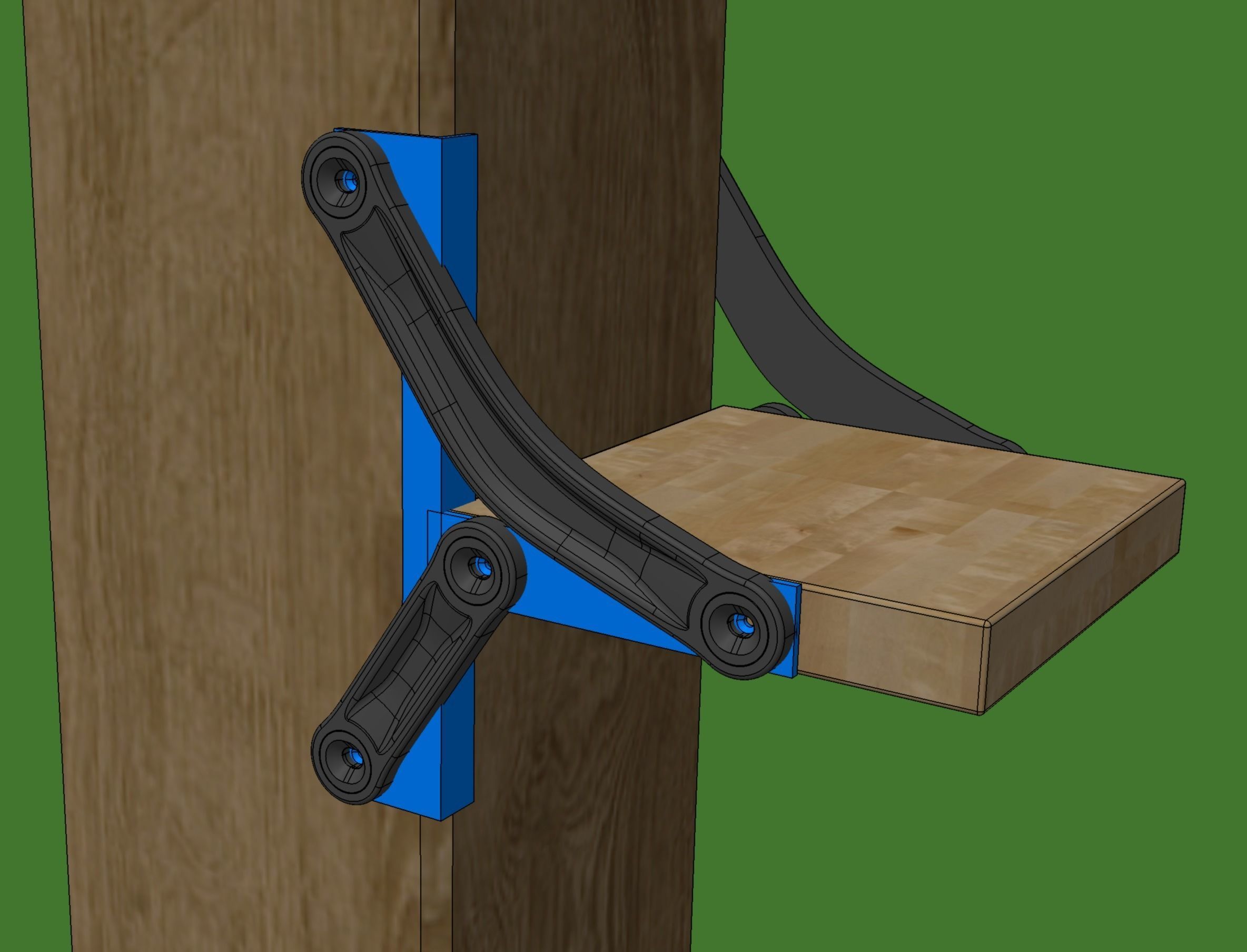

5/ Now fine tune horizontality of the ready position as explained in the pdf info file. (It may not be necessary.)

6/ Enjoy.

Printing: Print the parts in PETG or ASA as I assume it will be used outside. Do not print it with PLA because it warps in the sun.
