Dome V2 Connector Kit 3D print model

Description

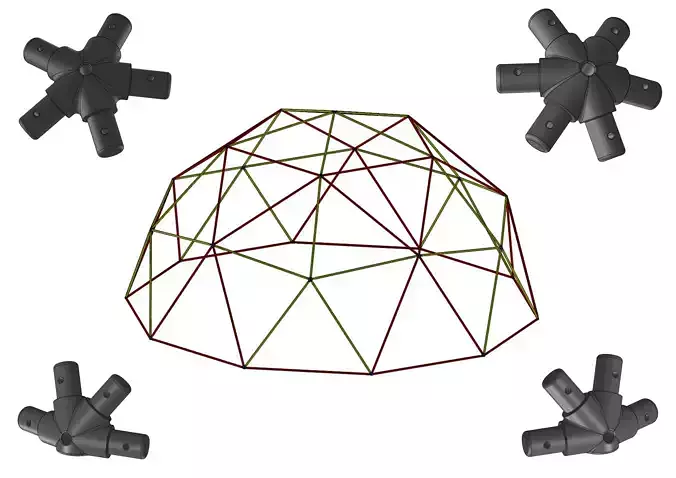

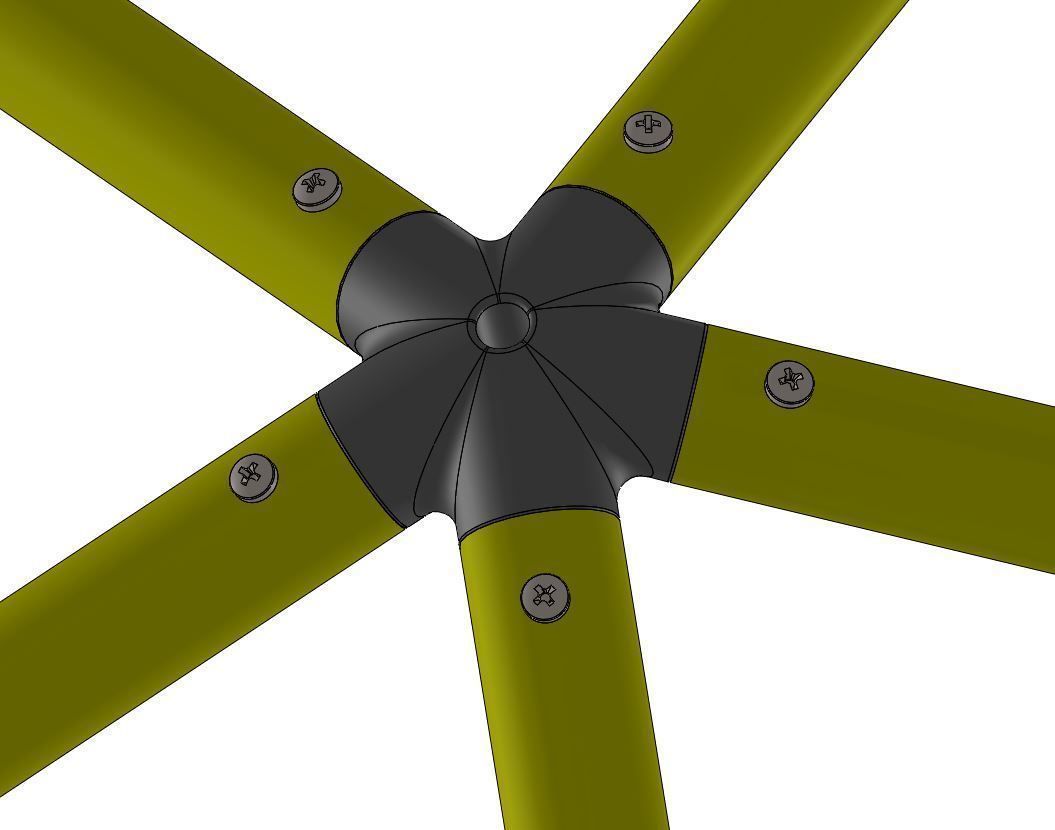

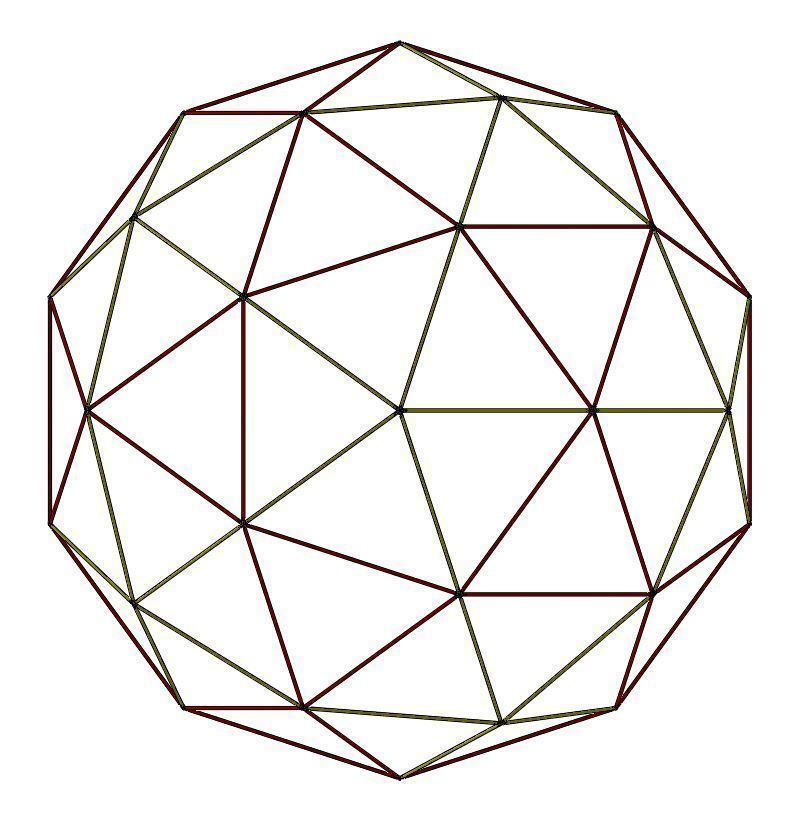

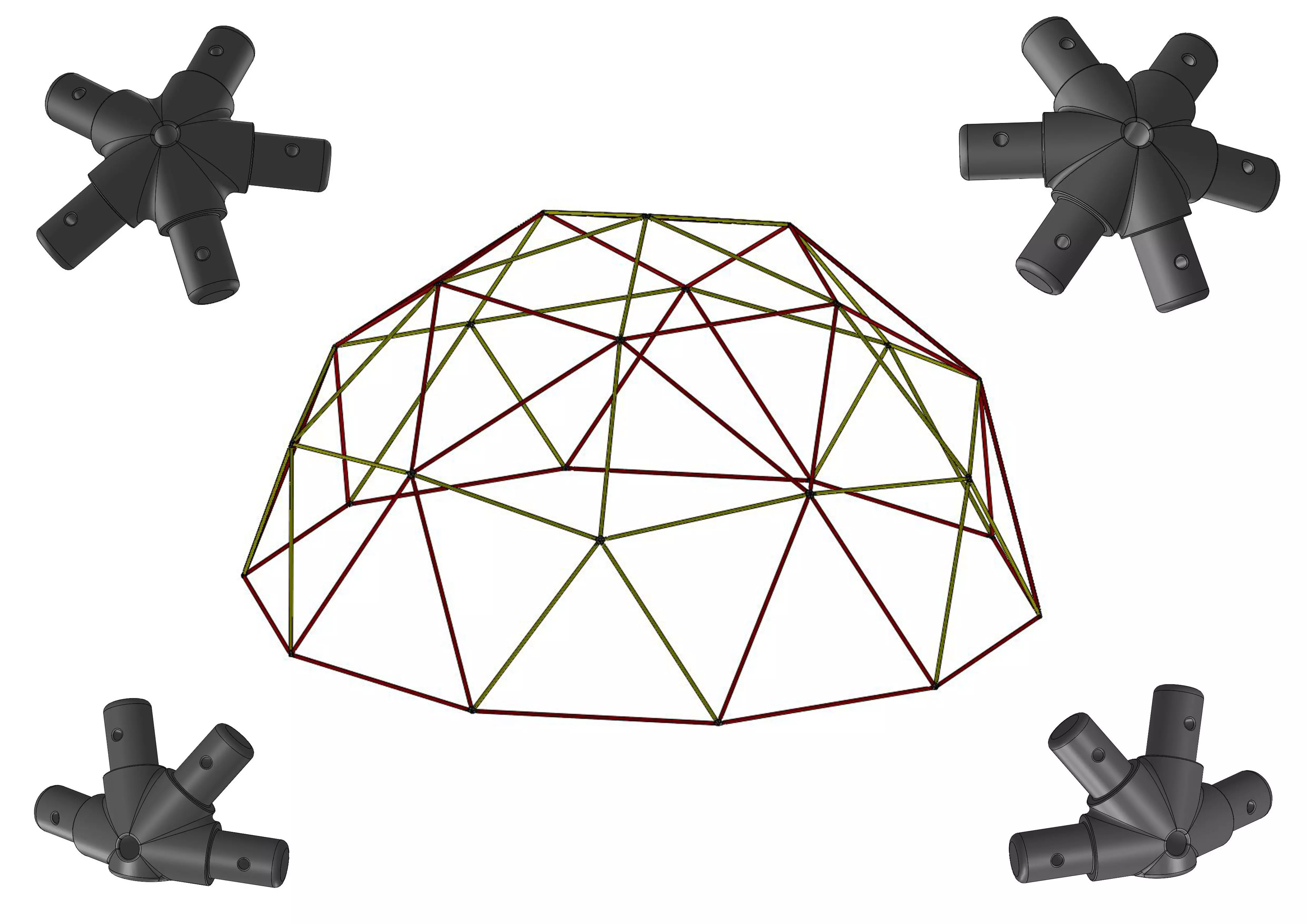

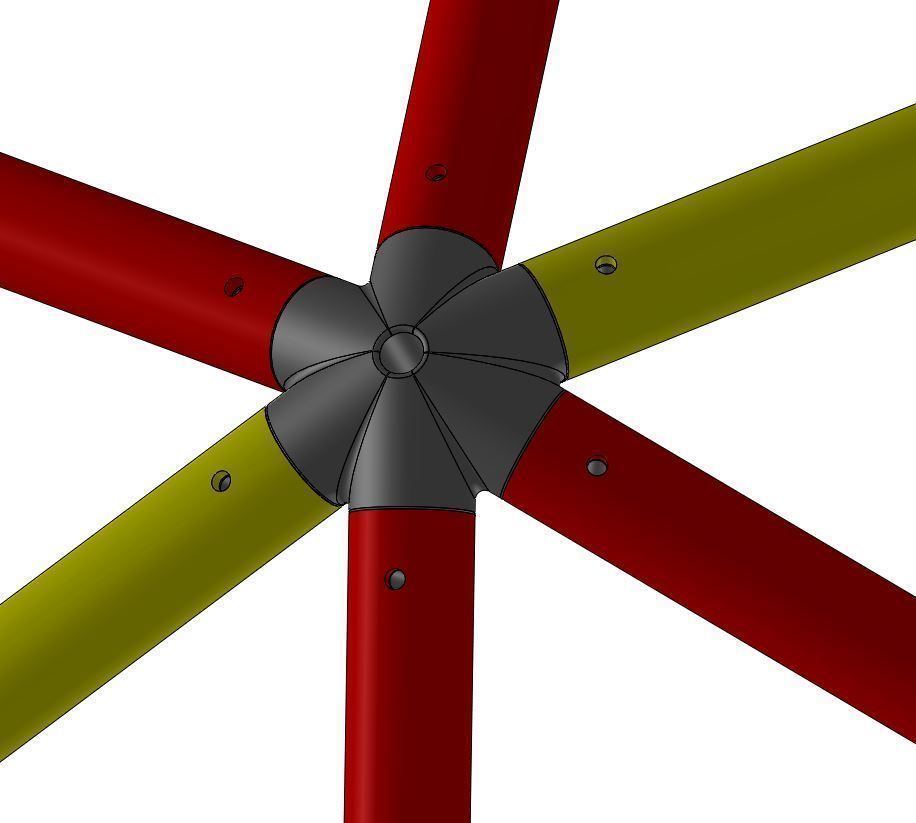

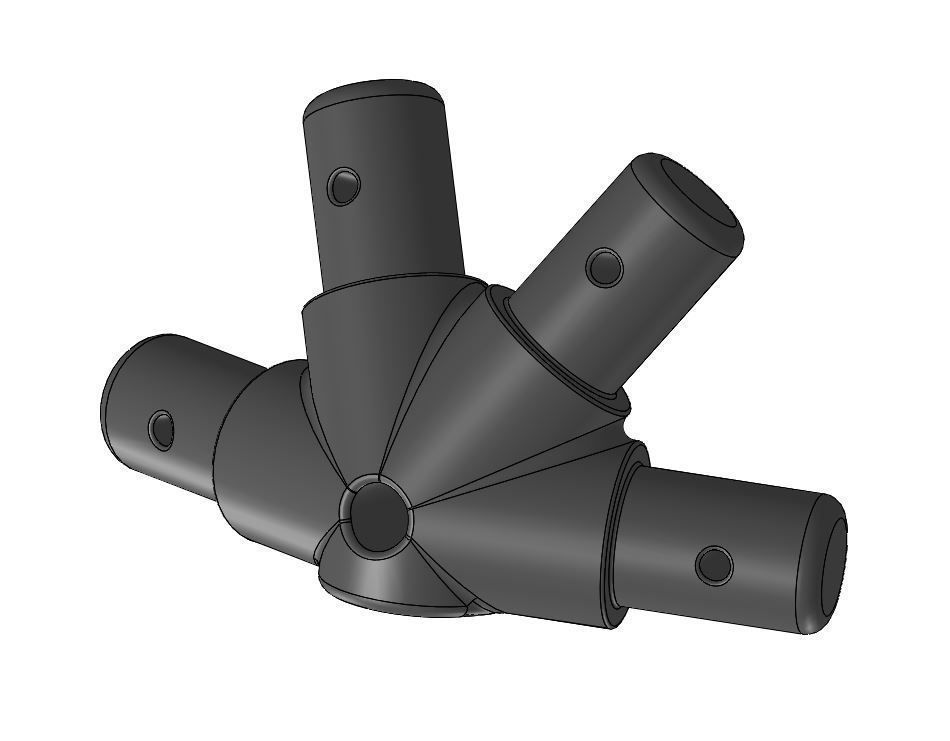

Dome V2 Connector Kit 4 types of connectors Connectors are for PVC pipe 3/4" (d20mm/D26.8mm) Outside diameter - 6 meters Heigth - 3 meters In the attached files are PDF with BIM

Write comment
B
betodg
betodg 2023-11-01 23:56:25 UTC
Hi Akoppppoka, what is the diameter in mm of the piece, please.?Thanks
akoppppoka
akoppppoka
akoppppoka 2023-11-02 05:32:48 UTC
Hello! Dome diameter is 6000 mm, pipe diameter - inside 20mm/ outside 26.8mm.
B
betodg
betodg 2023-11-06 17:46:24 UTC
Thanks for your answer. But I actually would like to know the max dimensions of the piece to know if my printer is big enough to print it. Thanks
akoppppoka
akoppppoka
akoppppoka 2023-11-10 16:30:11 UTC

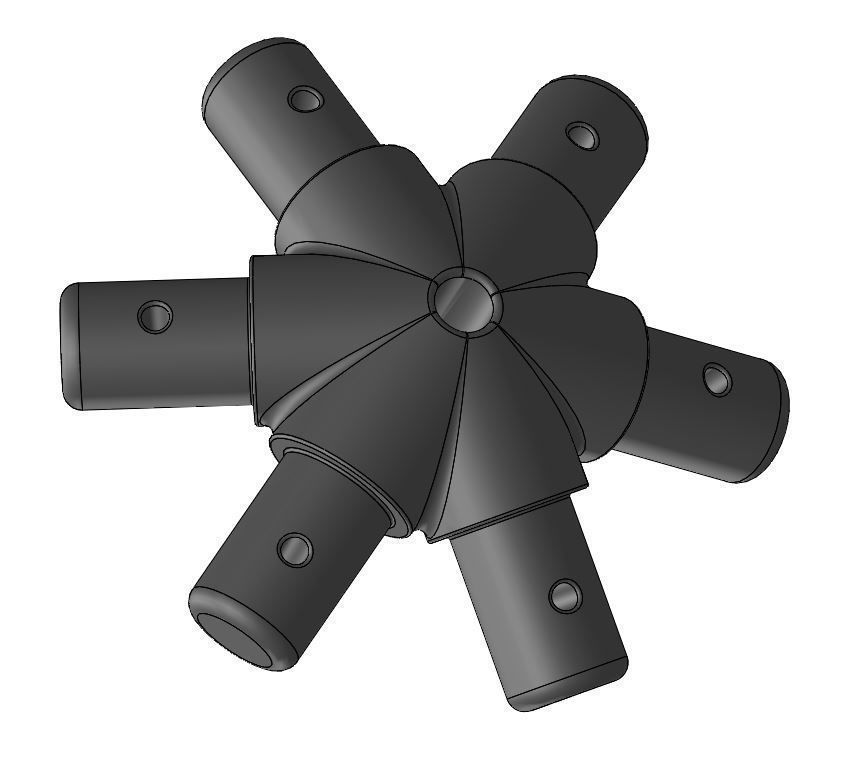

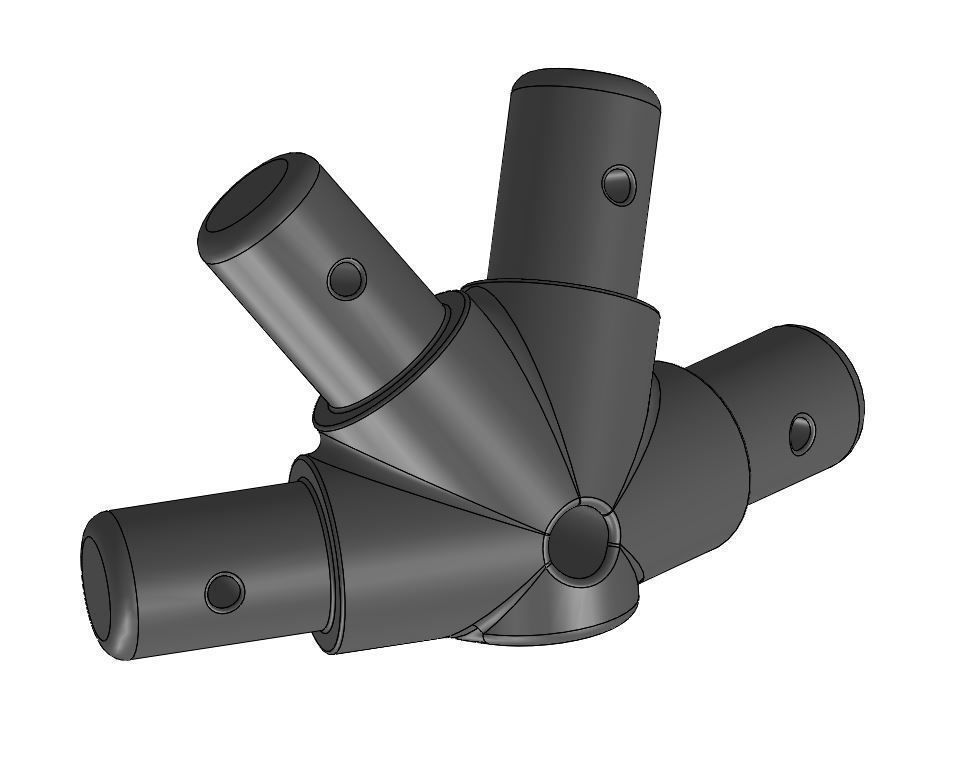

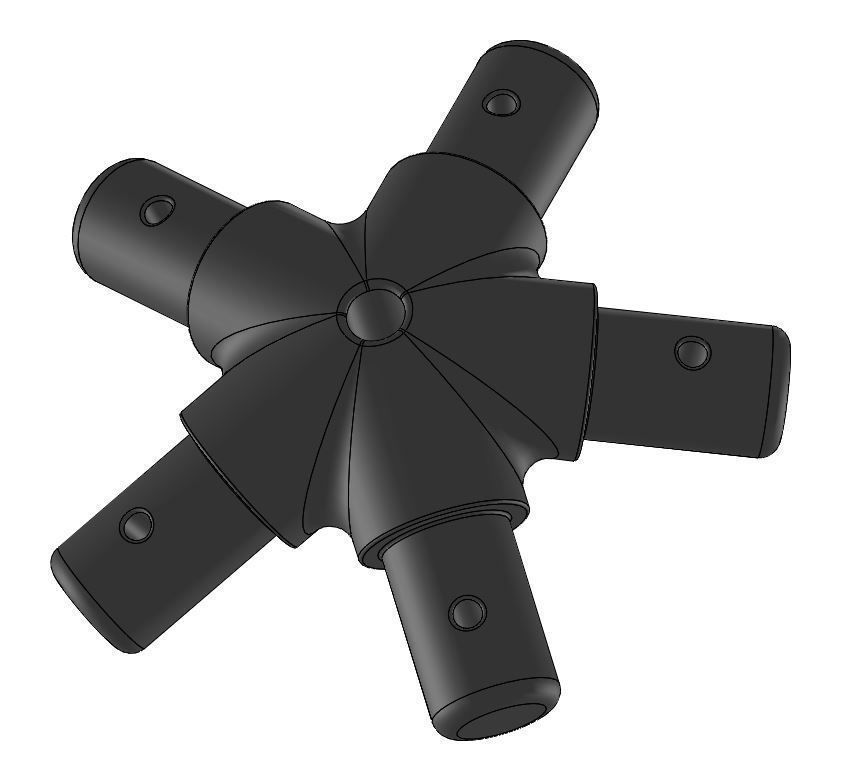

Connector 1 and 2 - 120x120x35 mm Connector 11 and 11-01 - 120x80x35 mm
Item rating
0 0
Dome V2 Connector Kit
$25.00

Royalty Free License
Dome V2 Connector Kit
$25.00

Royalty Free License
Aakoppppoka
akoppppoka
(4 reviews)
Response 83% in 2.6h
3D Modeling
Hire me

3D Model formats

Format limitations
  • PDF (.pdf)6.11 MB
  • Stereolithography (.stl) (5 files)55.2 MB

3D Model details

  • Publish date2020-04-18
  • Model ID#2375448
  • Ready for 3D Printing
