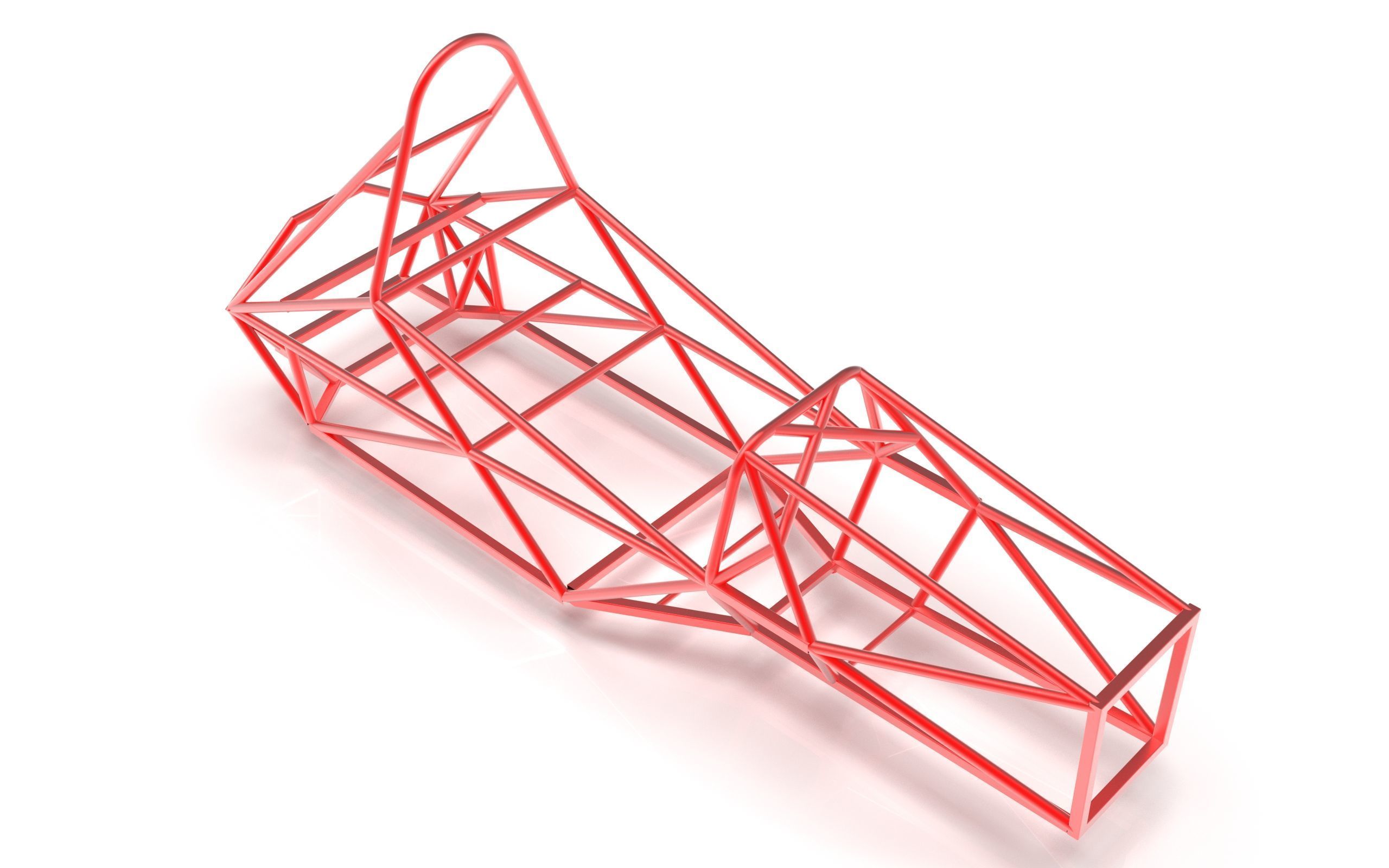

Formula SAE Chassis CAD Model Ready for FEA and Customization 3D print model

Download the working CAD model of an FSAE chassis to save time and avoid modeling from scratch. You can optimize the geometry based on your specific design needs or use it to run structural analysis and strengthen your FEA skills.

In the demo video, I’ve included a sample case study where a torsional load is applied on the beam elements generated from the attached CAD model. This model serves as an excellent reference before creating your own FSAE chassis and helps you understand which features are essential for a comprehensive case study.
