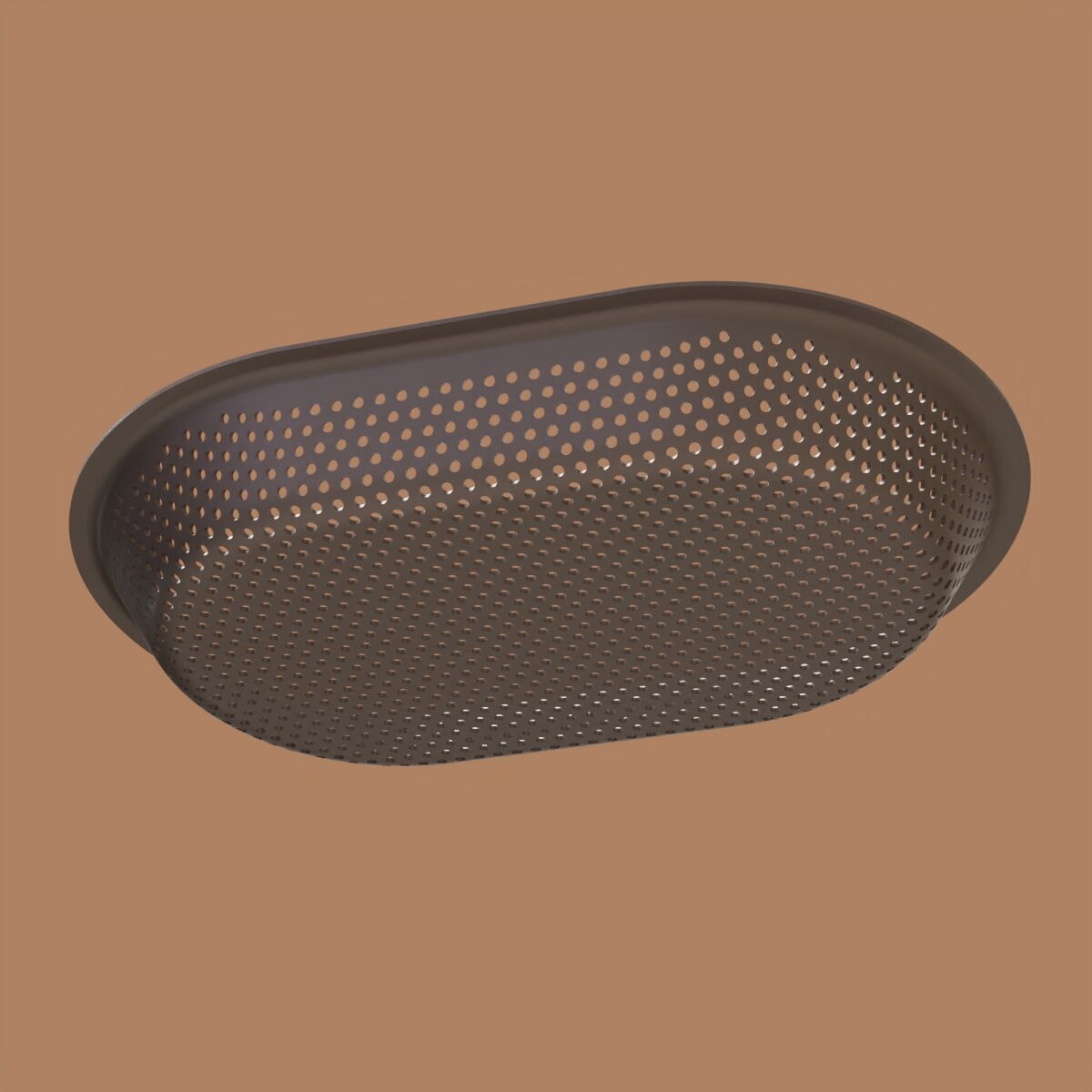

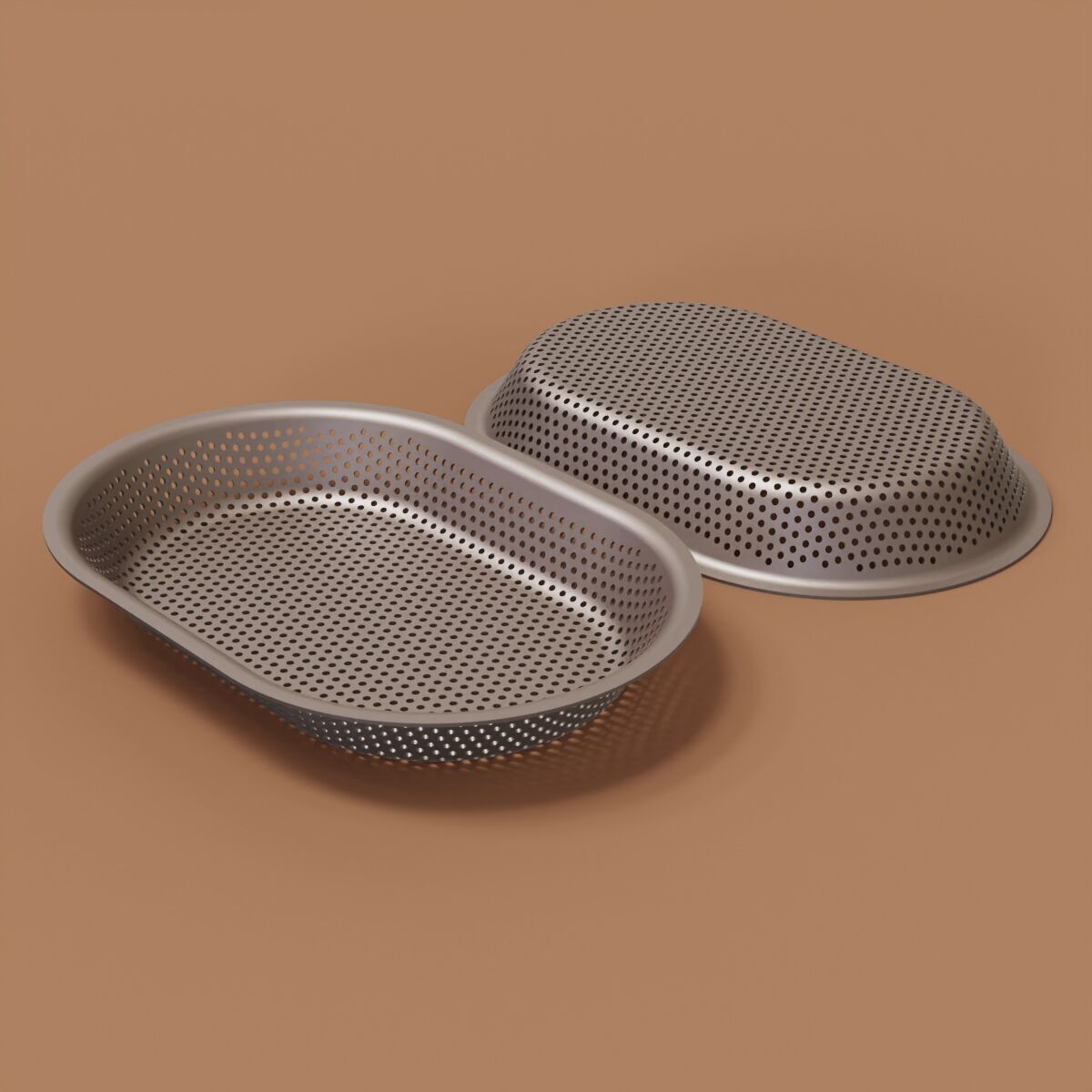

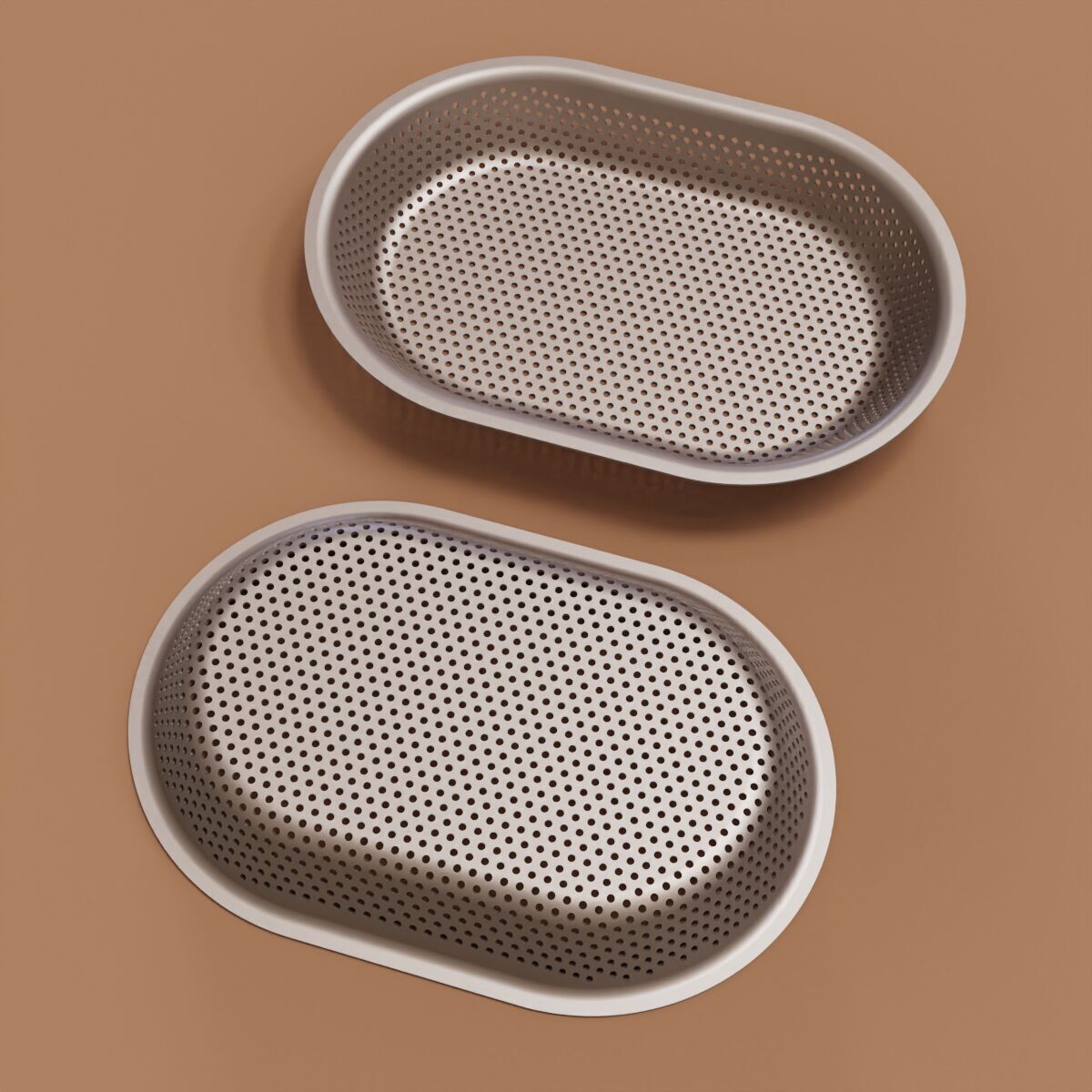

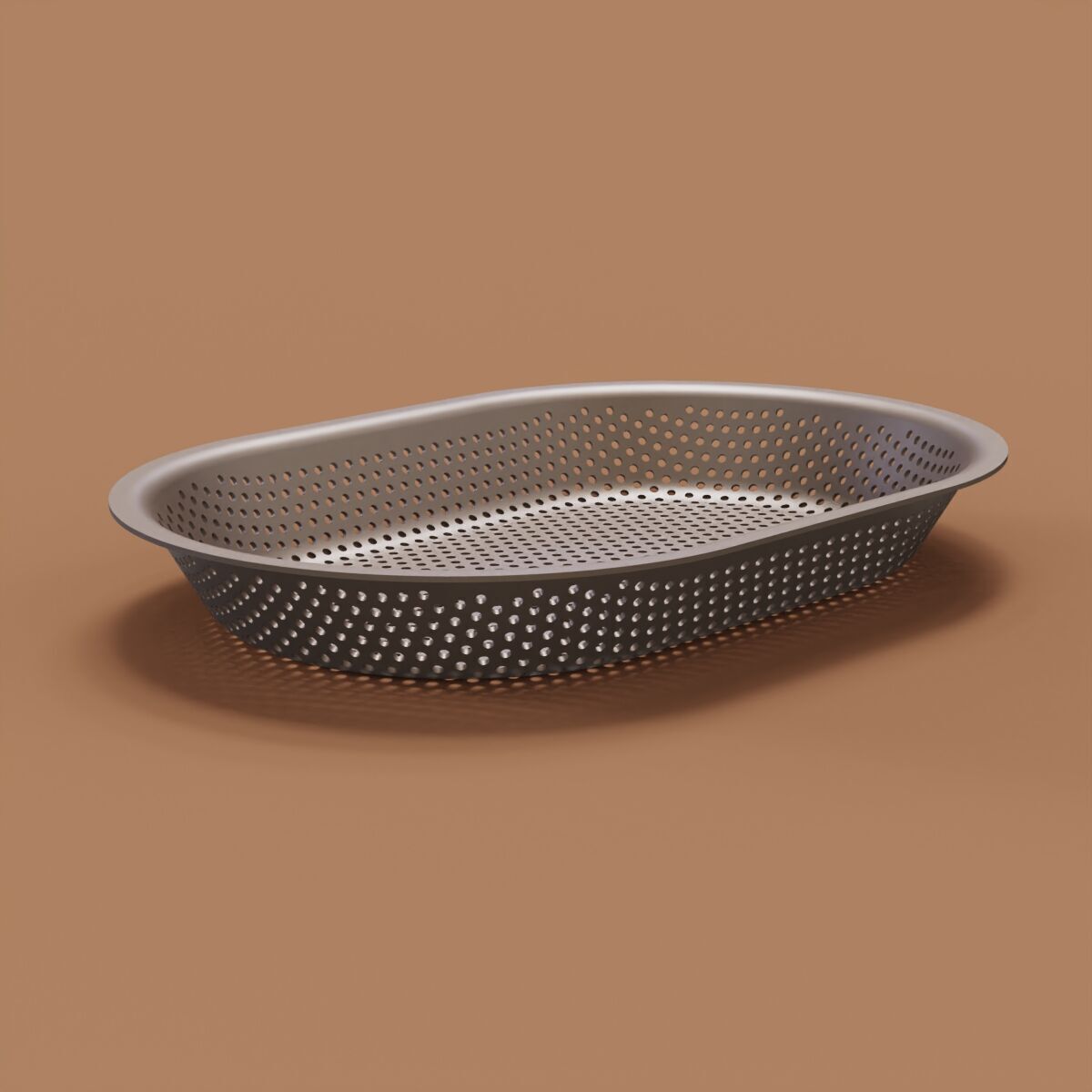

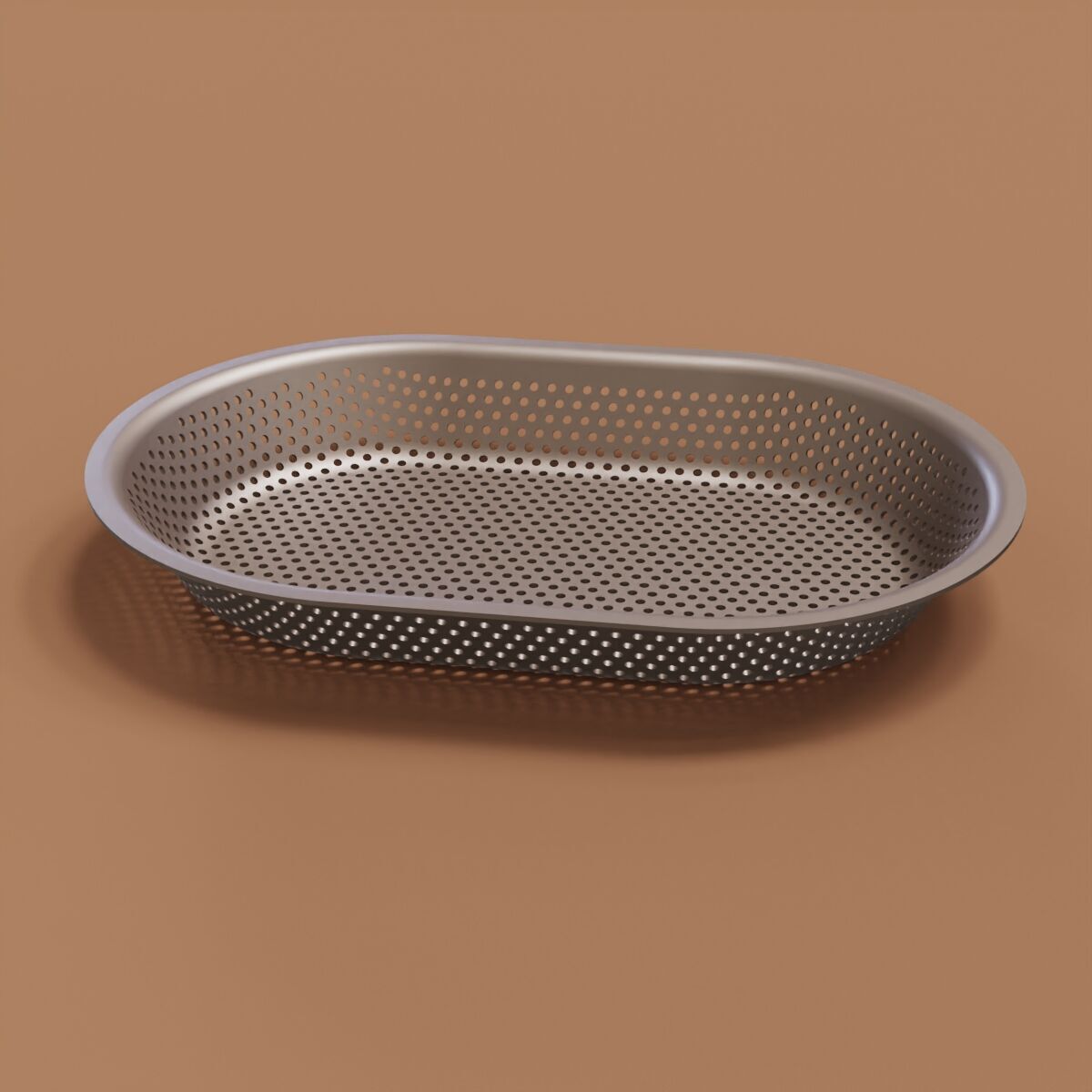

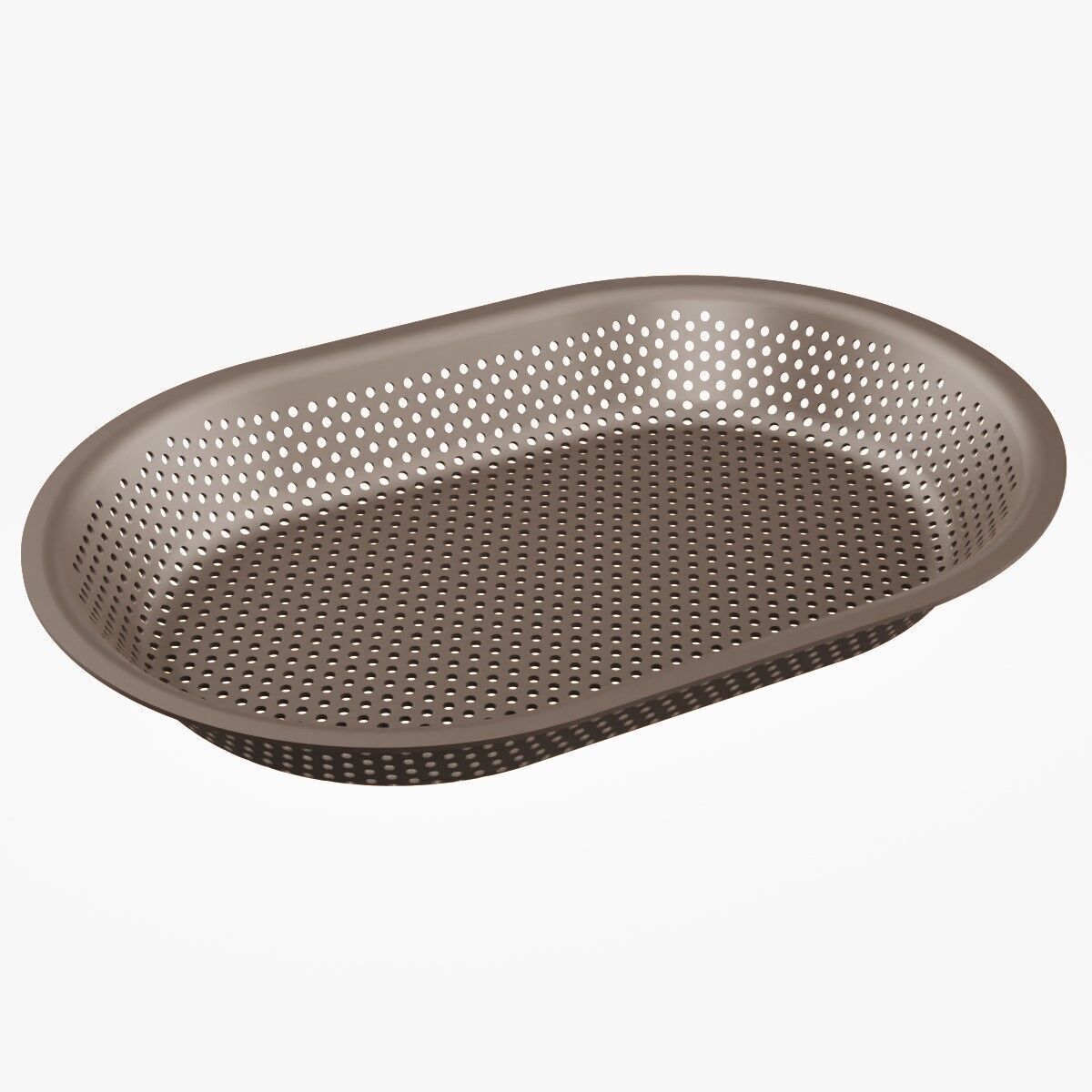

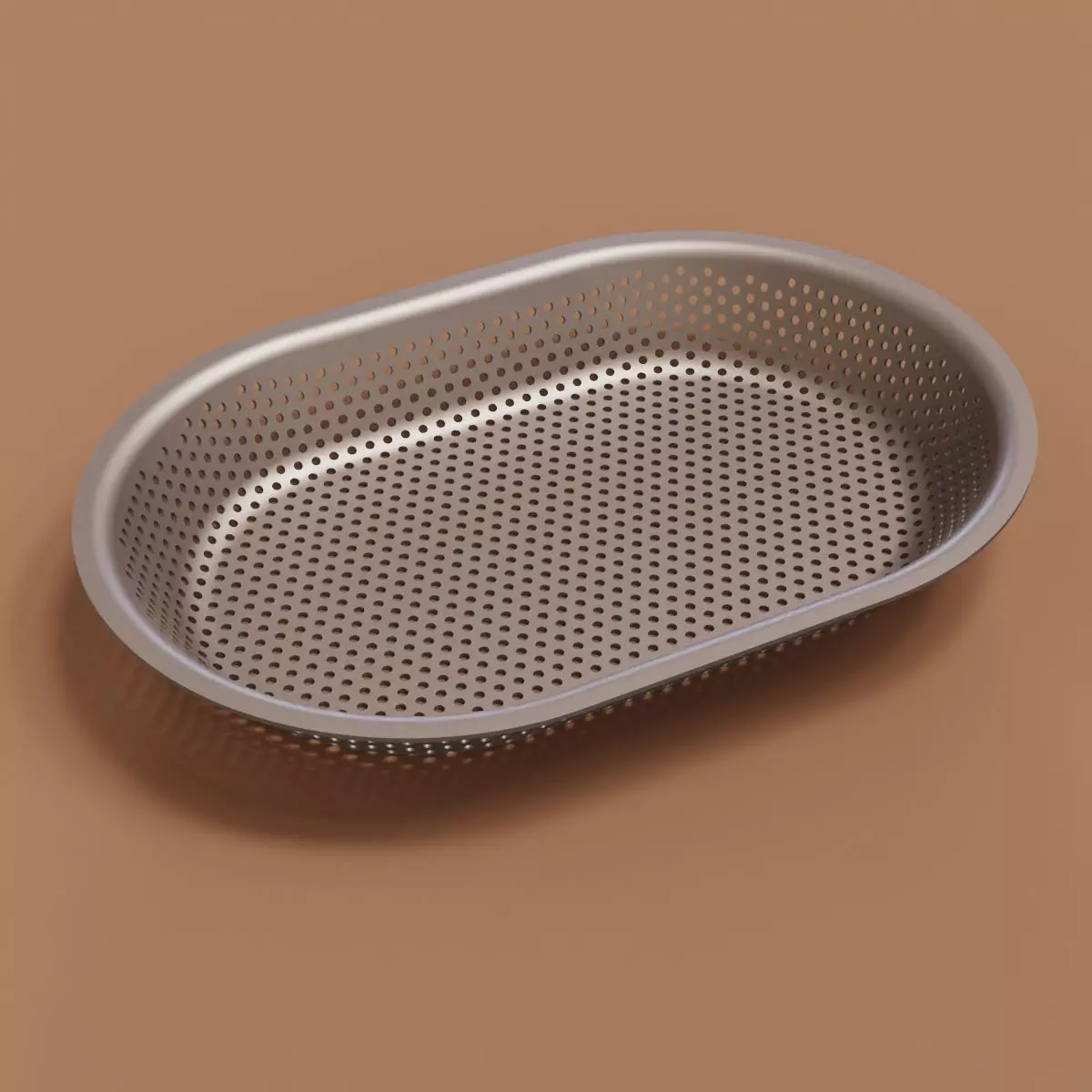

Perforated Plate 3D print model

3D printable Perforated Plate model.

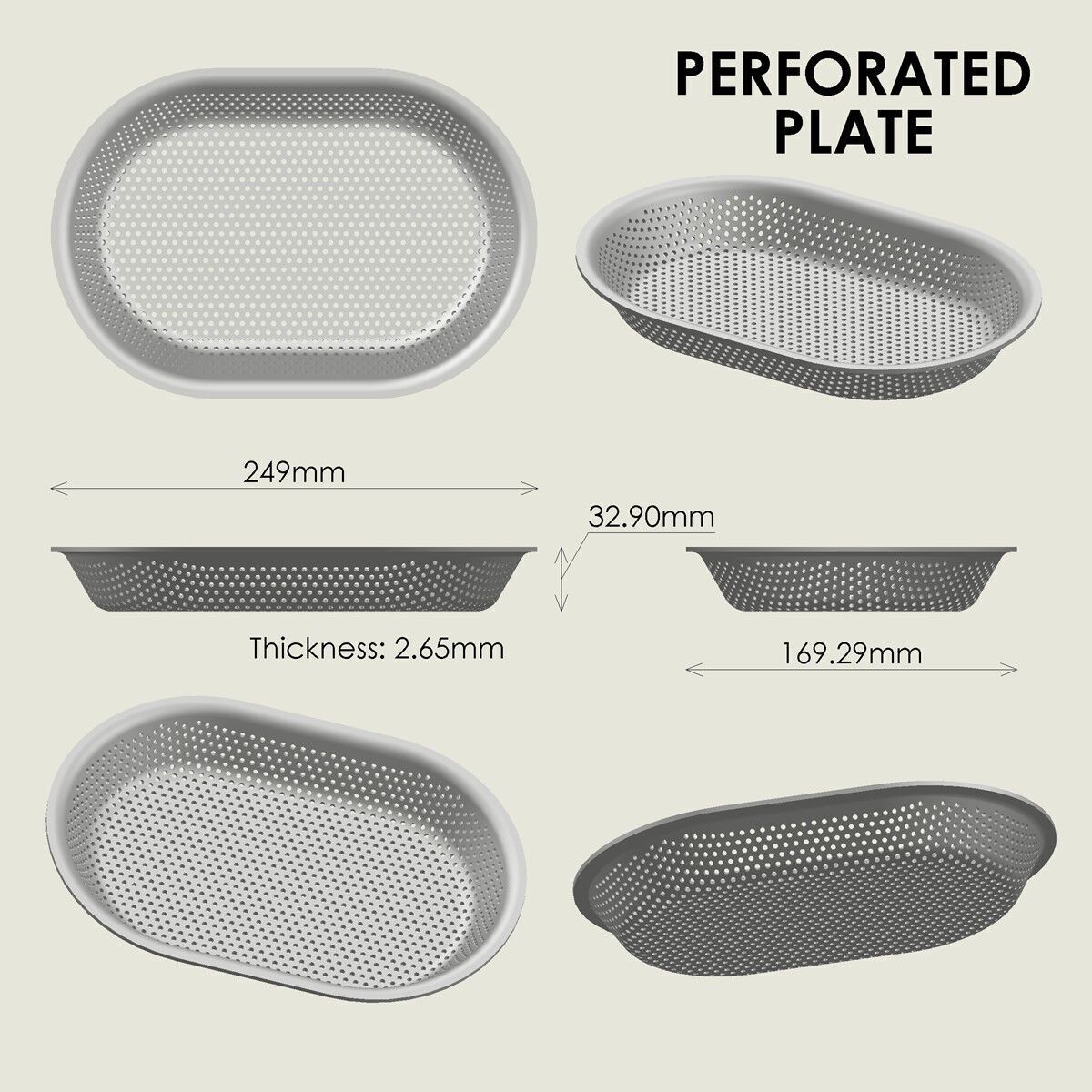

Dimensions: 248.93 x 32.90 x 169.29 mm

Modeled in SolidWorks 2024 and rendered in KeyShot 2023.

Applications: This perforated plate is perfect for use as a draining tray or as a component in custom ventilation setups. It's suitable for any application requiring fluid or air filtering.

Assembly Instructions: No assembly is required. Simply ensure the holes are clean and free of any stray filament after printing. Ready to use straight from the printer.

In addition to the native SolidWorks Part File (.sldprt), following file formats of the model are included as well:

1. KeyShot Package File (.ksp)
2. File formats (.3mf, .obj, .stl, .fbx, .glb, .amf)
3. File formats (.step, .igs, .sat, parasolid)

A 3D pdf file of the model is added as well. All of the above rendered images are included in a zip file.

If you want me to scale the model according to your dimensions, just send me a message.
