RC Ready Hellcat Mini V1 3D print model

RC Ready Hellcat Mini V1

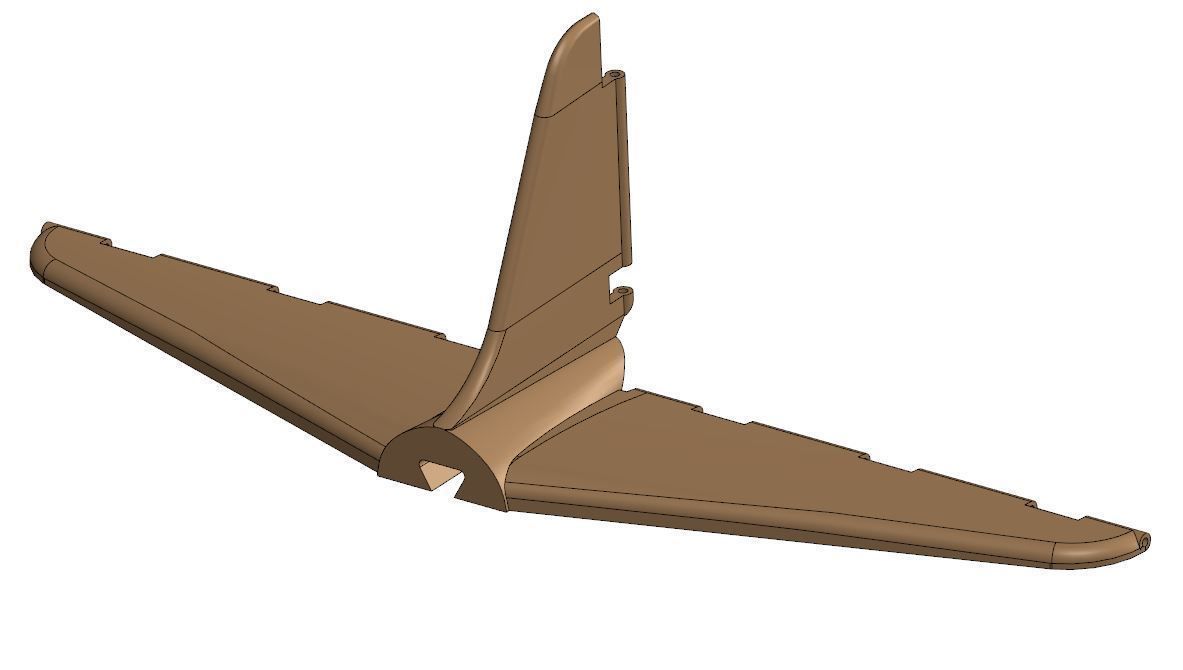

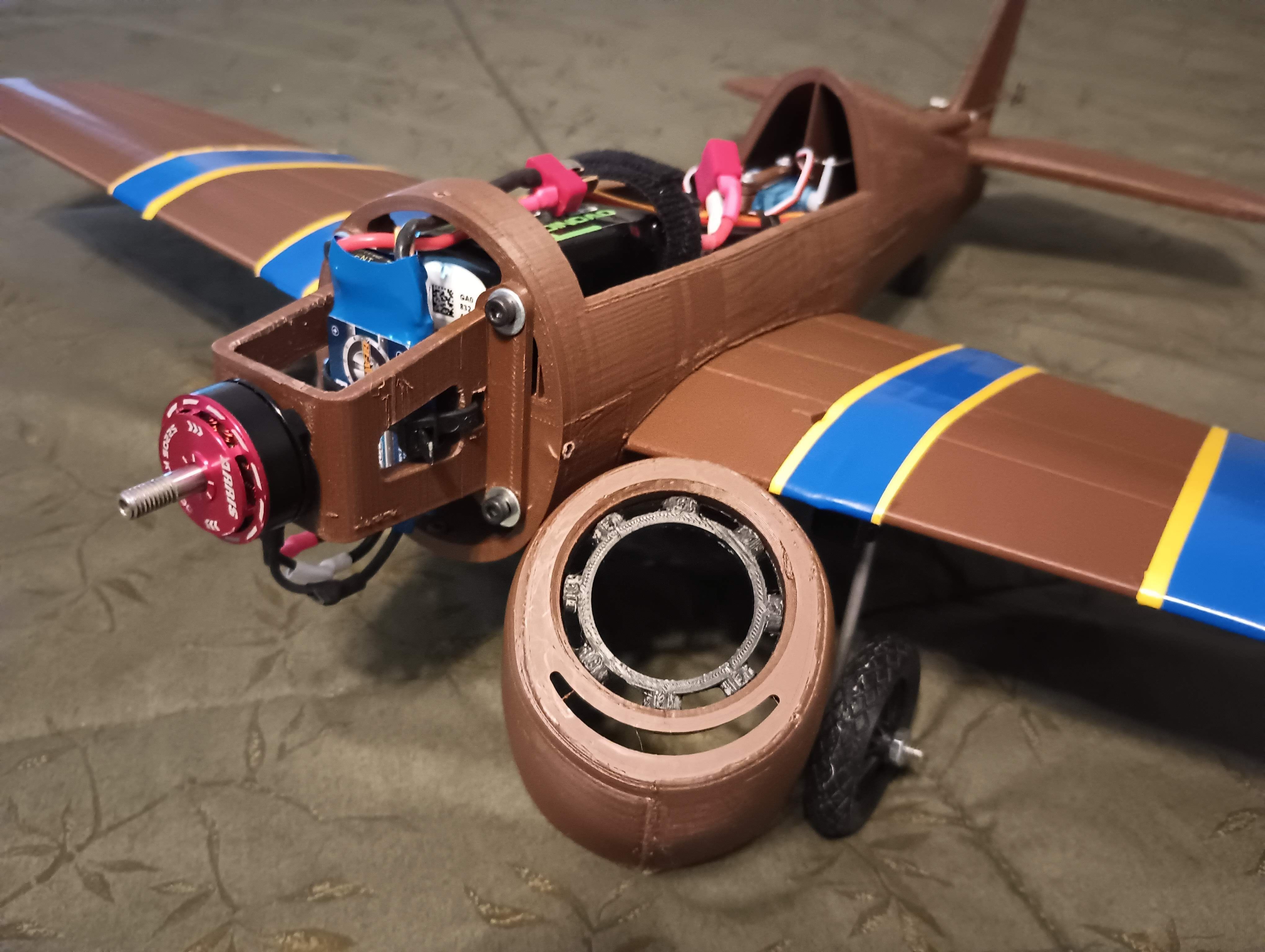

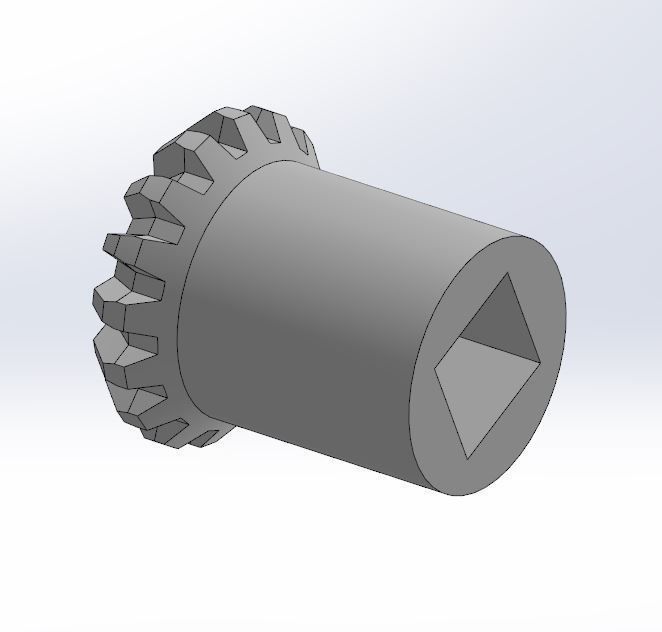

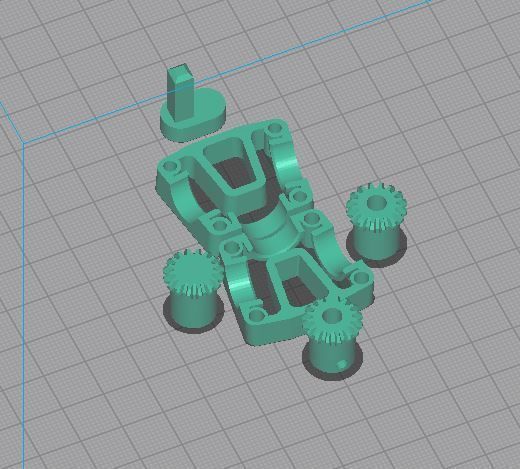

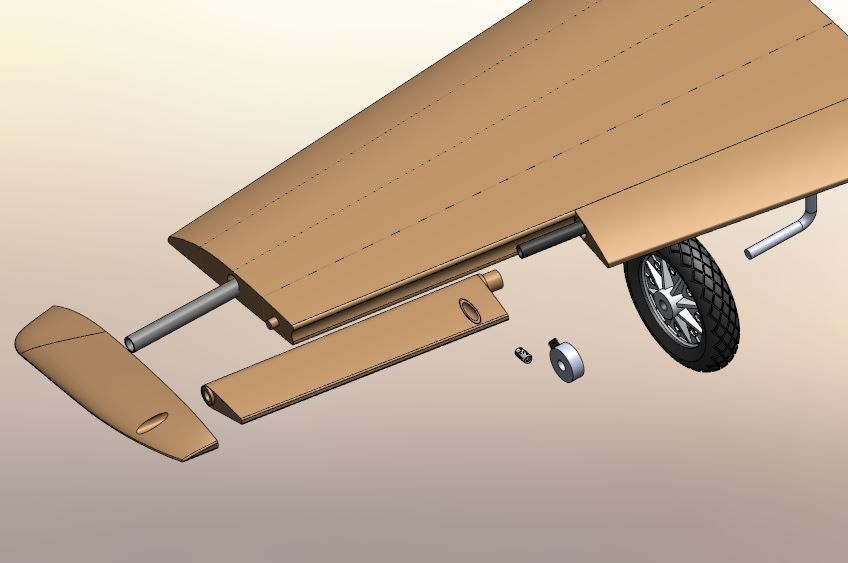

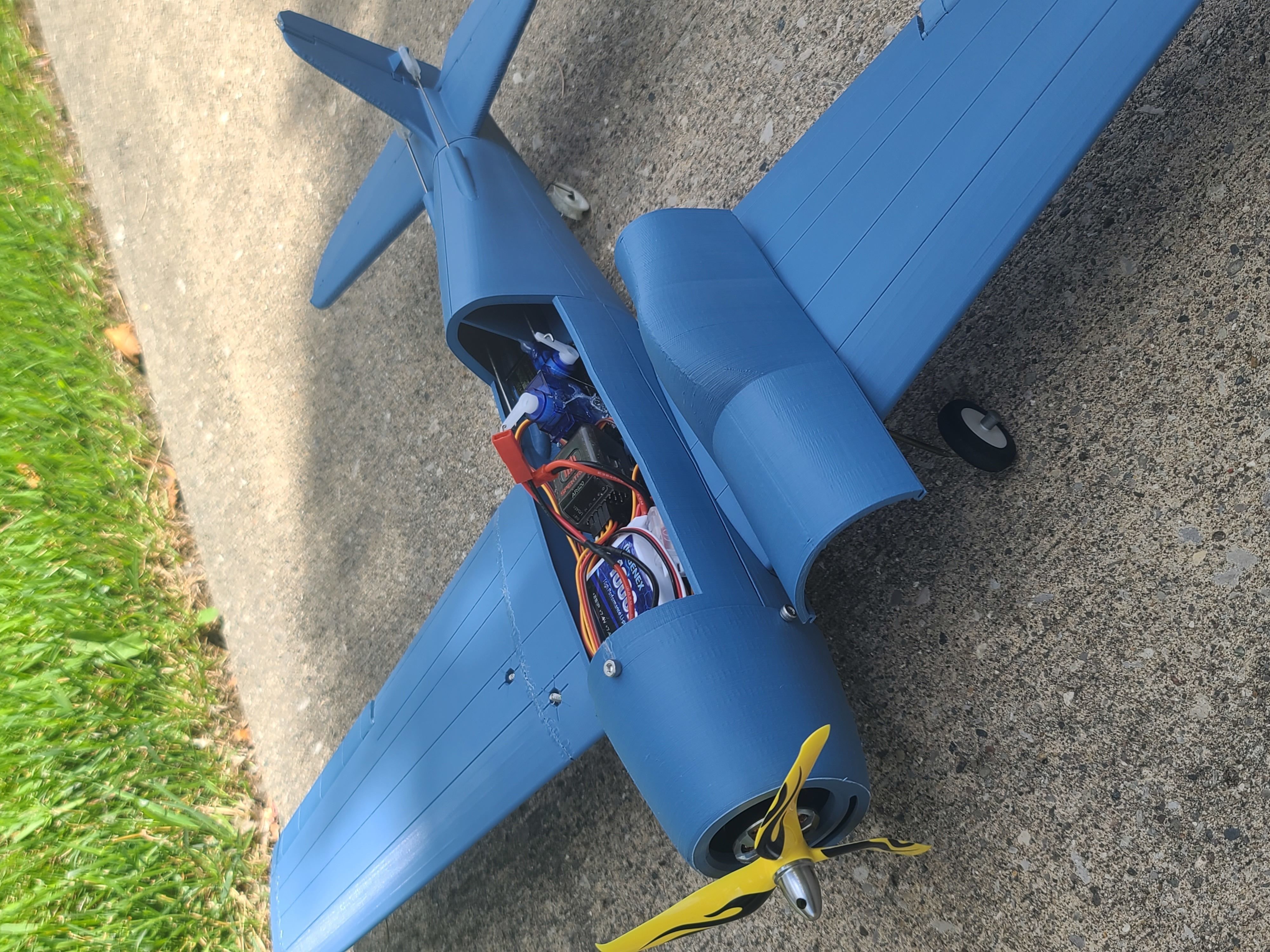

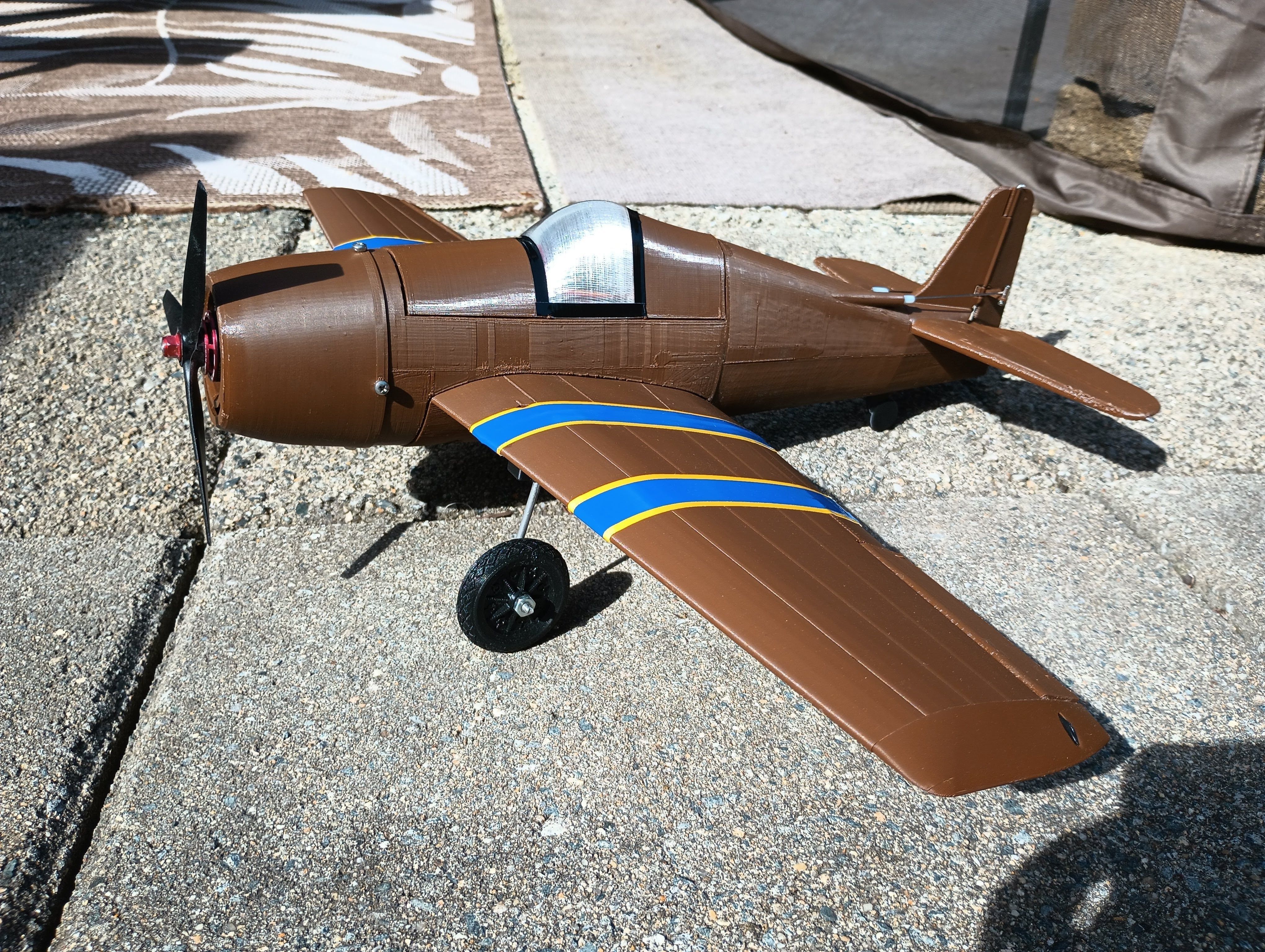

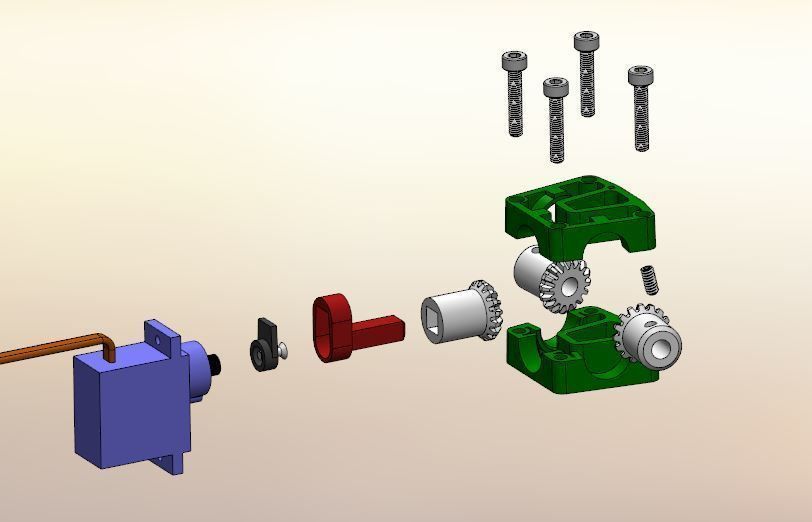

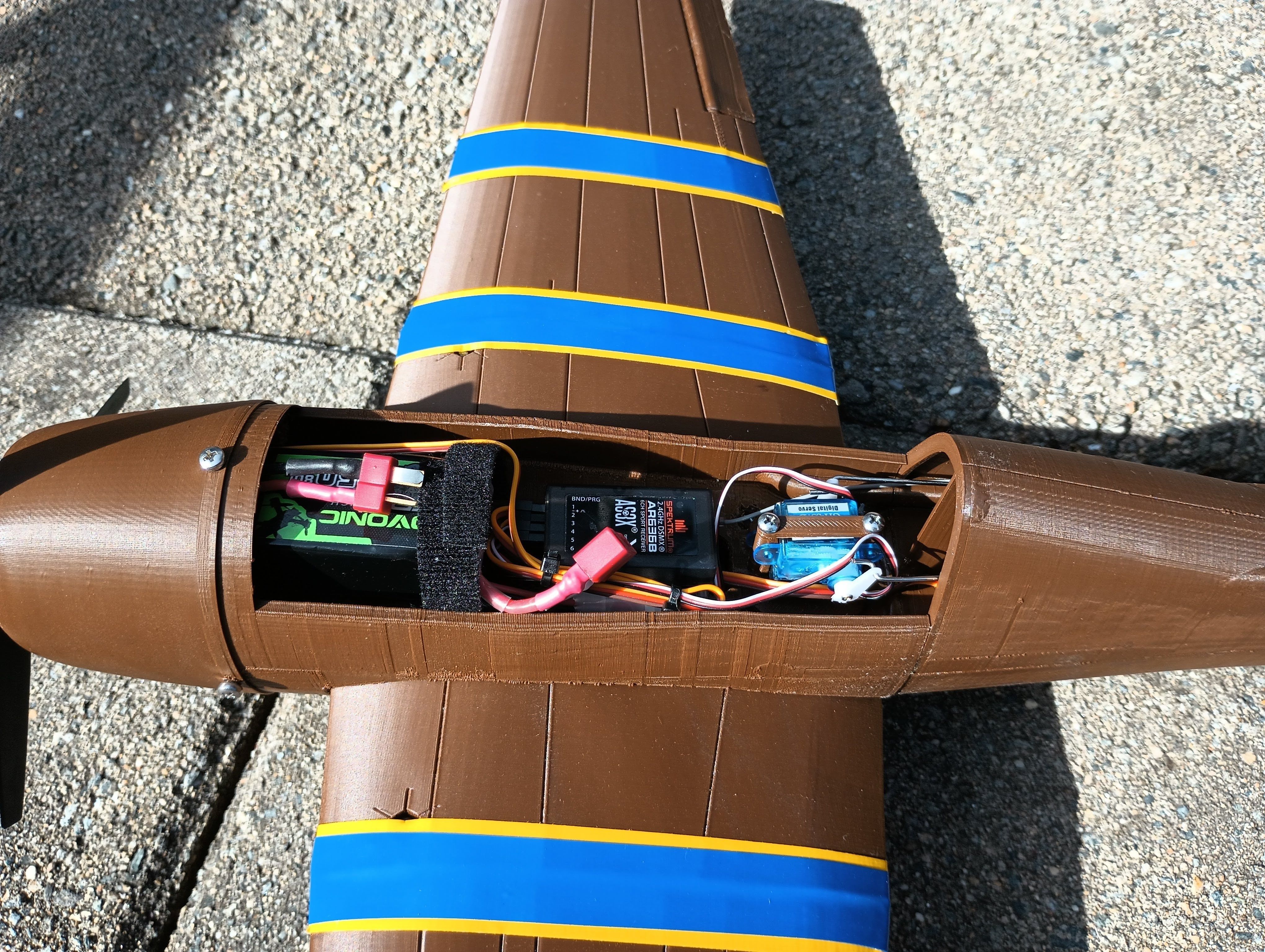

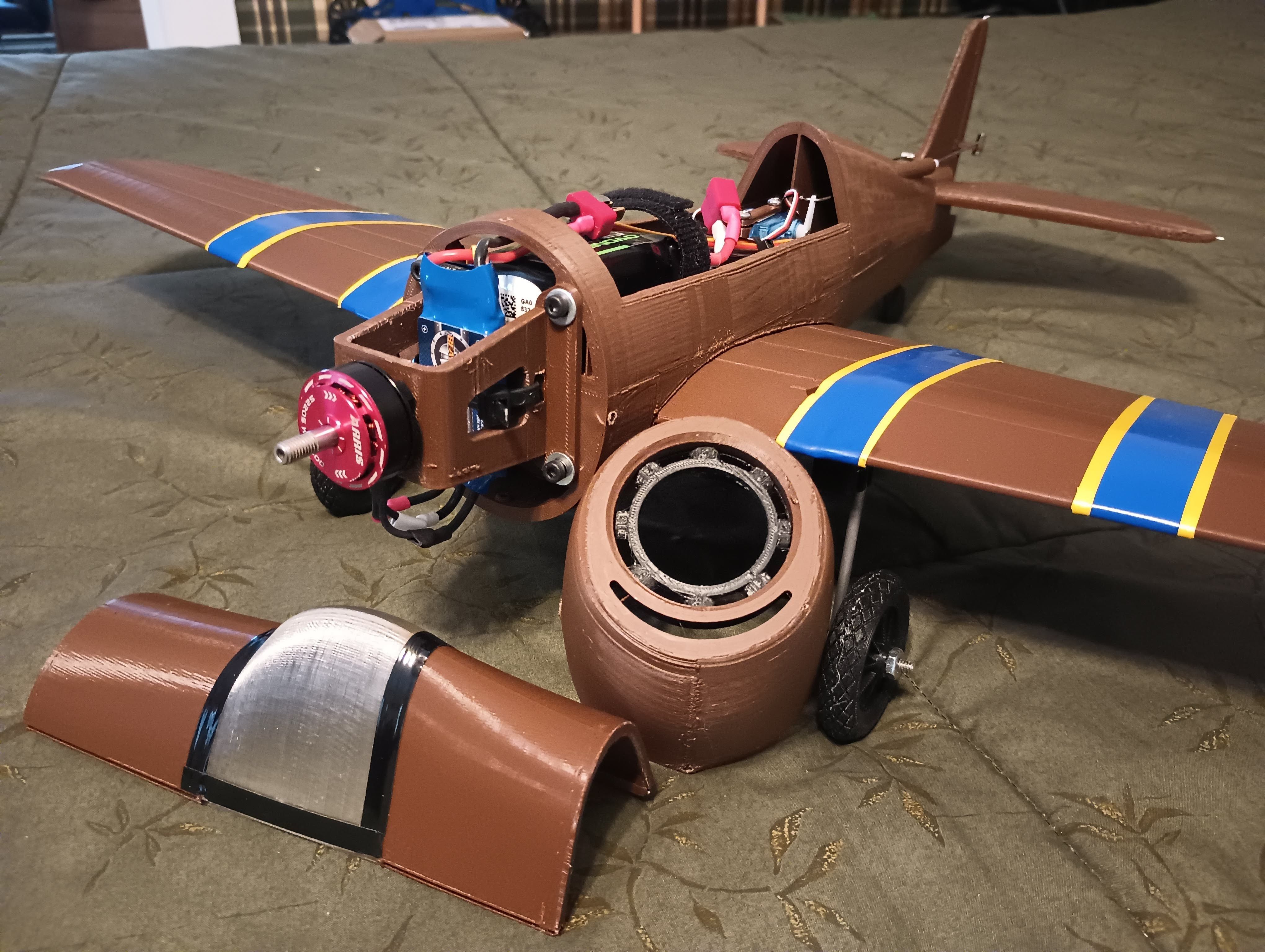

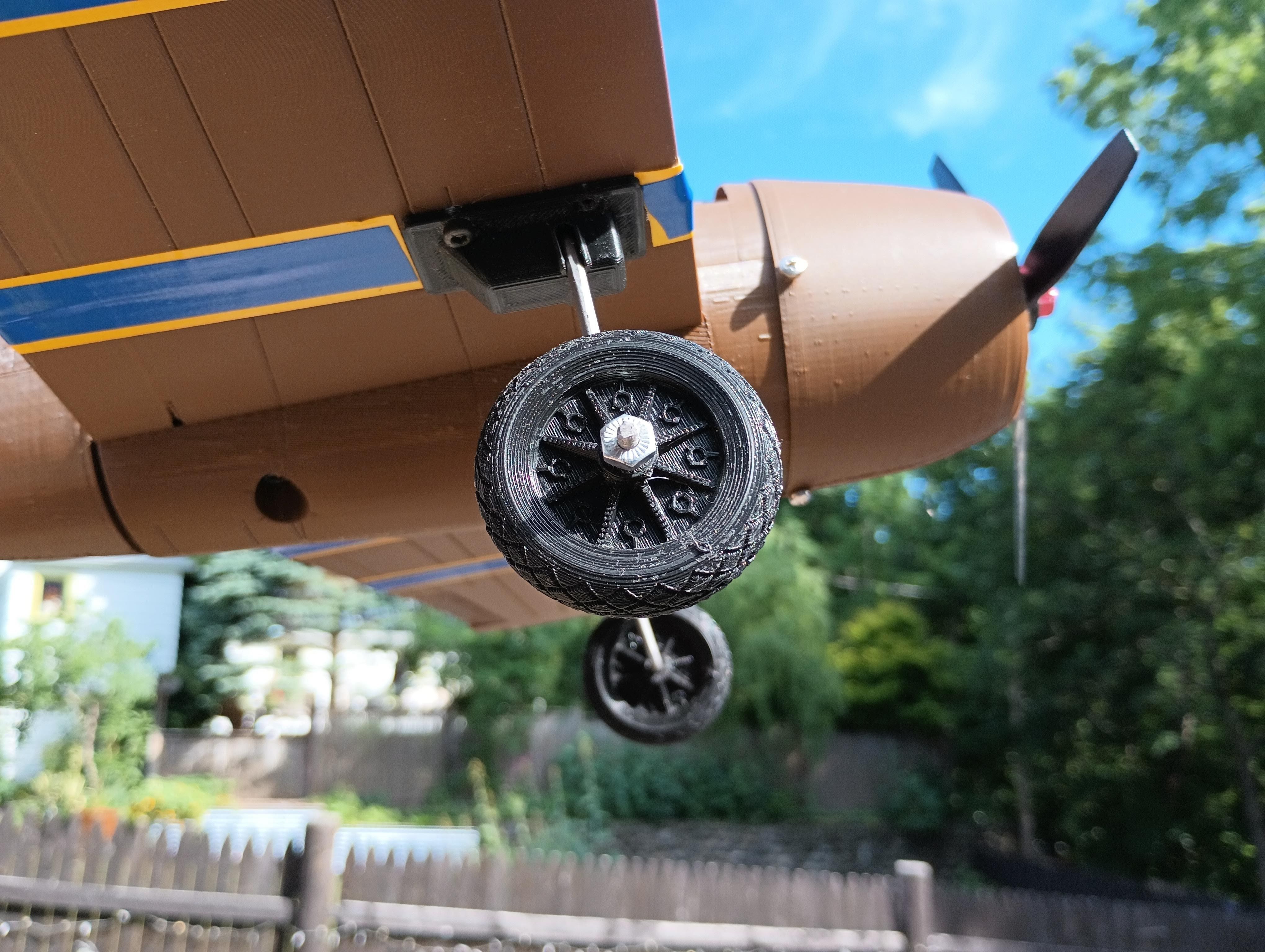

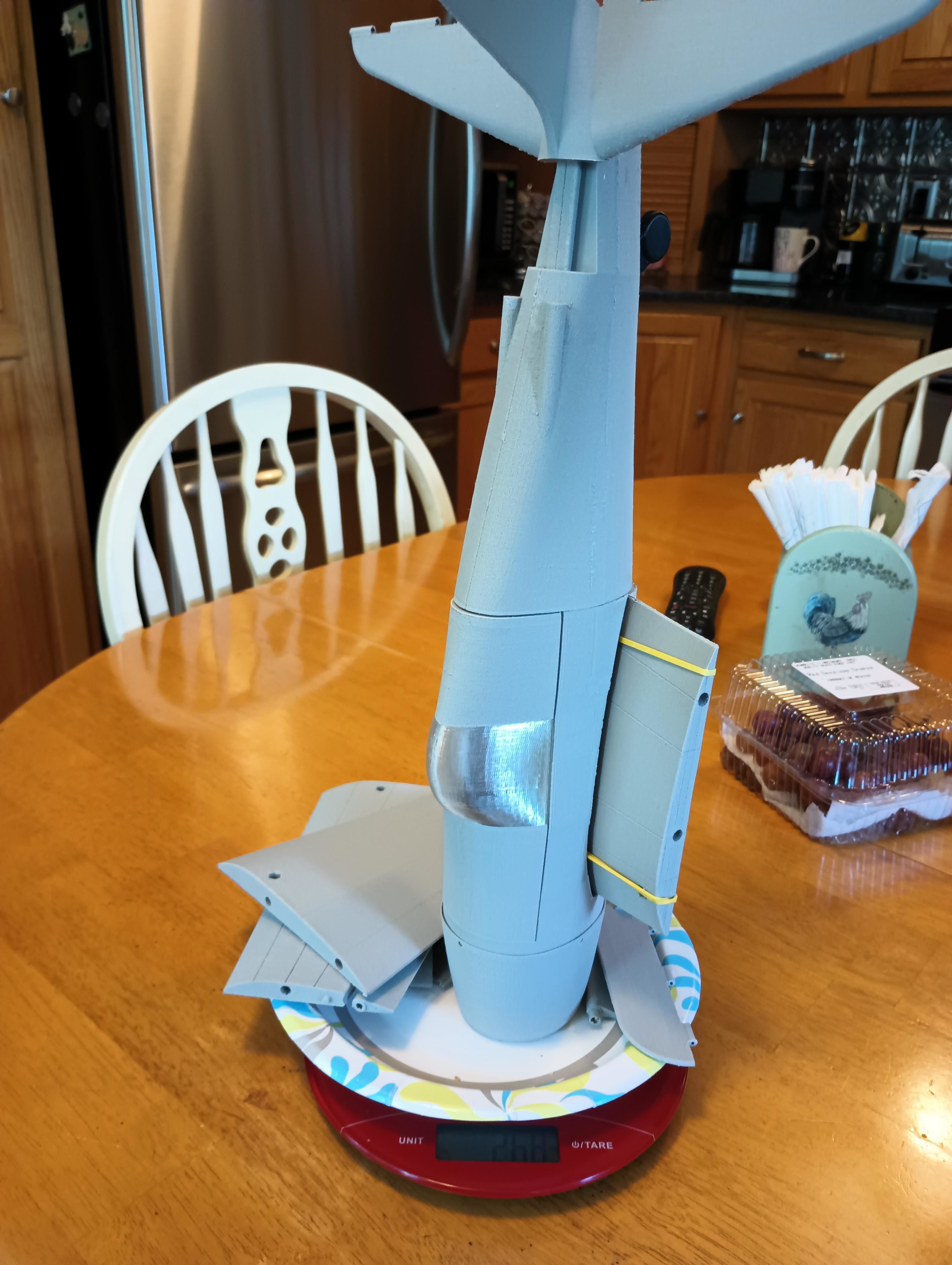

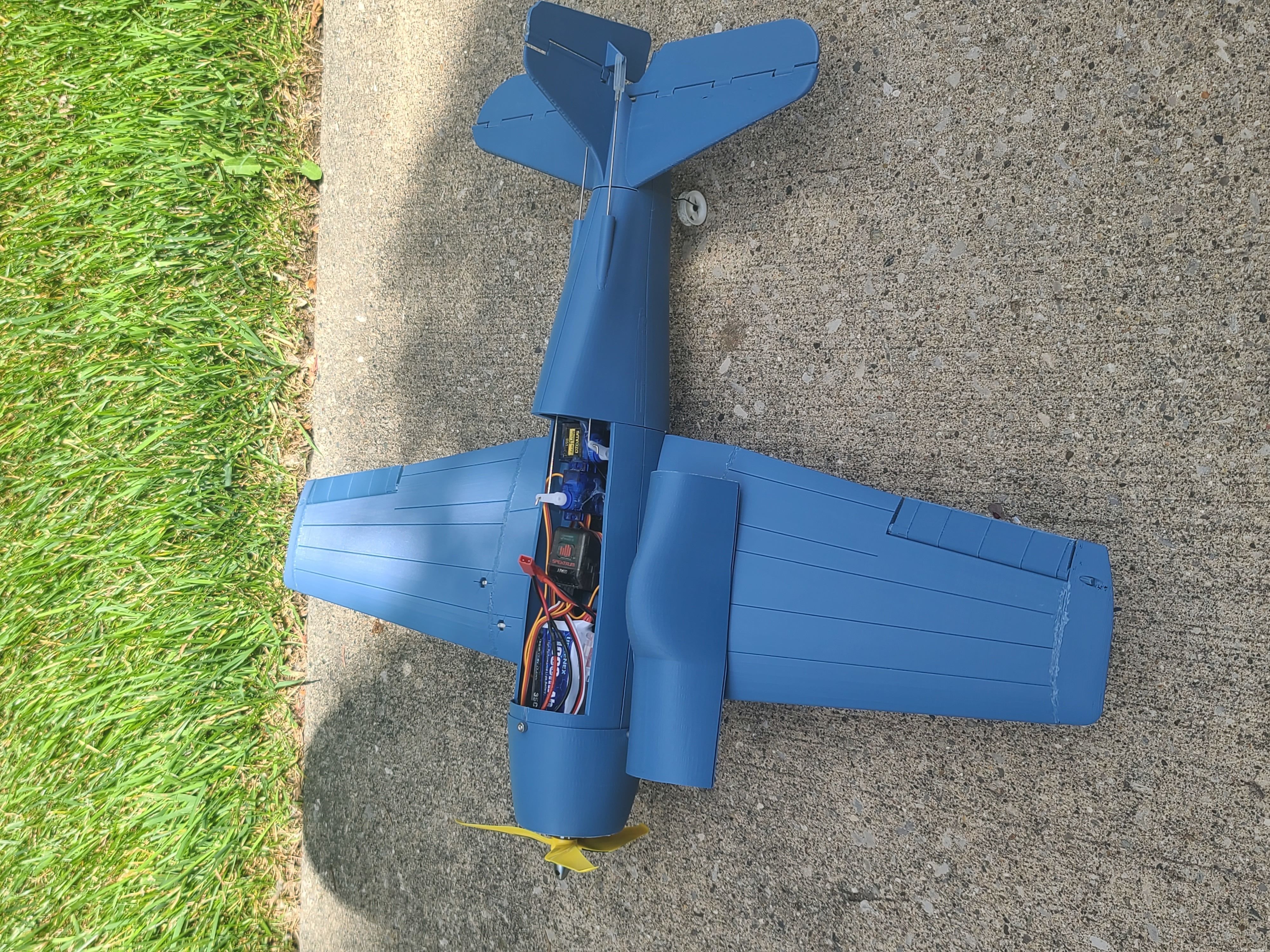

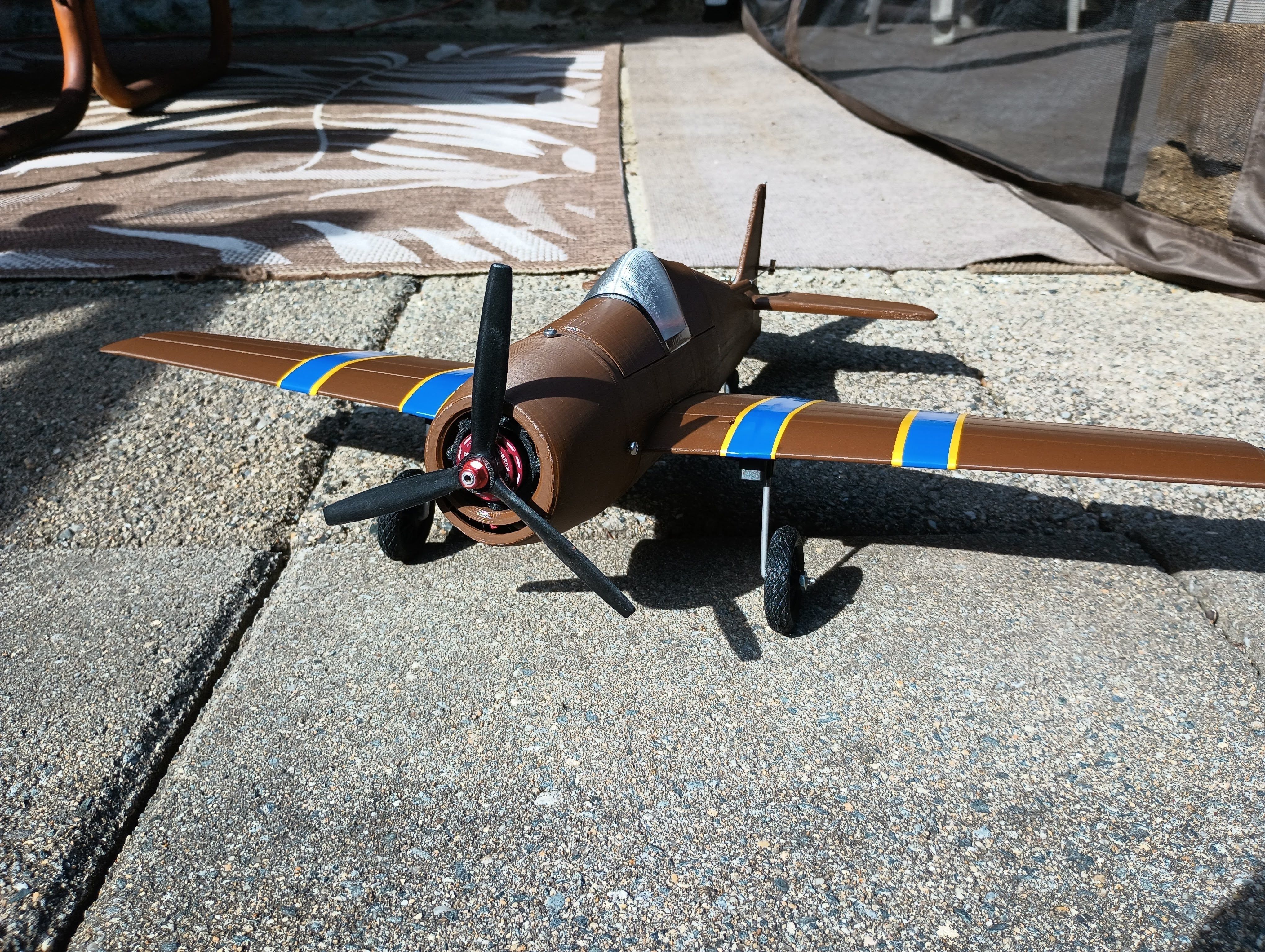

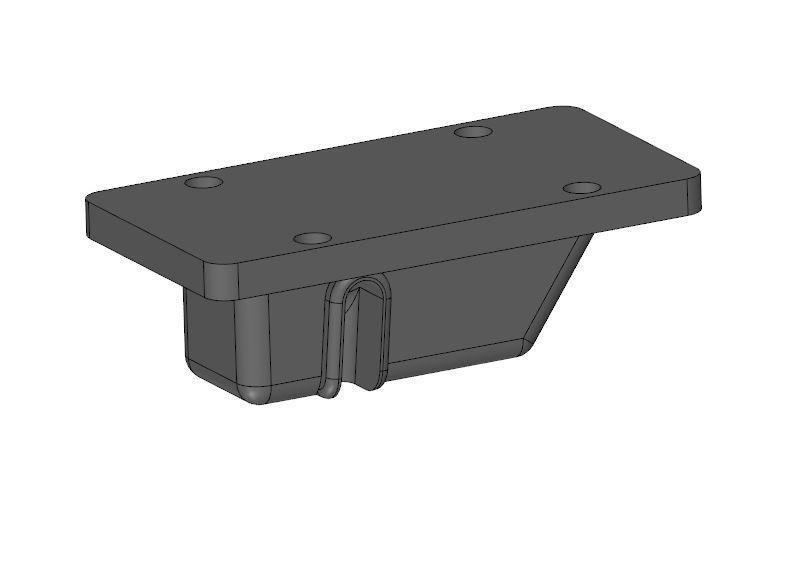

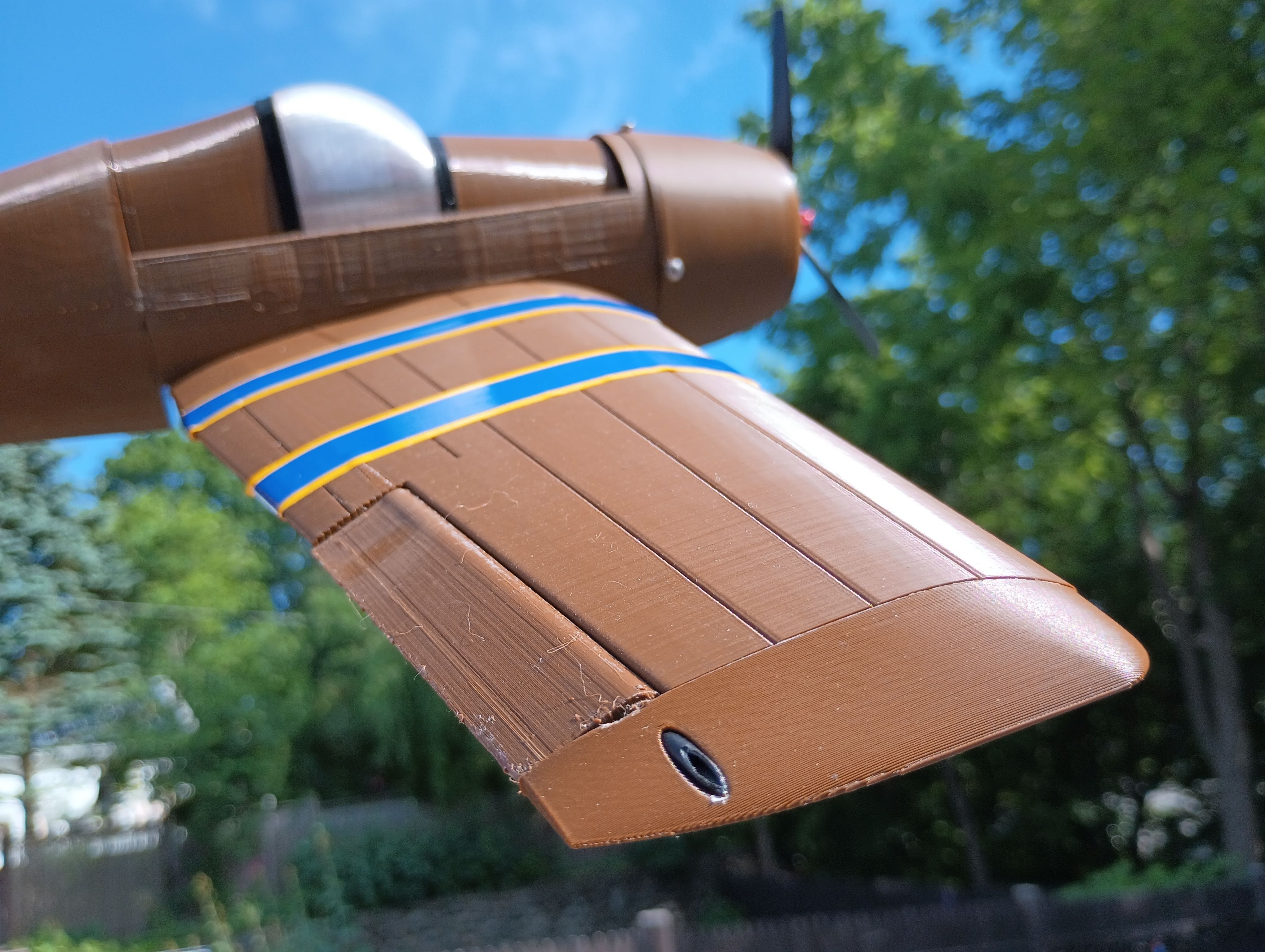

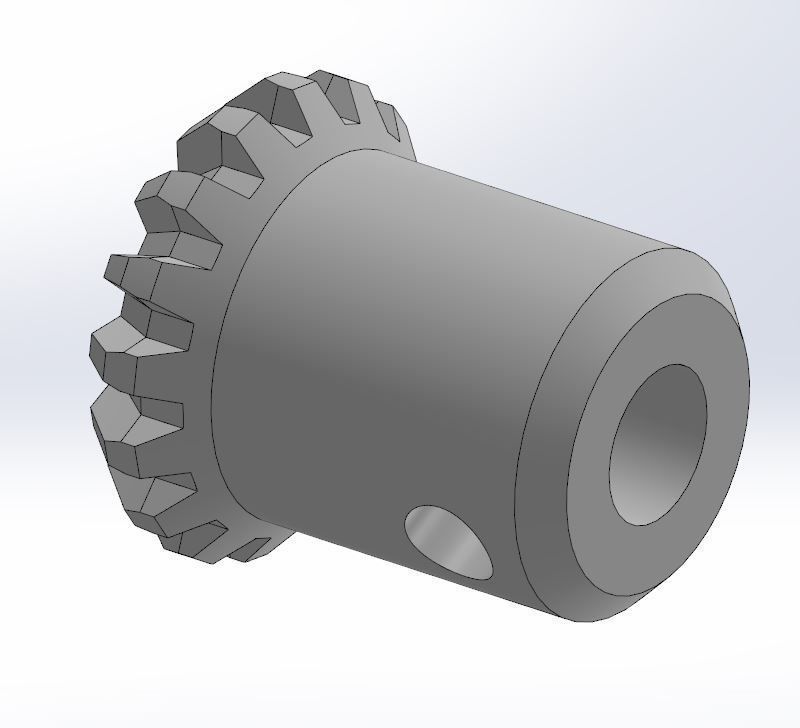

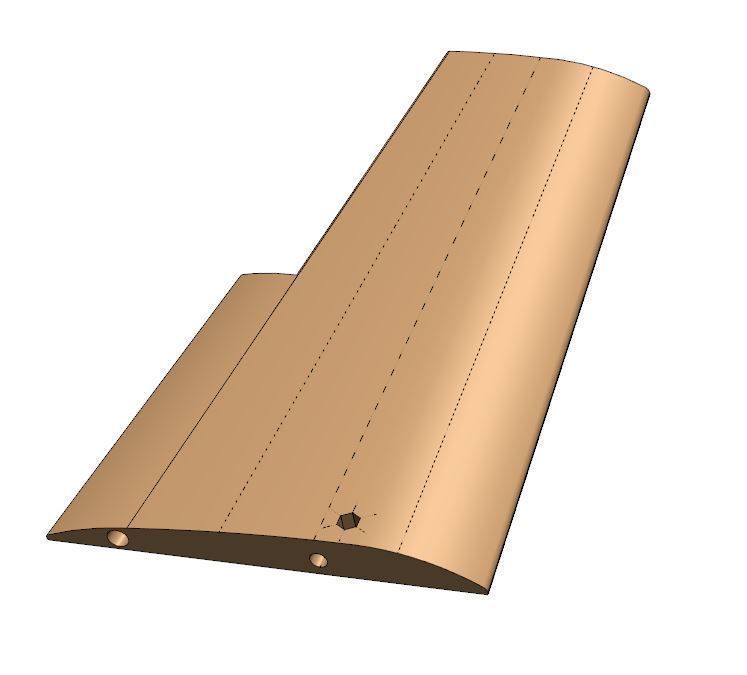

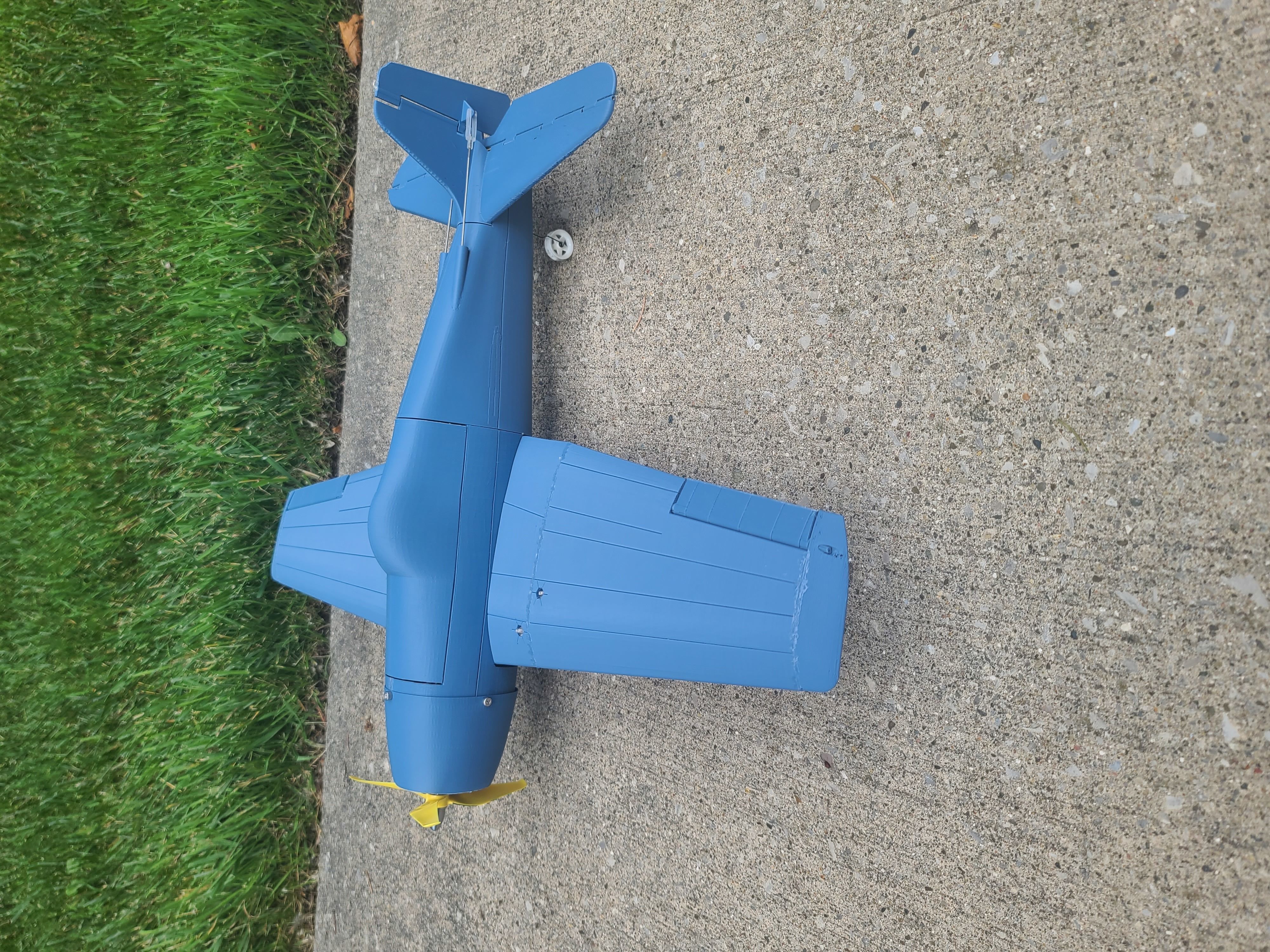

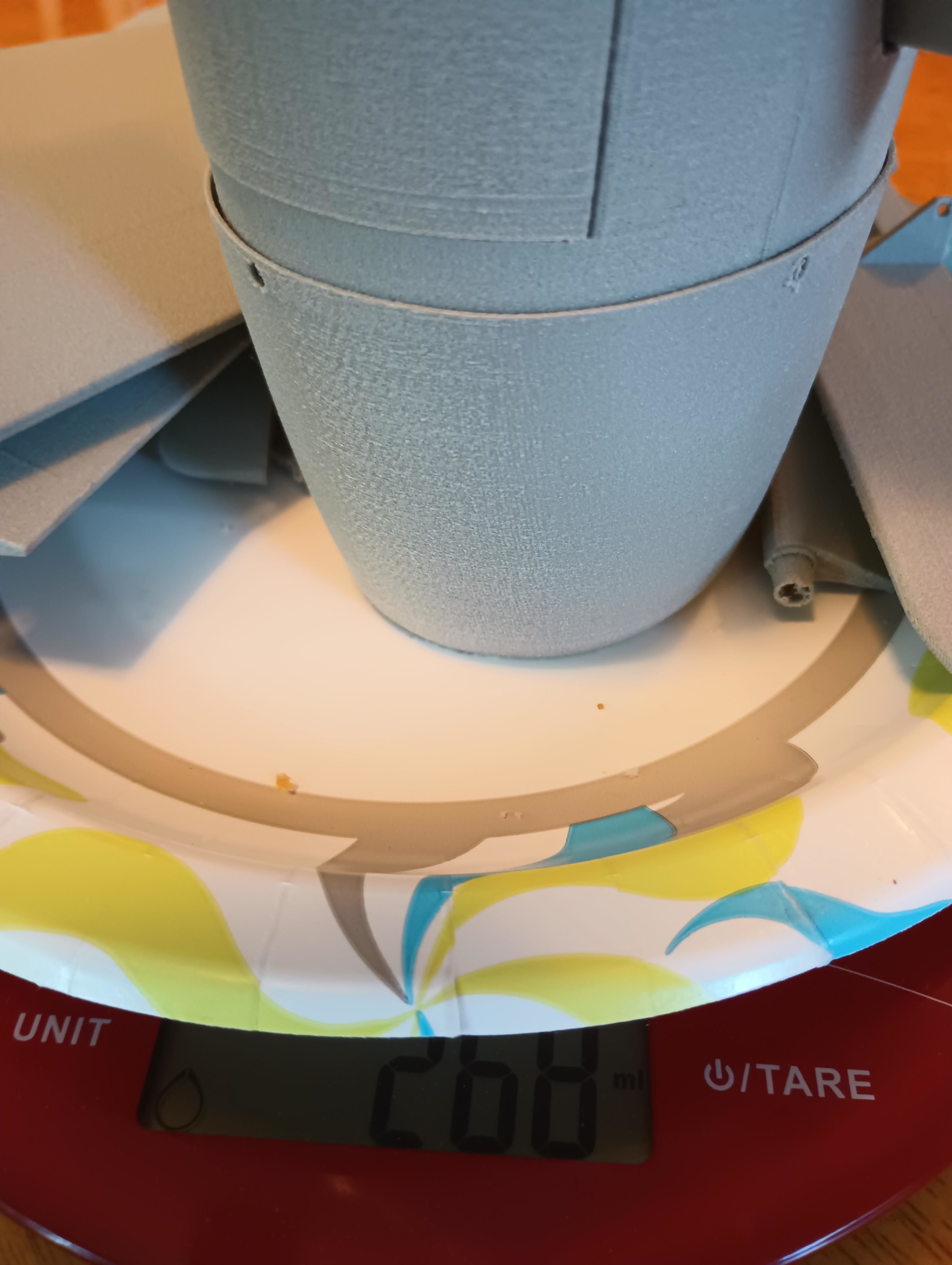

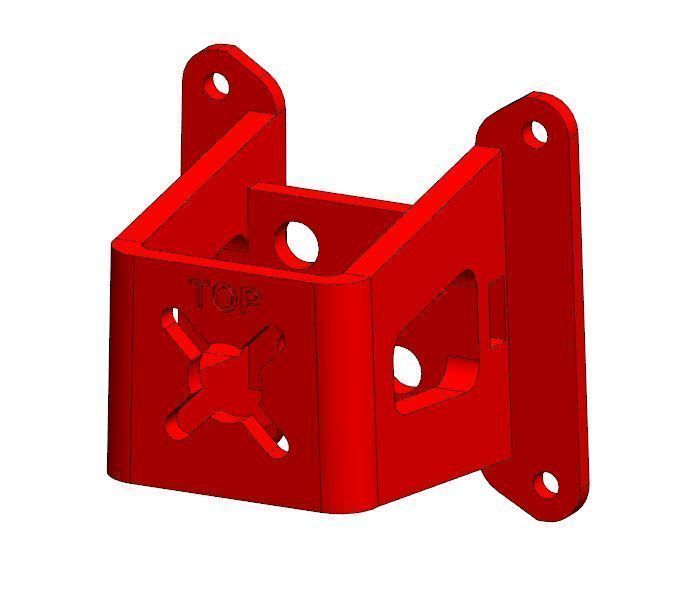

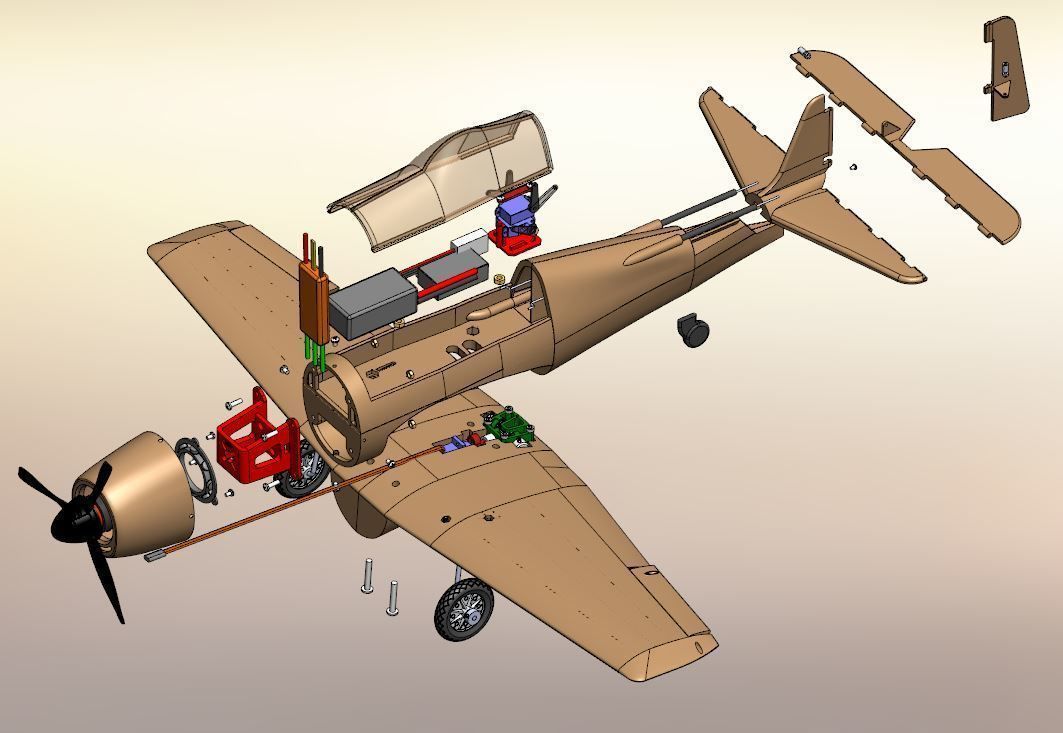

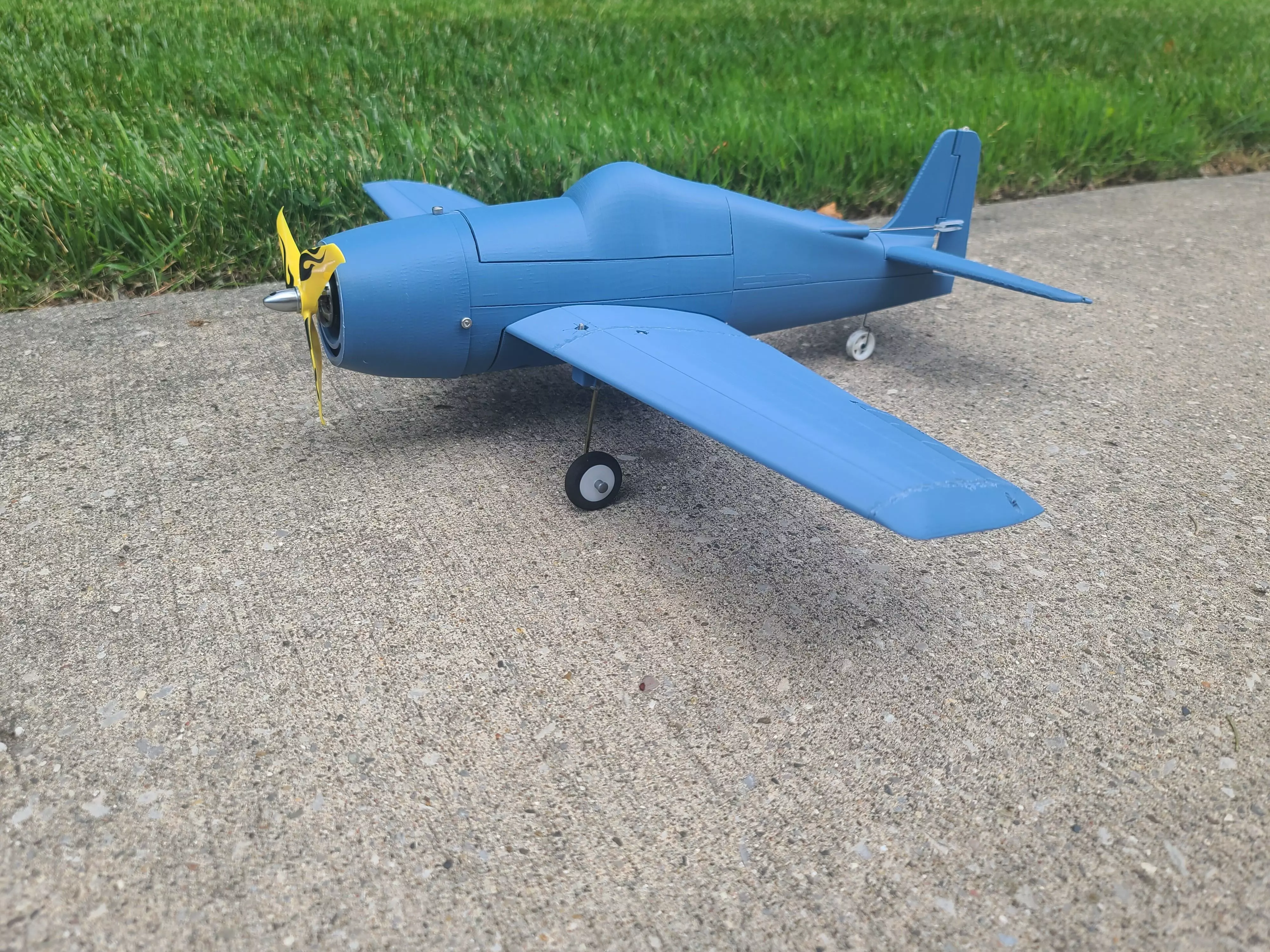

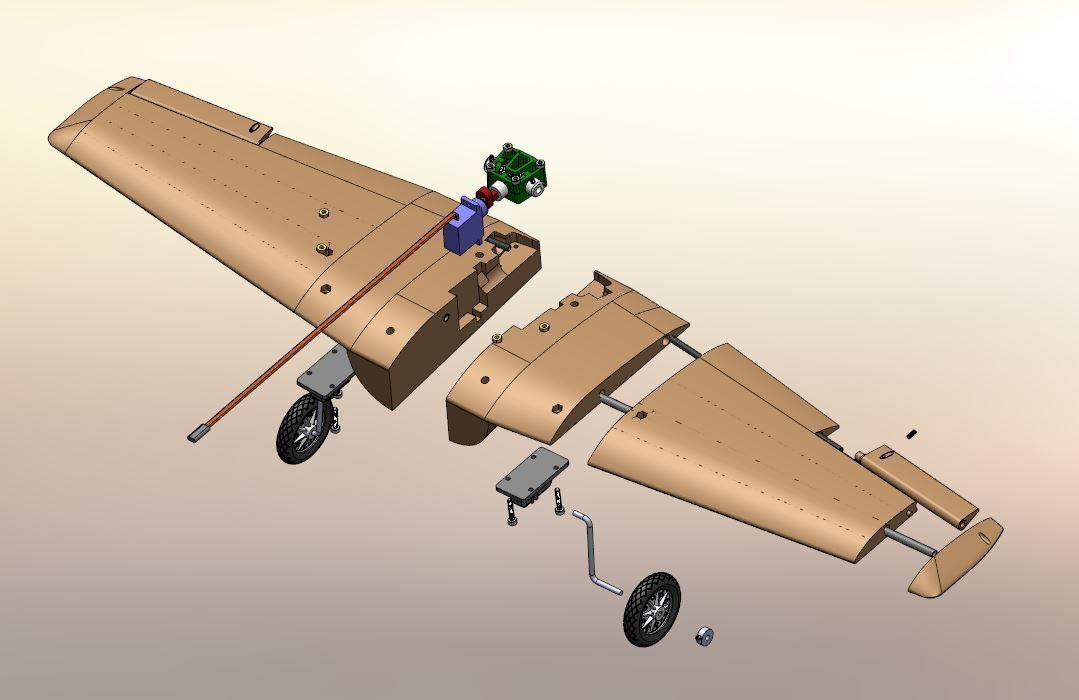

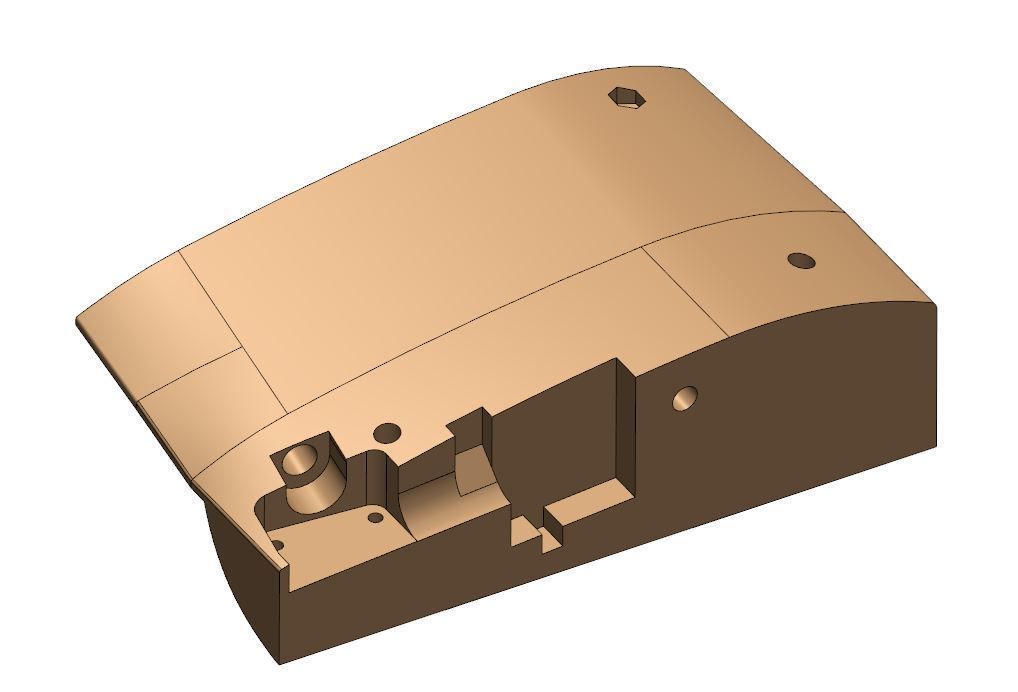

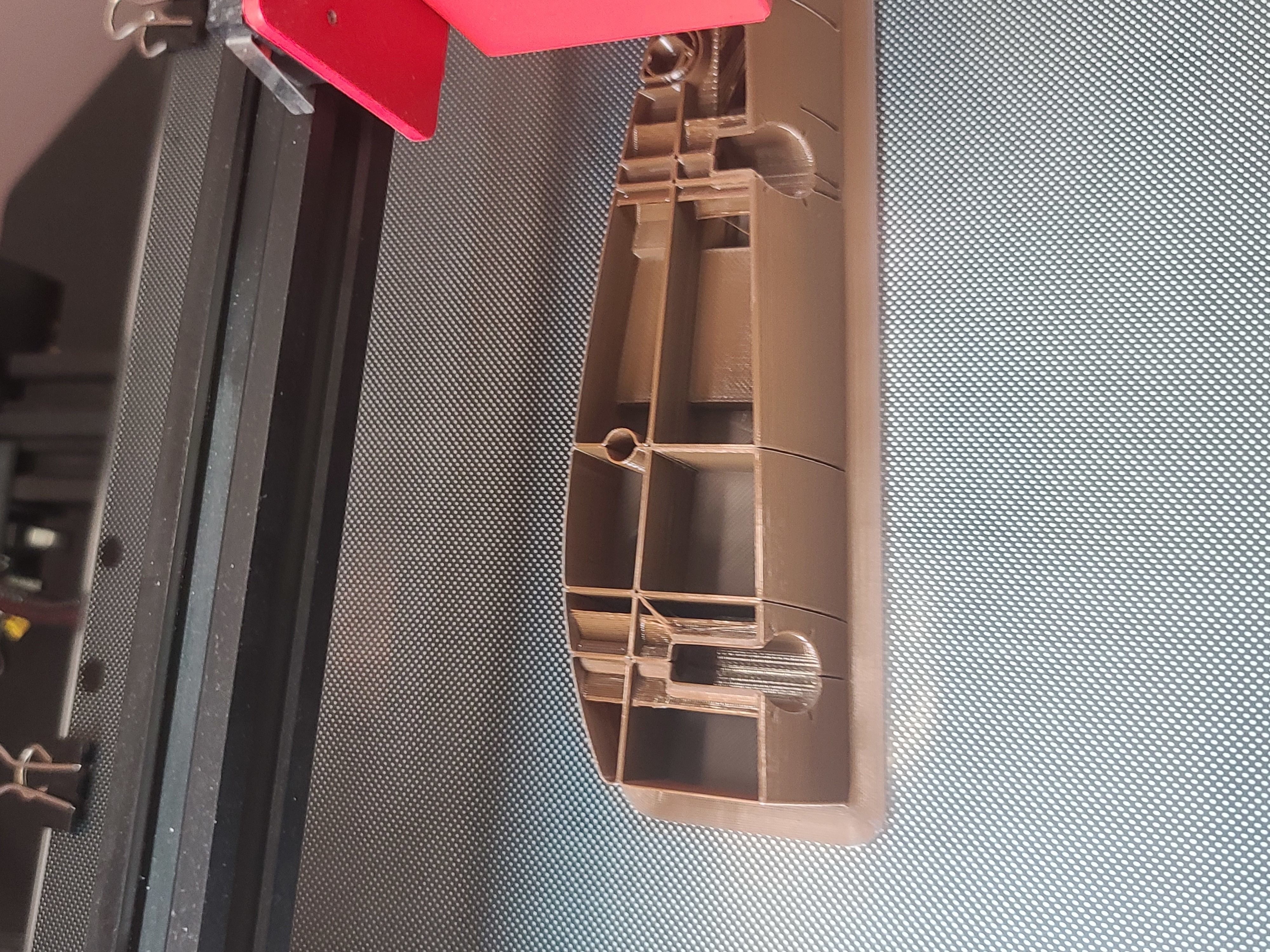

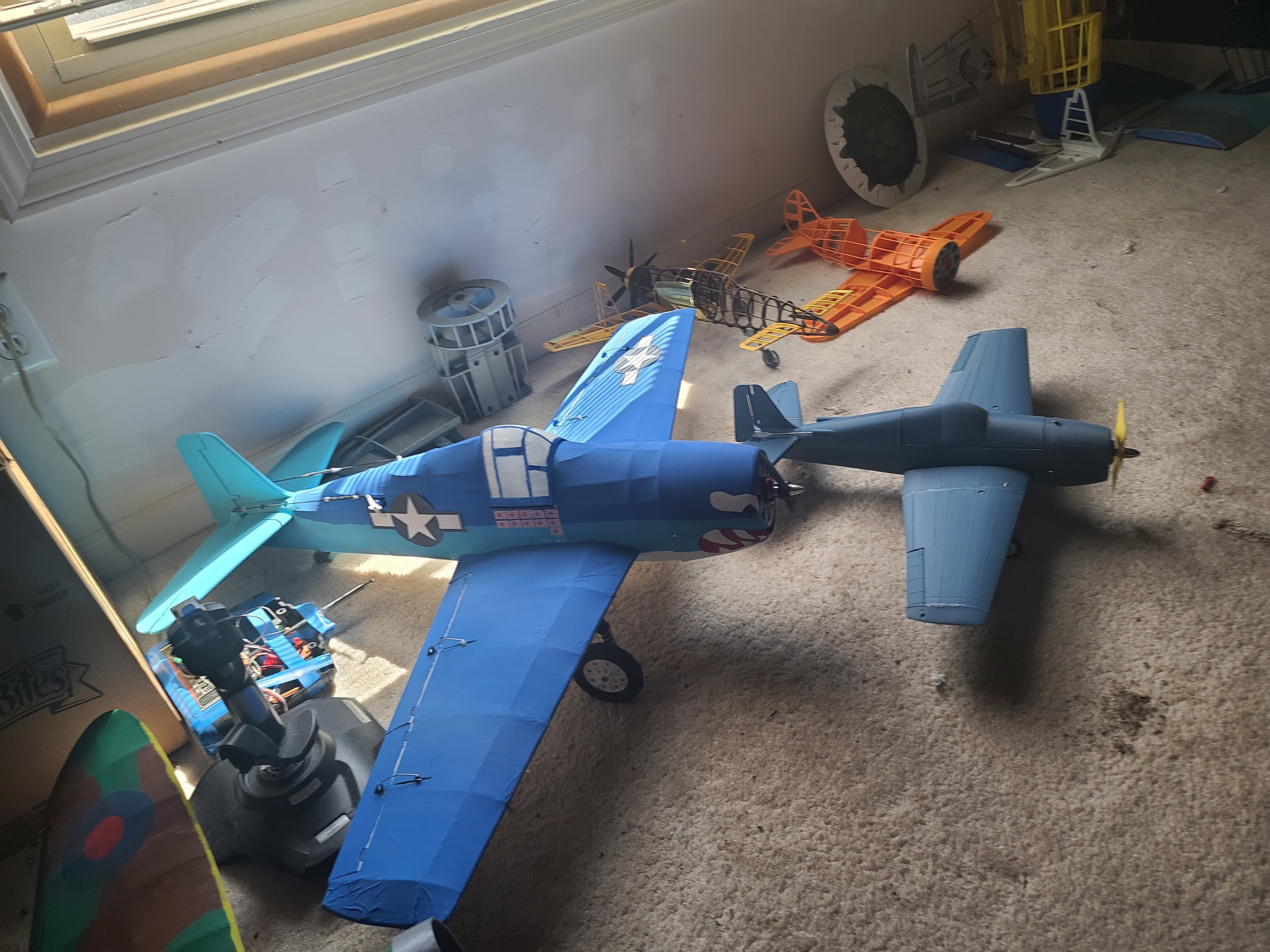

This model is the result of another combined effort between (RonStG) (Aileron Ron) and myself (The3vilRoYcE), it's based on the original printable frame version posted last year, however there are some very significant changes. This plane is now a 1 wall shell print with almost a 600mm wing span that no longer requires to be covered post print. Unlike the other versions the ailerons are controlled through a single 9g servo and gear box system sunk into the belly of the plane. I would consider this a fairly advanced build as the parts are going to have to be pretty precise, especially these gearbox components. You will have to know your way around and be able to change settings in Cura in order to produce proper weighted and functioning parts. please follow the instruction carefully. This build has been tested in flight, it flies. Suggested weight range 450-600grams balanced on the rear of the front landing gear blocks. Required print bed size=235mmx235mm Ender 3 or larger.

Original post page with sample gearboxes for testing found here: https://www.thingiverse.com/thing:5420735

Printing Instructions: https://drive.google.com/file/d/1eEFWn5qj5NtcMb3Waoa93h0J0ime95e_/view?usp=sharing
