P12 TRX6 logging bed and trailer - 1-10 RC body attachment 3D print model

Requires a printer with minimum 210x256x180 build volume.

Please note the P12 cab shown in the images is SOLD SEPARATELY. This body attachment is for the TRX6 - G63 version.

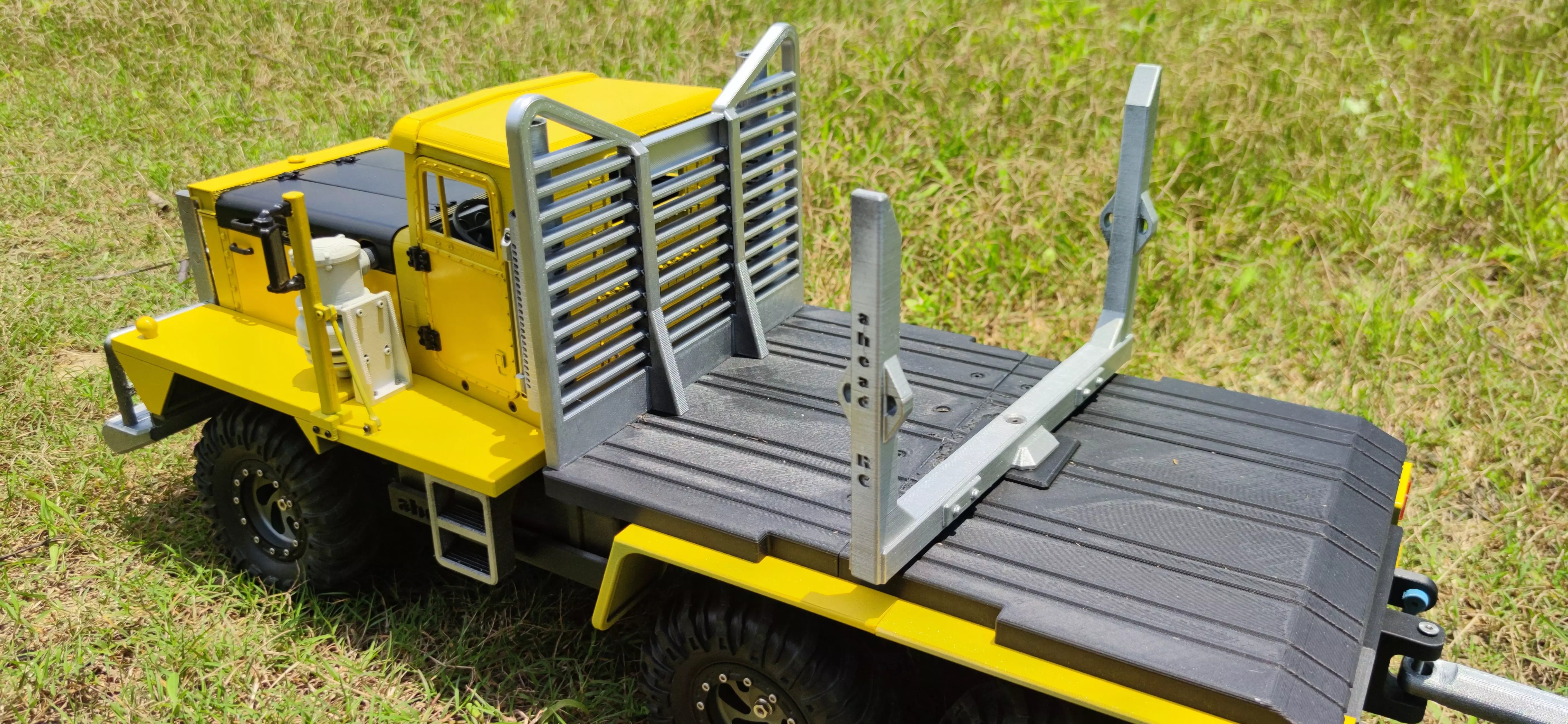

To pair up with the P12 cab, a matching logging bed and trailer are available. It’s essentially a stiff and heavy duty bed to put heavy logs on.

TRX6 G63 mounts and rear shock towers are included. Please remove all inner fenders for proper mounting, please also use aftermarket front shock towers when using the P12 cab.

As it is recommended to use 130mm tyres with the P12 body set at 265mm width. In stock form, the middle and rear axles will have clearance issues due to the bigger tyres. Therefore instructions are provided below to convert your TRX6 G63 to a longer wheelbase version.

Stock and LWB rear fenders are included allowing you to run with stock or 120mm tyres, or 130mm tyres with 20mm extended wheelbase.

The trailer is intended for 120mm tyres, but there is more than enough clearance between the 2 axles for 130mm tyres.

Some features and details included:Stock and LWB fenders are includedFunctional light buckets for beacons on headache rack and for tail lightsRotating logging beams to assist in turning with the logging trailerLogging beams have tie down points for better utility and optionsHeavy duty trailer hitch with 2 utility shacklesHeavy duty logging trailer linkage can pivot to compensate cab for off-camber situations.Trailer can dolly up to another logging trailer for extra long logs.Heavy duty logging trailer with rotating logging beamAir brake chambers mounted to logging trailer

130mm tyre conversion:Using 130mm tyres on the stock G63 will cause clearance issues with the middle and rear axle as the gap between the two tyres at 120mm are already very narrow. Therefore longer links are required for the rear axle.

The idea is to lengthen the rear links by 20mm so that it sets the rear axle further back by 20mm allowing more clearance between the middle and rear axle.

Parts list:Traxxas 8145 (5x115 links with rod ends)Traxxas 8839 (TRX-6 Ultimate RC Hauler 3XL 298mm T-Lock Cable Set)Traxxas 8250 (TRX-6 driveshafts)

Assembly:Use Traxxas 8145 as rear lower links, replacing the stock Traxxas 8831 rear lower links.Use Traxxas 8831 as rear upper links, replacing the stock Traxxas 8832 rear upper links.Replace stock rear diff lock cable and sleeve with Traxxas 8839.Mix and match to extend driveshafts for the rear axle.

Printing notes:Logging beams are 260mm in width, but have been tested to fit on a 256x256 bed when rotated 45 degrees on the Z axis

Be sure to check out the instruction manual and gather all required hardware for assembly.

It is highly recommended to read the instruction manual before purchasing, to ensure you have all the required tools and hardware to assemble this body.

Assembly instructions:View the link below to download the assembly instructionshttps://www.aheadrc.com/manual
