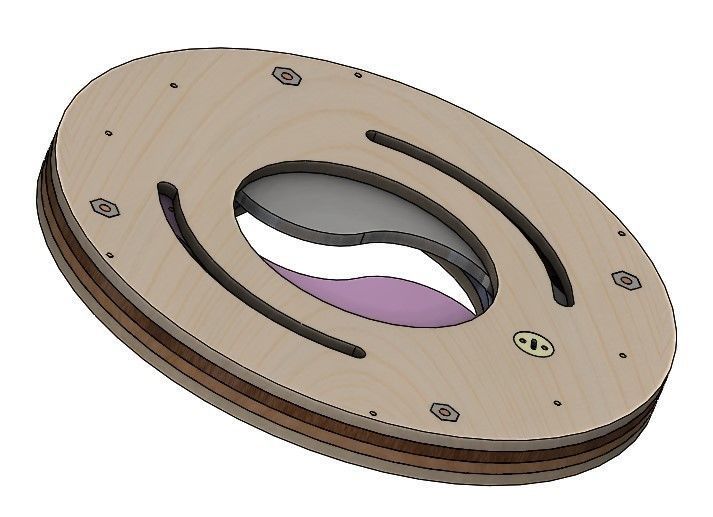

LS2BLROD40A Mechanical taiji shutter aperture iris laser cut diy 3D print model

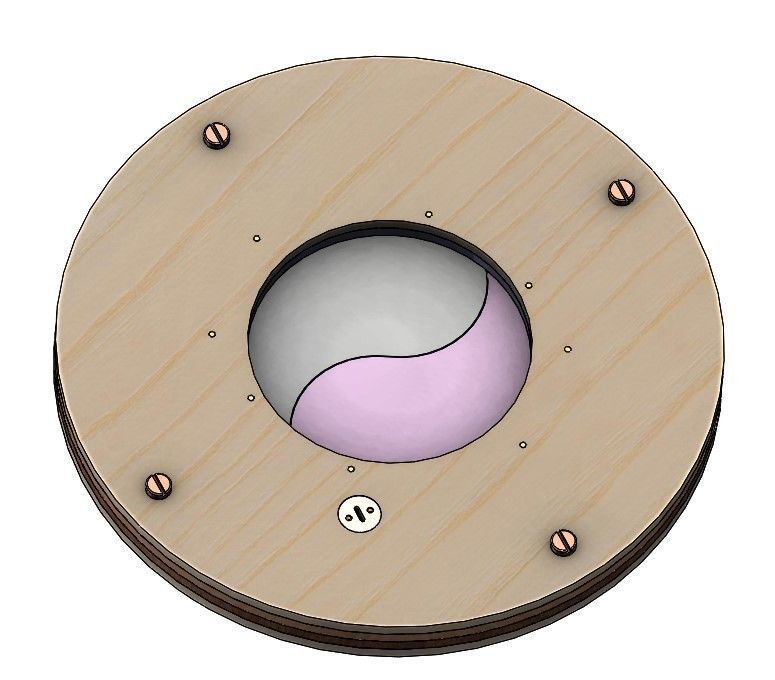

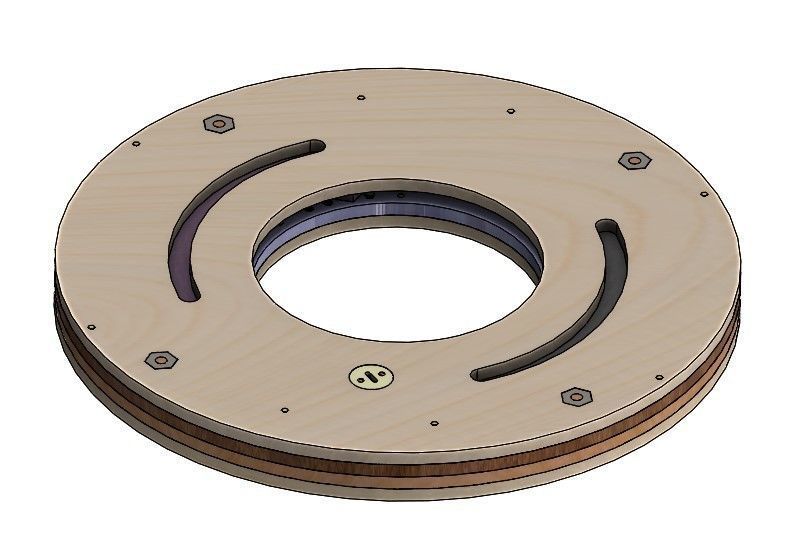

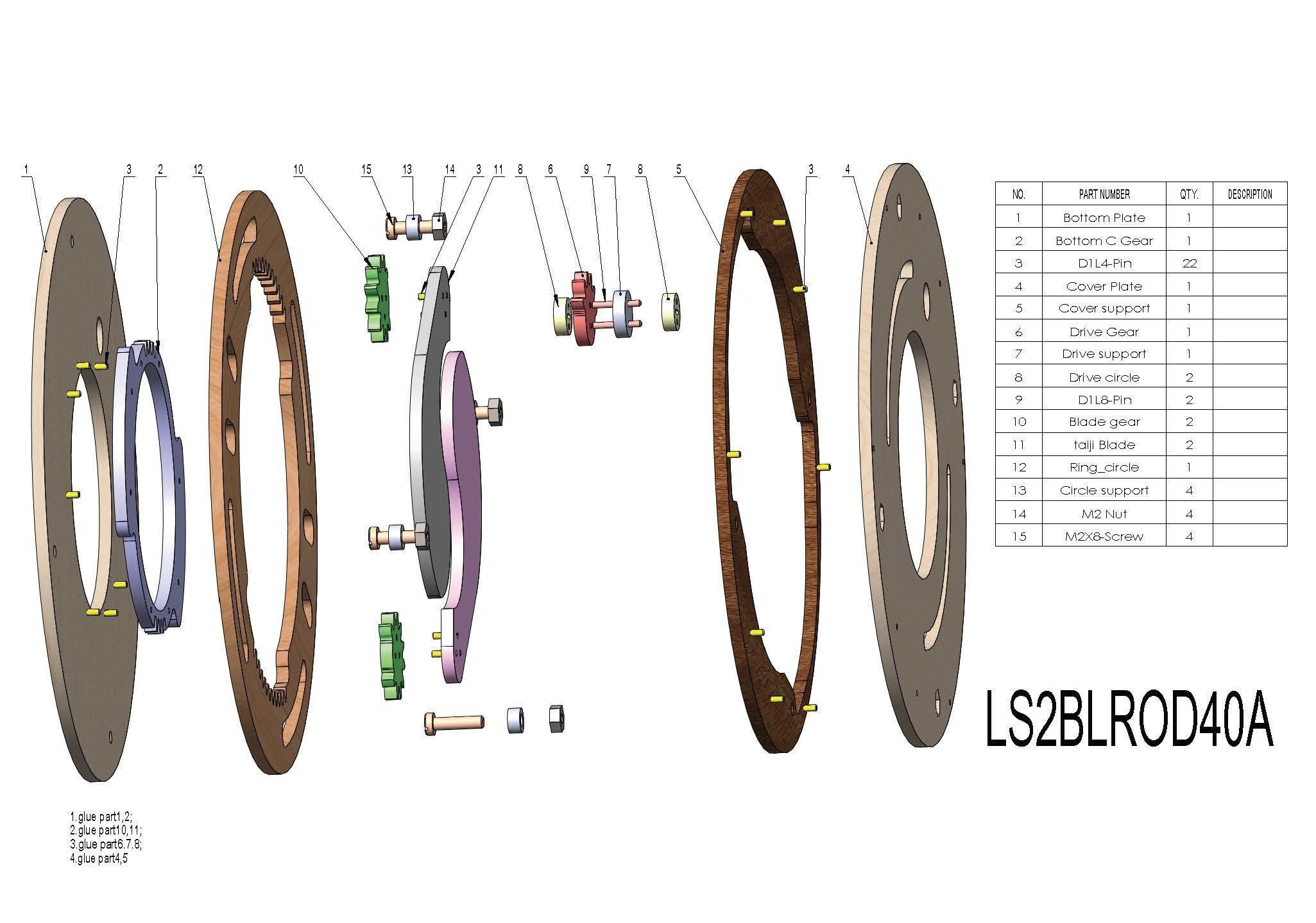

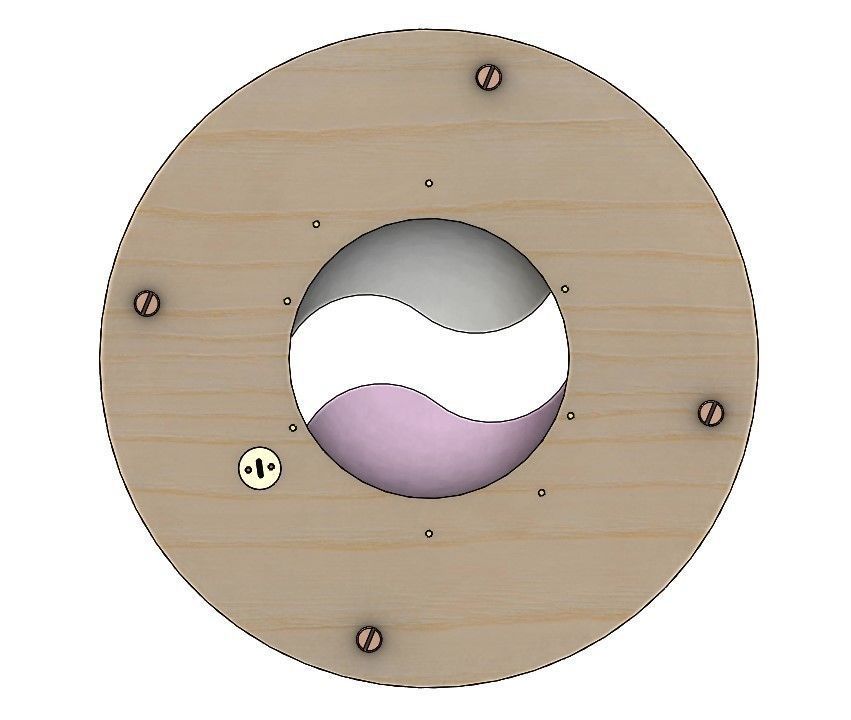

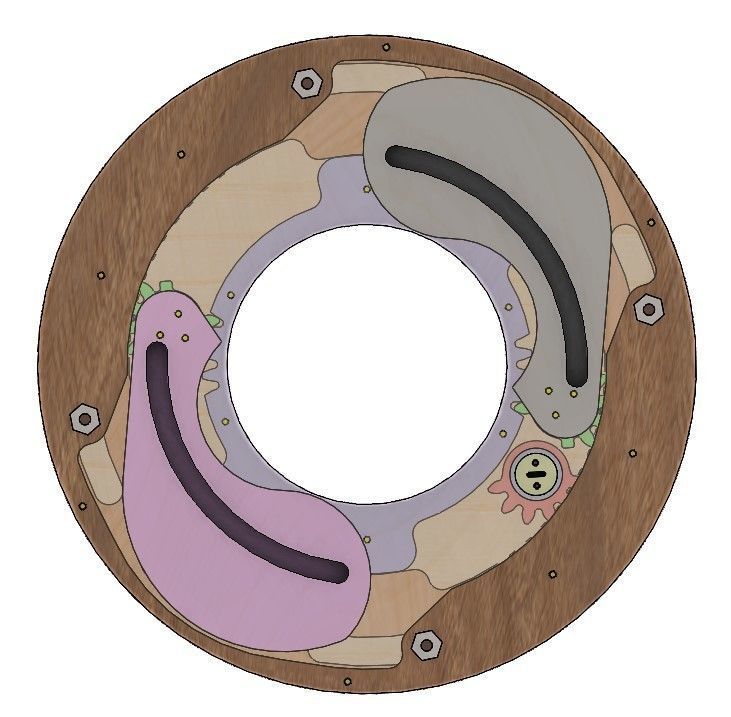

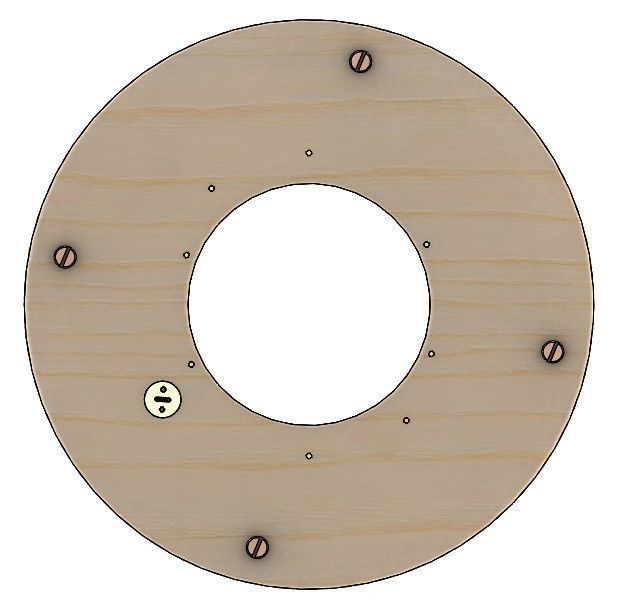

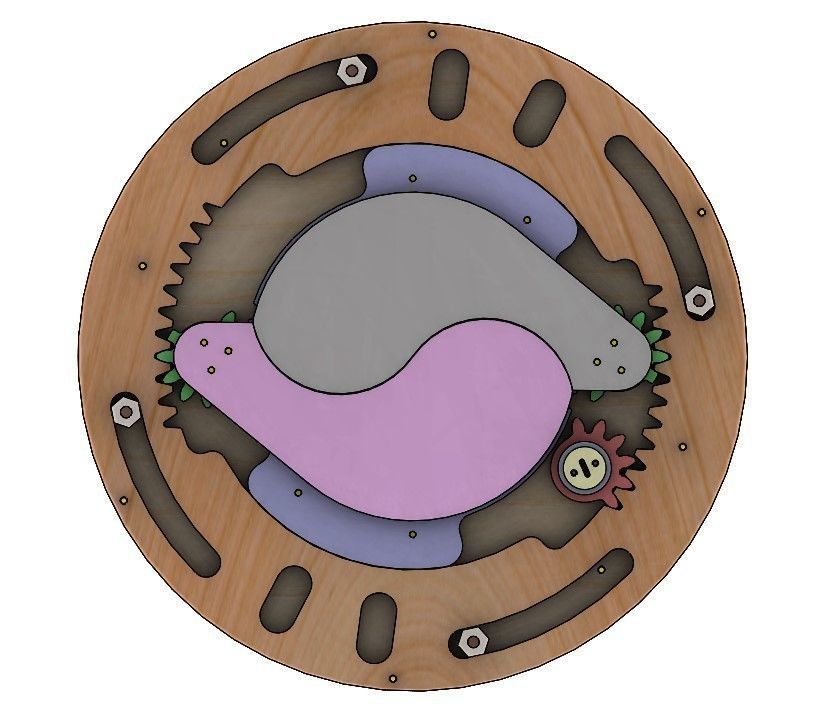

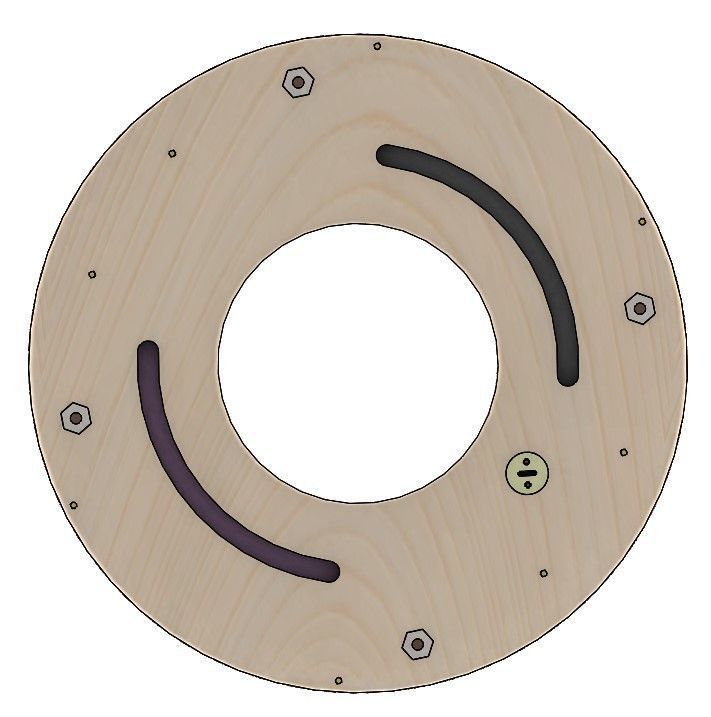

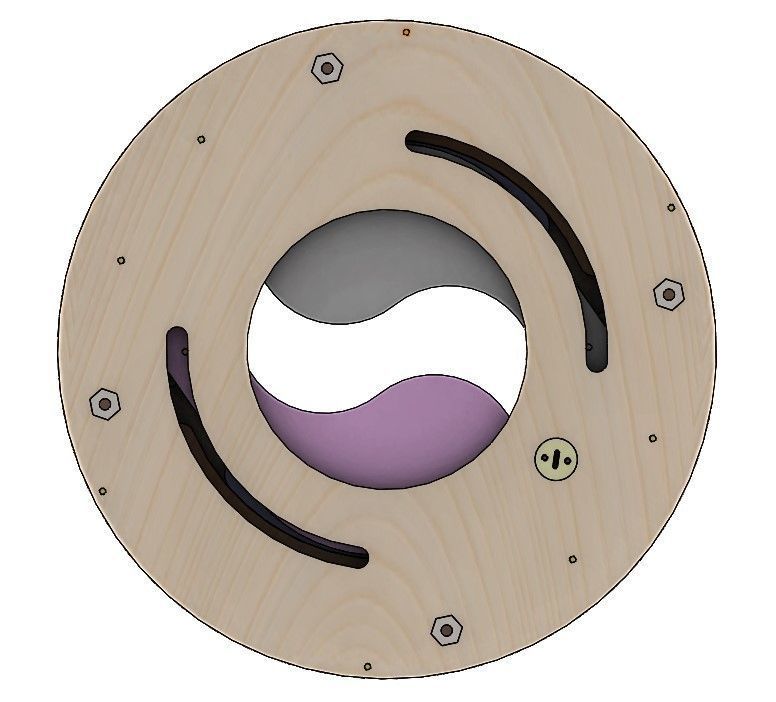

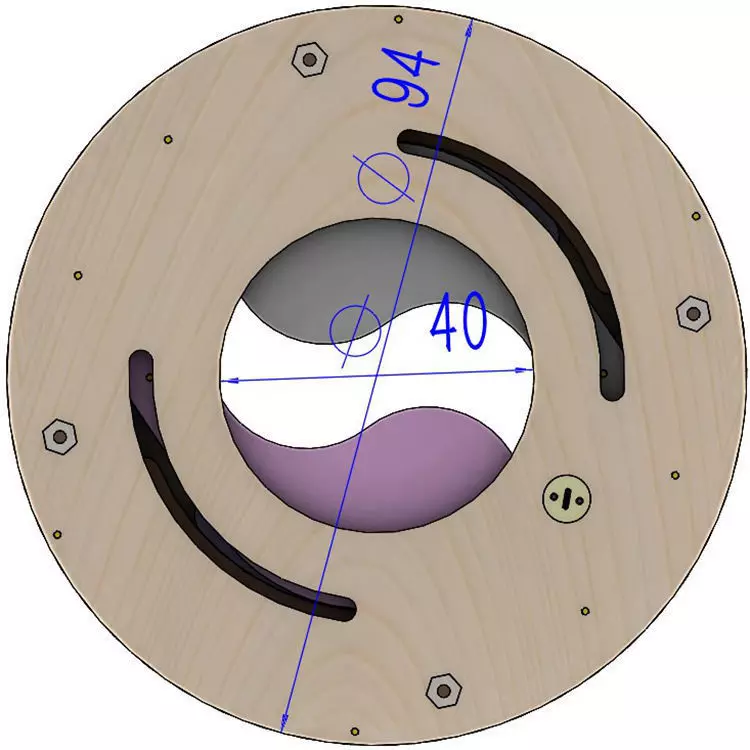

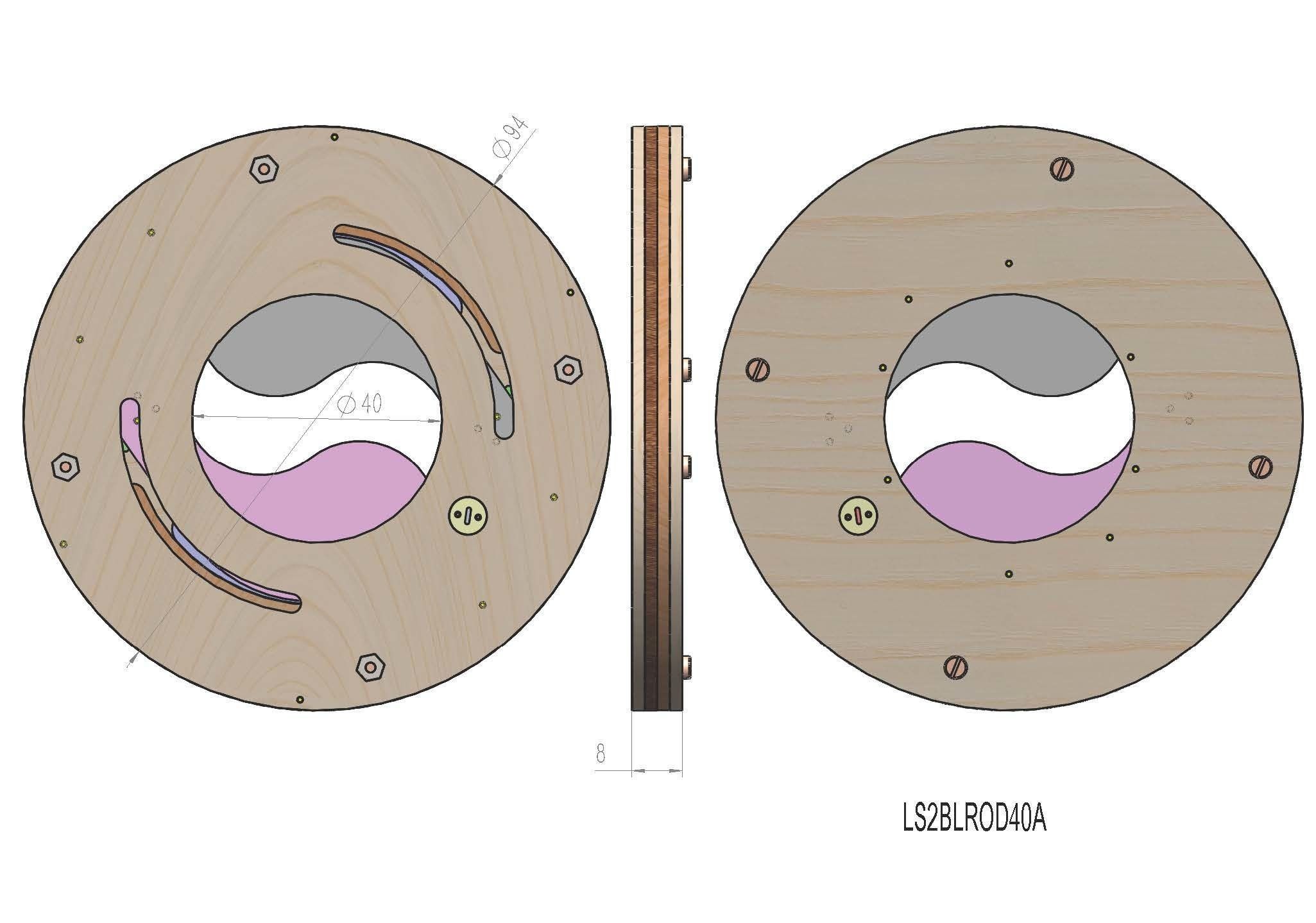

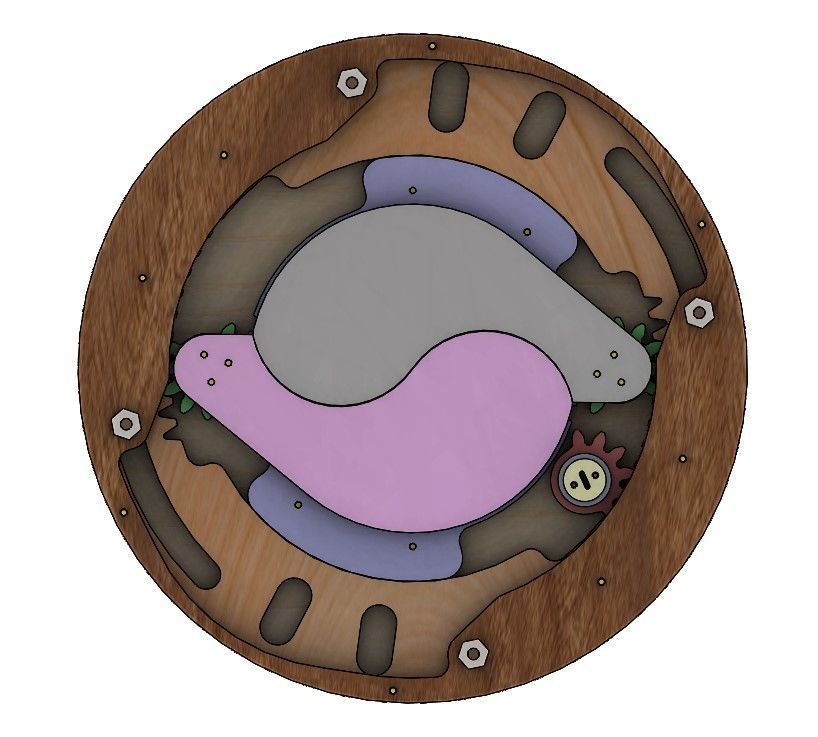

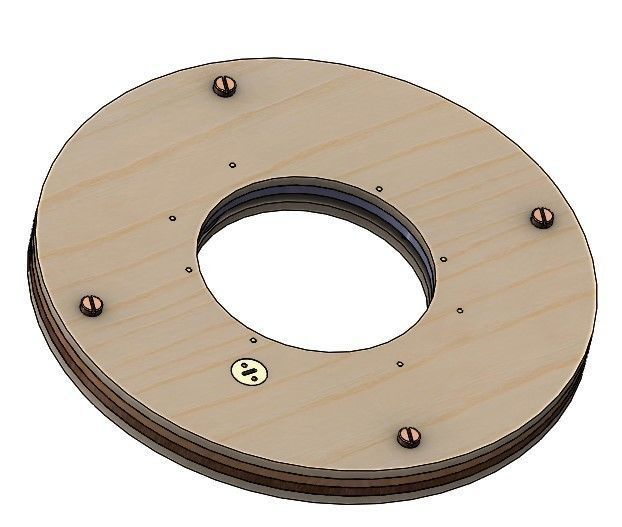

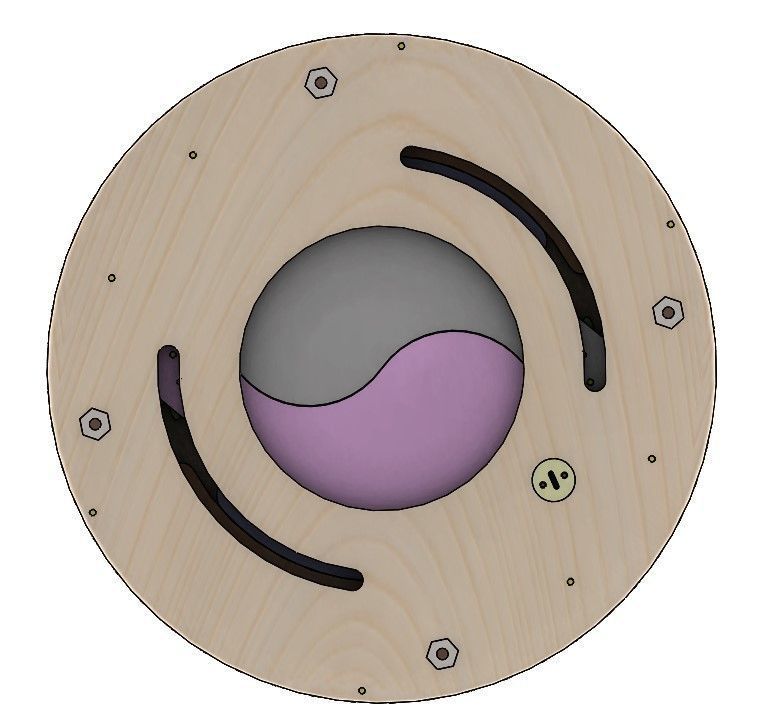

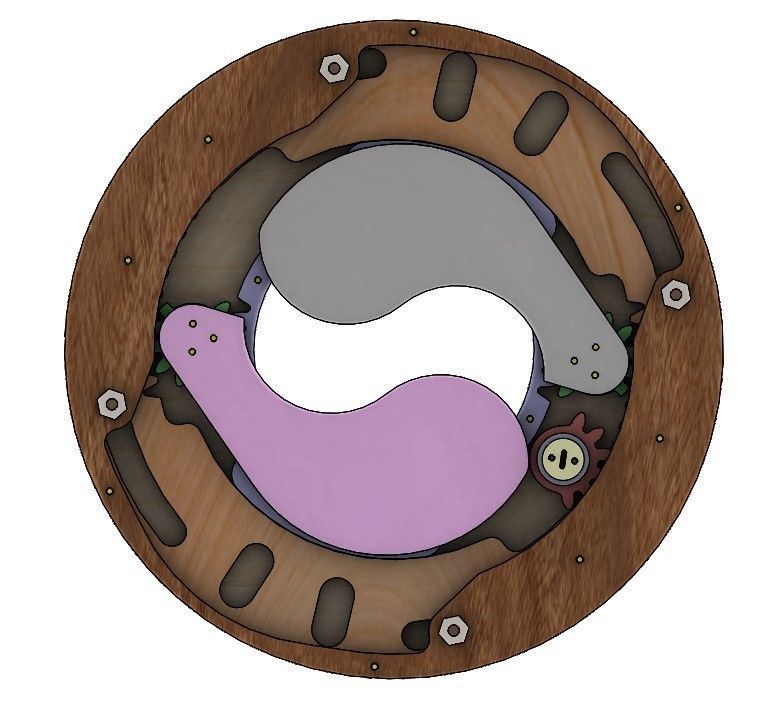

mechanical or taiji mechanism designed for laser cutting. There are 2 leaves. When you rotate the Drive Partor the middle plate, the center hole can open or close gradually. The center hole is diameter 40mm, the outer size is diameter 94mm and thickness is 8 mm. The parts' thickness are 2 mm. Because your material's thickness may be less or thicker than 2mm, perhaps you need to make some change accordingly when assemblying. To assemble the parts togther,some metal parts and glue are needed: 1. Diameter 1mm length 4mm-pin; Diameter 1mm,length 8 mm pin; Diameter 2mm,length 4mm pin; M2X8 screw; M2 hexagon nut. Refer

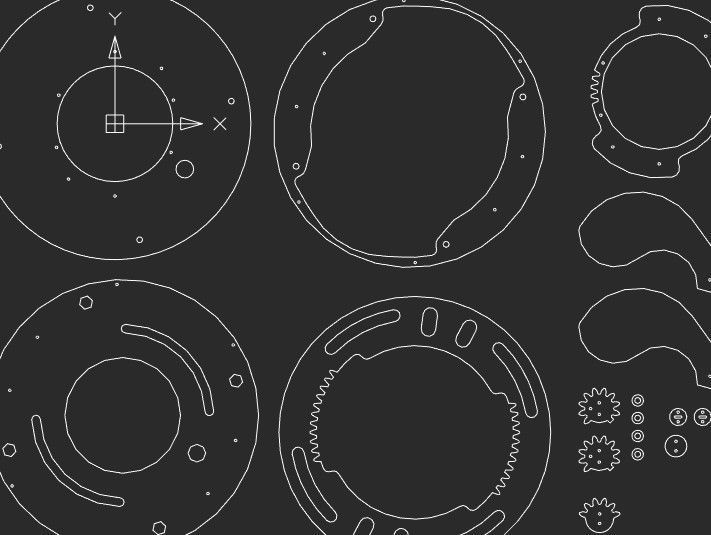

STEP and DXF format files are included. The FBX ,STLand OBJ format files can be deleted,they are only for cgtrader's requirement.
