3D Printable Linear SERVO Actuator 3D print model

Description

Video link: https://www.youtube.com/watch?v=-c1JRt7FlQs

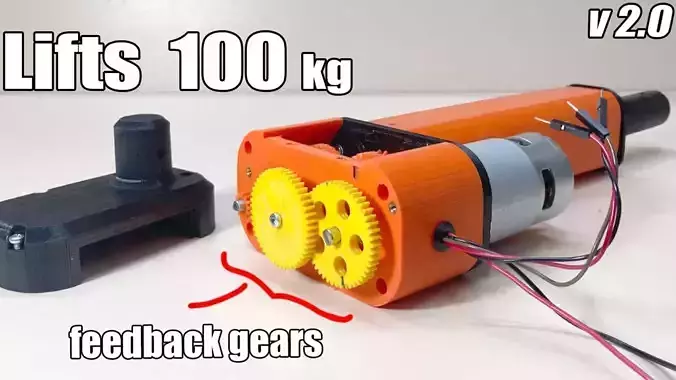

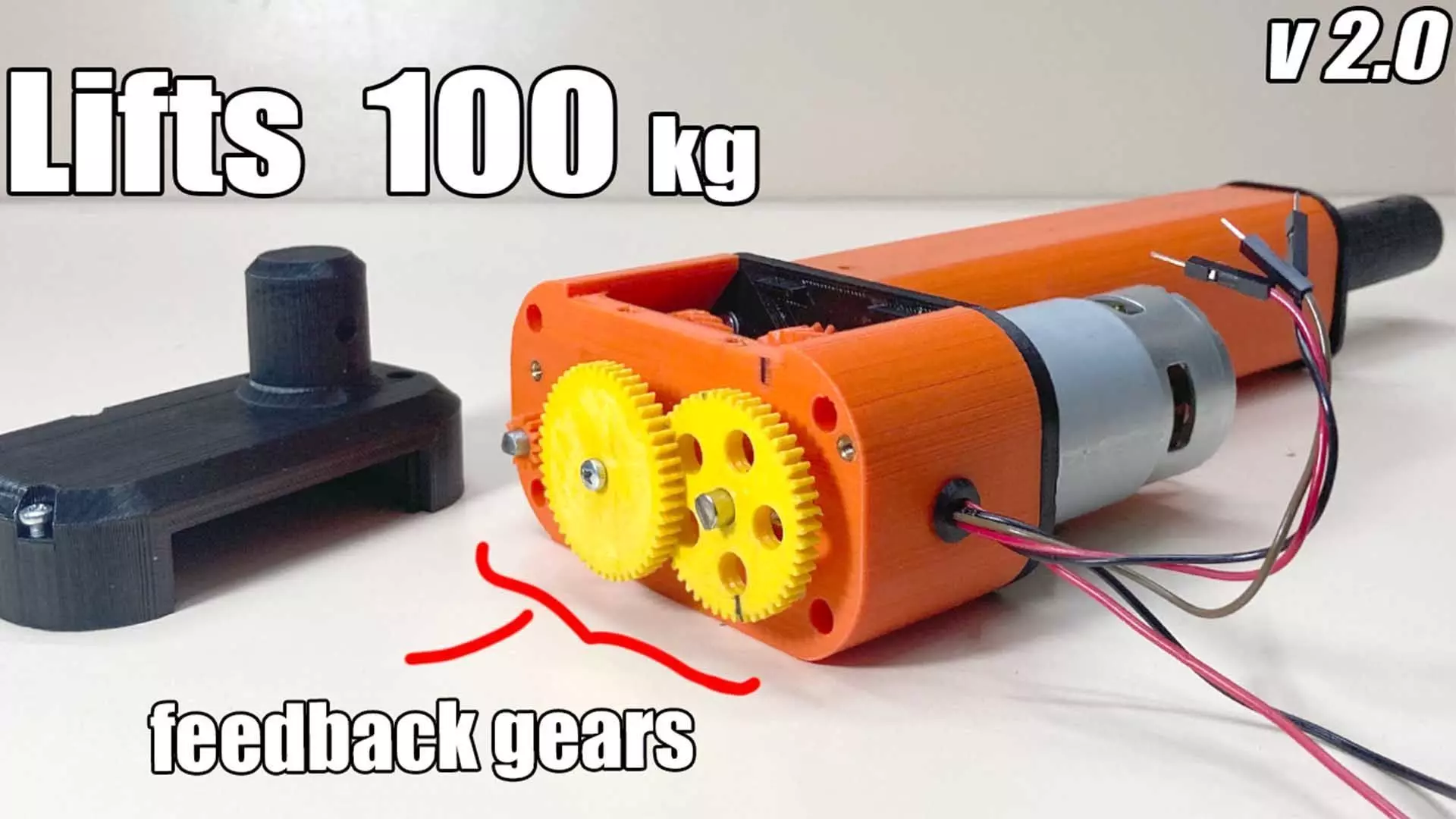

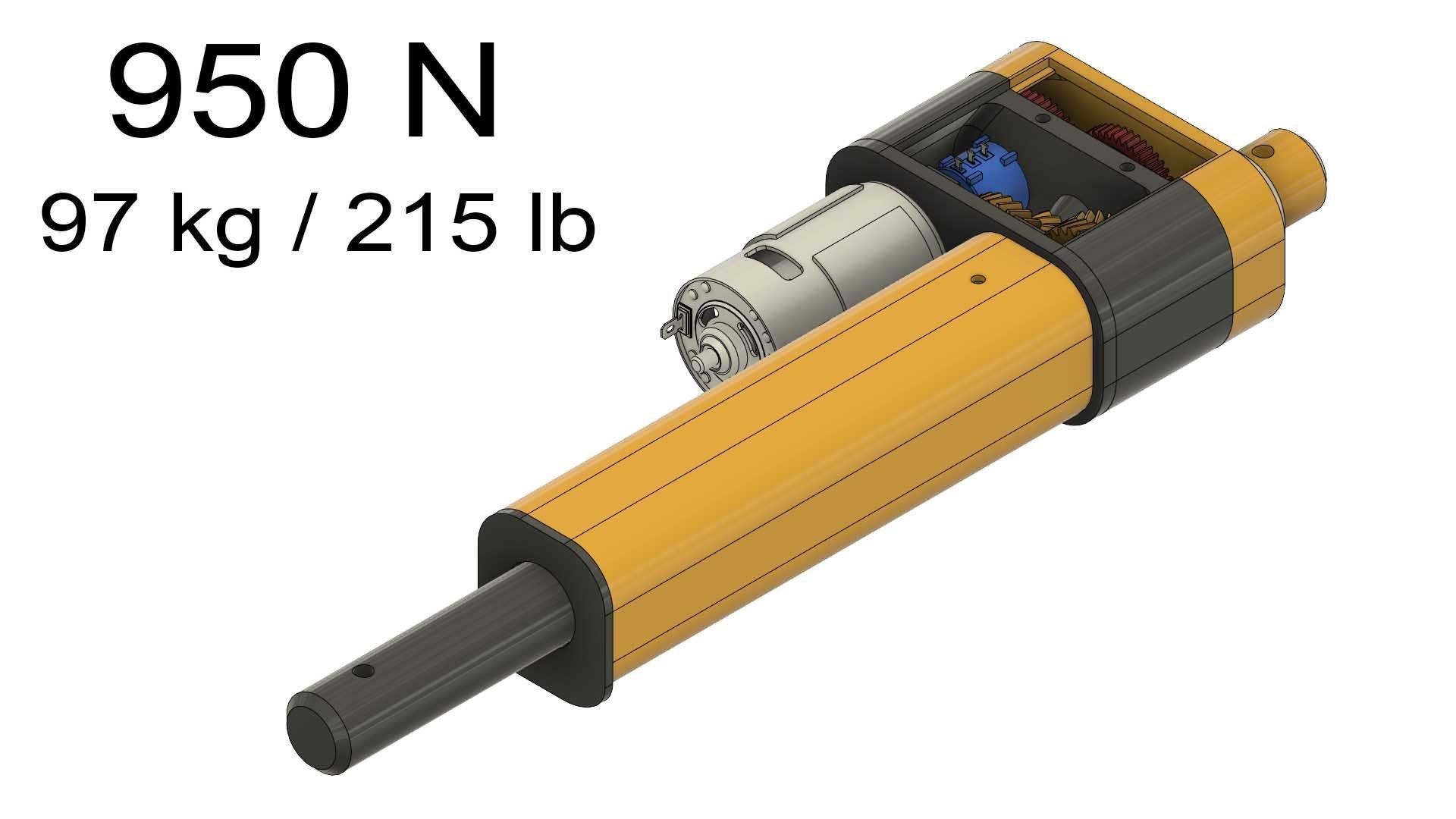

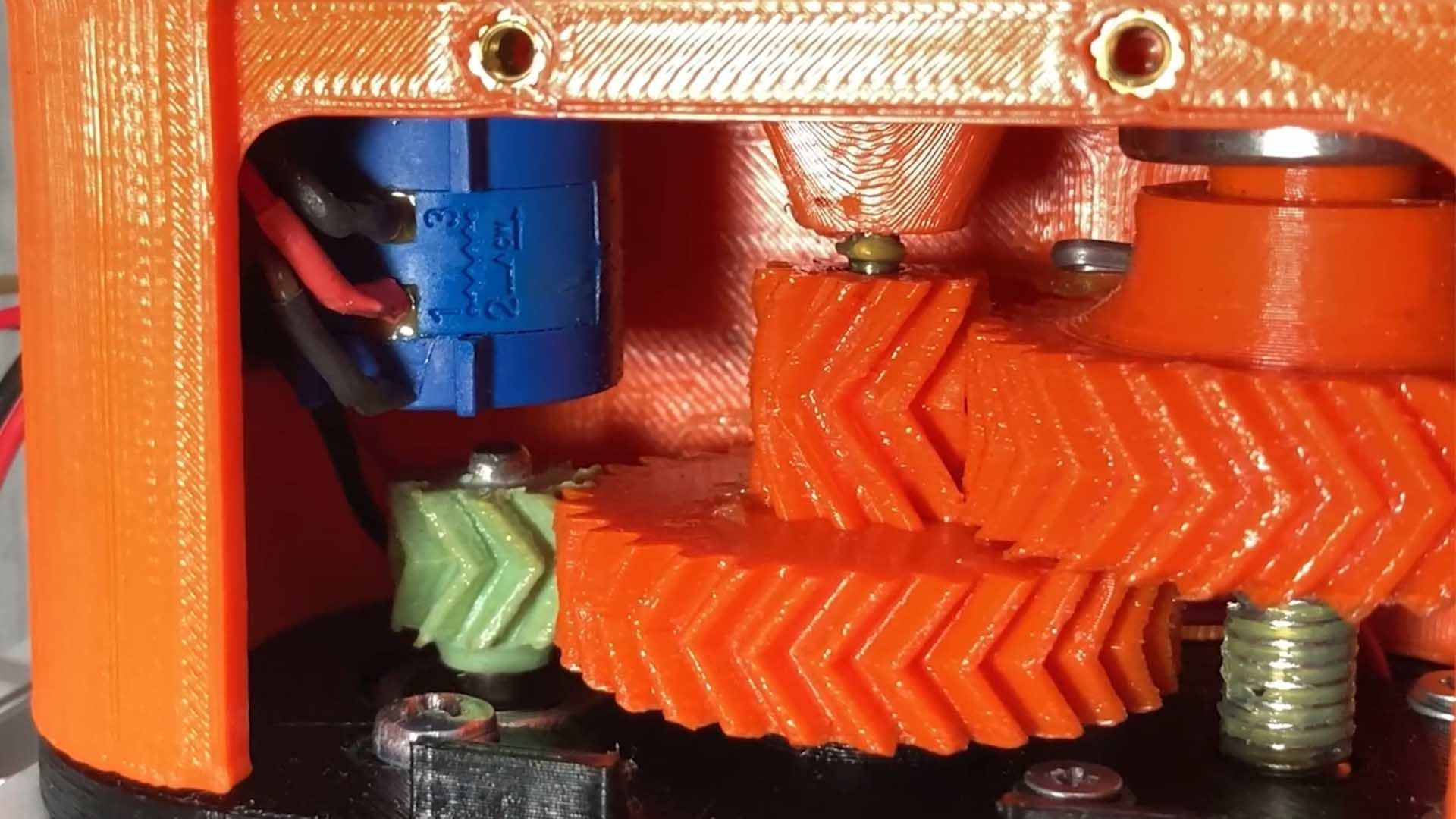

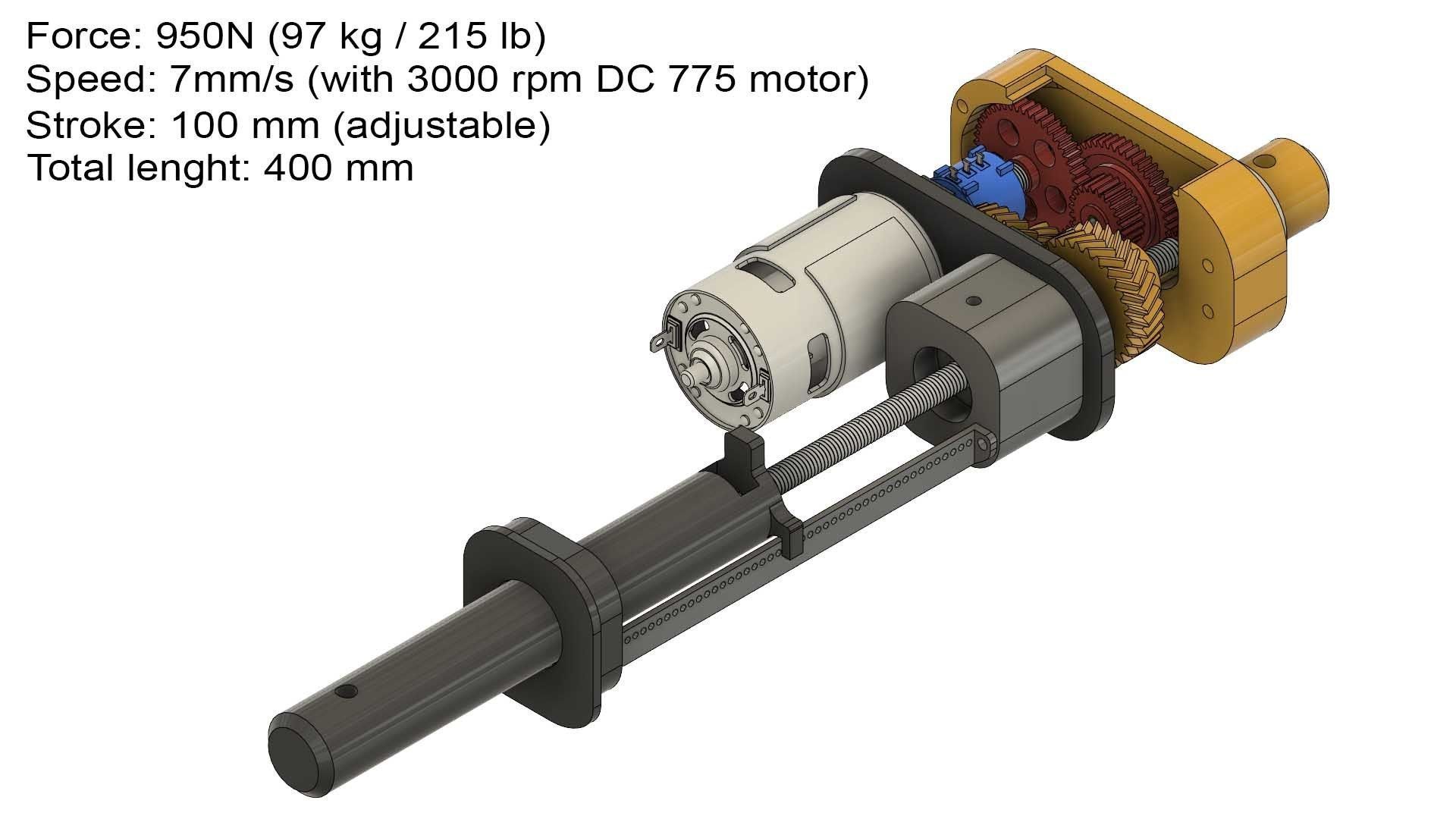

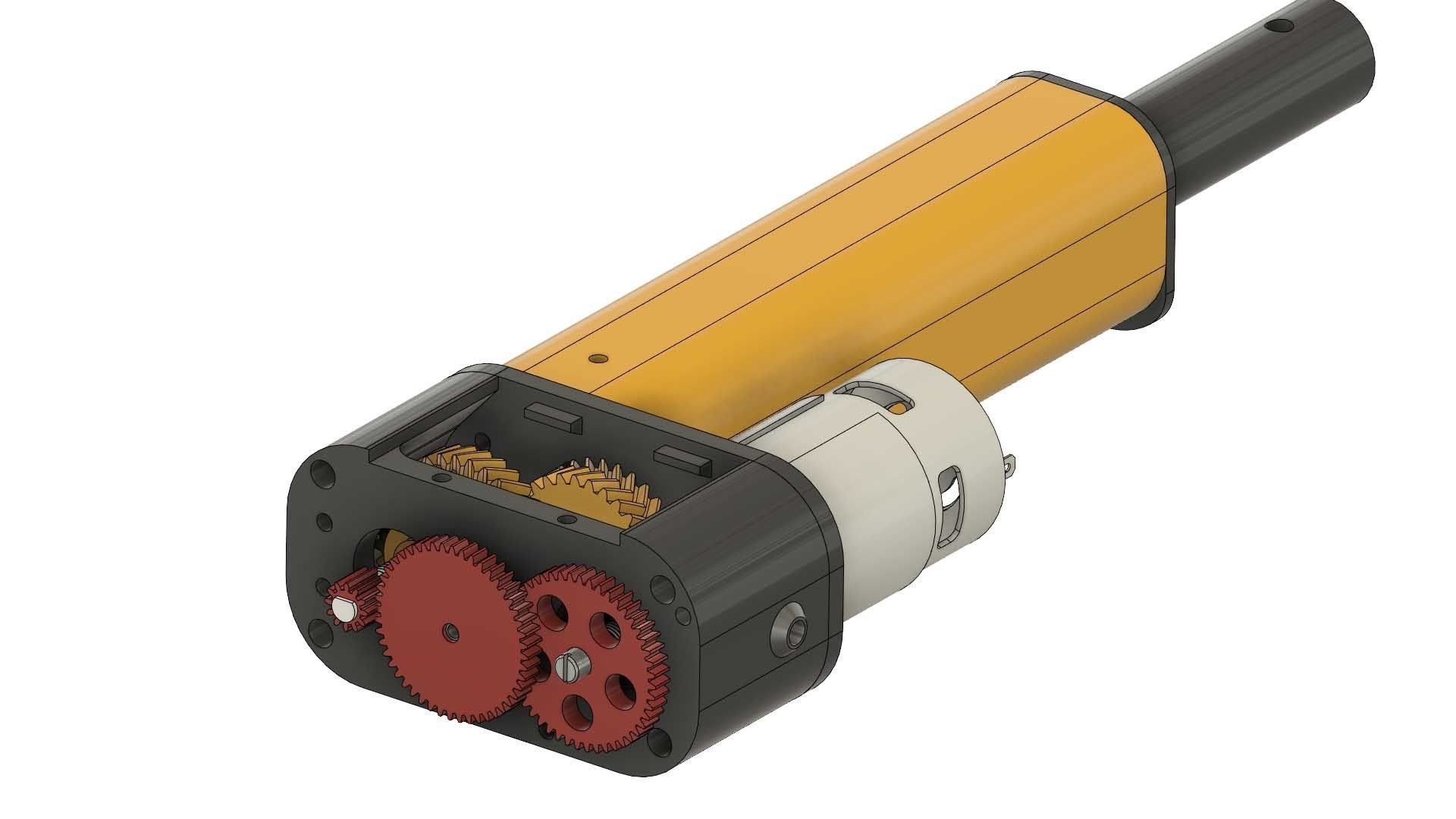

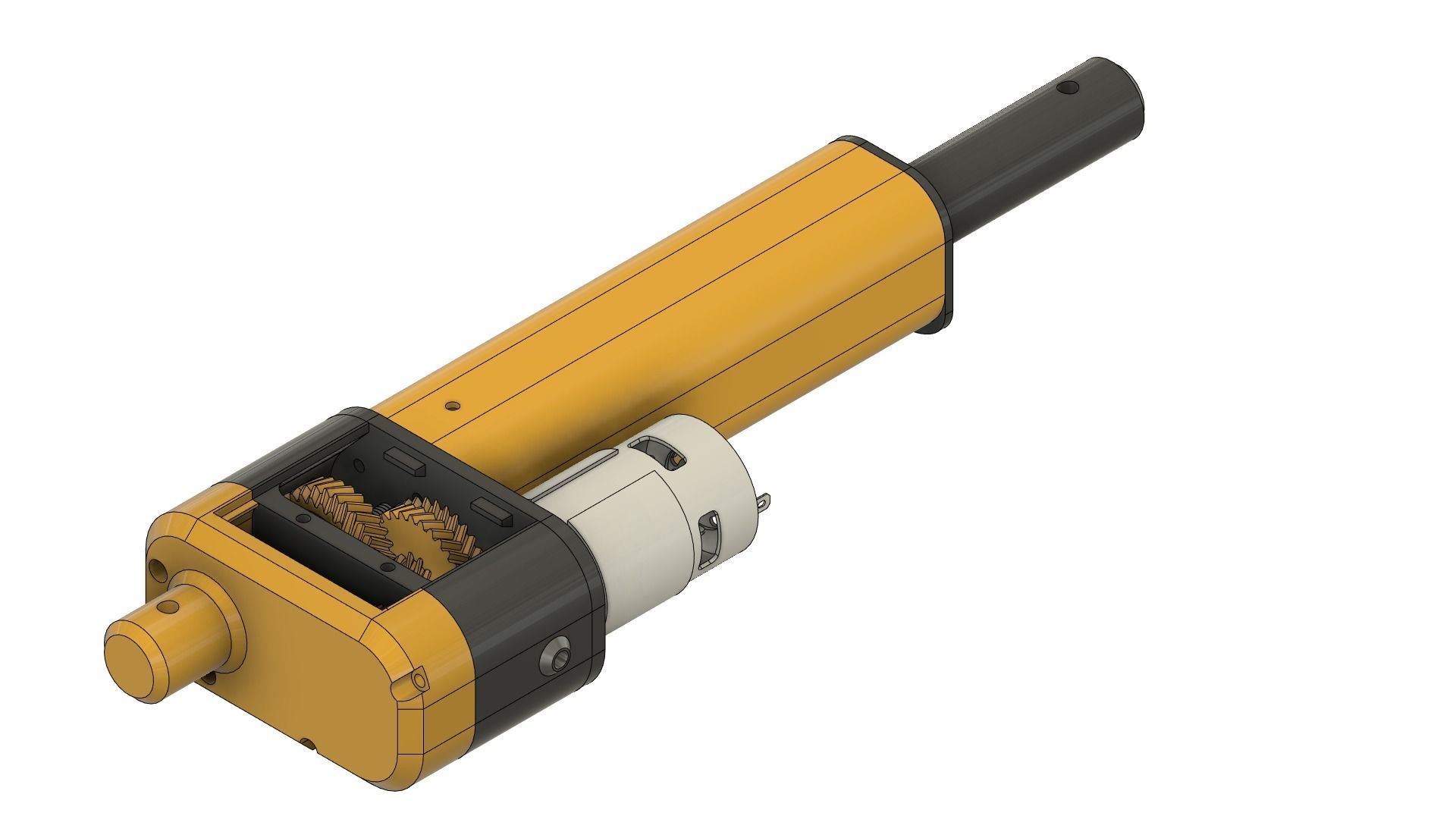

This a 3D printable linear Servo actuator. (version 2)

Old version: https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/3d-printable-linear-actuator-b78ad144-de5c-4ce5-b99b-1845e9275fa4

****This project includes the arduino position feedback and some motor drive(bts7960) code. So when you get this you will also have the arduino code.

Printed with PLA.

You can use any motor with that, the endstops and potantiometer will work accordingly.

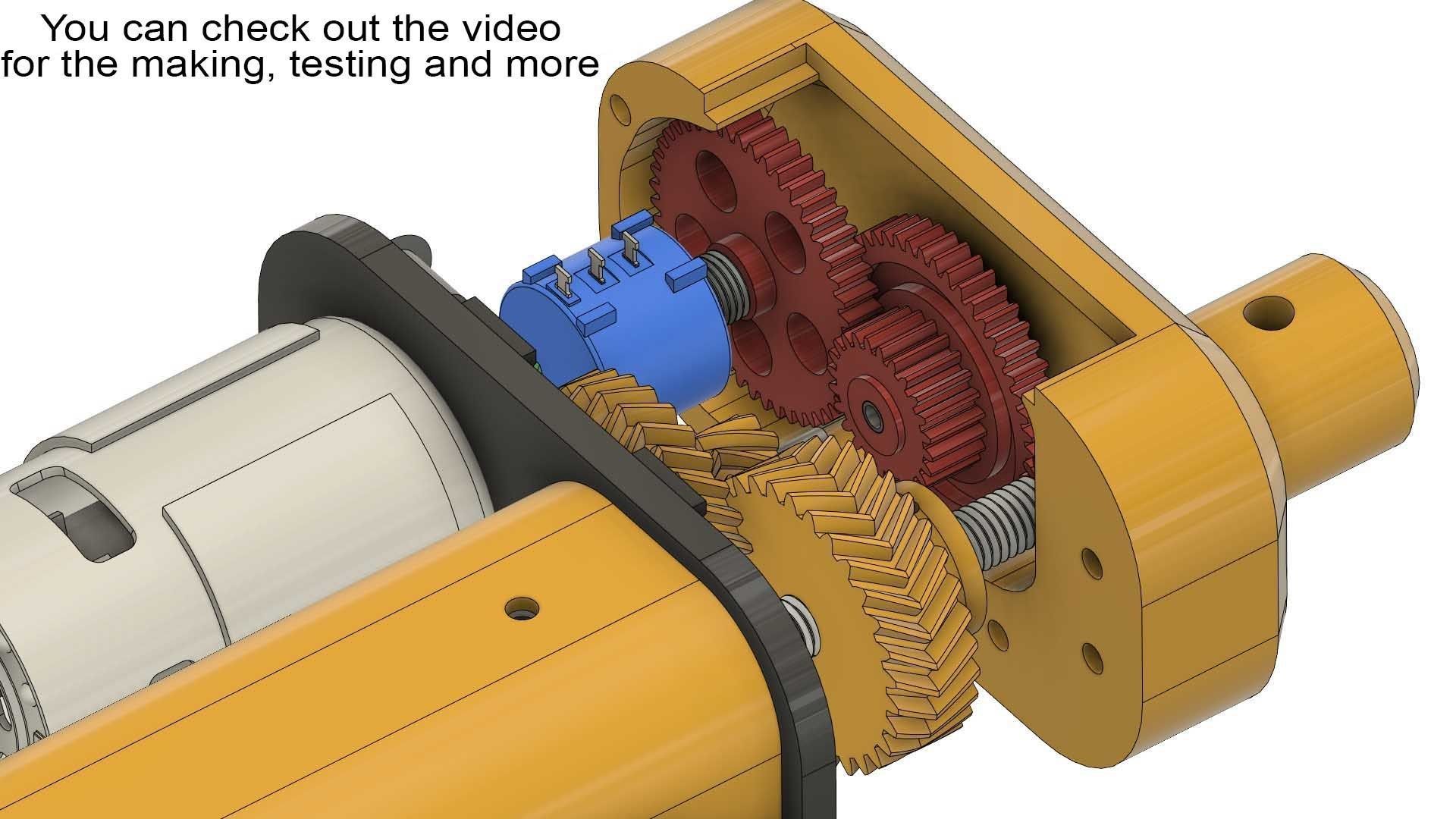

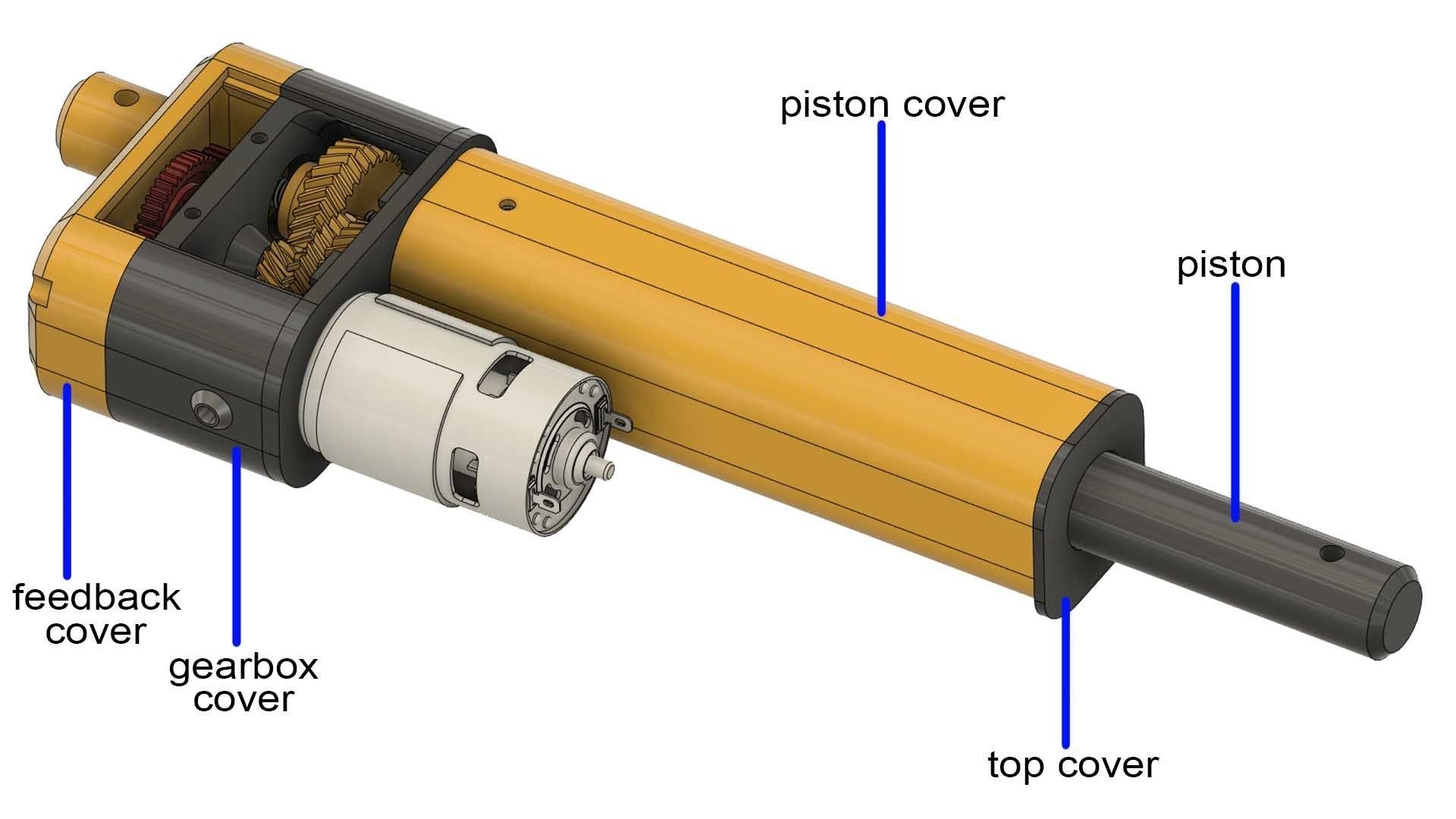

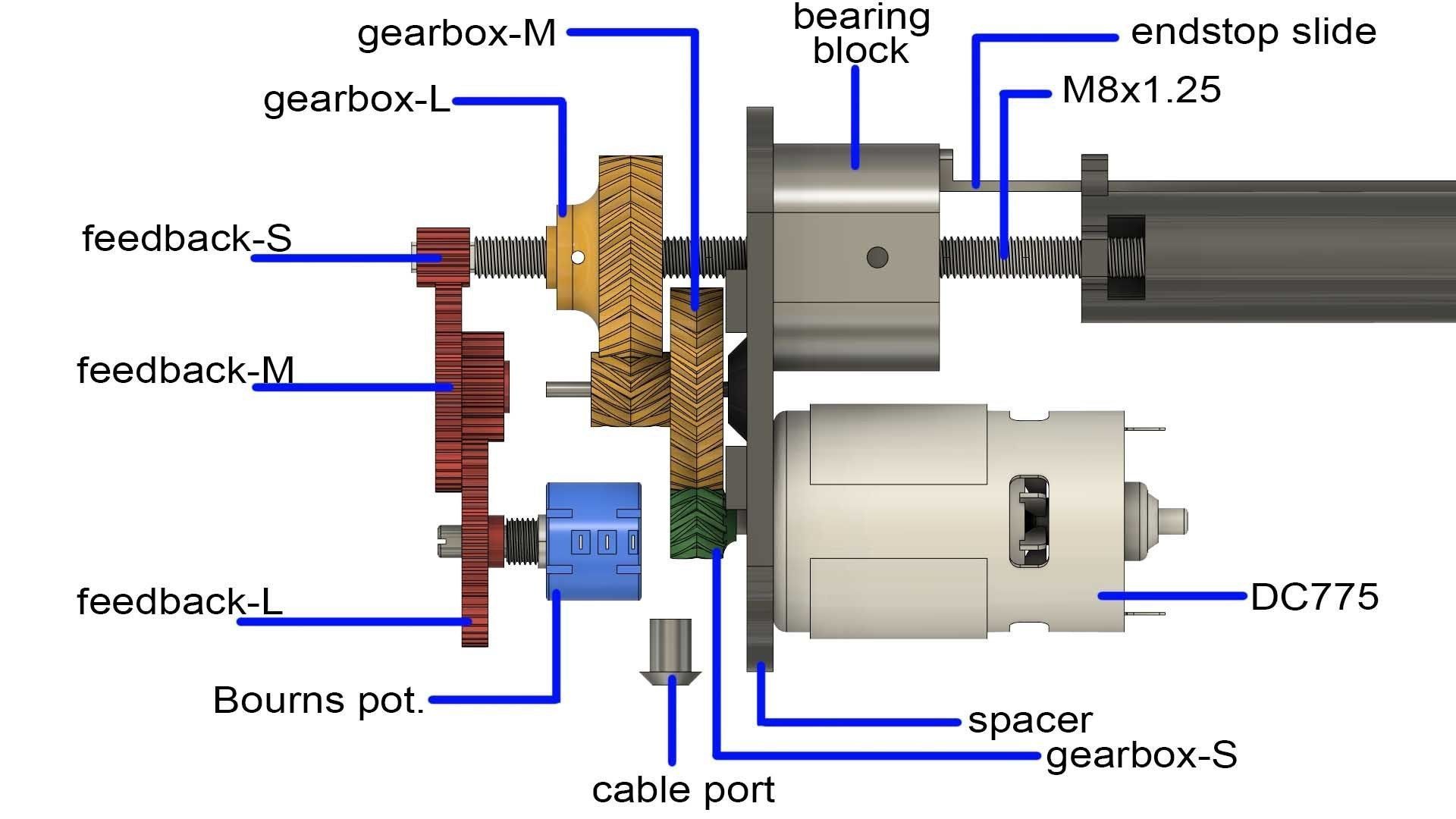

I wrote the part names. You can download and print it accordingly. Making and more are available in the video.
