kl3d drone 3D print model

This drone is designed to be made at home with the help of a 3d printer, it has some remarkable features like the special design of the clean dirty section which results in smooth video footage. As well as if you would crash, you can easily reprint replace and repair your drone to get back in the air as soon as possible without waiting for replacement parts.

FEATURES:

  • up to 9 inch propellers
  • two axis gimbal for gopro session
  • mounting holes for the tarot ZYZ22 brushless gimbal control board
  • mounting holes for fpv board cameras
  • clean dirty section for smooth footage
  • flight controller is protected in case of a crash
  • motor mount which accepts most motors 16mm to 19mm mounting holes
  • flight controller mounting holes are 30.5mm to accommodate the naze32 or other similar flight controllers

REQUIREMENTS TO ASSEMBLE THE DRONE:

  • 22 M3 25mm bolts
  • 22 M3 lock nuts
  • 44 M3 washers
  • 20 M3 10mm bolts
  • 10 M3 35mm standoffs
  • 4 aluminium rectangular tube 10mm x 12mm x 165mm with holes at 8mm; 33mm; 125mm; and 156mm
  • 6 to 10 anti-vibration rubber damping balls
  • nylon nuts and bolts to secure your flight controller
  • battery straps You obviously also need all your electronics: motors; esc; fpv gear; receiver; batteries; flight controller; gimbal equipment; etc... 4000 to 5000 mAh 3cell recommended with 28mm motors.

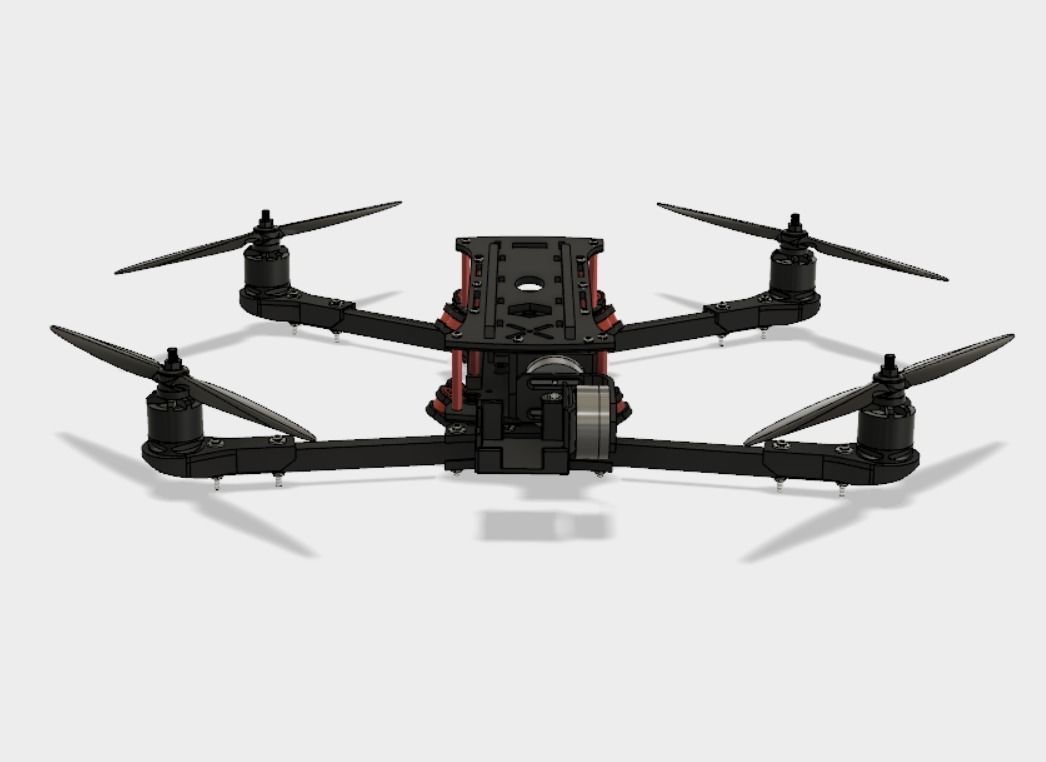

This design is a drone destined to be 3d printed, ALL THE FILES ARE STL FILES OF THE PIECES AND ONLY OF THE PIECES WHICH ARE 3D PRINTABLE, ( stl files of the bolts, washers, nuts, standoffs, motors propellers, aluminium tubes, etc... are NOT included as they are not needed to 3d print this model, the screenshots are there to give a better overall view of the final assembled product). By buying this design you agree to use this drone at your own risk and respect the reglementations of the place where you are flying in.

    This product has no reviews yet
    kl3d drone
    $19.00
    All prices are exclusive of VAT
    Save with CGTrader Credits
    Send your price offer to the author if you want to buy it at lower price.
    Royalty Free License
    Products under Royalty Free License can be used without liability to pay any license fees for<br/> multiple lifelong uses, or sales volume of final product after being paid for once. The product<br/> may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response - % in - h
    3D model formats
    • Stereolithography (.stl) (8 files)-
    3D model details
    • Publish date2017-06-23
    • Model ID#736068
