Shaft Coupling - Metric - Reducers

Shaft Coupling - Metric - Reducers 3D print model

Description

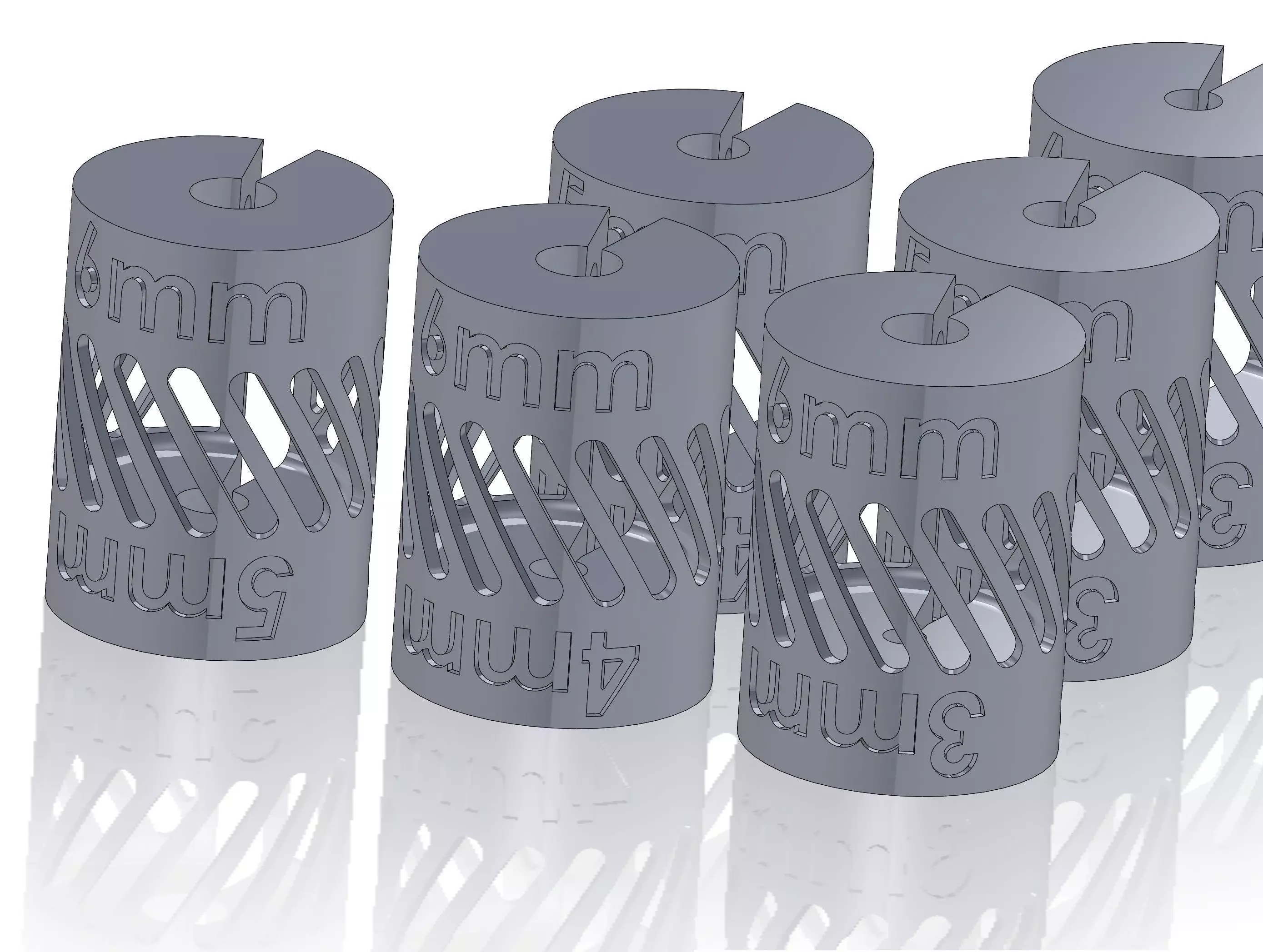

File: Shaft Couplings Reducers.STL Name: Shaft Coupling - Metric - Reducers Material: 27 grams ( 0.06 lbs) Infill = 12% Size: 72.56 mm (2.857") x 75.56 mm (2.857") x 30 mm (1.181") Resolution: 0.20mm Layers: 156 layers Rafts: Yes Supports: No Print Time: 3 hr 29 min Function: Prints a set of six couplings to connect 3mm, 4mm, 5mm, and 6mm shafts together in any combination required. Each couple requires two M3 x 12 screws and M3 nuts to squeeze each end of the coupling to its shaft. If you don't need all six, simply print the size you need. These couplings will take a surprising amount of axial misalignment inclduing offset and angular. Each end of the coupling has the size engraved into the surface.

Item rating
0 0
Shaft Coupling - Metric - Reducers
$3.00

Royalty Free License
Shaft Coupling - Metric - Reducers
$3.00

Royalty Free License
Response 71% in 16.3h
3D Modeling
Hire me

3D Model formats

Format limitations
  • Stereolithography (.stl)5.05 MB

3D Model details

  • Publish date2015-10-20
  • Model ID#189423
  • Ready for 3D Printing
