Resin Bottle Drainer Stand 3D print model

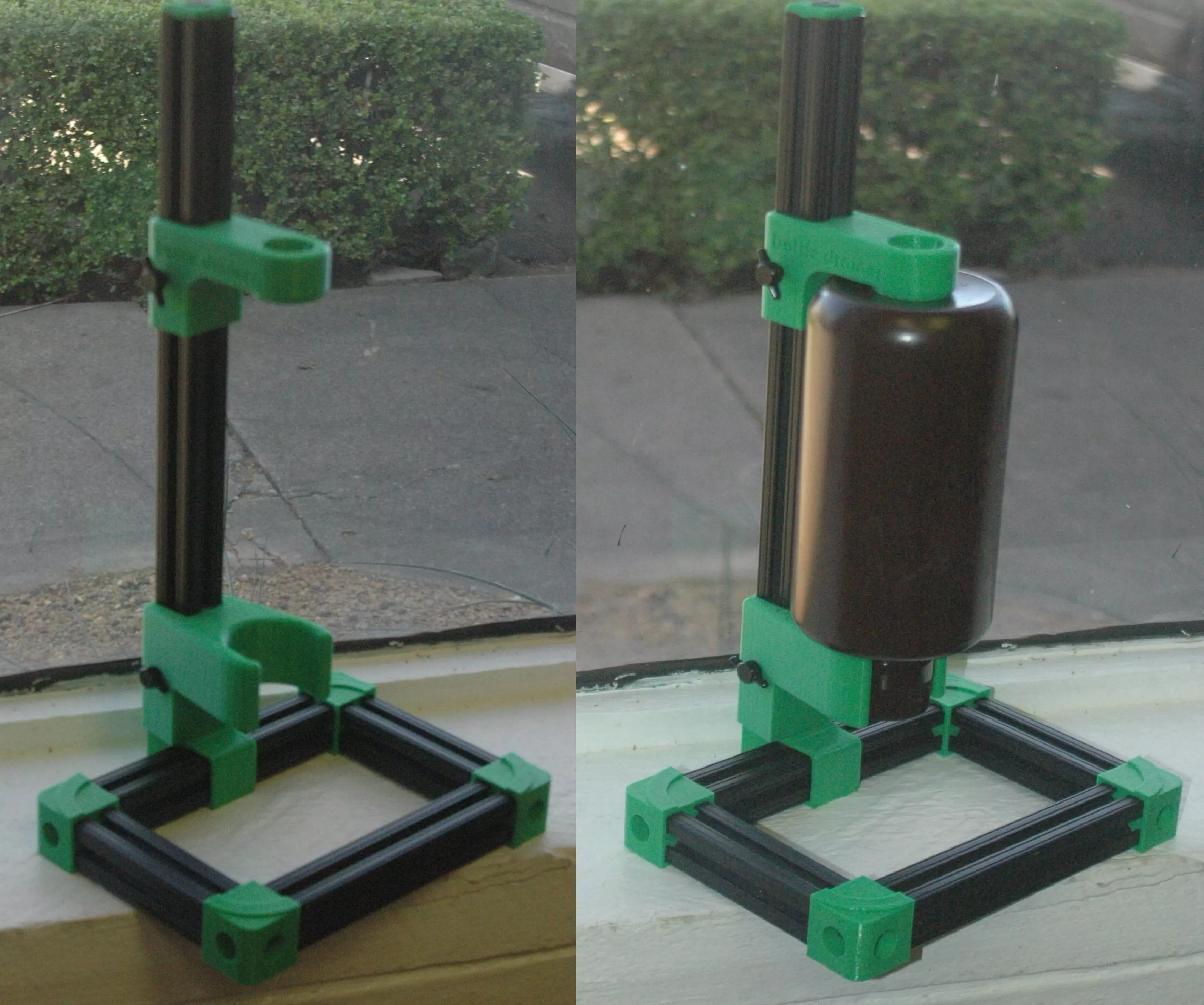

File: BottleDrainer.STL Name: Resin Bottle Drainer Stand Material: 143.89 grams ( .317 lbs) Infill = 10% Size: 168.58mm (6.64) x 124.33 mm (4.89) x 69.09 mm (2.72) Resolution: 0.20mm Layers: 351 layers Print Time: 13 hr 46 min Function: Here's my second fixture to help support my resin printer. This is a resin bottle draining stand. It is constructed of filament printed eight filament printed parts and some 80/20 extrusions. The stand can be used three ways. First, the stand can do what its name states and allows 250mg to 1000g bottles to drain into the vat. Second, the stand can allow the bottle to drain into its own cap. Third, the base makes a great temporary mount for a vat to protect the clear FEP bottom during leveling and other operations. This model is supports the Mars Elegoo and Anycubic vats. You need to print these 1:1. You will also need a 10, 2X 6, and 2X 3.75 long aluminum extrusion commonly known as 80/20 that is 1x1 (McMaster-Carr part number 47065T101 or equiavlent) and have both ends tapped for #1/4-20 x 1" or M6x25 flat head screws. Good Luck!
