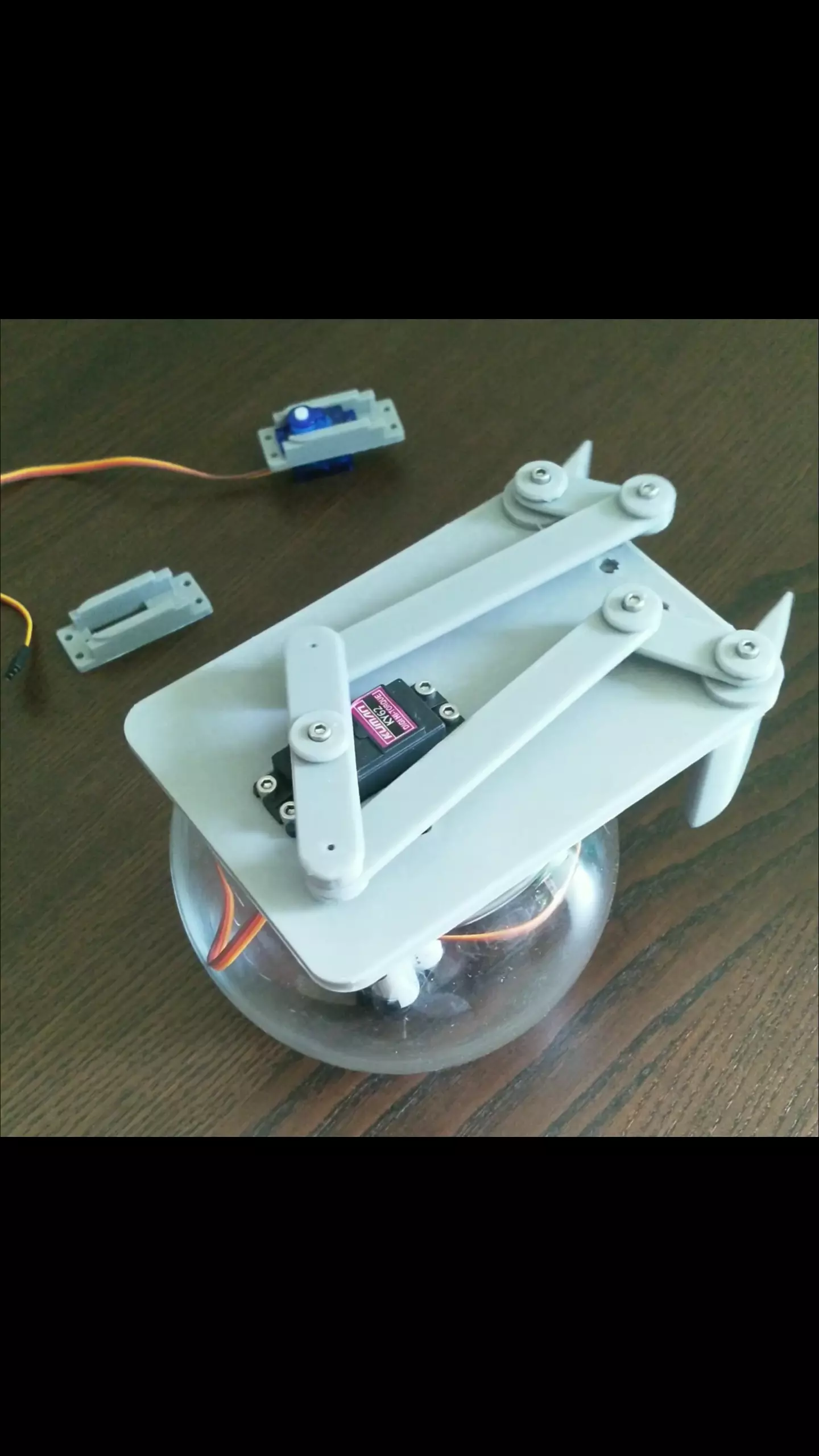

Variable rudder assembly for RC boats.

This assembly comes with 11 lengsths for the ruddershafts (50-100mm in 5mm increments).

and 13 rudders in different heights (40-100mm in 5mm increments)

the rudders can be driven via standard servo or 9g micro servo with the adaptor plate.

You need 17 screws ISO4762 M3x10 to assemble and mount it to the boat.

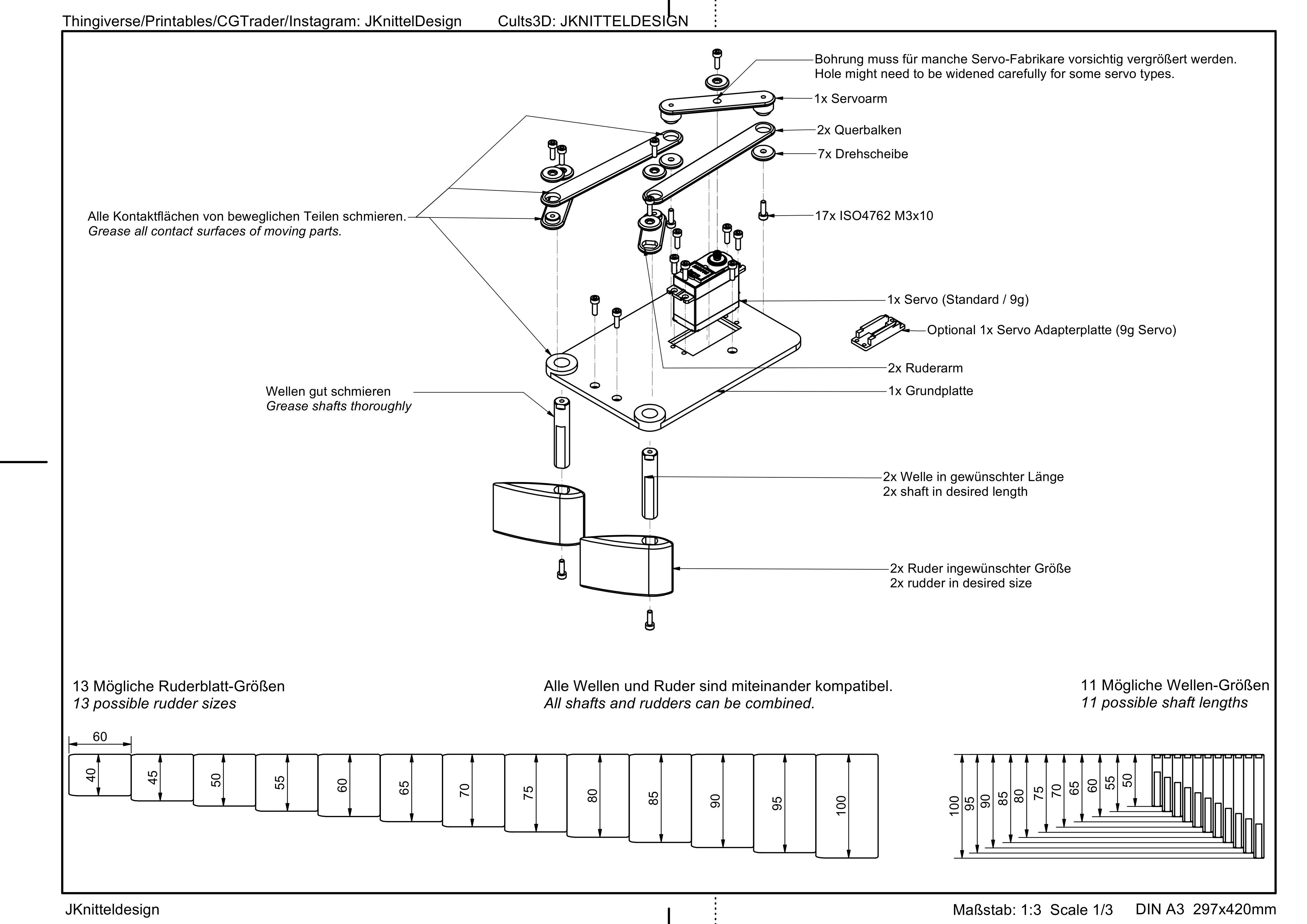

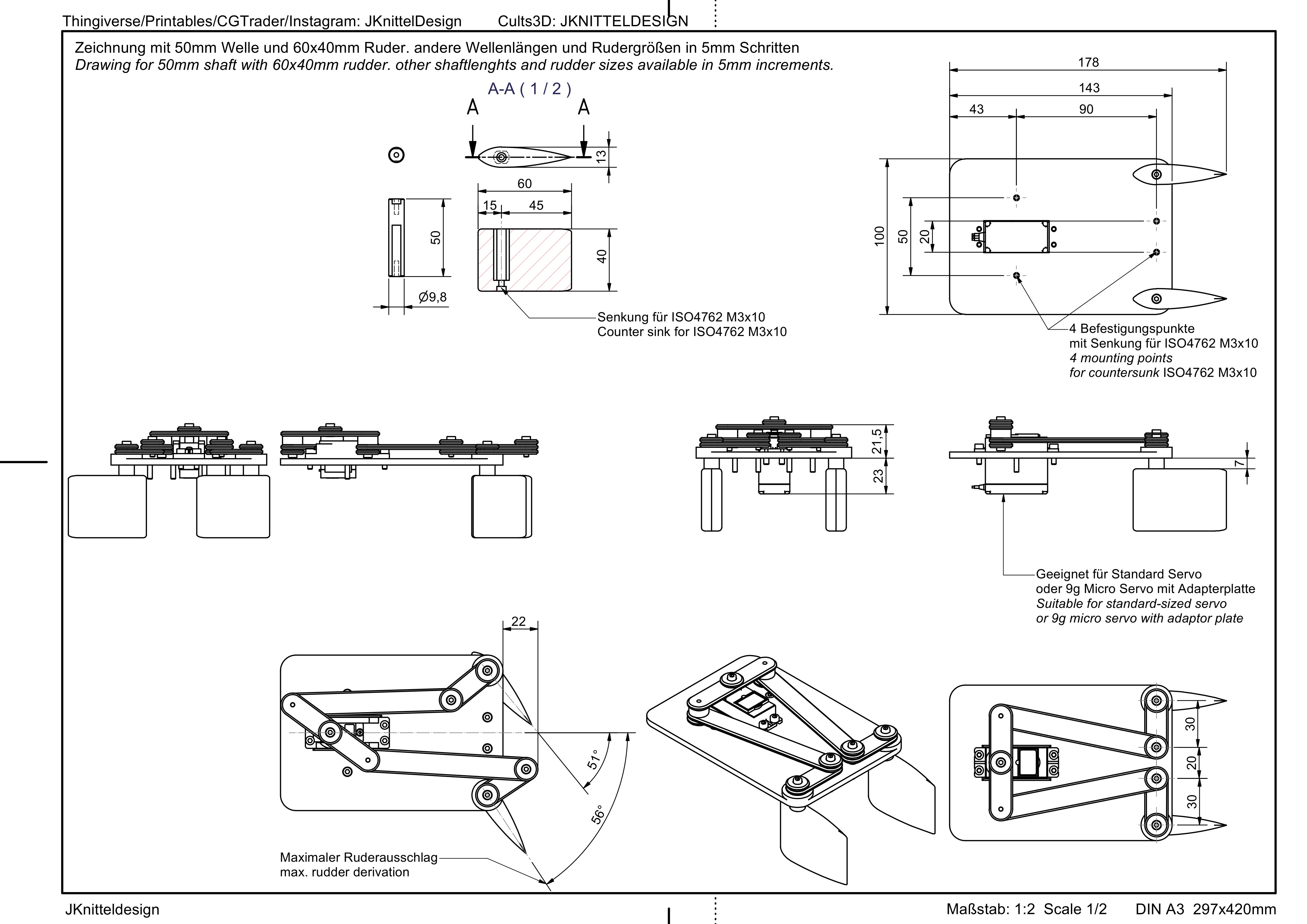

Everything is documented in thechnical drawings (2 pages) provided.

3D PRINTING SETTINGS

No supports needed.

Print the shafts lying flat on the bed and the rudders standing upright for maximum stability.

Depending on your print settings, the shafts might need to be sanded and pressed into the rudders.
