RC Aircraft Propeller.

Traditional shape propeller of NACA 4415 airfoil.

Ideal option for two or four stroke gasoline engines.

It has the optimal shape for High Performance RC models.

Generates small drag and resistance torque, but provides great thrust performance.

Ideal manufacturing method for this propeller is CNC machining of hard wood.

However it can be also 3D Printed or Nylon casted.

Diameter: 10" / 254 [mm]

Pitch: 4" / 101.6 [mm]

Pitch ratio: 0.4

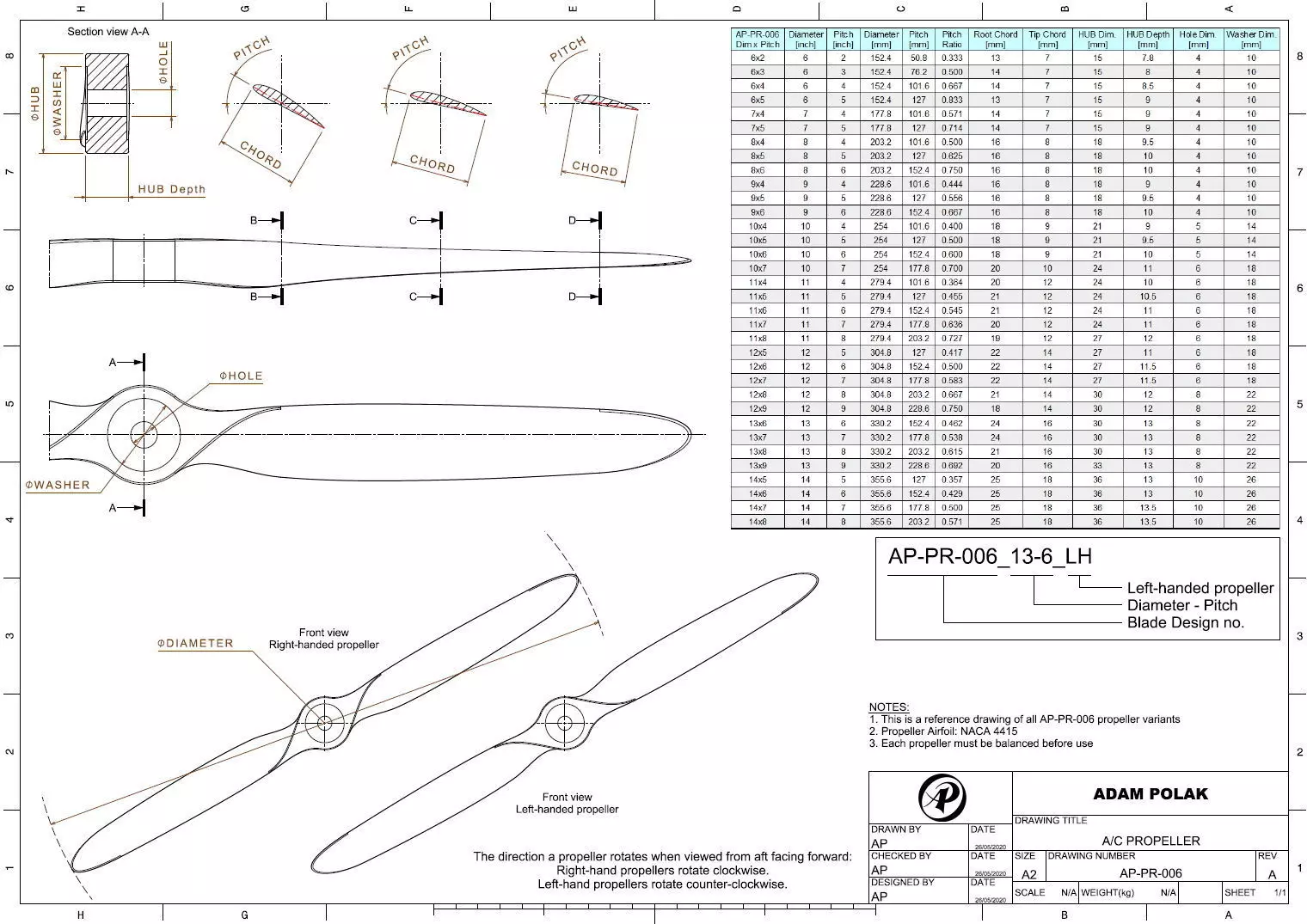

This is a set of two propellers (RH - Tractor & LH Pusher) with blade design AP-PR-006. (see attached drawing)

Content:

Right-Hand rotation:

STL & Step Files of RH propeller

Left-Hand rotation:

STL & Step Files of LH propeller

4x models in total

1x drawing

See attached reference drawing for Different Propeller sizes (Diameter and/or Pitch).

Available sizes of AP-PR-006 RH & LH:

AP-PR-006 6x2; AP-PR-006 6x3; AP-PR-006 6x4; AP-PR-006 6x5; AP-PR-006 7x4; AP-PR-006 7x5; AP-PR-006 8x4; AP-PR-006 8x5; AP-PR-006 8x6; AP-PR-006 8x8; AP-PR-006 9x4; AP-PR-006 9x5; AP-PR-006 9x6; AP-PR-006 10x4; AP-PR-006 10x5; AP-PR-006 10x6; AP-PR-006 10x7; AP-PR-006 11x4; AP-PR-006 11x5; AP-PR-006 11x6; AP-PR-006 11x7; AP-PR-006 11x8; AP-PR-006 12x5; AP-PR-006 12x6; AP-PR-006 12x7; AP-PR-006 12x8; AP-PR-006 12x9; AP-PR-006 13x6; AP-PR-006 13x7; AP-PR-006 13x8; AP-PR-006 13x9; AP-PR-006 14x5; AP-PR-006 14x6; AP-PR-006 14x7; AP-PR-006 14x8

Please check my other models. I do have wide variety of different propellers.

Please fill attached form if You would like to order bespoke propeller design.

3D models are in Step file and it can be converted upon request.
