Folding Propeller AP-PR-009 10-6

Folding Propeller AP-PR-009 10-6 3D print model

Description

RC Aircraft Propeller.

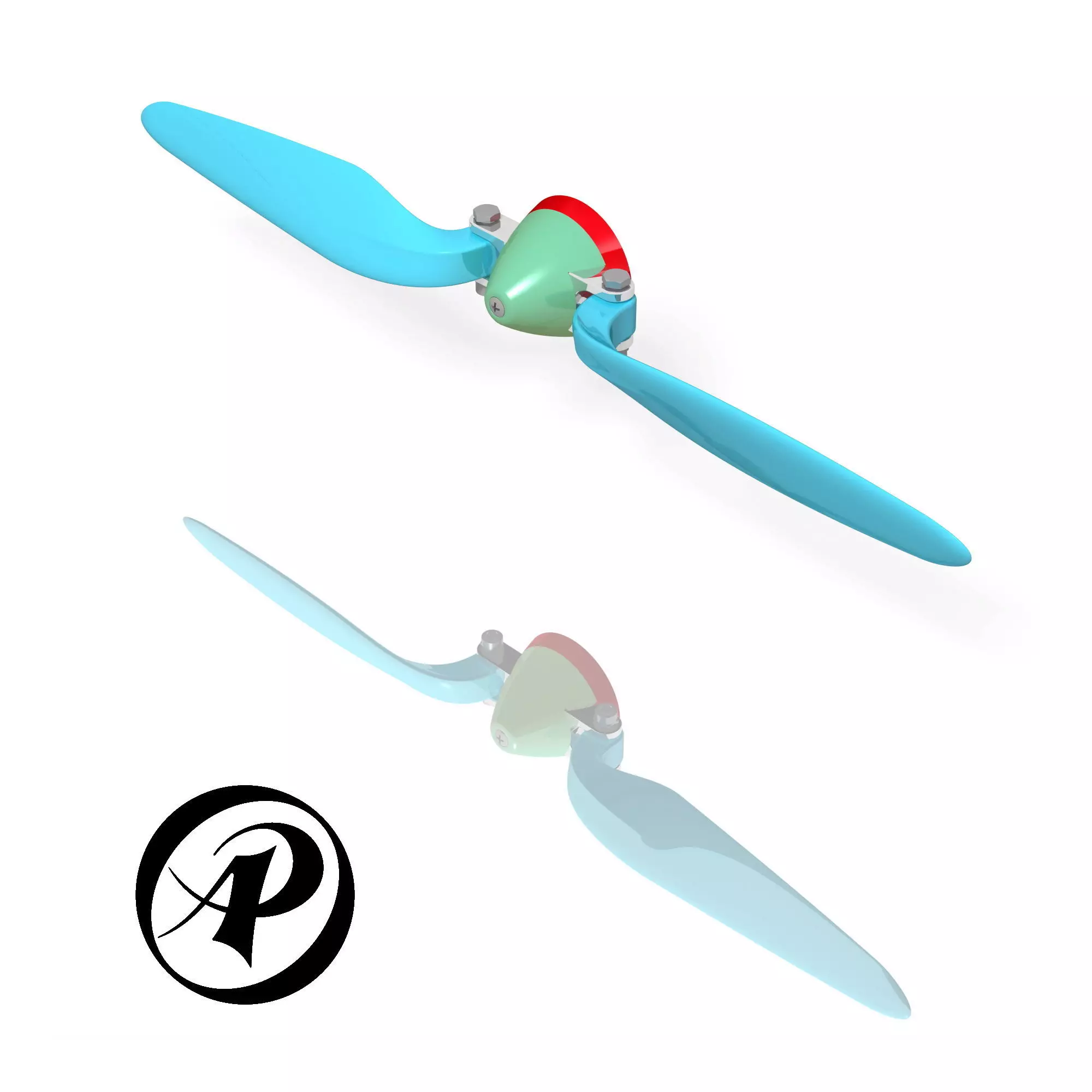

Folding propeller AP-PR-009 10-6 (10-inch Diameter; 6-inch Pitch).

Propeller Blades for RH & LH (Tractor & Pusher) are included.

Ideal option for electric aircraft, electro sailplanes, flying wings, ...

It has the optimal shape for High Performance RC models.

Generates small drag and resistance torque, but provides great thrust performance.

Diameter: 10-inch / 254 [mm]

Pitch: 6-inch / 152.4 [mm]

Pitch ratio: 0.6

This is a set of two propellers (RH - Tractor & LH Pusher) with blade design AP-PR-009. (see attached drawing)

Content:

Step & STL modls for Right-Hand rotation

Step & STL modls for Left-Hand rotation

4x models in total

2x pdf drawing (Propeller Blade & HUB)

See attached reference drawing for Different Propeller sizes (Diameter and/or Pitch).

The HUB Spinner as shown on pictures can be downloaded for free on:

https://www.cgtrader.com/free-3d-print-models/hobby-diy/mechanical-parts/folding-propeller-hub-spinner-ap-sp-002

Note 1: For better performance of the folding propeller (AP-PR-009) it is recomended to buy HUB Spinner made out of metal such as:

https://hobbyking.com/en_us/folding-propeller-w-alloy-hub-40mm-3mm-shaft-10x6-1pc.html?___store=en_us#qa[bW9kZT03JnBhZ2U9MSZxdWVzdGlvbl9zZWFyY2hfY29udGVudD0=]

or

http://www.himodel.com/plane/D33xH30mm_3.17mm_Shaft_Aluminum_Folding_Prop_Spinner_HY002-01502.html

Note 2: Use maximum caution when operating Propeller, as it might be hazardous and risk to Your health.

Please check my other models. I do have wide variety of different propellers.

Please get in touch if You would like to order bespoke propeller design.

3D models are in Step & STL file and it can be converted upon request.
