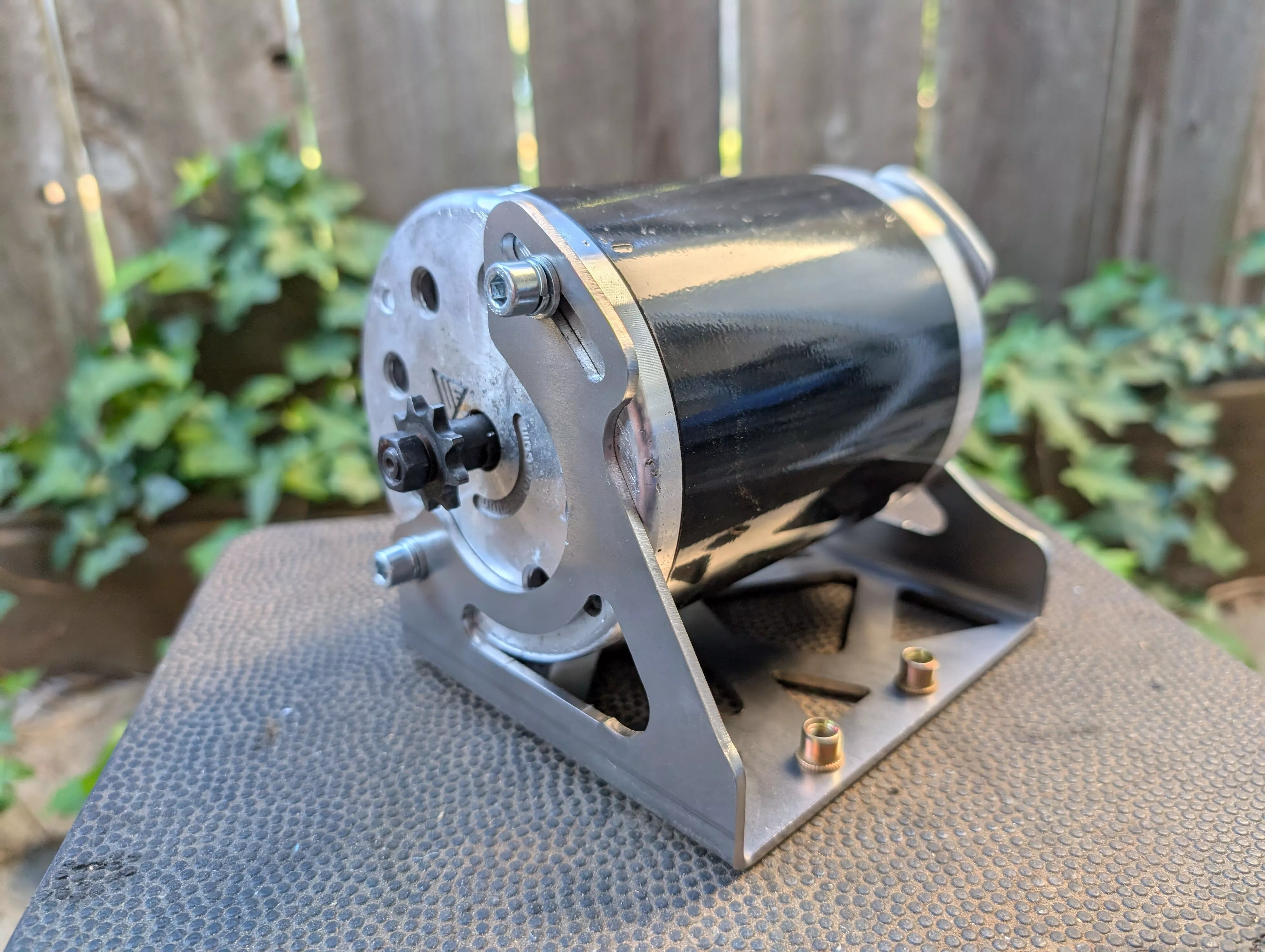

This is for swapping an MY1020 motor onto vehicles that use an MY1016 with gear reduction .Its original intent was for adding MX650 stock electronics onto the 350W Dirt Quad SX McGrath with drift slicks. I sold lots on Etsy, but one issue came up a couple of times: the bracket would bend and deform if used on a Dirt Quad 500. So if you need to straighten your bracket and/or strengthen it, use the reinforcement plate. alternatively, you can just go with the My1020 Motor Mount V1.5 if you have lots of torque.This bracket may also work with the **FW11* motor (based on researched dimensions).*

I am including instructions for uploading to SendCutSend for getting manufactured.

Dimensions:

• Thickness: 3mm (Reinforcement plate: 1/4")
• Mounting holes: 9mm (M6 Rivnuts in the bracket OR thread holes in Reinforcement plate: 6.8mm (M8 tap))
• Hole dims: 42mm x 95mm
• Motor end holes and adjustment stots: 6mm DIA (M6)

Models:

• .dxf of the mount for cutting and bending
• .dxf of the reinforcement plate for cutting
• .stl of the mount for mock-up
• .stl of the reinforcement plate
