Mini Spur Gears Metric Set

Mini Spur Gears Metric Set 3D print model


Mini set of metric spur gears with proper involute tooth profile for 3d printing and laser cutting.

All the gears have the same module to ensure proper meshing 'M1' the inner bore is a 3mm diameter. All the dimensions are shown in the pictures please refer to them.

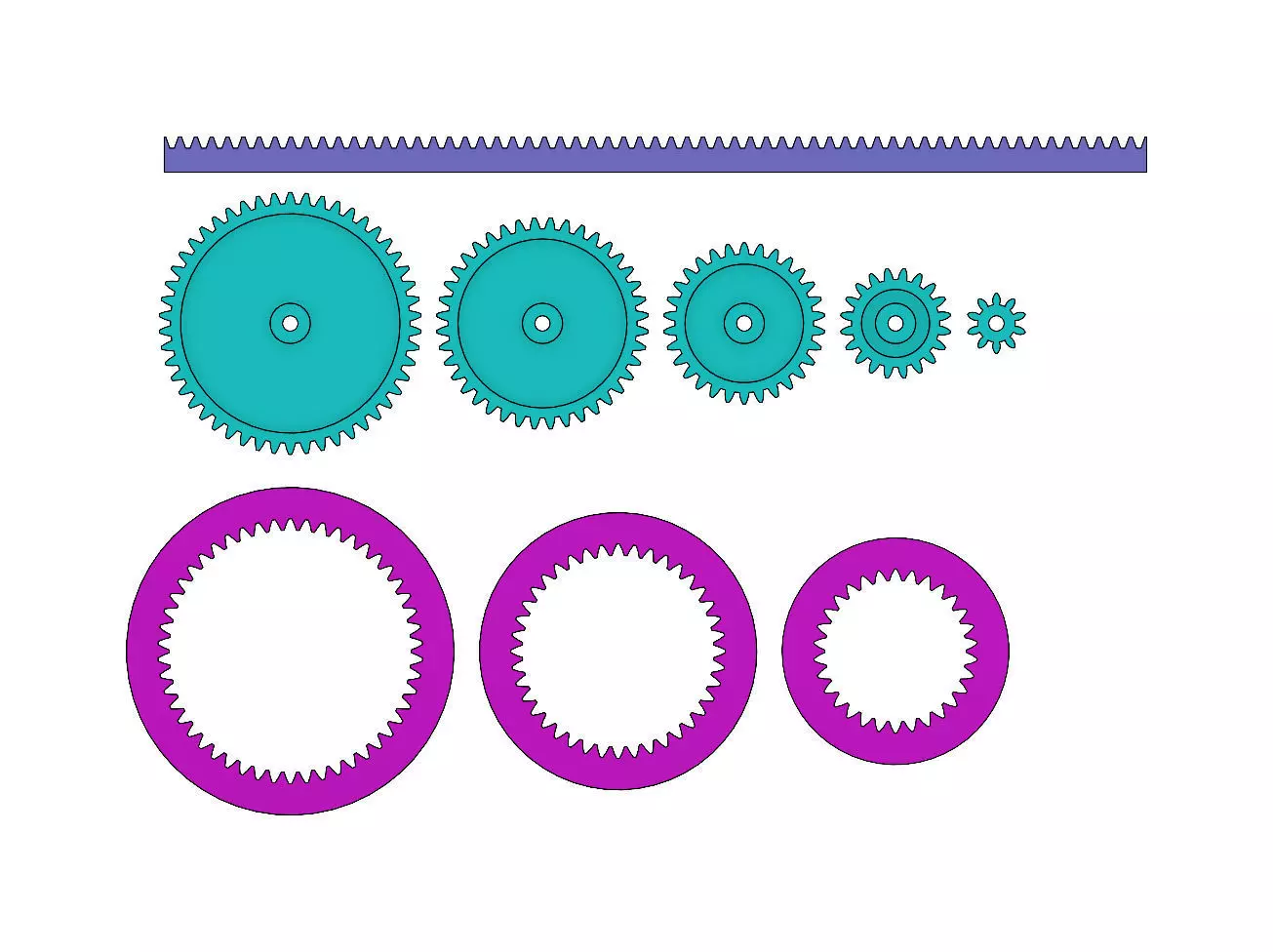

Included in the set:

  • A 50,40,30,20 and 10 teeth/diameter spur gear with the 3mm bore

  • A 50,40 and 30 teeth/diameter spur gear with inner teeth

  • A 196x7 rack with the same module as the other gears M1

All the parts are 6mm wide.

Perfect for FDM, DLP, SLA printing and laser cutting.

Provided in the formats STEP, IGES, STL, OBJ,3= 3MF and DXF.

To be used in RC models , 3d prinitng applications , robotic, model making and as spare parts for broken ones.

Item rating
0 0
Mini Spur Gears Metric Set
Royalty Free No Ai License
Mini Spur Gears Metric Set
Royalty Free No Ai License
Response 98% in 0.1h
3D Modeling
3D Print Modeling
Hire me

3D Model formats

Format limitations
  • OBJ (.obj, .mtl)1.86 MB
  • DXF (.dxf)320 KB
  • 3D Manufacturing File (.3mf)163 KB
  • IGES (.ige, .igs, .iges)9.33 MB
  • STEP (.stp)3.66 MB
  • Stereolithography (.stl)632 KB

3D Model details

  • Publish date2020-09-14
  • Model ID#2606633
  • Ready for 3D Printing
