Generic gauge - linear to circular graduate precise scale 3D print model

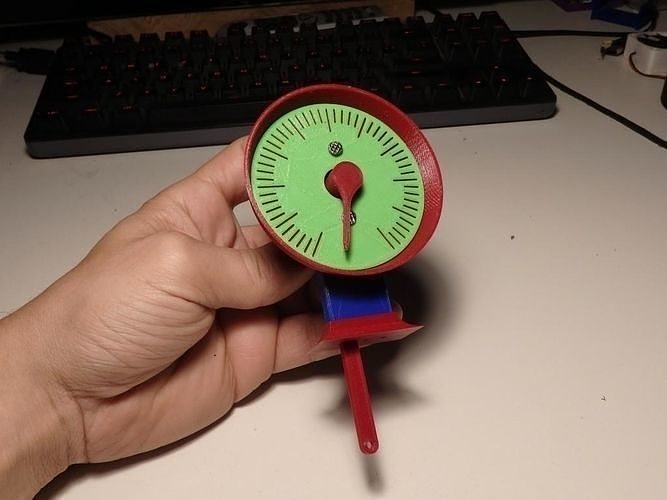

Hi, this is a circular graduated indicator. The 20mm linear movement is transposed on a graduated scale from 0 to 10. There are 50 total divisions. Each division corresponds to 0.4mm of bracket movement.

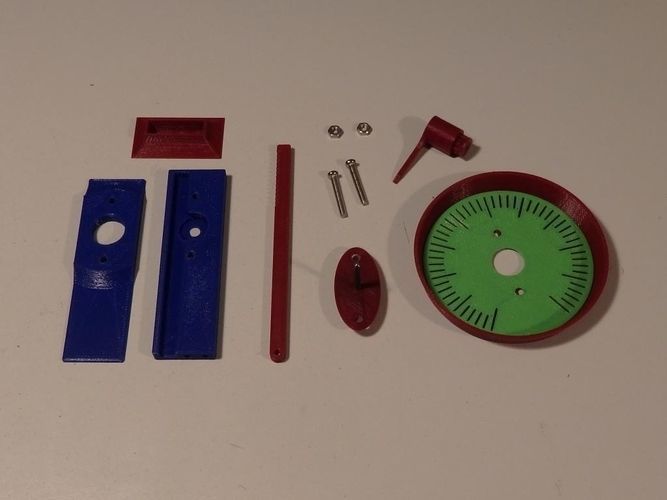

In video the assembly and more details. Optimized for 0.4mm nozzle.
