DIY CNC Milling Machine

DIY CNC Milling Machine 3D print model

Description

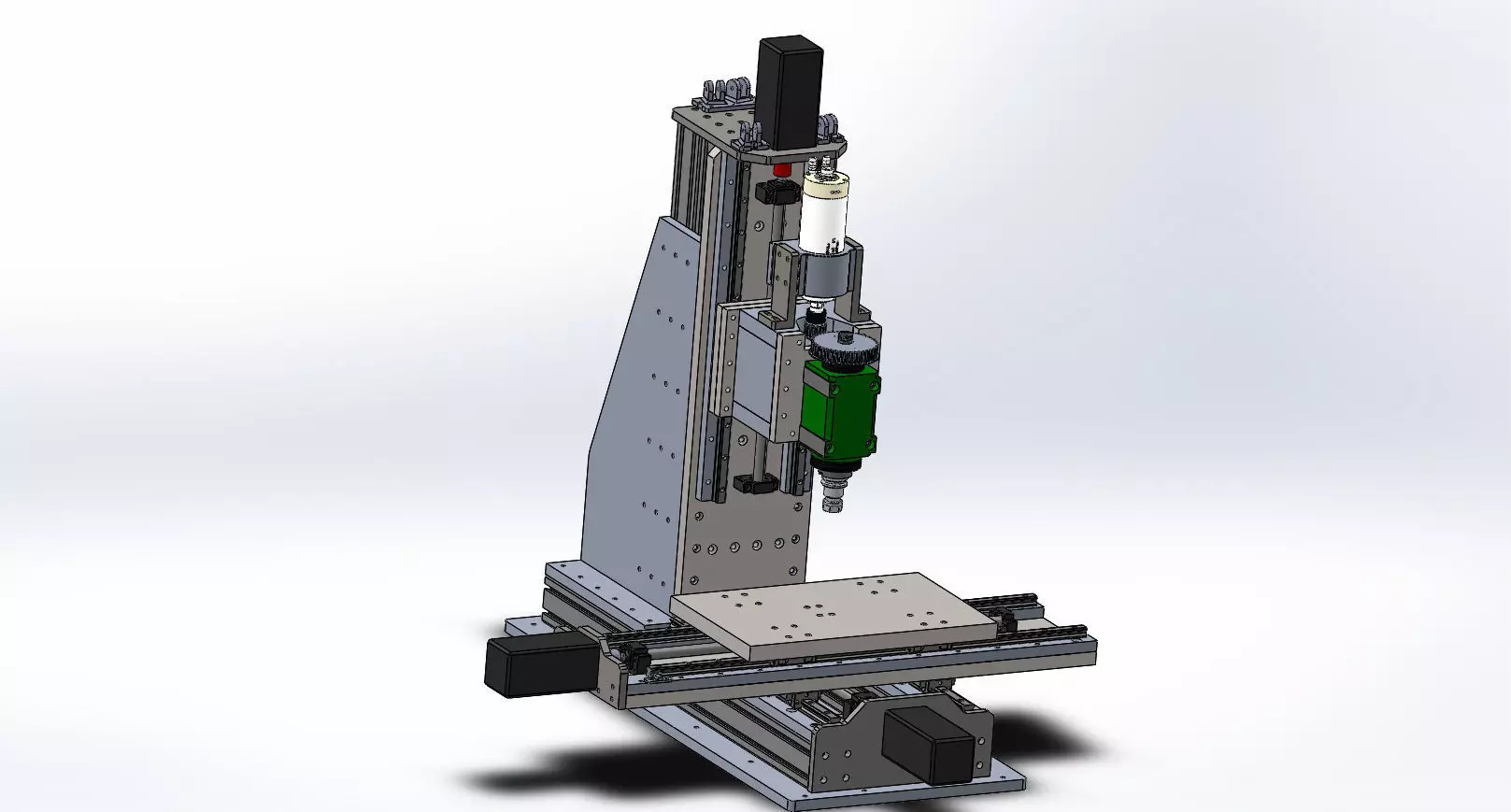

This is the 3D model that I drawn to build my home build CNC Milling machine.

Everything is in real scale and my CNC is built acording to this model.

If you want to check the build, I have a youtube video showing everything. https://youtu.be/lNoInwFFOd4

J
jackdepew 2024-04-16 11:38:43 UTC
Hey! This project looks awesome! Do you also have the Bill of Materials? That would speed up the build a lot, if I decide to get the model and make it. Thanks!
E
edgcos12 2024-04-29 18:54:03 UTC
Hi! Thank you! I don’t have one but I can make it if you want.
J
jackdepew 2024-04-29 19:51:54 UTC
Yes please! *Edit: It would make this project much more compelling for me!
E
edgcos12 2024-05-02 19:36:34 UTC
I have made the BOM. It's linked on the video description, but here is the link also: https://drive.google.com/file/d/1ZpuF8jfjaI7iI5-6daKW-anEsjHawkVx/view?usp=sharing Hope it helps!
J
jackdepew 2024-05-02 23:38:30 UTC
So cool, thanks for doing this! Any chance you could add URL’s?
E
edgcos12 2024-05-03 17:34:18 UTC
Most of the links I used are gone because I bought stuff sporadically starting in 2020. I didn’t had the money to buy all at once so it was a long time ago, but if you search on google I am sure you will still find the same parts or equivalent
Item rating
0 0
DIY CNC Milling Machine
$50.00

Royalty Free License
DIY CNC Milling Machine
$50.00

Royalty Free License
Response - % in - h
3D Modeling
3D Print Modeling
Hire me

3D Model formats

Format limitations
  • STEP (.stp)32.6 MB
  • IGES (.ige, .igs, .iges)63 MB

3D Model details

  • Publish date2023-03-18
  • Model ID#4371931
  • Ready for 3D Printing
