bearings holders from D10 to D30

bearings holders from D10 to D30 3D print model

Description

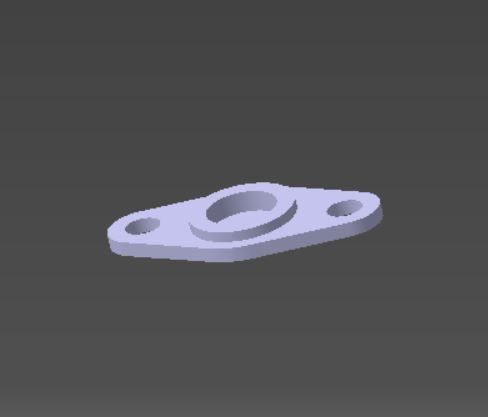

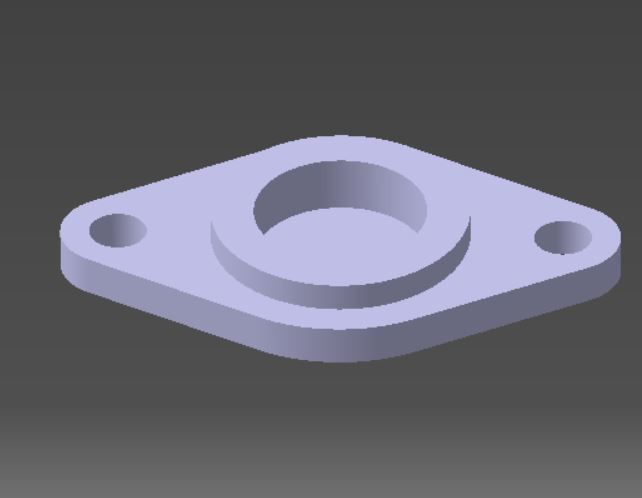

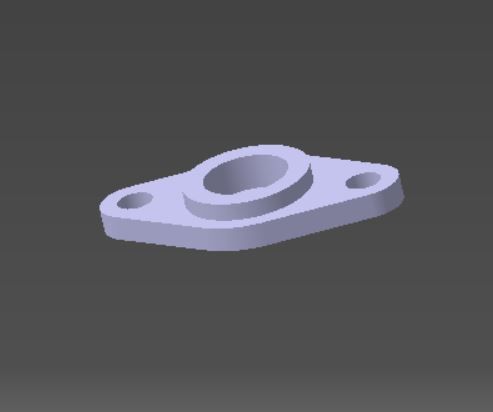

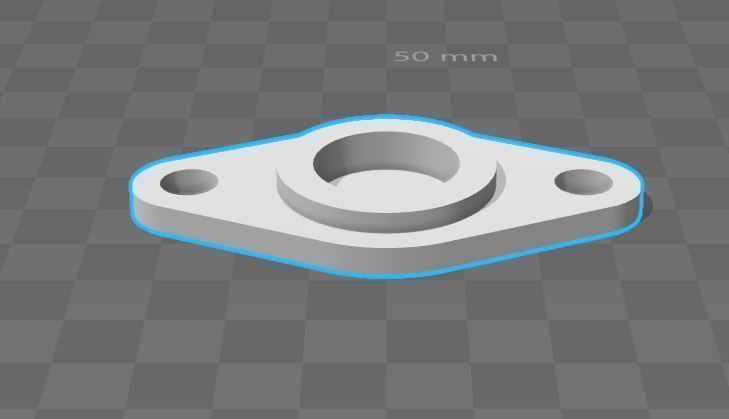

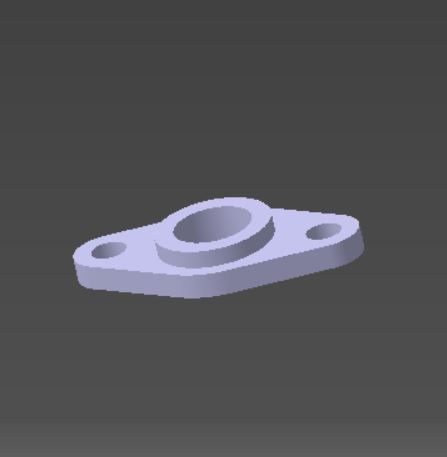

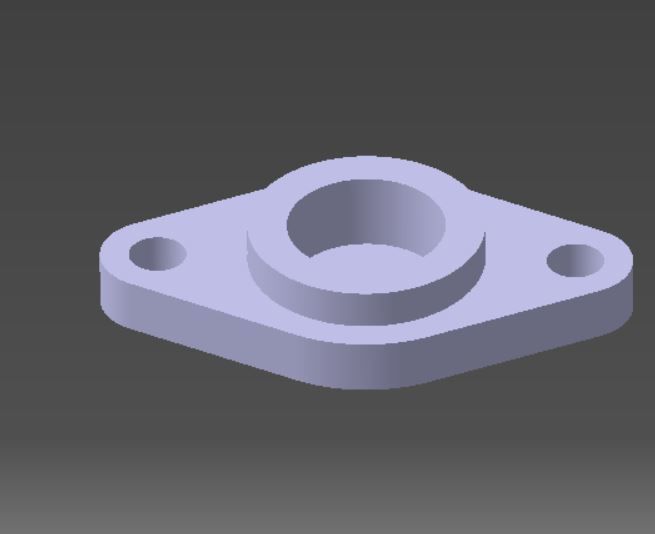

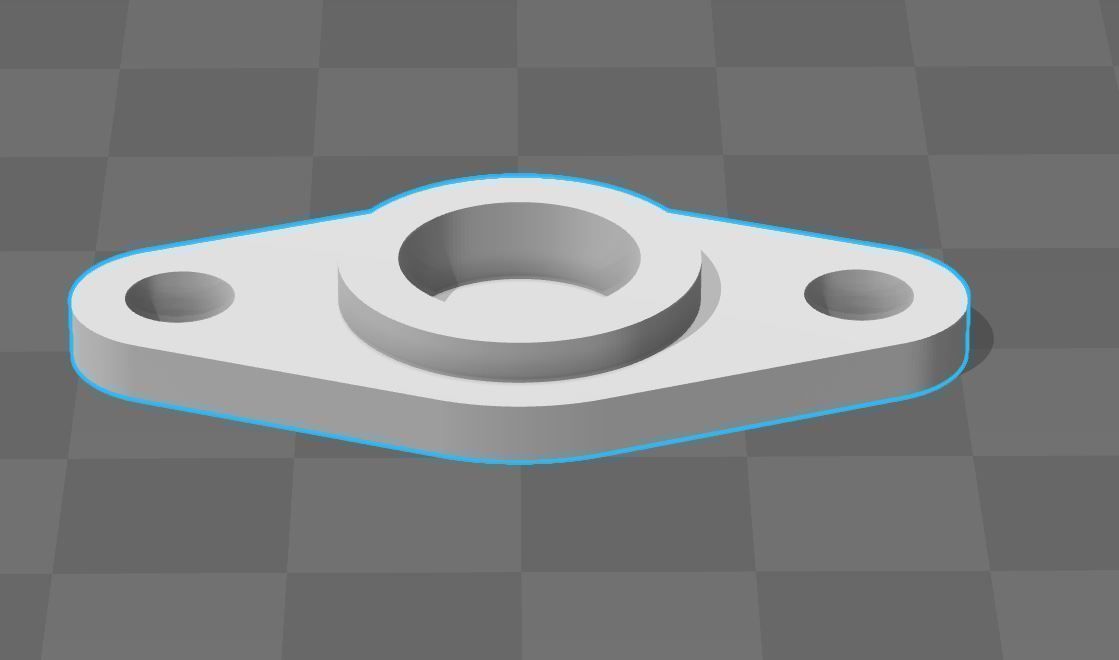

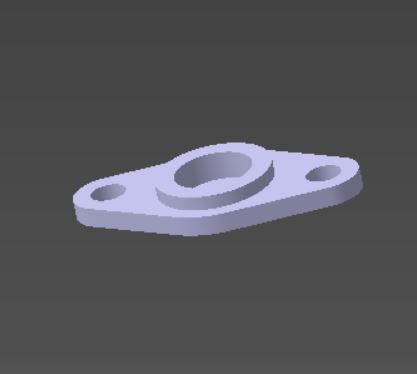

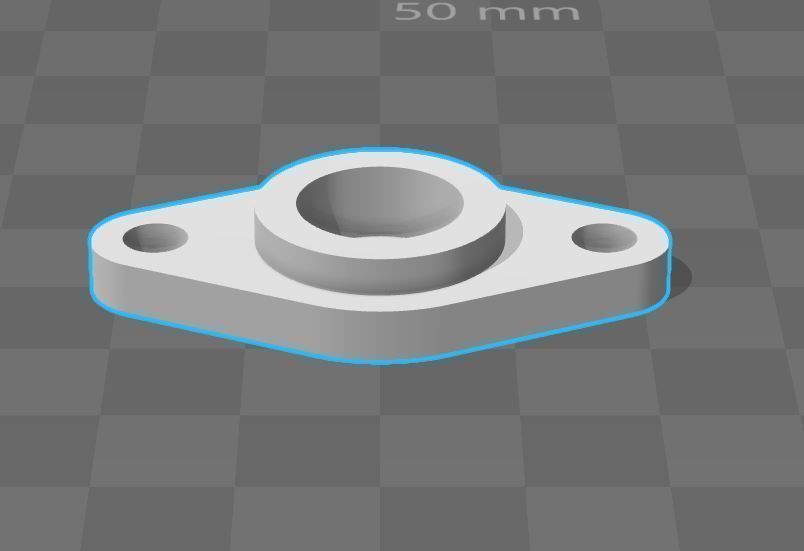

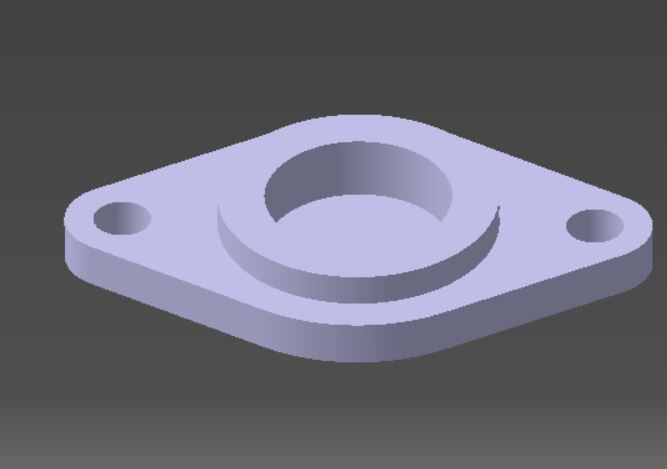

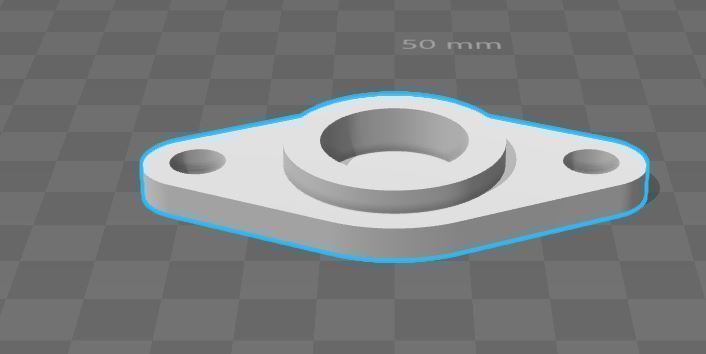

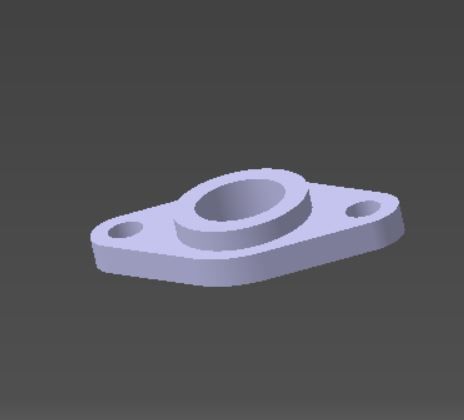

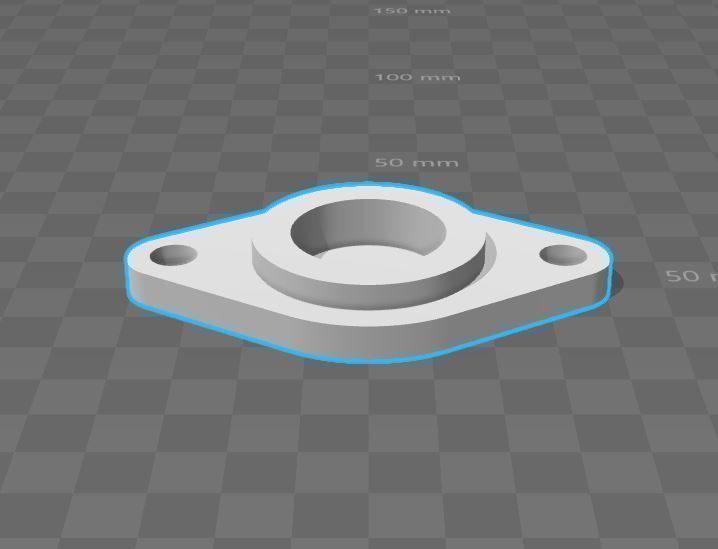

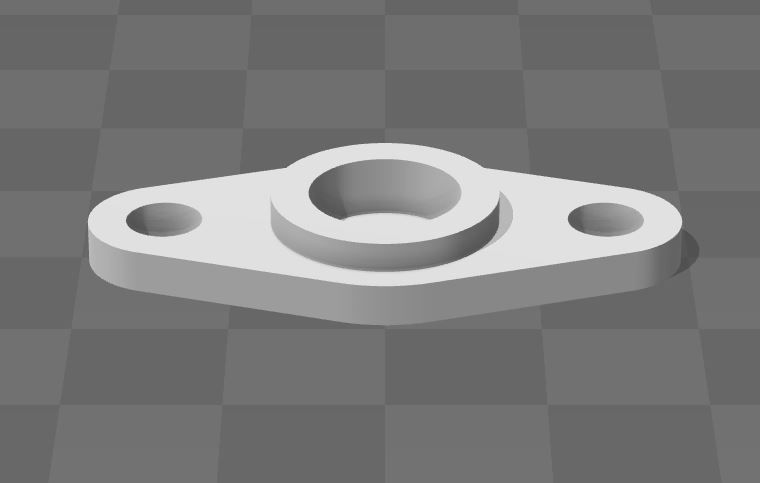

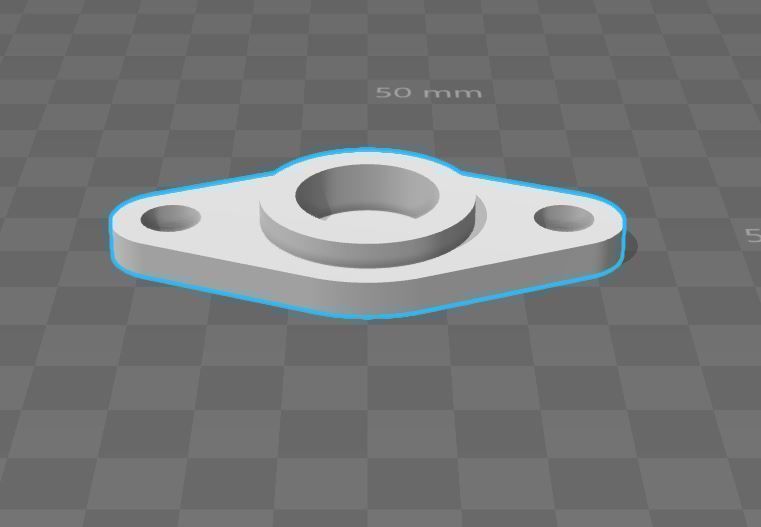

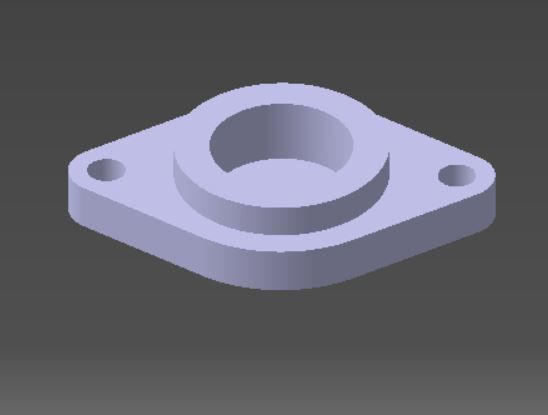

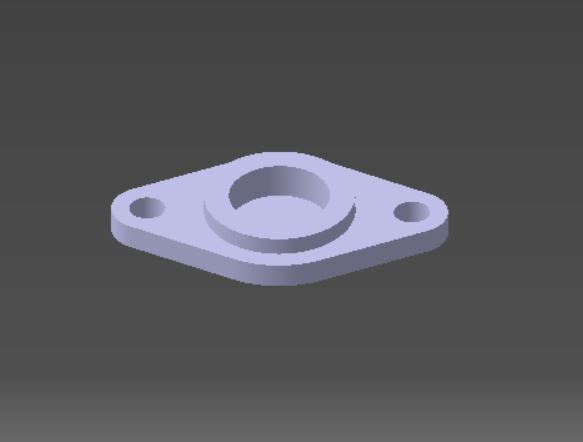

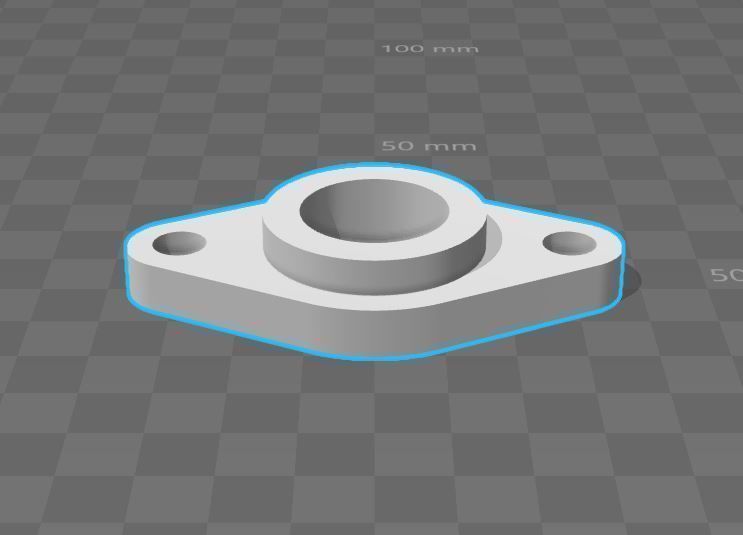

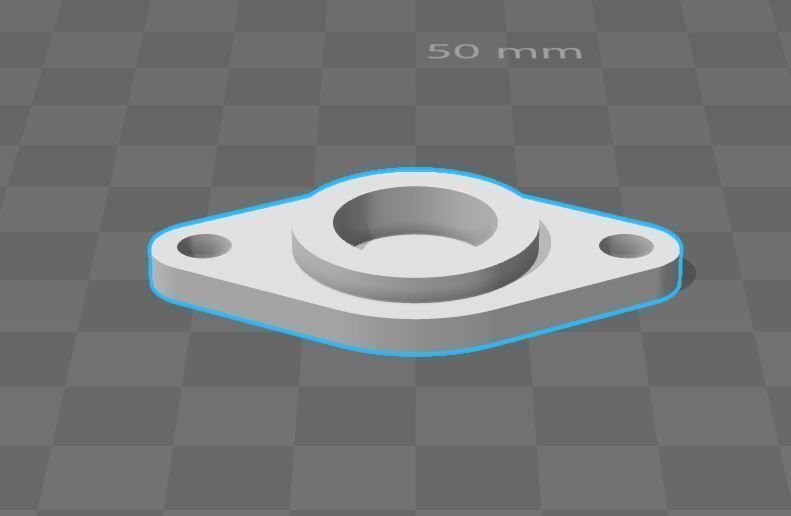

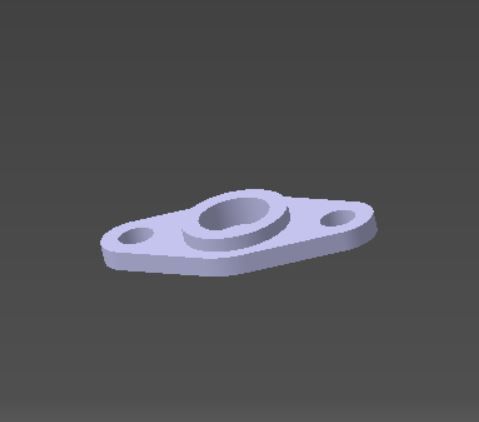

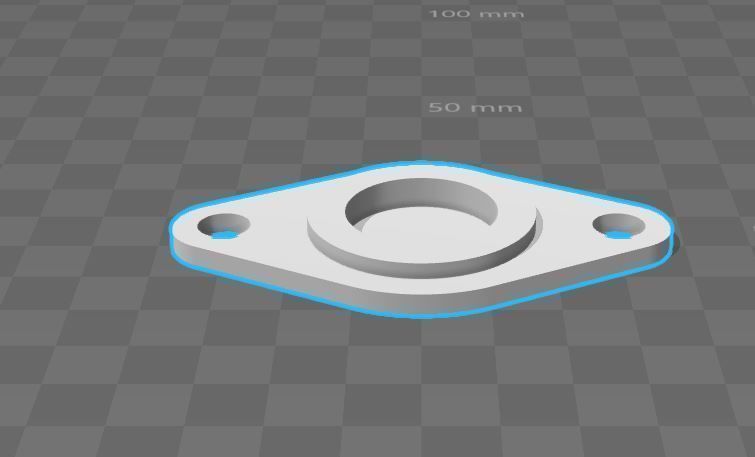

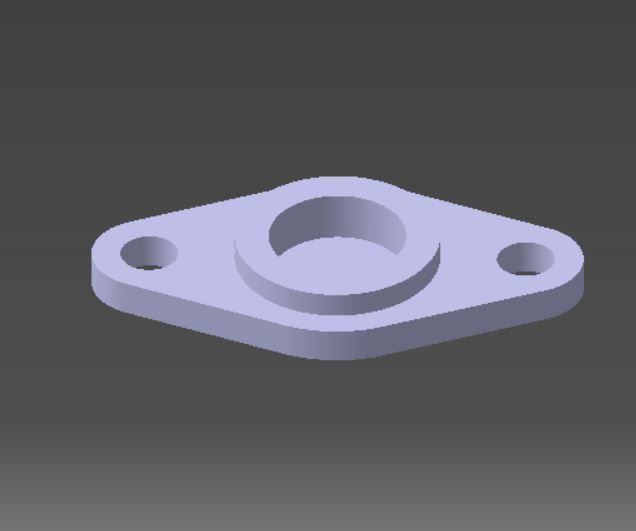

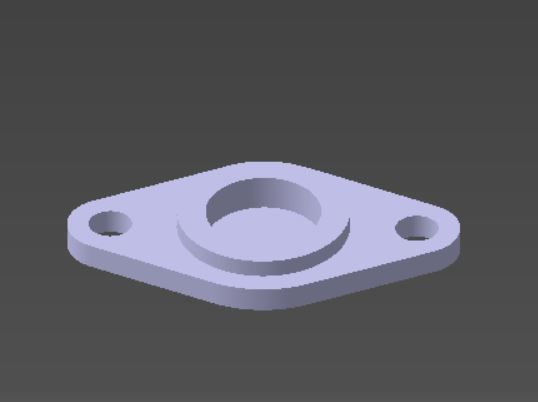

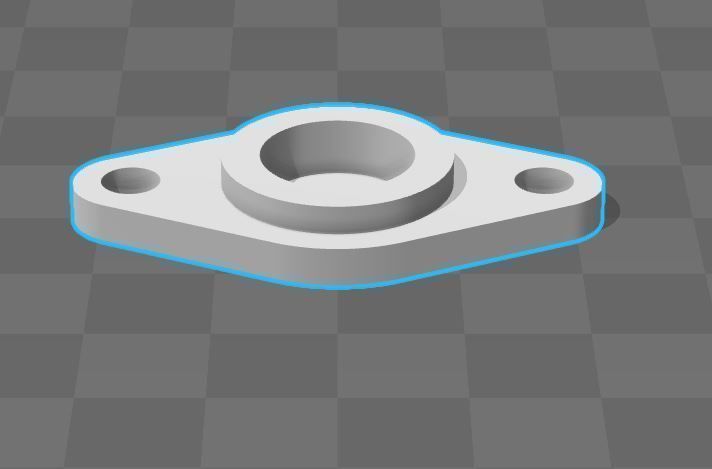

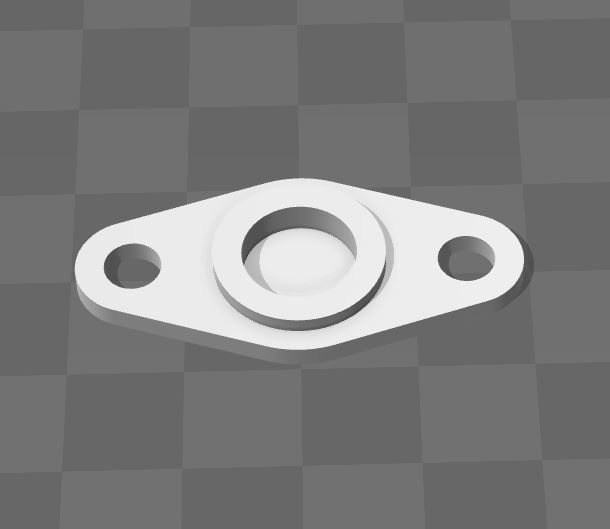

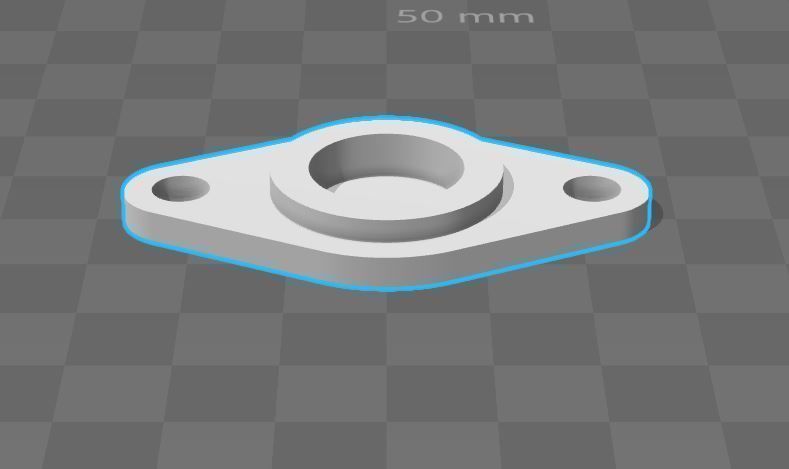

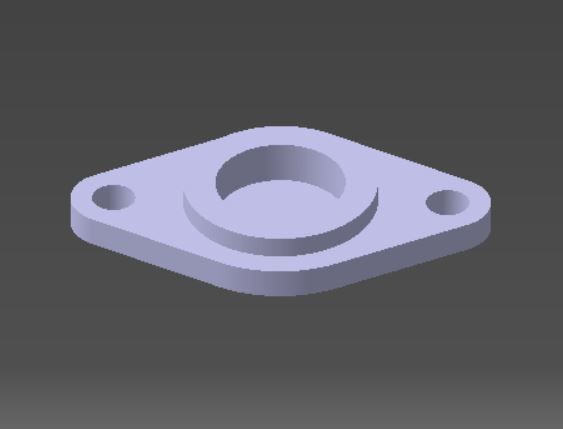

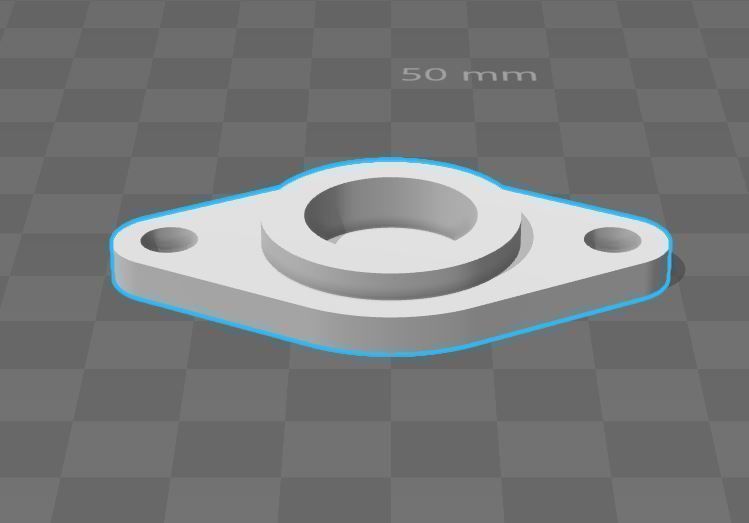

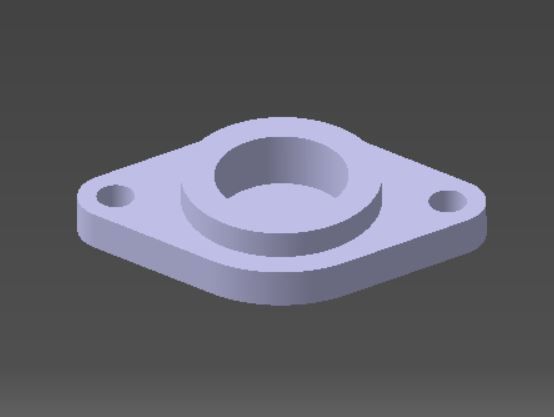

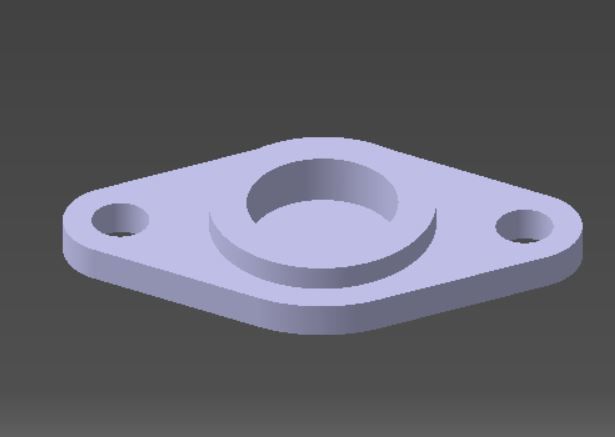

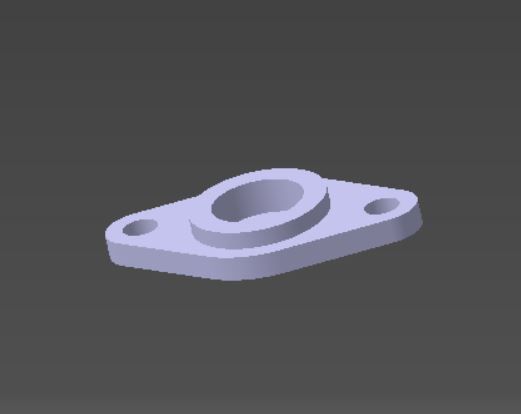

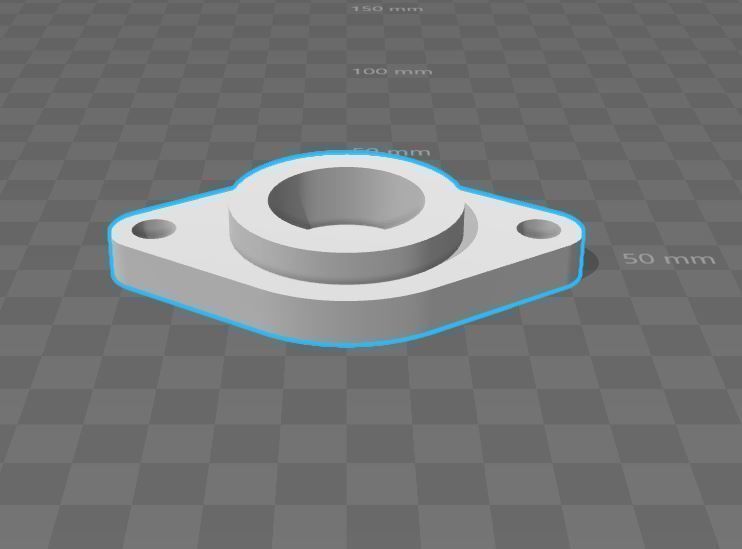

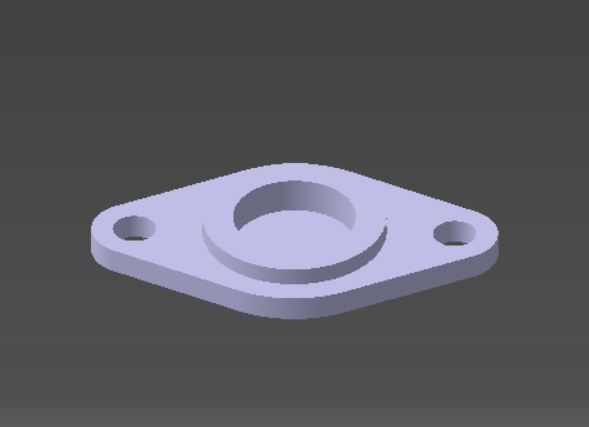

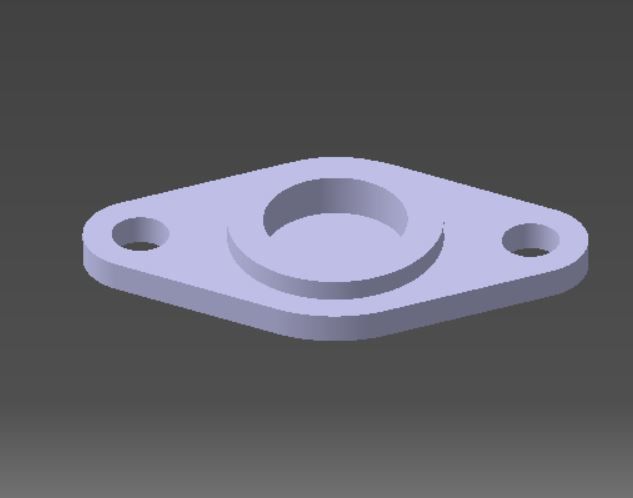

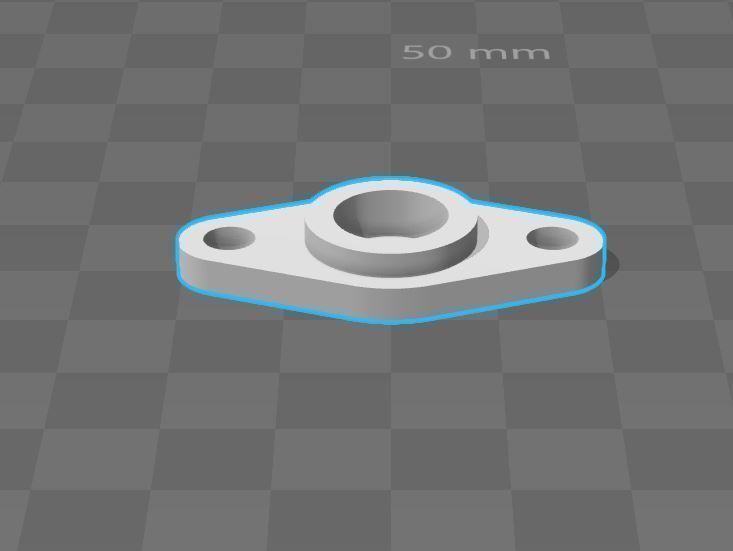

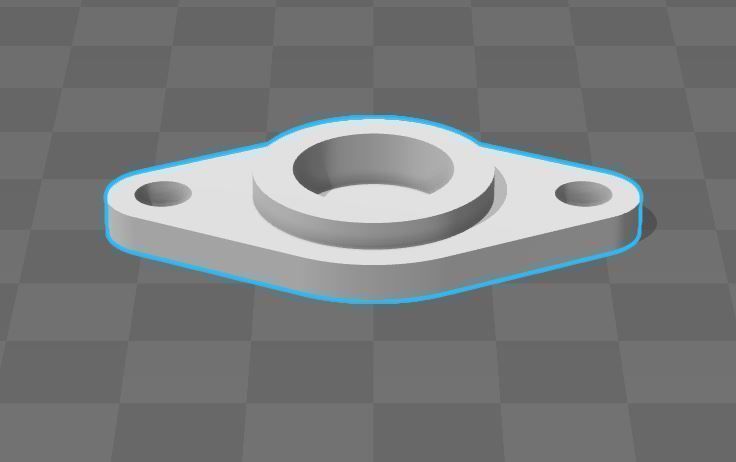

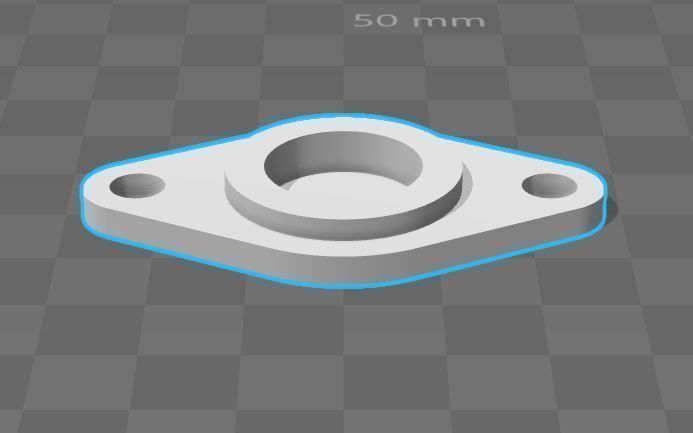

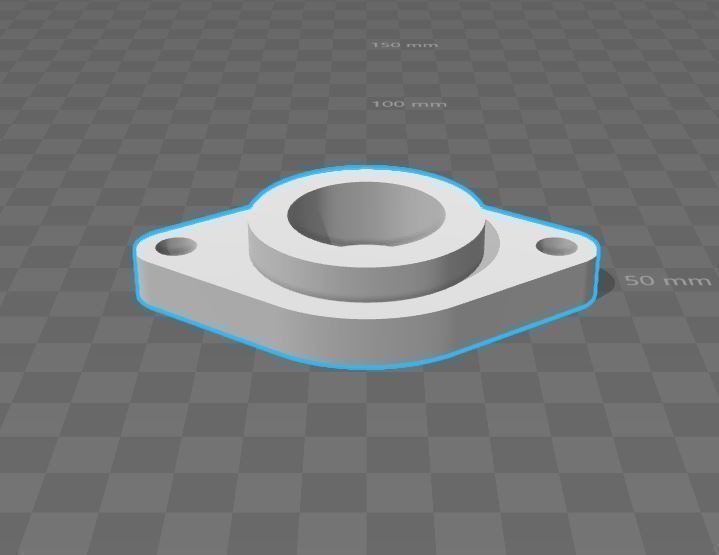

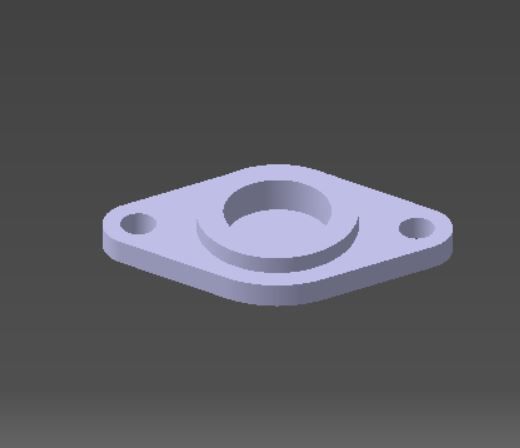

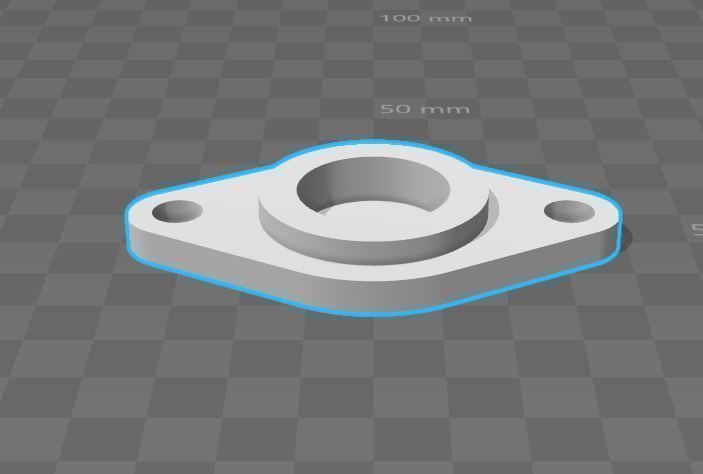

Support for ball bearings

D: outer diameter of the ball bearing B: depth of the bore hole d: diameter of the fixing holes

Data in milimeters

bearings holder D10 B3 d5 bearings holder D10 B4 d5 bearings holder D11 B4 d5 bearings holder D11 B5 d5 bearings holder D12 B4 d5 bearings holder D12.7 B6 d5 bearings holder D13 B5 d5 bearings holder D14 B5 d5 bearings holder D15 B5 d5 bearings holder D16 B6 d6 bearings holder D17 B6 d6 bearings holder D18 B6 d6 bearings holder D19 B7 d8 bearings holder D20 B6 d8 bearings holder D21 B7 d8 bearings holder D22 B11 d8 bearings holder D23 B5 d8 bearings holder D24 B8 d8 bearings holder D26 B12 d8 bearings holder D28 B12 d8 bearings holder D30 B14 d8

Other dimensions are available in my products

contact me if you wish other dimensions: cube77-3d@hotmail.com

Item rating
0 0
bearings holders from D10 to D30
$10.00

Royalty Free License
bearings holders from D10 to D30
$10.00

Royalty Free License
Response 75% in 23.6h
3D Print Modeling
Hire me

3D Model formats

Format limitations
  • Stereolithography (.stl) (21 files)22.2 MB

3D Model details

  • Publish date2017-03-21
  • Model ID#705907
  • Ready for 3D Printing
