3D PRINTED BEADLOCK RIM 1.9p 2.2p 3.2p ULTIMATE PACK Hexa 17 12

BUILD GUIDE :

https://www.youtube.com/watch?v=aHiETTZ7C28

Internal rim width: 25, 30, 35 , 40, 45mm

Hexagonal:

*(12mm X 5mm) / (17mmm X 5mm) / (17mm X 7mm) *

=======================================================================================DESCRIPTION QUICK :

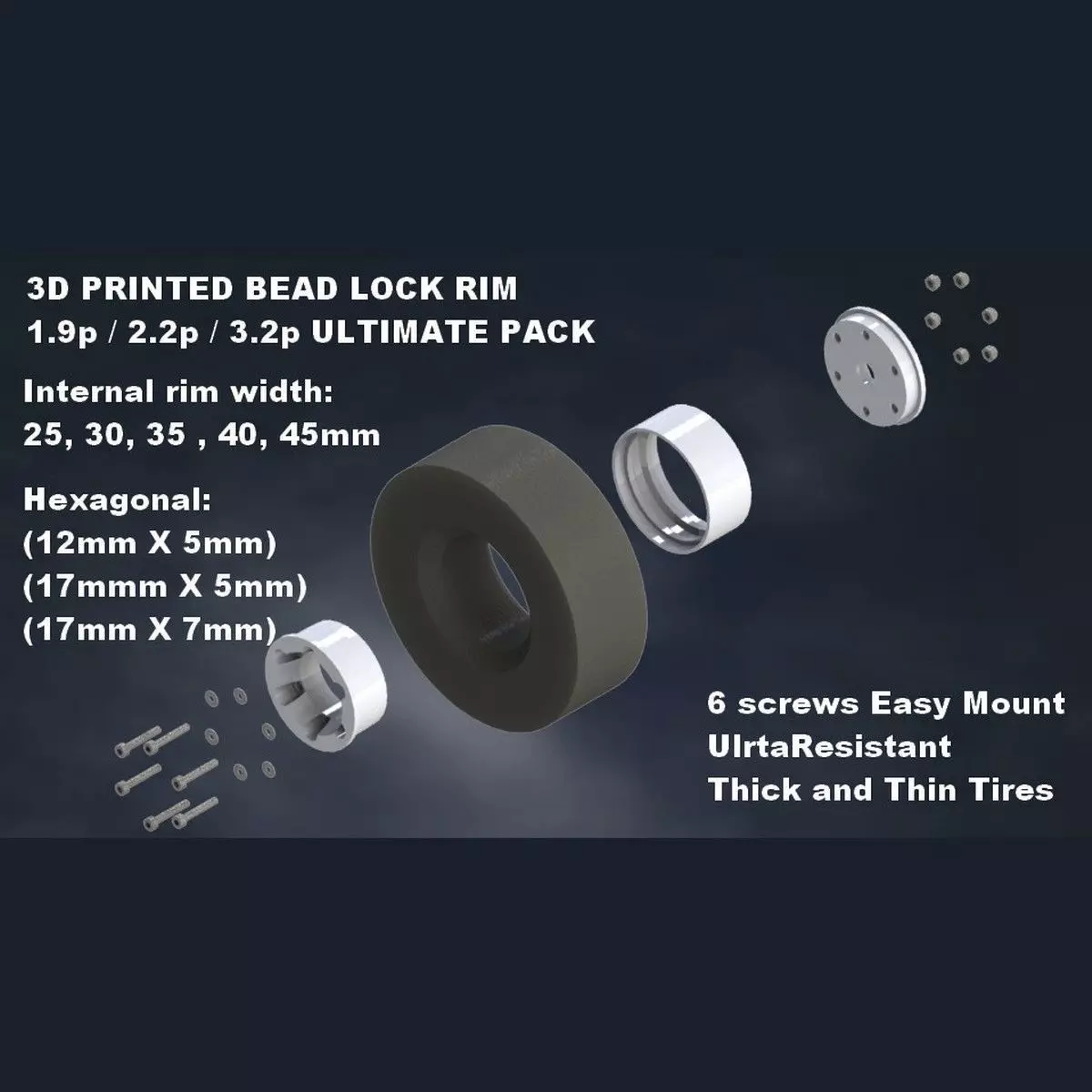

The Rims are composed of 3 parts:

• part 1-3 Hexagonal Side (for the hexagon 12mm x 5mm, or 17mm x 7mm , or 17mm x 5mm)
• part 2-3 Outer Side (to choose the internal width of Rim / Tire)
• part 3-3 Internal Wedge (to choose the toe-in 0.5mm or 0.25mm)-> To choose the gap 0.5 mm or 0.25mm of the Internal Wedge depending on the internal width of the Tire / Rim.

RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mmRIM 2.2p or 58mm X Internal Width Rims 25-30-35-40mmRIM 3.2p or 80mm X Internal Width Rims 35-40-45mm

=======================================================================================*REQUIREMENTS : *

Per Rim:

• SCREW 3mm x 20mm (X6)
• WASHER 3mm x 0.5mm x 8.1mmMax (X6)
• LOCKNUT 3mm (X6)
• PLA+

=======================================================================================CHOICE METHOD :

STEP 1: Measure the inner diameter of your tire 48mm, 58mm or 80mm so 1.9p, 2.2p or 3.2p.

(((Go to the corresponding folder.))))

STEP 2: Measure the width of your tire this will be your internal rim width.

((((Among the parts corresponding to the previous measurements, therefore with your inner tire diameter and your inner Tire / Rim width.))))

STEP 3: Choose whether you want long or short lips -> To choose your parts 1-3, and part 2-3.

STEP 4: Choose the type of Hexagonal 12mm or 17mm and its depth 5mm or 7mm -> To choose part 1-3. H12mm x 5mm H17mm x 5mm H17mm x 7mm

((((At this stage part 1-3 will be final because you will have chosen it according to the internal diameter of your tire, the Hexagonal and the desired lips.You will be able to fix all mixes by choosing your new internal width of Tire. so part 2-3 and the internal Wedge part 3-3.))))

STEP 5: Choose an internal rim width, 25mm 30mm 35mm 40mm or 45mm -> To choose part 2-3

STEP 6: Is your tire thick or thin? -> gap 0.5mm or 0.25mm? (pinch)-> To choose the gap of the Internal Wedge part 3-3.

STEP 7: PRINT IT

STEP 8: ENJOY
