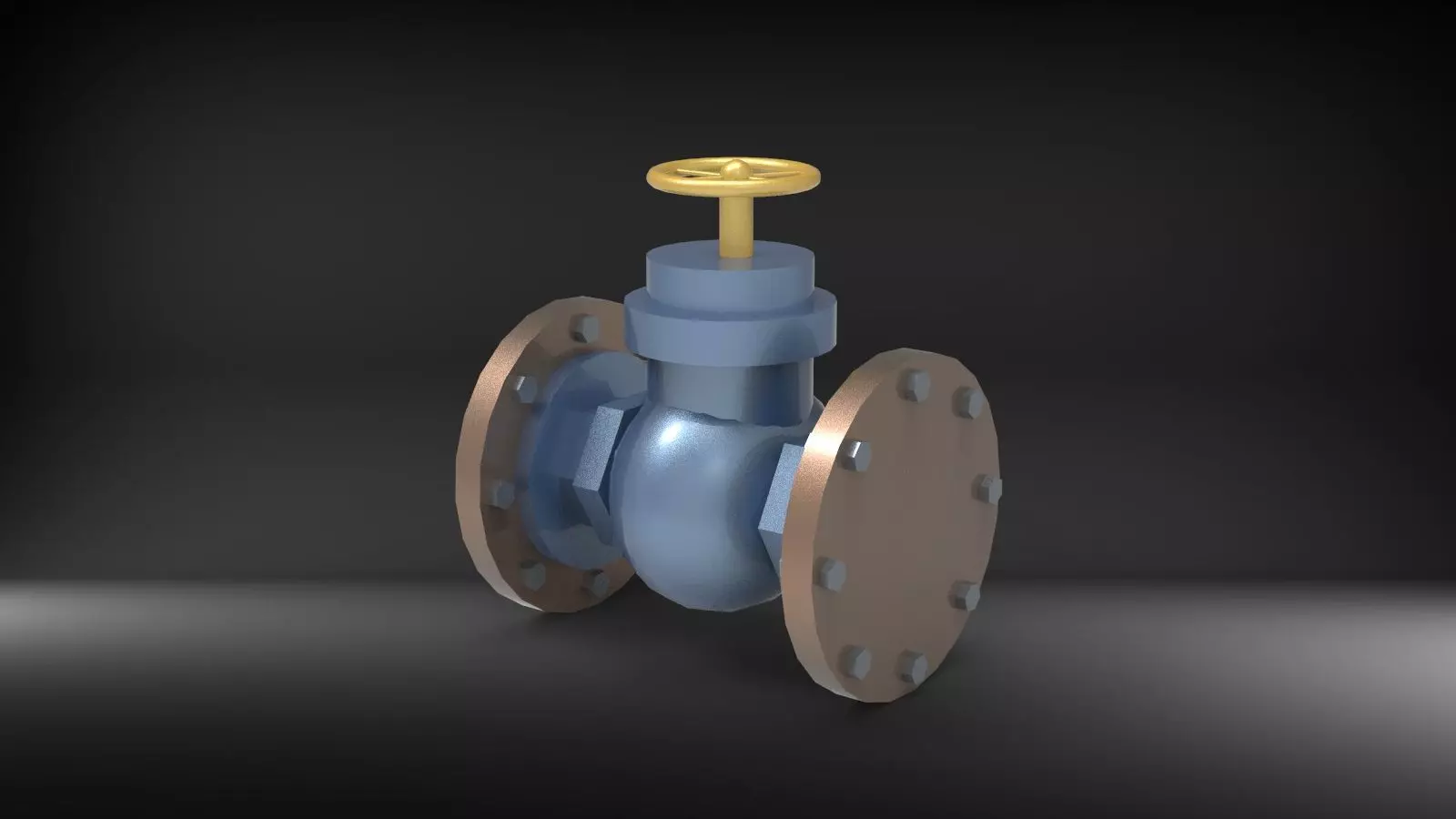

Ball valve with two flanges 3D print model

The 3D design of a ball valve with two flanges features a precision-engineered valve body containing a rotating spherical ball, flanked by two standardized flanged ends for secure bolted connections to pipeline systems. This configuration ensures reliable shutoff and flow control with minimal pressure drop, making it ideal for high-pressure and high-flow applications. The flanged ends allow for easy installation, removal, and maintenance, while the valve’s quarter-turn operation provides quick and efficient control. Commonly used in oil and gas, chemical, and water processing industries, this design supports both manual and automated actuation.
