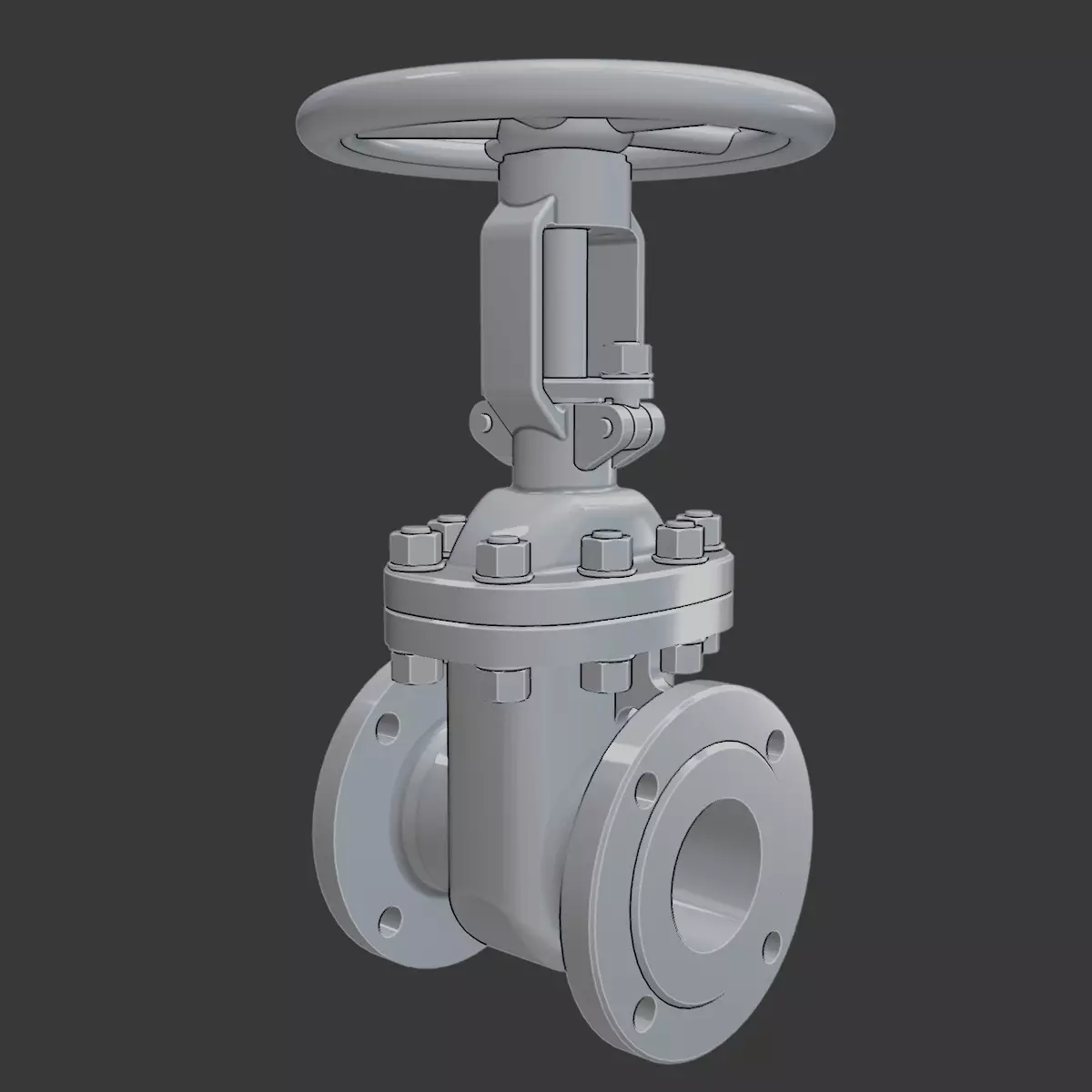

This highly detailed Flanged Gate Valve model is designed for makers who need realistic industrial components for mechanical displays, scale models, dioramas, engineering mockups, or educational demonstrations.The design features accurate flange geometry, a functional-looking handwheel, bolt detailing, and clean, printable surfaces.

While this model is not intended for real-world pressurized use, it provides an excellent visual representation of a standard industrial gate valve that prints cleanly on most FDM and resin printers.

Perfect for:• Industrial scene building• Scale piping systems• Teaching aids• Custom machinery projects• Decorative engineering models

Feel free to modify, scale, or integrate into your own assemblies.

3D printing settingsPrinter type: FDM or ResinSupports: Minimal or none (depending on orientation)Layer height: 0.12–0.2 mmInfill: 15–25%Walls/Perimeters: 2–3Material: PLA, PETG, ABS, ResinNozzle: 0.4 mmRecommended orientation: Valve body upright, handwheel flat for best surface qualityScale: Printable at 100%; can be enlarged for display models
