Valor and Wisdom is a set of themed lightsaber parts obtainable in Jedi: Fallen Order video game. This is my take on the hilt design, made printable and customizable with my Lightsaber Assembly kit. This hilt is 254 mm (10 in) long when assembled as a single bladed hilt, and 451 mm (17.75 in) in dual bladed configuration. The diameter of the grip is about 1.75 in (45 mm).
This kit comes with two solid props (uncut) lightsabers (single and dual bladed), as well as broken up into sections. Each section is named the same way for all my lightsaber designs.
This hilt will accept a 1" diameter Blade. The interior has a 30mm cavity for electronics kits. Some modification may eb required depending on what electronics you intend to install. Contact me if you need changes made to the design to accommodate a specific kit!
ASSEMBLY: The Lightsaber Assembly kit contains models for putting your hilt together. It comes with press fit parts, as well as threaded parts for easy customization. There are two sizes of adapters - 32 mm and 24 mm. The kit also includes a press fit 32 mm to 24 mm adapter so you can mix and match parts. Different sizes are used to maximize the space inside the hilt for electronics. It is recommended you print adapters at a high infill % for strength. This model uses the following adapters for each part:
You can make this hilt double bladed by printing the Emitter, Switch, and Sleeve parts twice (do not print the pommel). Using my adapters, you can easily assmble your own custom saber.
PRINTER SETTINGS: No scaling is needed; this model was made to be a life size prop. Measurements for the hilt are in the photos. For higher quality, we reccommend a layer height of .1mm an any FDM printer. We recommend orienting the hilt sections vertically on your printer, and use supports where necessary.

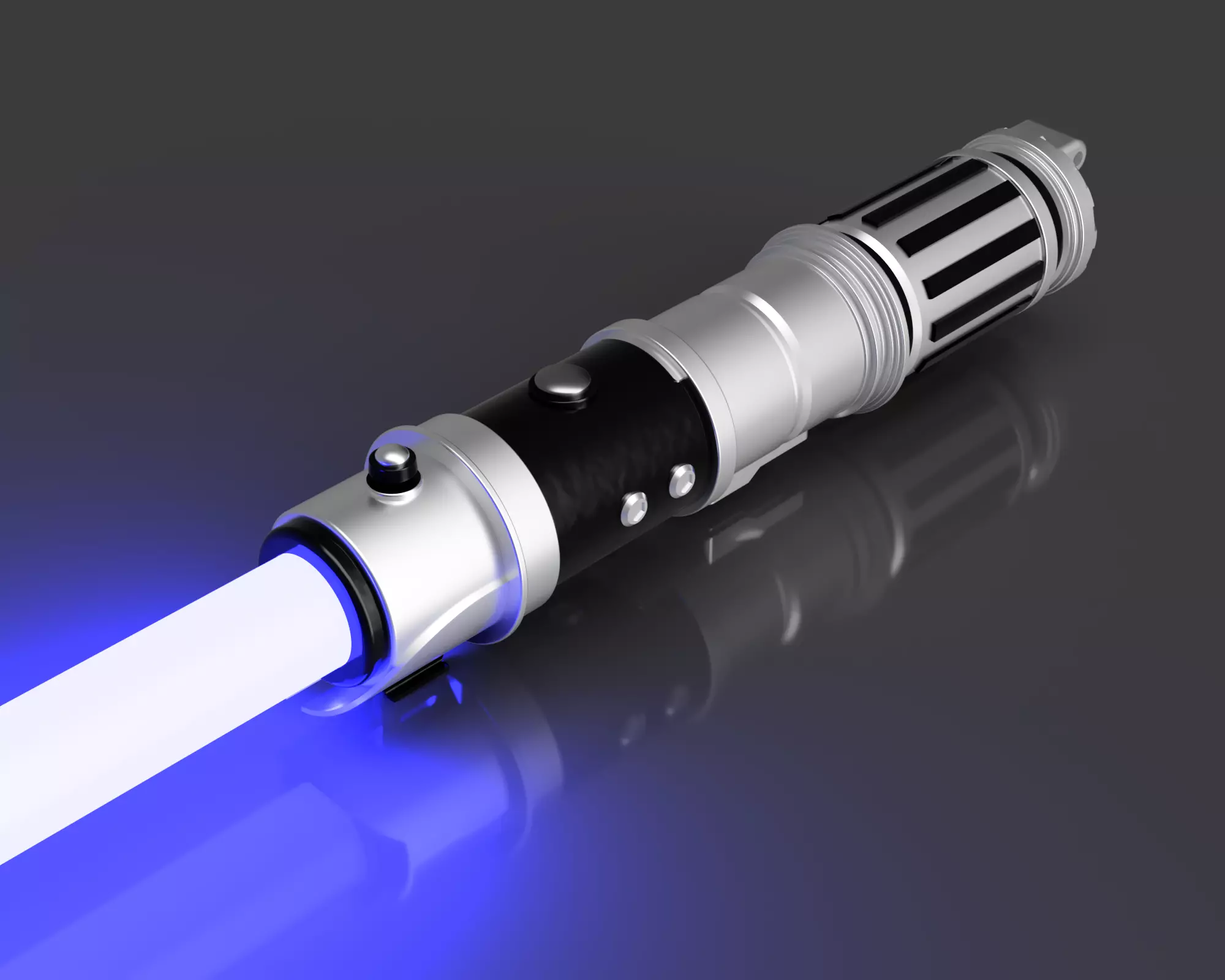

Color preview included to show potential finished product. Does not represent an actual print.
I am happy to customize models to meet your needs. Just shoot me a message!
