*The Hisar-class offshore patrol vessels are patrol vessels that will allow the Turkish Navy to perform cost-effective patrol missions. They are being developed for the Turkish Navy within the scope of MILGEM project.

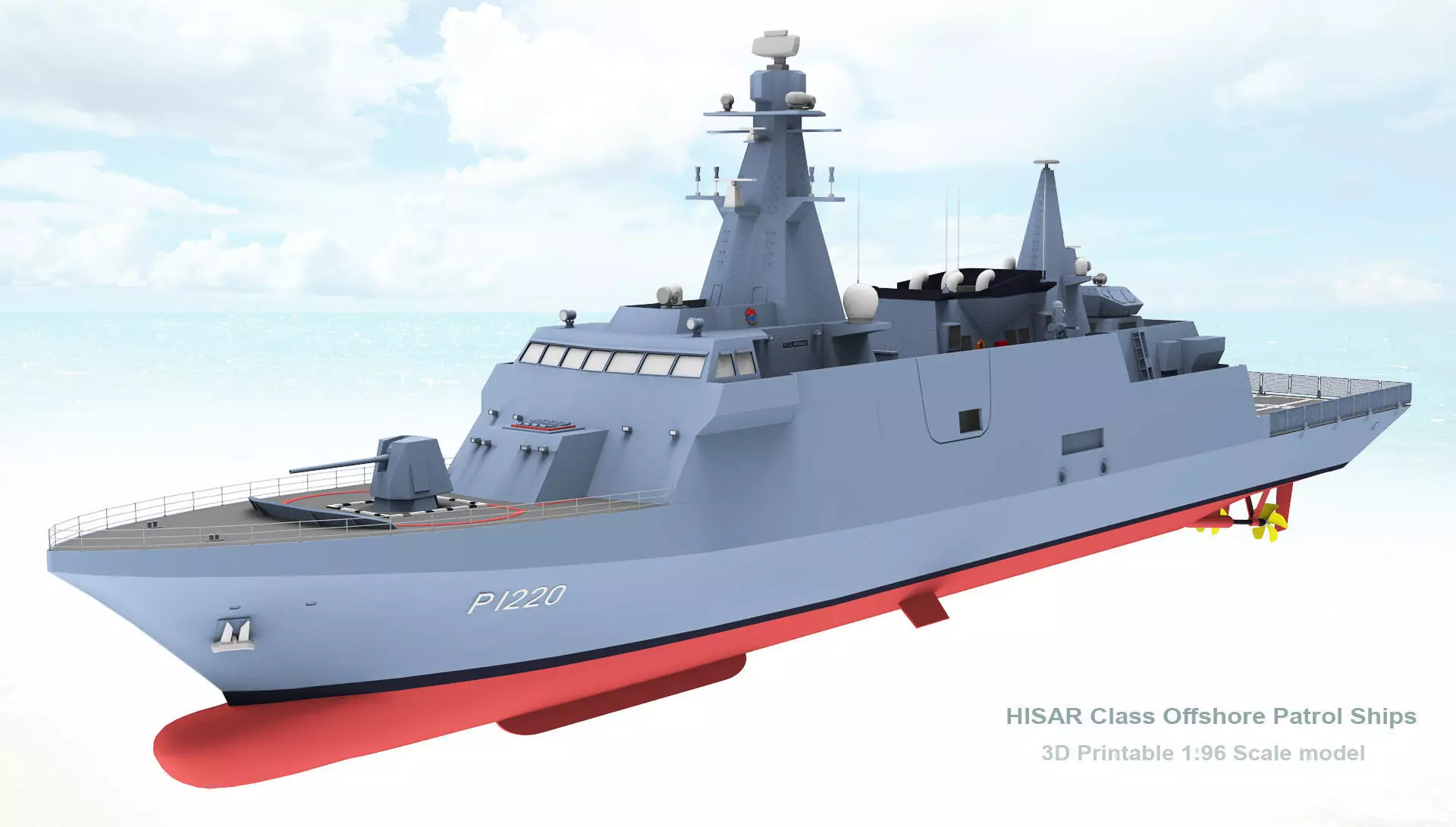

3D Printable Type Hisar-class offshore patrol vessel into 1/96 scale / name: TCG Akhisar *P 1220Lenght - /99,56 m=9956 sm = 99560 mm:96/ = 1037,0 mm
The model dimensions are: Lengh 1037.0 mm x Width 140.916 mm x H 320.264 mm
Group Hull_BODY, 8 Part (25 obj):
Part_1.Body_01A +Body_01B = 135 mm
- Deck_01Part_2.Body_02A + Body_02B= 127 mm
- Deck_02
- Deckhouse_01Part_3.Body_03A + Body_03B=130 mm
- Deck_03 = 140 mm
- Deckhouse_03 = 142 mmPart_4.Body_04A +Body_04B = 135 mm X h142 mm
- Deck_04 = 135 mm
- Deckhouse_04
- Tower_01A + Tower_01BPart_5.Body_05A +Body_05B = 135 mm
- Deck_05 = 122 mm
- Tower_middleA + Tower_middleBPart_6.Body_06A + Body_06B = 165 mm
- Deck_06B(lower) = 144 mm
- Deckhouse_6A + Deckhouse_6B = 159 mm
- Deck_06A(upper) = 116 mm
- Tower_2A + Tower_2BPart_7.Body_07A + Body_07B = 171 mm
- Deck_07 = 55 mm
- Deckhouse_07 Part_8.Body_08 = 58 mm
- Deck_08 = 186 mm
Additional group:1.Group_Main Gun (6 obj):
- Cannon (non glue)
- Pillar_01
- Pillar_02
- support
- Turret_01
- Turret_022.Cannon Back ( 7 obj):
- Gokdeniz CIWS_A + Gokdeniz CIWS_B
- Cannon_Right + Cannon_Left
- Canon_stand
- SLQ
- GFCR (gun fire control radar)
- Group_GunPhalanx1 X2 (1 obj)4.Group *Ladders - (6 obj):
- A X 4
- B X 25.Group_ScrewsX2 (1 obj): L+R 6.Group Lattices (3 obj):
- Lattice_side_Left + Right
- Lattice_back7.Group_Launcher (2 obj)8.Group_Projector (24 obj):
- A X2
- B X229.Group_Anchor:Left + Right (2 obj)10.Group_Fence (4 obj)
- frontLeft + Fence_frontRight
- Fence_side01 + Fence_side0211.Figure01_TMLS/Tactical Misile Launching System SATCOM Antenne (X2)12.Figure02 (X2)13.Figure03_YALMAH TMLS ( 1 obj)14.Figure04_SLQ ( 1 obj)15.Figure05 X316.Navigation_Radar X417.Search_radar (1 obj)18.Antenn X4 19.InmarsatA X2, InmarsatB X1 20.LPI Radar_1,LPI Radar_2 X2 (3 obj)21.FireBox, X922.Signs_TCG Akhisar, X2 (left+right)23.Box_VLS, X524.For decal circular Logo (big + sm) / AKHISAR_logo1 (Radius 10,216mm +logo2 (L+R) (3 obj)25.Kiel back, X2.
