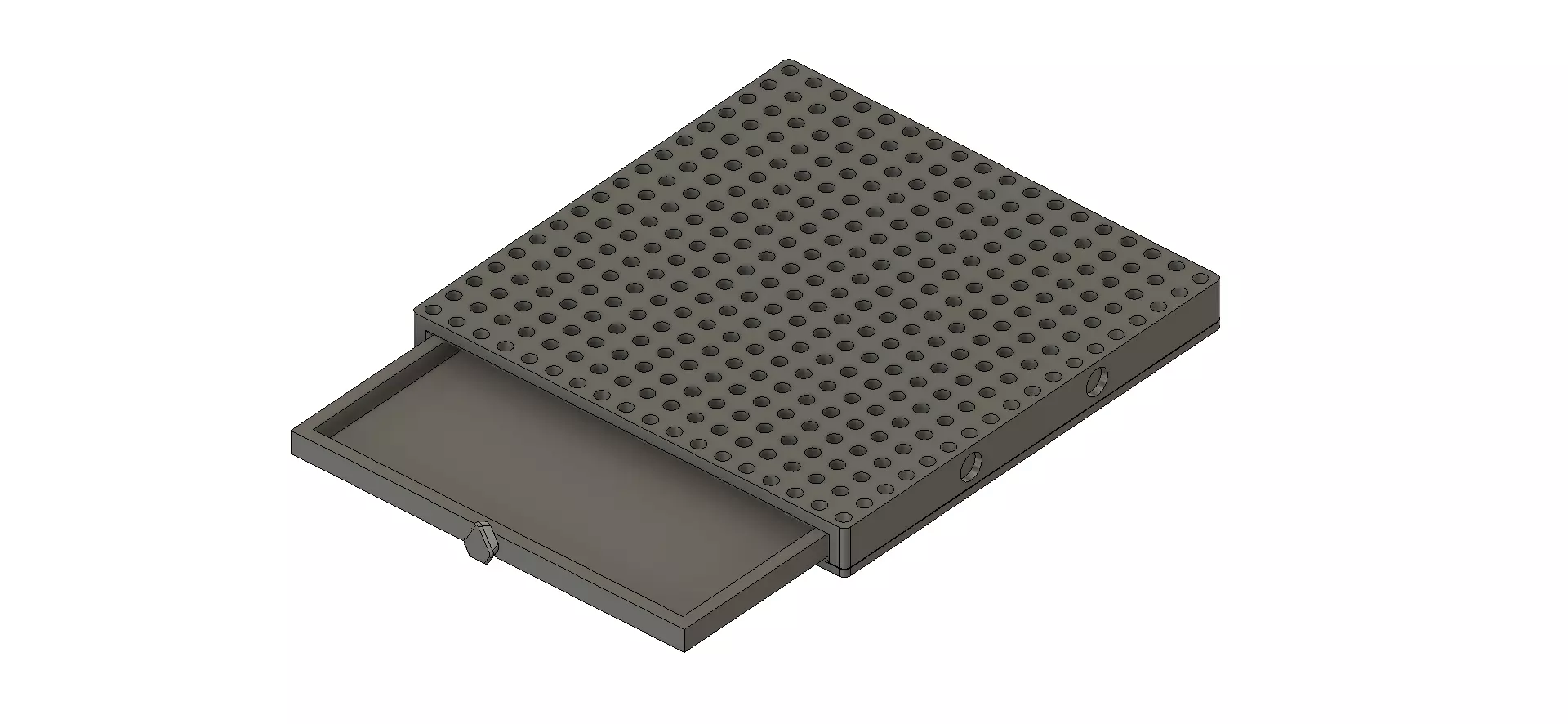

Crochet Blocking Board with drawer Square 3D print model

Crochet Blocking Board with drawer, standoffs, and holes for magnets.

I was commissioned to design this for a family friend. It has turned out very well compared to other designs we've seen.

The board is 20 by 20 for the holes. A 5.25mm hole is spaced out every 10 mm on the center. If inserting magnets, the holes will keep the same 10mm spacing if placed up against another board.

Note on magnets: It is designed for 6 magnets total, two on each side (excluding the font). Be sure to alternate the poles of the magnets so they will fit together in each orientation. For example, when looking at a side, make the left magnet's positive side face out while the right will have the negative pole facing out. Repeat this for each side.

The total design is in 4 parts. The Board Top, Board Bottom, Drawer, and Standoffs.

The total dimensions of the board are 175x175x18.5mmDesigned to be printed flat (LEVEL that bed!) All settings listed will be for the board and drawer. See info about the standoffs below.

The standoffs can be printed flat with supports or standing up with a brim. If having trouble printing more than one standoff at a time upright, do one at a time with 100% infill.
