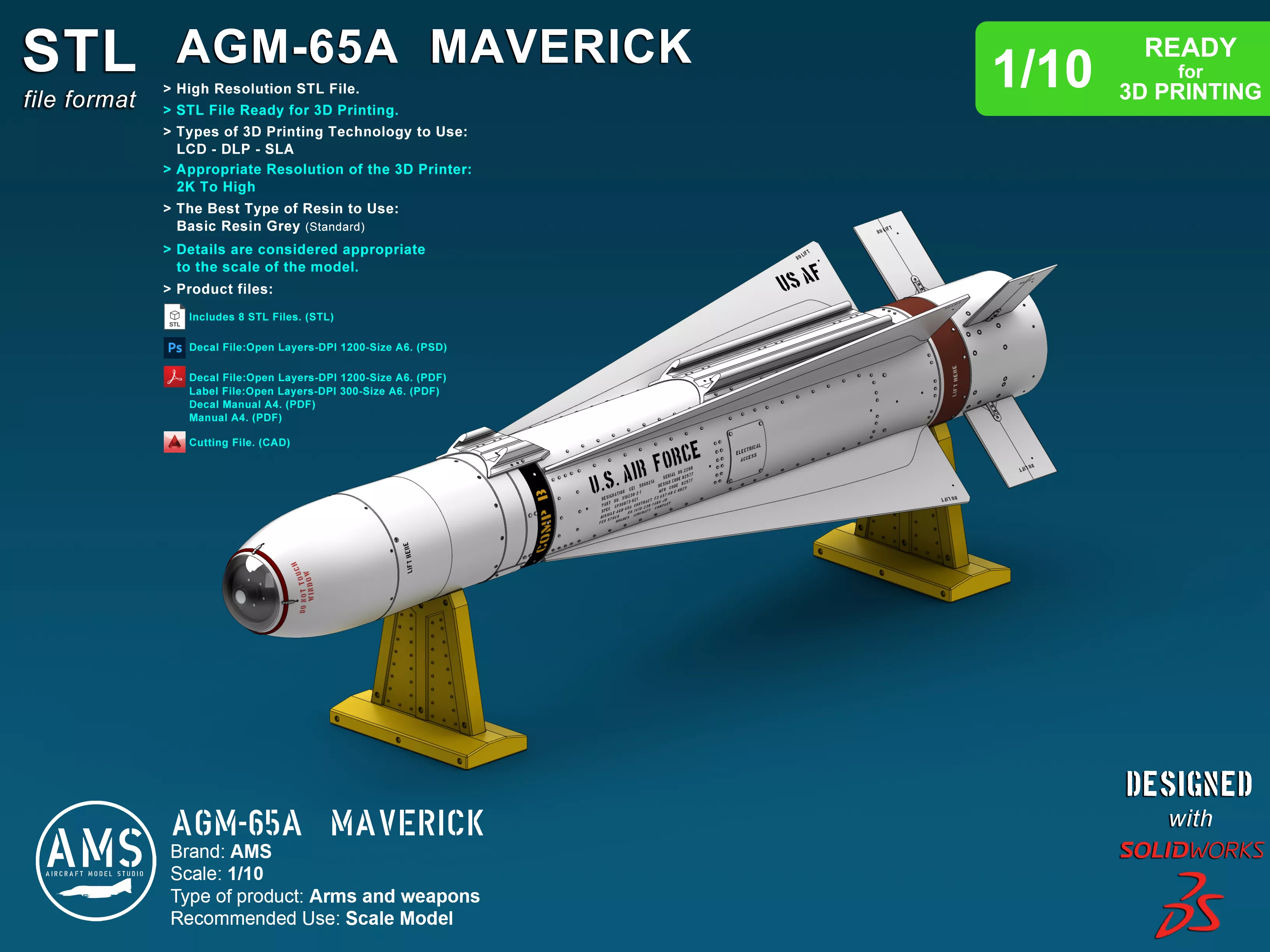

Specification:

• Brand: AMS
• Scale: 1/10
• Type of product: Arms and weapons
• Recommended Use: Scale Model

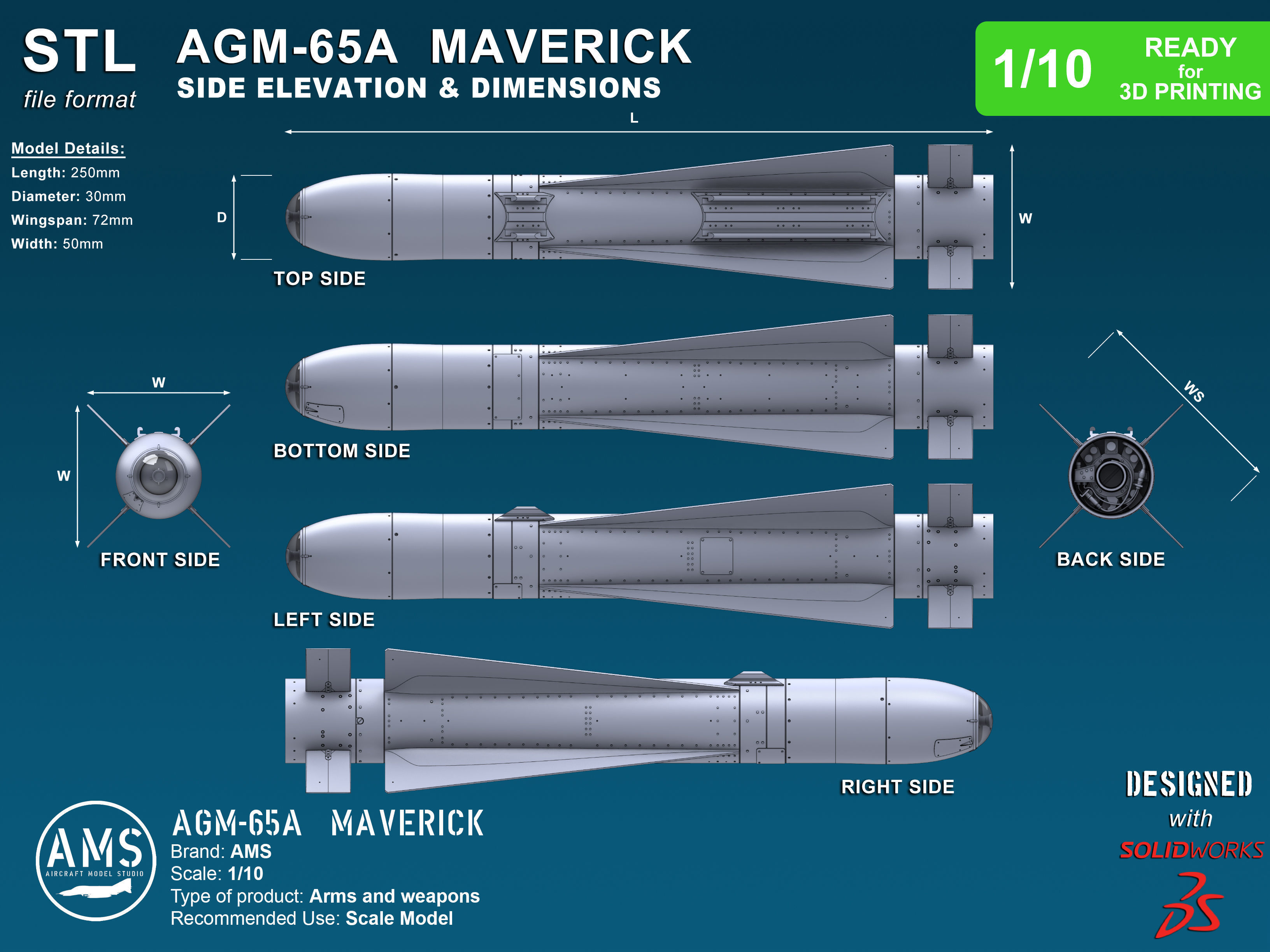

Missile Model Dimension :

• Length: 250mm
• Diameter: 30mm
• Wingspan: 72mm
• Width: 50mm

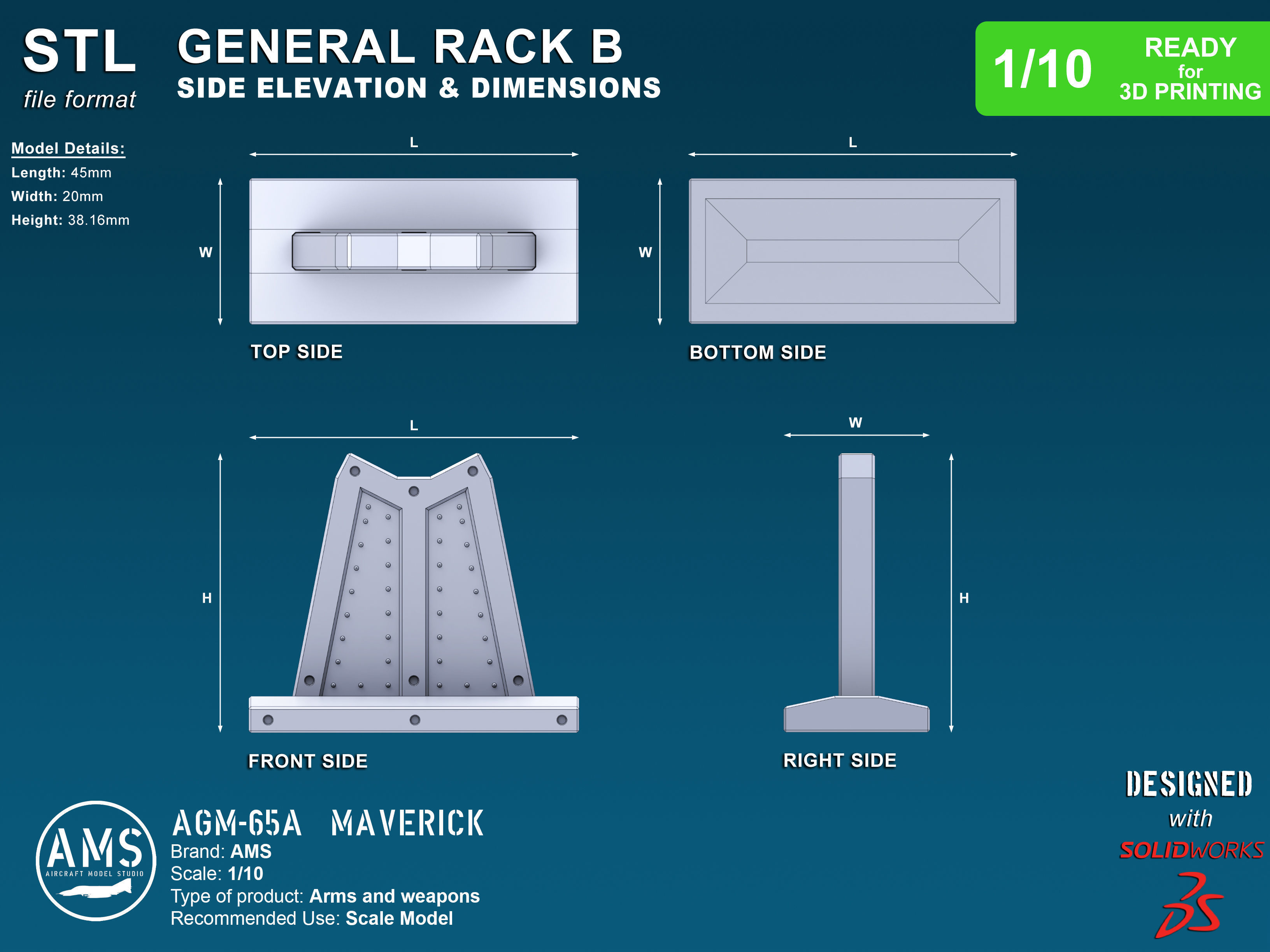

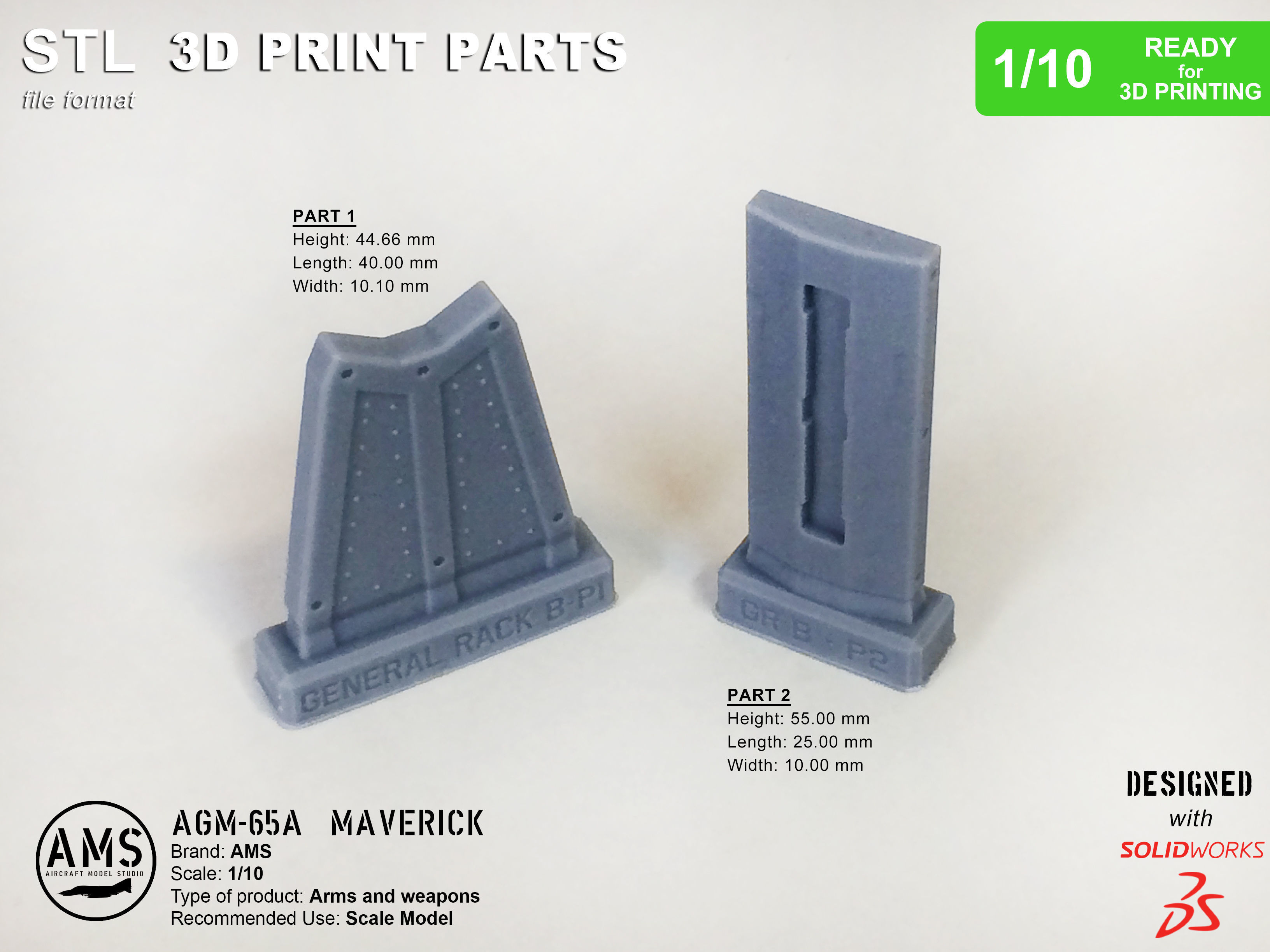

Rack Model Dimension :

• Length: 45mm
• Width: 20mm
• Height: 38.16

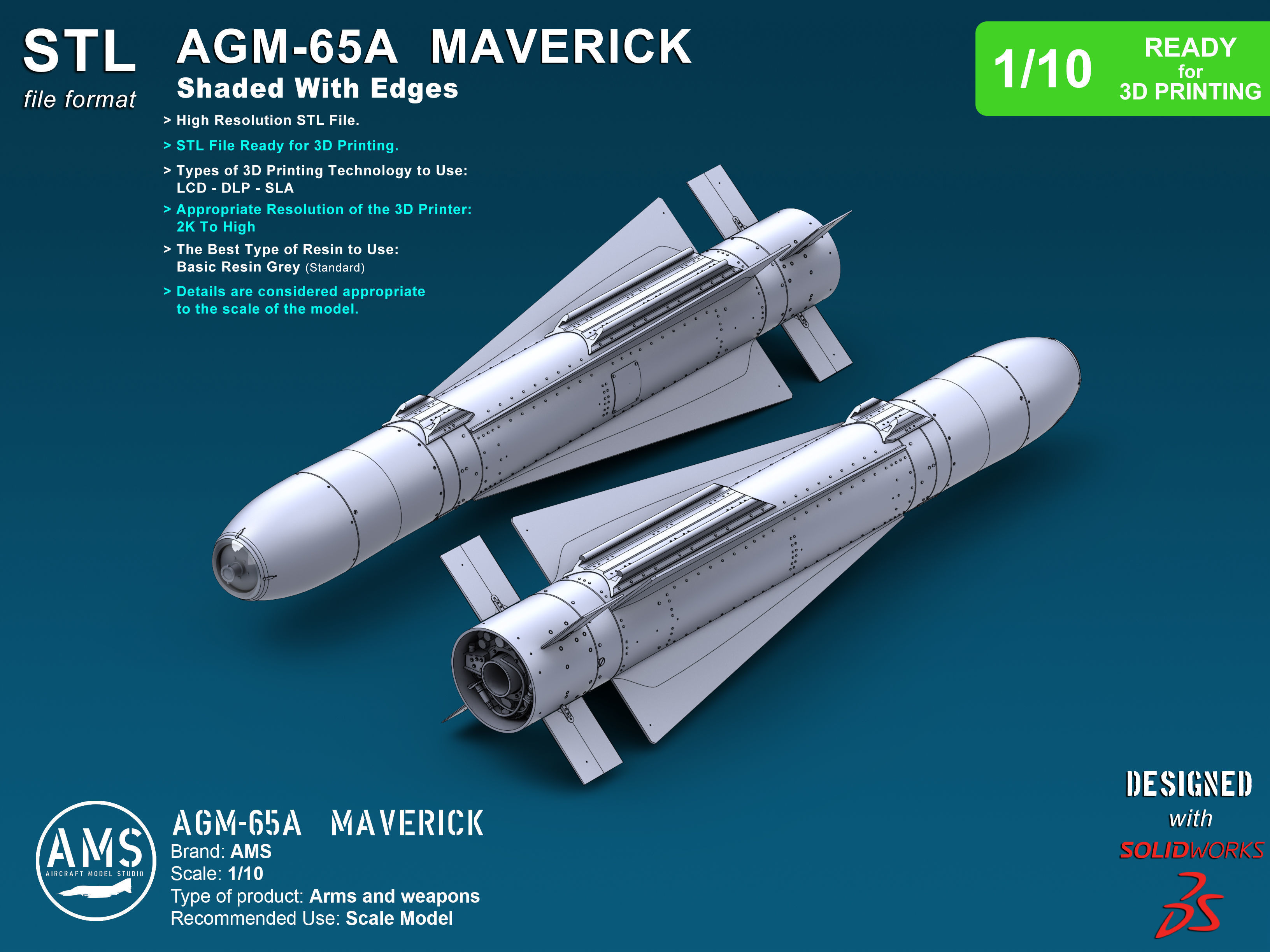

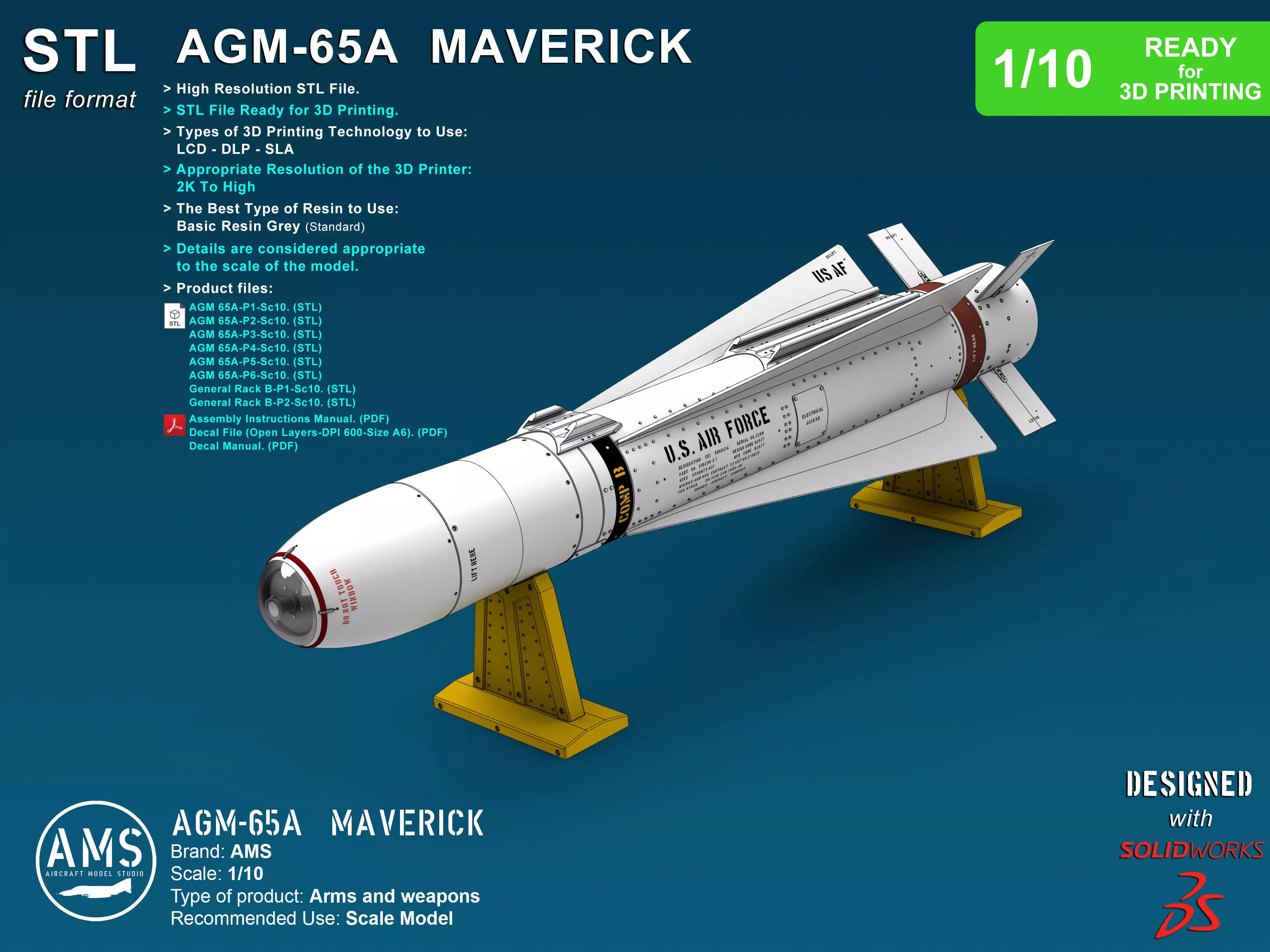

Note:

• High Resolution STL File.
• STL File Ready for 3D Printing.
• Types of 3D Printing Technology to Use: LCD - DLP - SLA
• Appropriate Resolution of the 3D Printer: 2K To High
• The Best Type of Resin to Use: Basic Resin Grey (Standard)
• Details are considered appropriate to the scale of the model.

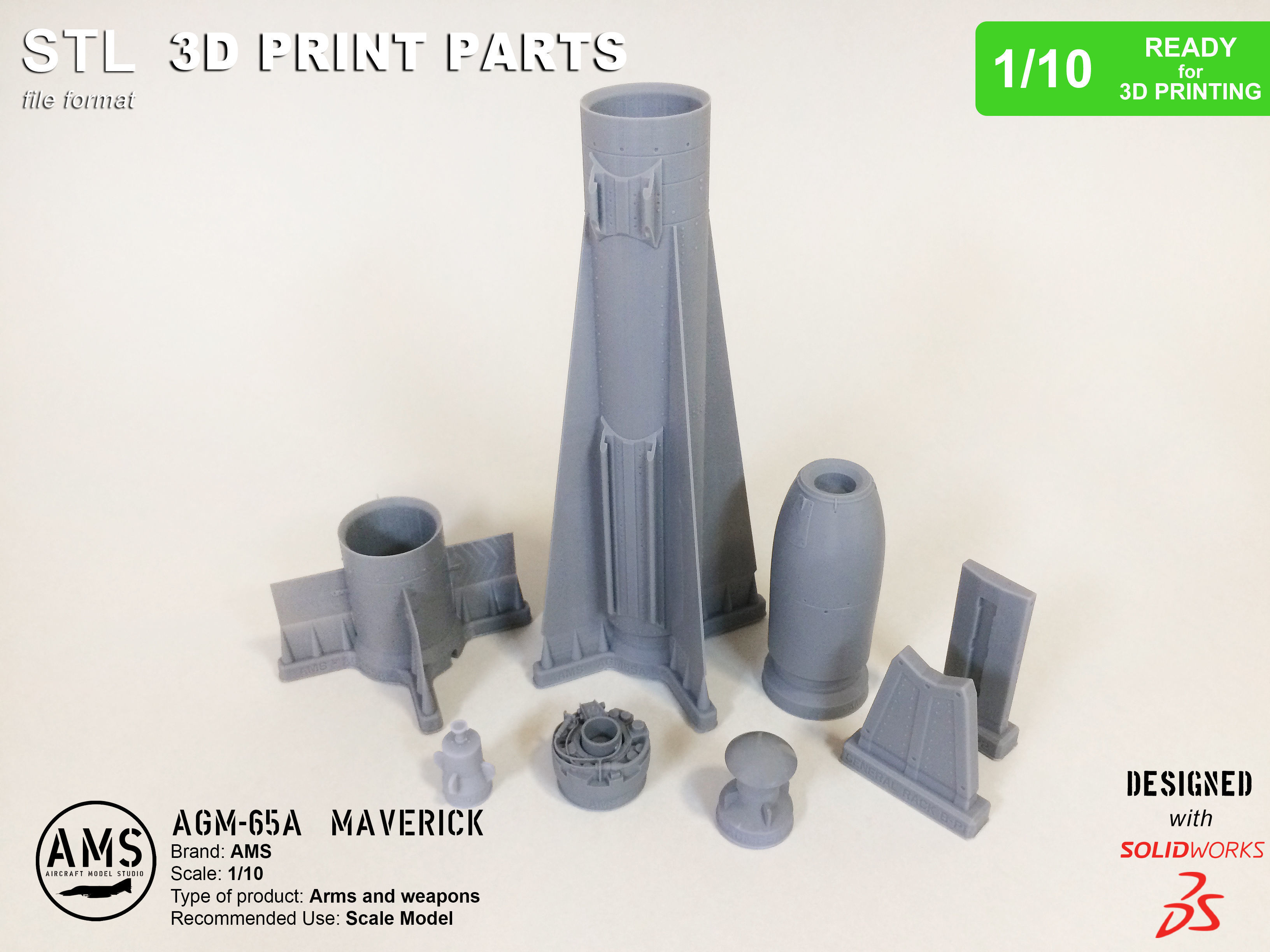

Product files:

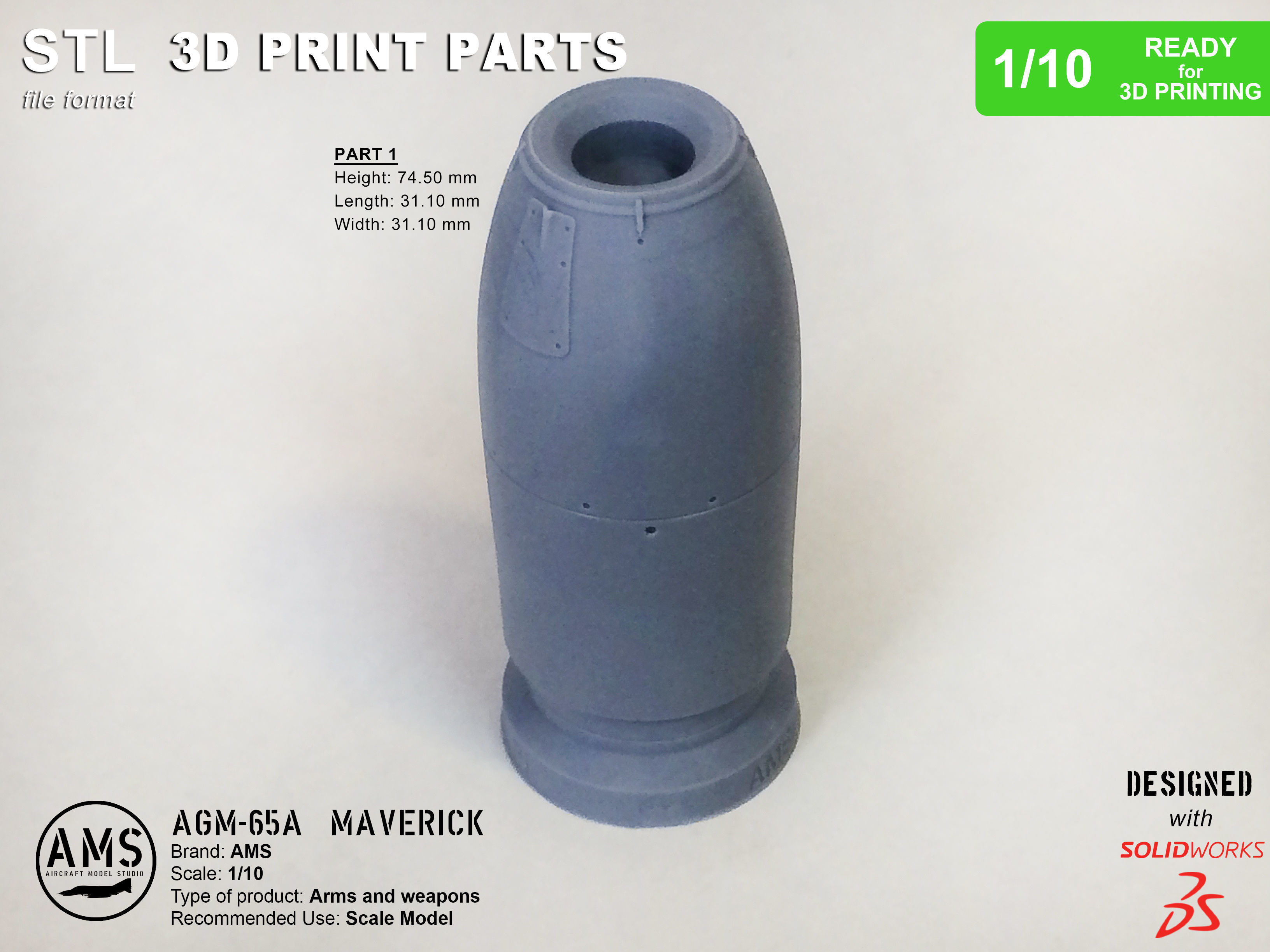

• AGM 65A-P1-Sc10. (STL)
• AGM 65A-P2-Sc10. (STL)
• AGM 65A-P3-Sc10. (STL)
• AGM 65A-P4-Sc10. (STL)
• AGM 65A-P5-Sc10. (STL)
• AGM 65A-P6-Sc10. (STL)

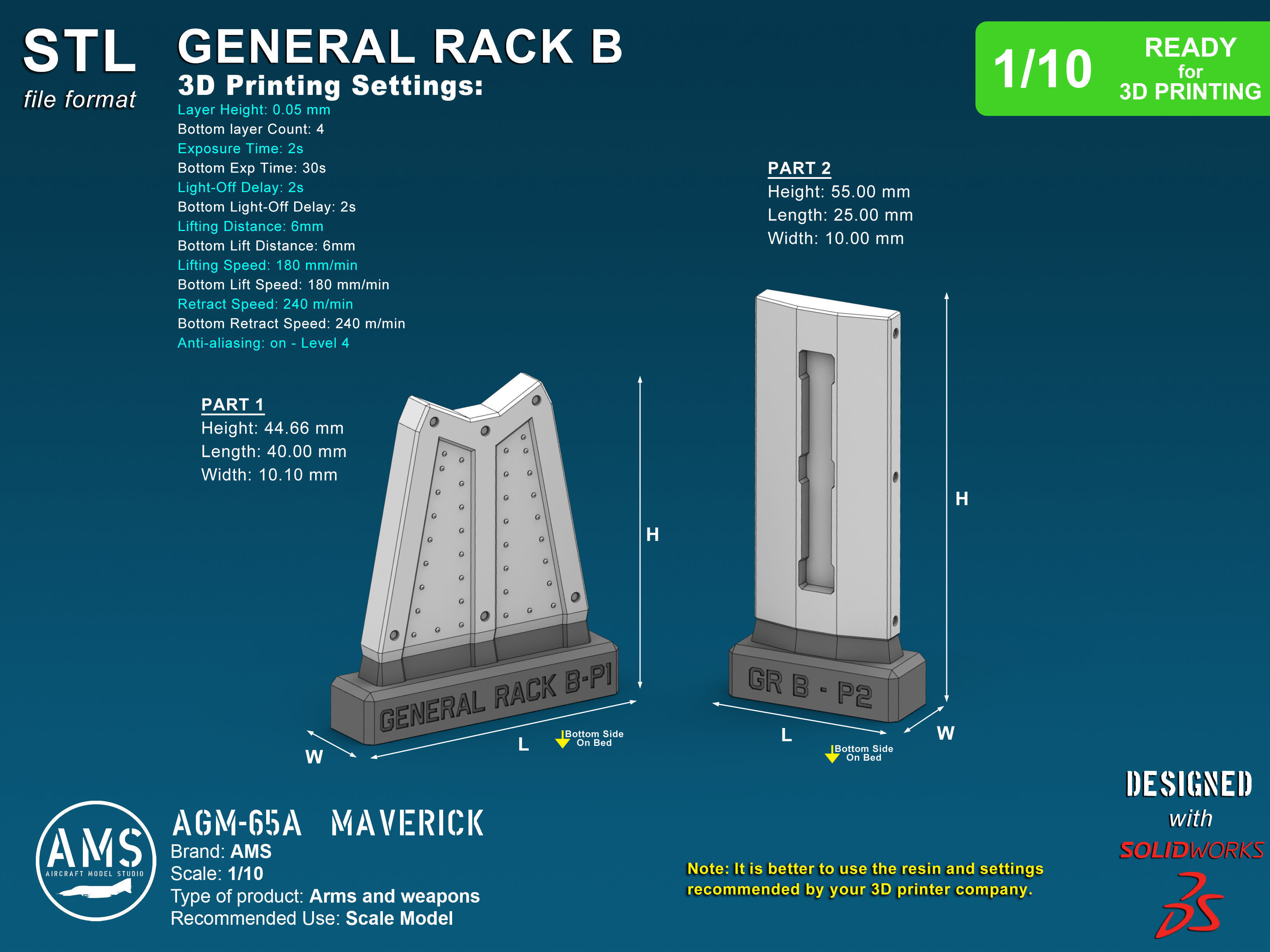

• General Rack B-P1-Sc10. (STL)
• General Rack B-P2-Sc10. (STL)

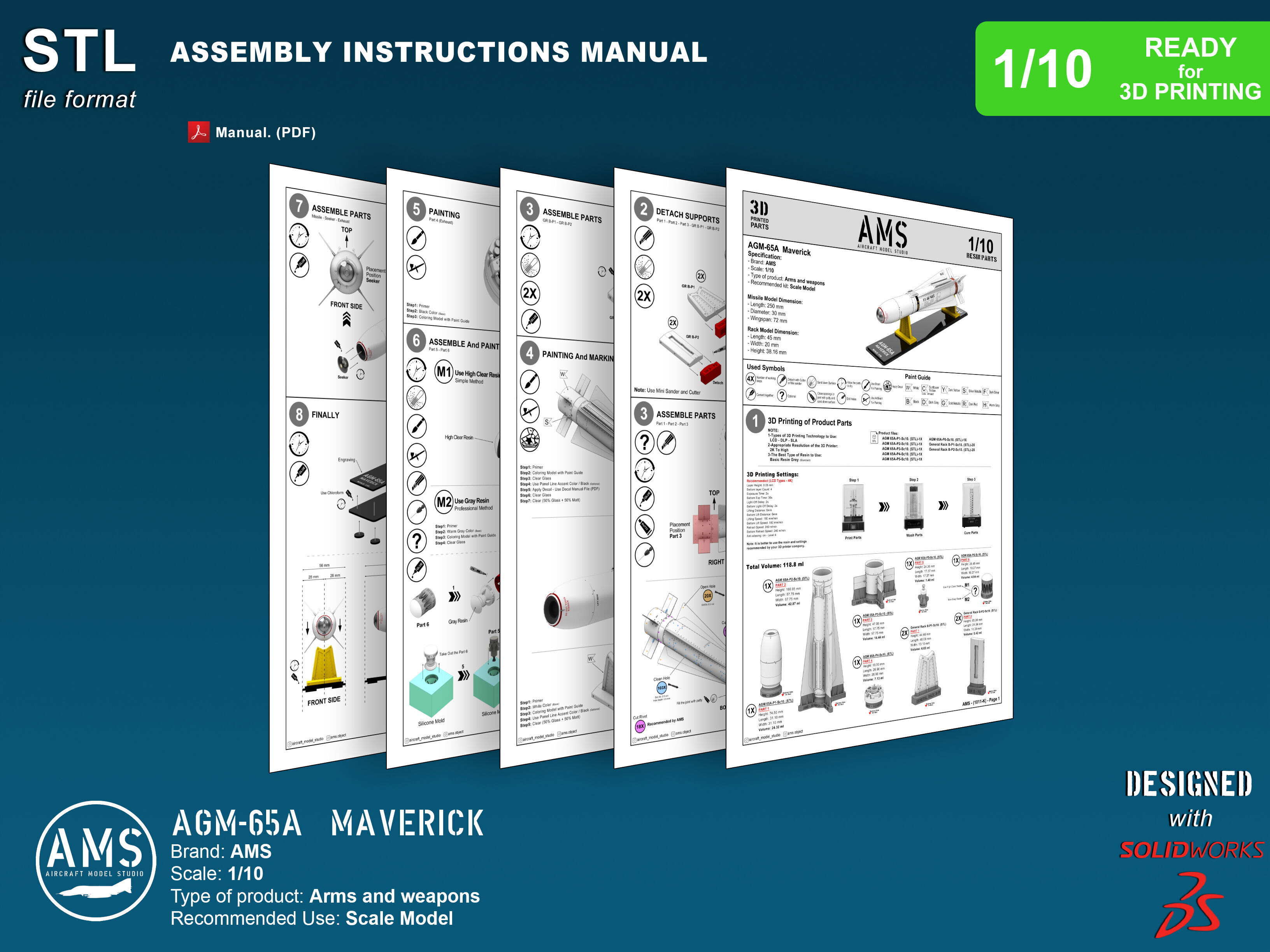

• Assembly Instructions Manual. (PDF)

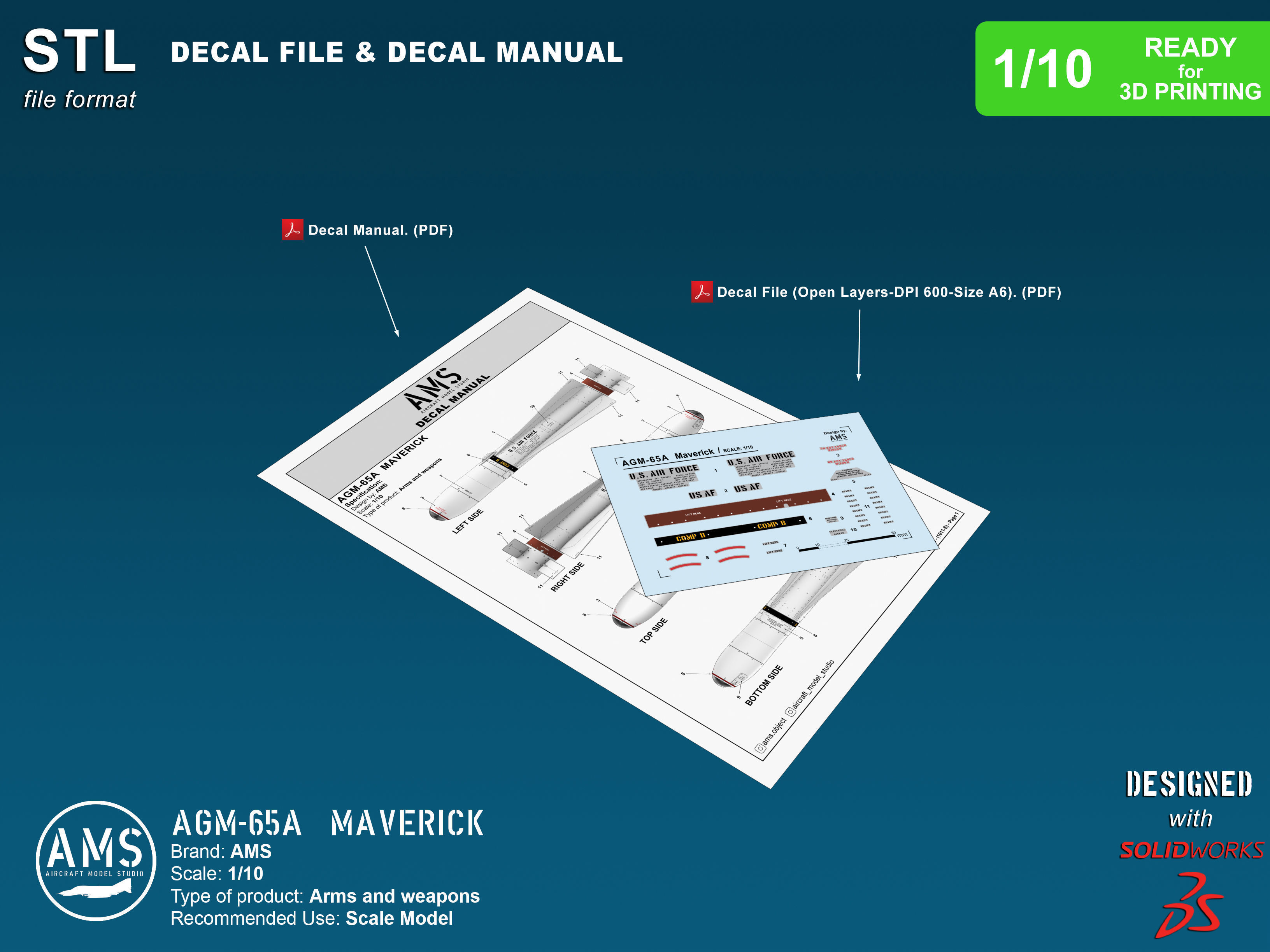

• Decal File (Open Layers-DPI 600-Size A6). (PDF)
• Decal Manual. (PDF)

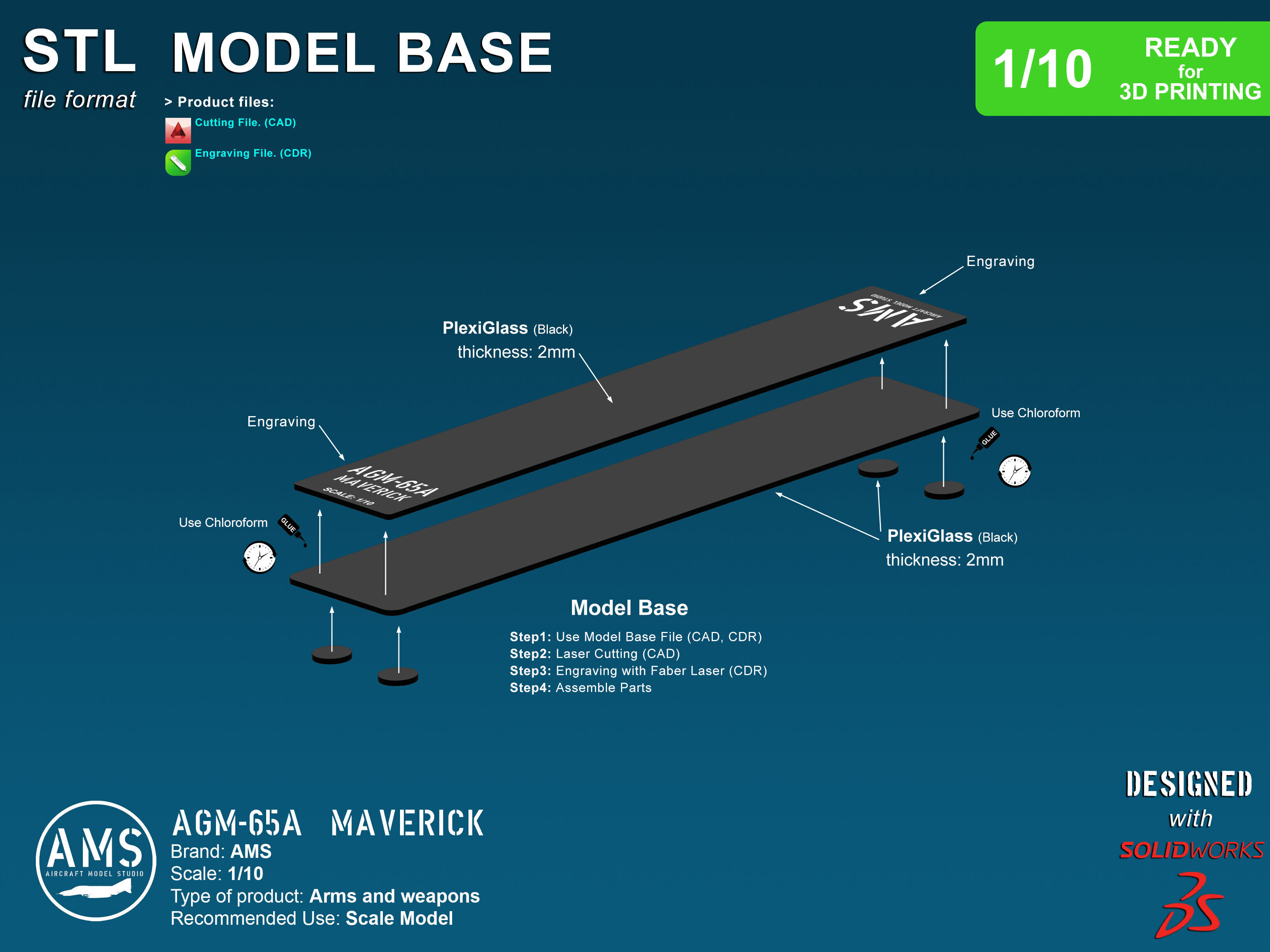

• Cutting File. (CAD)
• Engraving File. (CDR)

Description:

The AGM-65 Maverick is an air-to-ground missile (AGM) designed for close air support. It is the most widely produced precision-guided missile in the Western world, and is effective against a wide range of tactical targets, including armor, air defenses, ships, ground transportation and fuel storage facilities.

Development began in 1966 at Hughes Aircraft Company as the first missile to use an electronic contrast seeker. It entered service with the United States Air Force in August 1972. Since then, it has been exported to more than 30 countries and is certified on 25 aircraft.The Maverick served during the Vietnam, Yom Kippur, Iran–Iraq, and Persian Gulf Wars, along with other smaller conflicts, destroying enemy forces and installations with varying degrees of success.

Since its introduction into service, numerous Maverick versions had been designed and produced using electro - optical, laser, and imaging infrared guidance systems.The AGM-65 has two types of warhead: one has a contact fuze in the nose, the other has a heavyweight warhead fitted with a delayed-action fuze, whichpenetrates the target with its kinetic energy before detonating. The missile is currently produced by Raytheon Missiles & Defense.

The Maverick shares the same configuration as Hughes' AIM-4 Falcon and AIM-54 Phoenix, and measures more than 2.4 m (8 ft) in length and 30 cm (12 in) in diameter.

Instagram:

https://www.instagram.com/aircraft_model_studio

https://www.instagram.com/ams.object

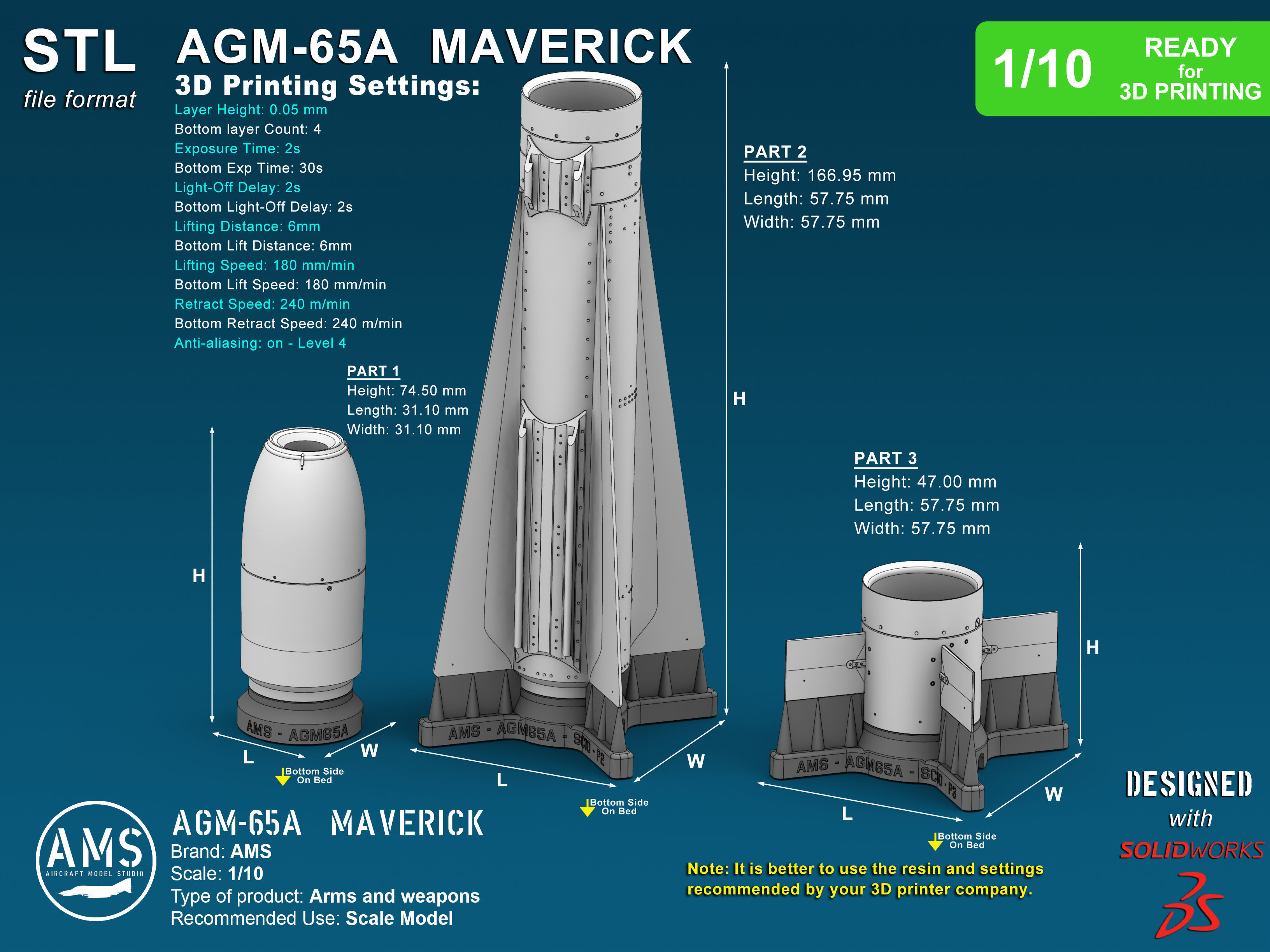

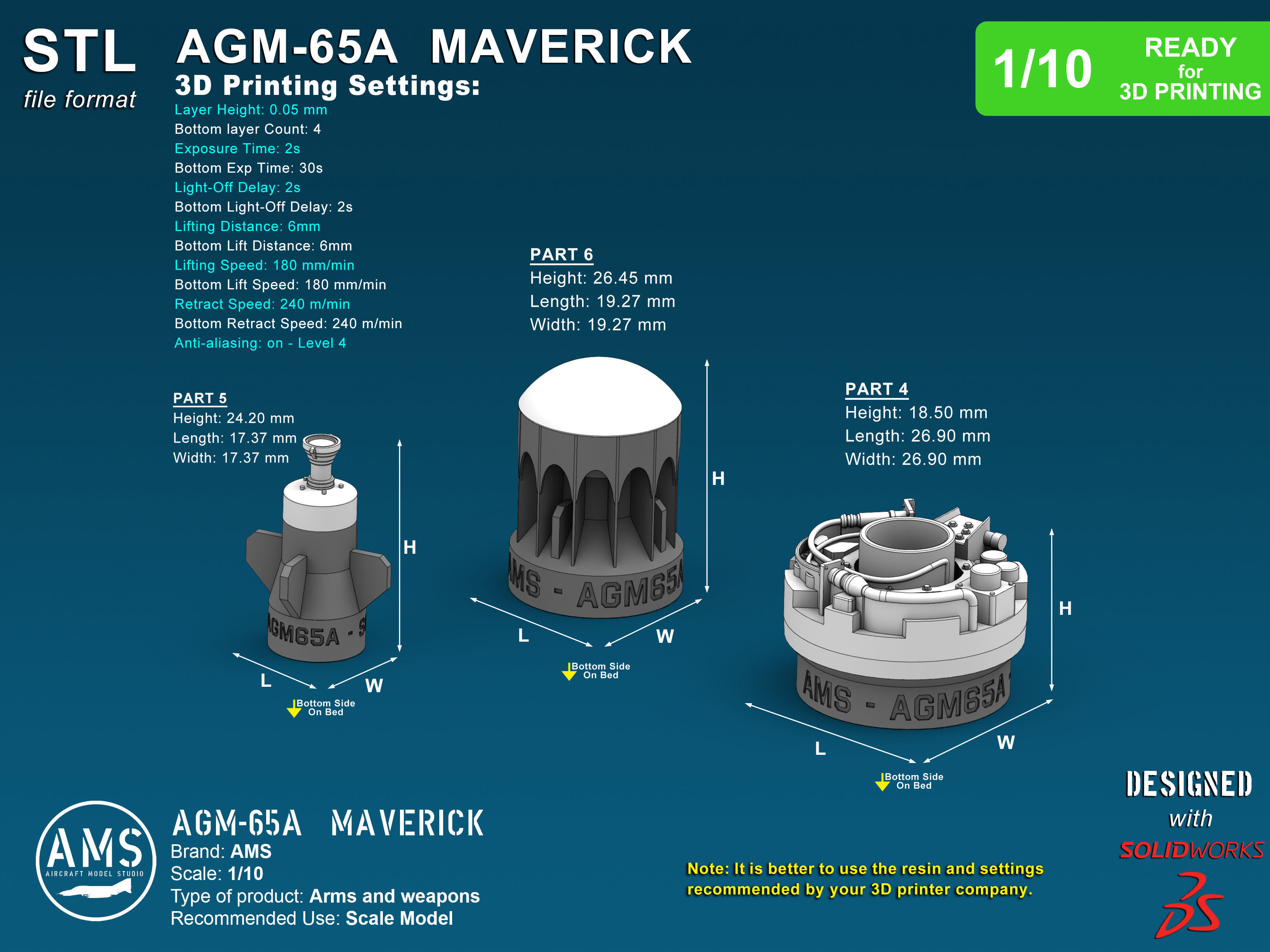

3D printing settings:

Types of 3D Printing Technology: LCD

• Layer Height: 0.05 mm
• Bottom layer Count: 4
• Exposure Time: 2s
• Bottom Exp Time: 30s
• Light-Off Delay: 2s
• Bottom Light-Off Delay: 2s
• Lifting Distance: 6mm
• Bottom Lift Distance: 6mm
• Lifting Speed: 180 mm/min
• Bottom Lift Speed: 180 mm/min
• Retract Speed: 240 m/min
• Bottom Retract Speed: 240 m/min
• Anti-aliasing: on - Level 4

Note:It is better to use the resin and settings recommended by your 3D printer company.
