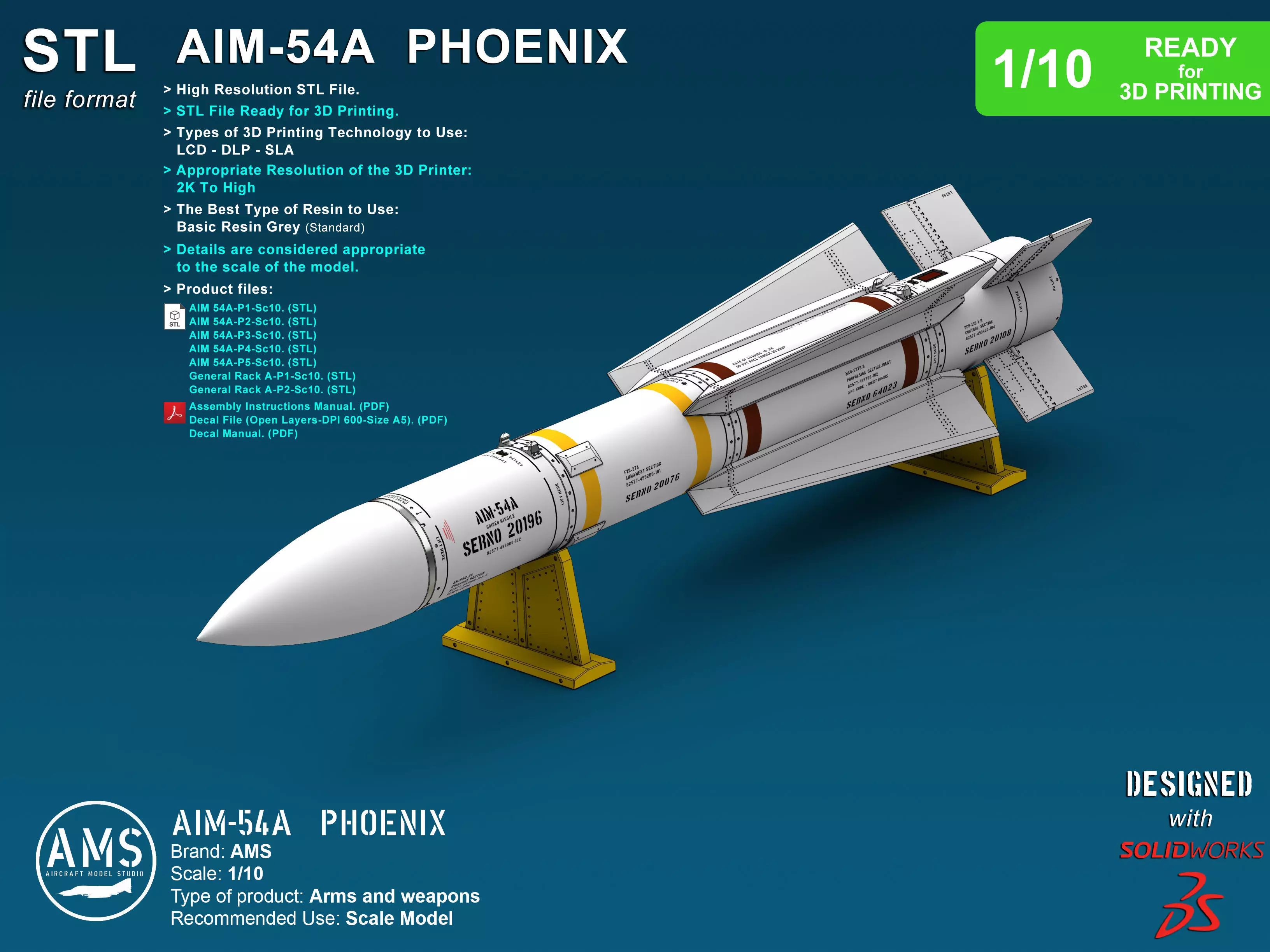

AIM-54A Phoenix - Scale 1-10 3D print model

Specification:

• Brand: AMS
• Scale: 1/10
• Type of product: Arms and weapons
• Recommended Use: Scale Model

Missile Model Dimension :

• Length: 400mm
• Diameter: 38mm
• Wingspan: 92mm
• Width: 65mm

Rack Model Dimension :

• Length: 60mm
• Width: 20mm
• Height: 42.7mm

Note:

• High Resolution STL File.
• STL File Ready for 3D Printing.
• Types of 3D Printing Technology to Use: LCD - DLP - SLA
• Appropriate Resolution of the 3D Printer: 2K To High
• The Best Type of Resin to Use: Basic Resin Grey (Standard)
• Details are considered appropriate to the scale of the model.

Product files:

• AIM 54A-P1-Sc10. (STL)
• AIM 54A-P2-Sc10. (STL)
• AIM 54A-P3-Sc10. (STL)
• AIM 54A-P4-Sc10. (STL)
• AIM 54A-P5-Sc10. (STL)
• General Rack A-P1-Sc10. (STL)
• General Rack A-P2-Sc10. (STL)
• Assembly Instructions Manual. (PDF)
• Decal File (Open Layers-DPI 600-Size A5). (PDF)
• Decal Manual. (PDF)
• Cutting File. (CAD)
• Engraving File. (CDR)

Description:The AIM-54 Phoenix is an American radar-guided, long-range air-to-air missile (AAM), carried in clusters of up to six missiles on the Grumman F-14 Tomcat,its only operational launch platform.

The Phoenix was the United States' only long-range air-to-air missile. The combination of Phoenix missile and the Tomcat's AN/AWG-9 guidance radar meantthat it was the first aerial weapons system that could simultaneously engage multiple targets. Due to its active radar tracking, the brevity code Fox Threewas used when firing the AIM-54.The act of the missile achieving a radar lock with its own radar is known under brevity as 'Going Pitbull'.

Both the missile and the aircraft were used by Iran and the United States Navy. In US service both are now retired, the AIM-54 Phoenix in 2004 and the F-14 in 2006.

They were replaced by the shorter-range AIM-120 AMRAAM, employed on the F/A-18 Hornet and F/A-18E/F Super Hornet—in its AIM-120D version,thelatest version of the AMRAAM just matches the Phoenix's maximum range.

The AIM-54 has been used in 62 air-to-air strikes, all by Iran during the eight-year Iran–Iraq War.Following the retirement of the F-14 by the U.S. Navy, theweapon's only current operator is the Islamic Republic of Iran Air Force.

3D printing settings:

Types of 3D Printing Technology: LCD

• Layer Height: 0.05 mm
• Bottom layer Count: 4
• Exposure Time: 2s
• Bottom Exp Time: 30s
• Light-Off Delay: 2s
• Bottom Light-Off Delay: 2s
• Lifting Distance: 6mm
• Bottom Lift Distance: 6mm
• Lifting Speed: 180 mm/min
• Bottom Lift Speed: 180 mm/min
• Retract Speed: 240 m/min
• Bottom Retract Speed: 240 m/min
• Anti-aliasing: on - Level 4

Note:It is better to use the resin and settings recommended by your 3D printer company.
