Mini Button Box and RGB Flag Display for Sim Racing 3D print model

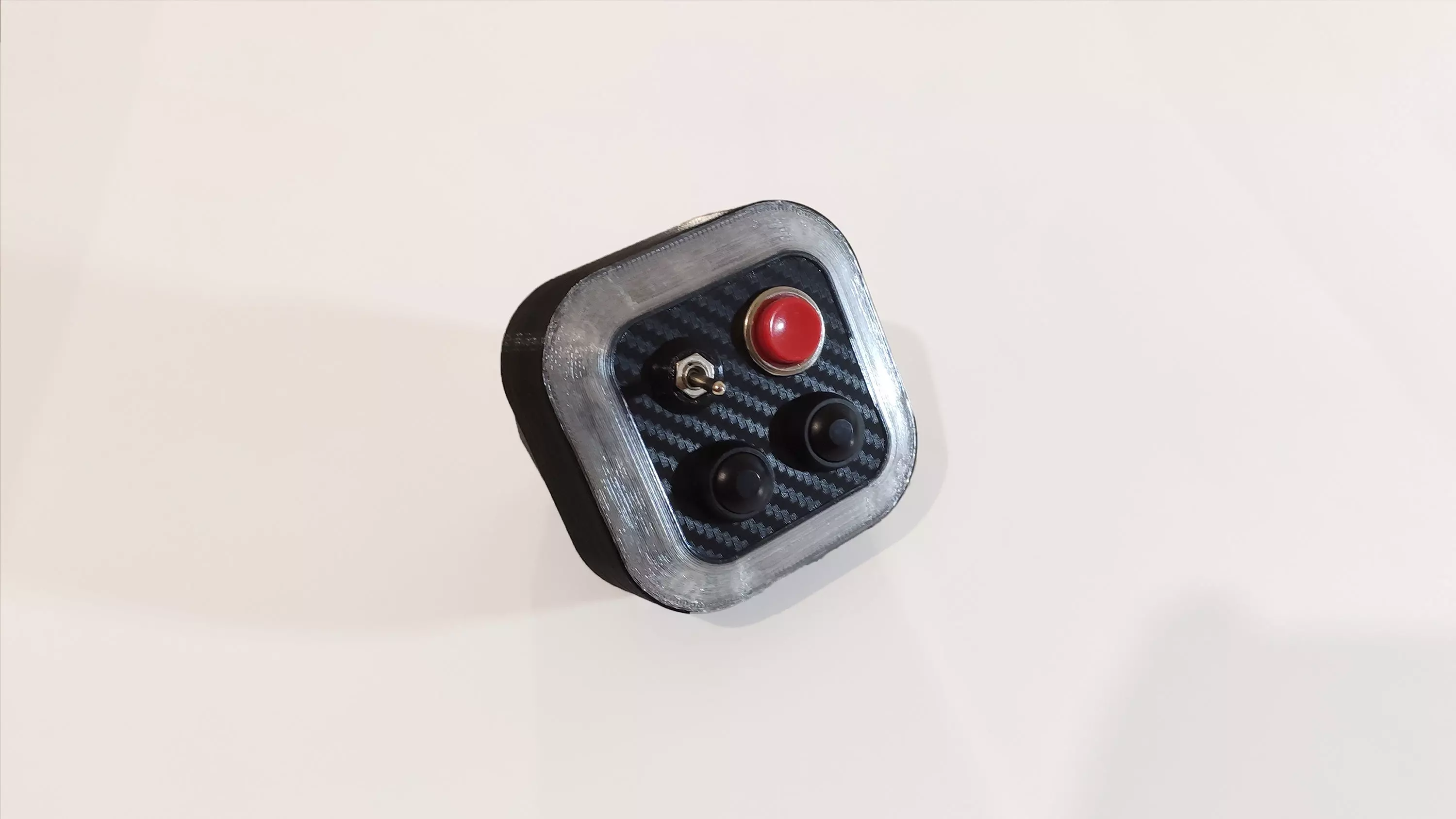

A compact and functional sim racing button box featuring:

• 1 Toggle Switch
• 3 Push Buttons
• RGB LED Frame that lights up to in-game events with real-time lighting effects.

The RGB lighting works with the free SimHub software, which supports most sim racing titles as well as other popular simulators like Euro Truck Simulator 2.

Requirements:

In addition to the 3D printed parts, this build requires an Arduino Pro Micro and several common electronic components. A full parts list with recommended components is included in the instruction manual.

Basic soldering is required for this project. You’ll need a soldering iron and some soldering skills to connect wires to the buttons and Arduino board.

What you will receive:

1. STL files for 3D printing
2. Detailed instruction manual including parts list, wiring diagram, and step-by-step assembly and setup guide with photos
3. SimHub arduino profile file for uploading firmware into the device
4. SimHub RGB lighting profile with preconfigured effects
5. STEP file of the model for easy modification in case you may want to use different components and need to edit some dimensions

RGB Lighting Effects

The device can display the information provided by the game;

1. Engine RPM and redline
2. Pit Limiter Active
3. Turn Signals
4. Racing Flags (Green, Yellow, Blue, White, Checkered)
5. Spotter Alerts (Car Left / Car Right)
6. Engine Start

All effects can be edited, disabled, or expanded within the SimHub software to suit your preferences.
