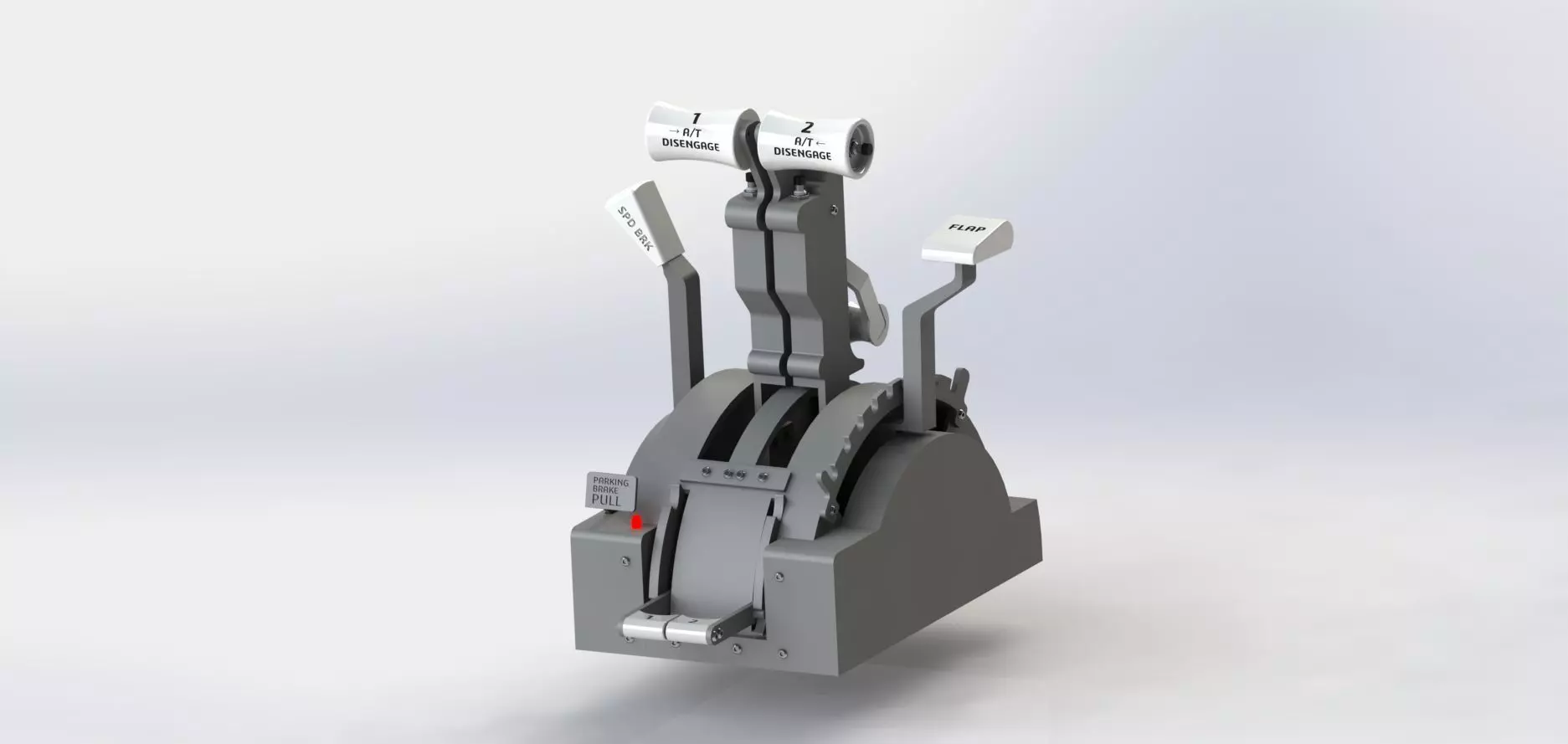

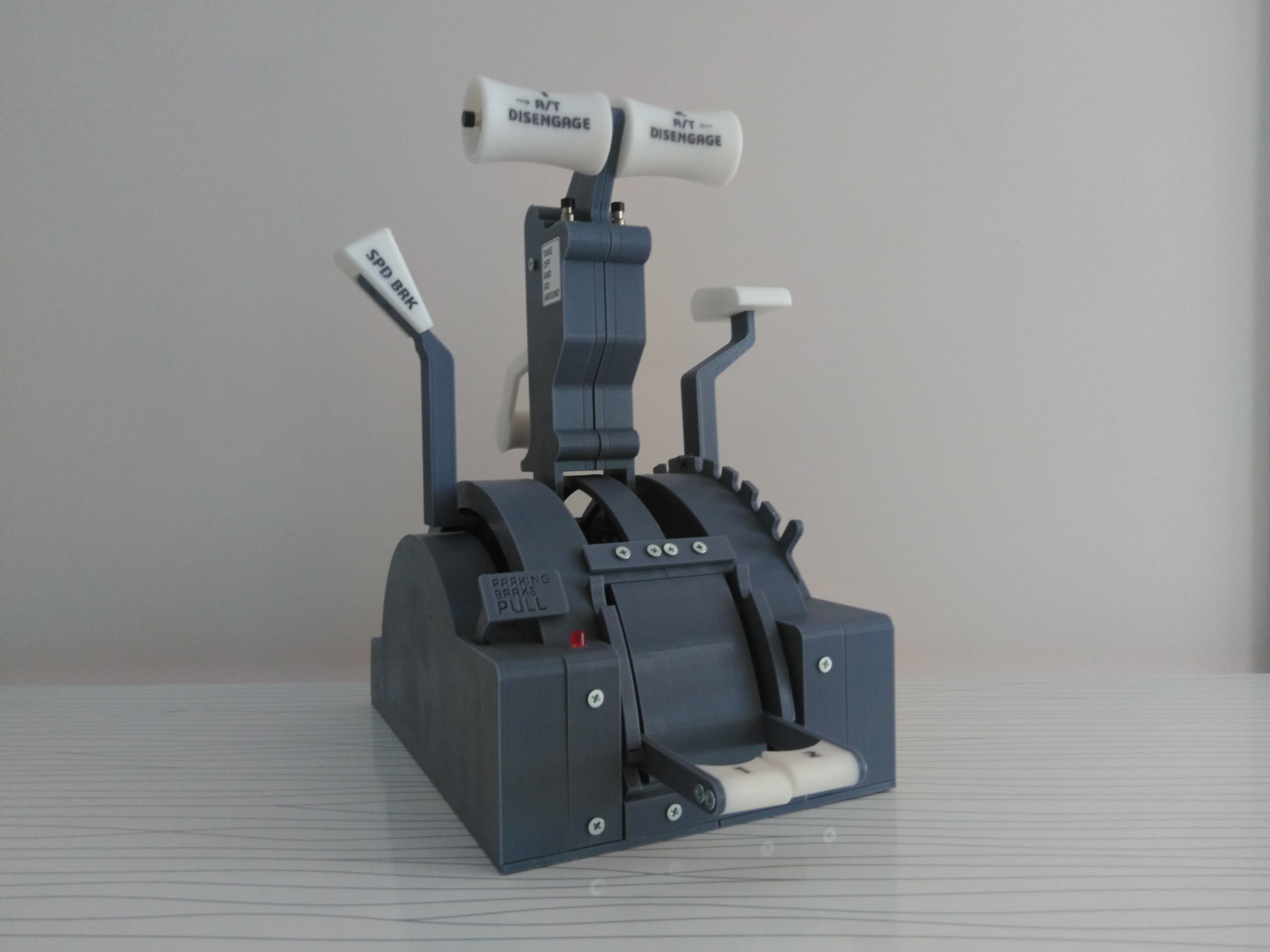

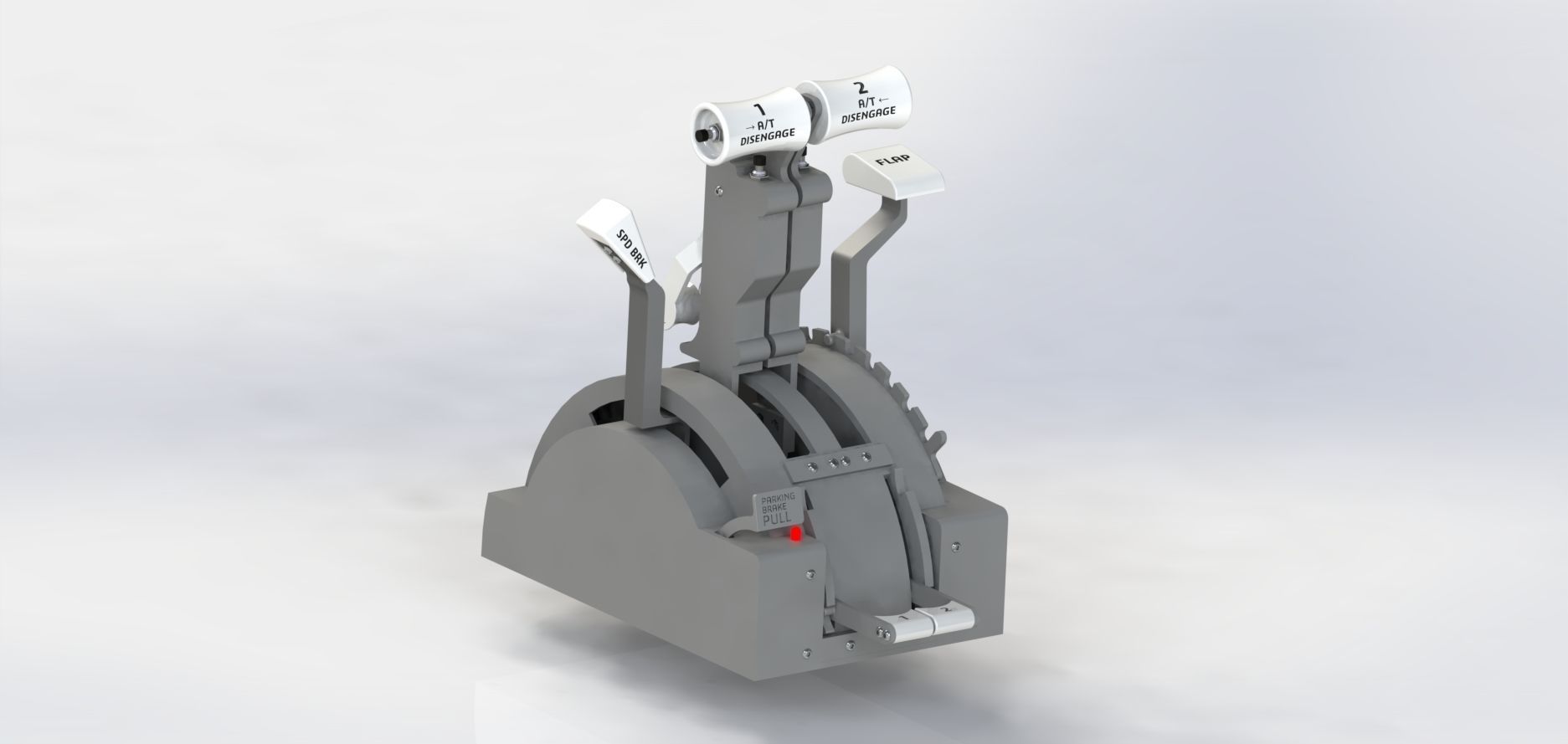

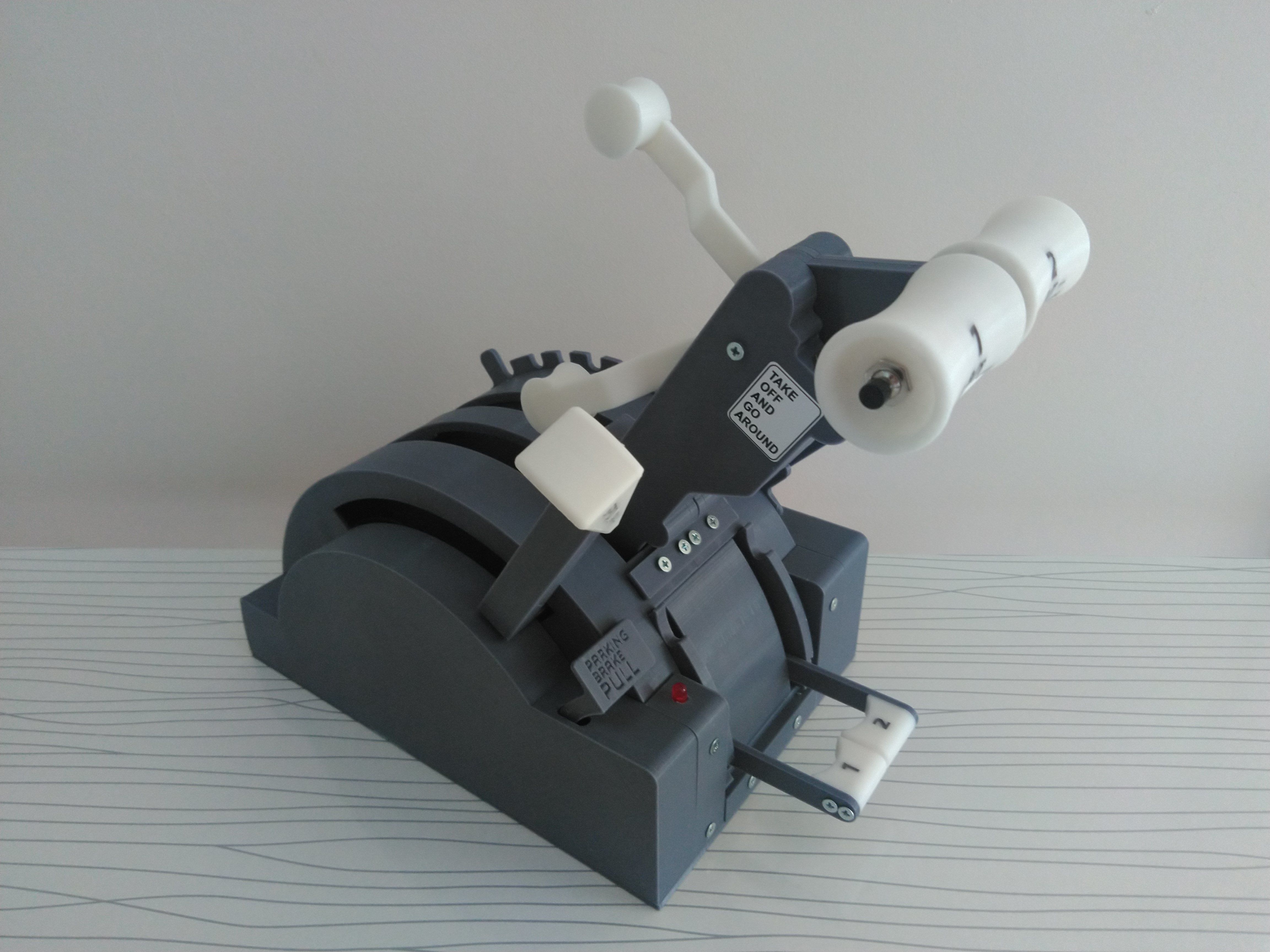

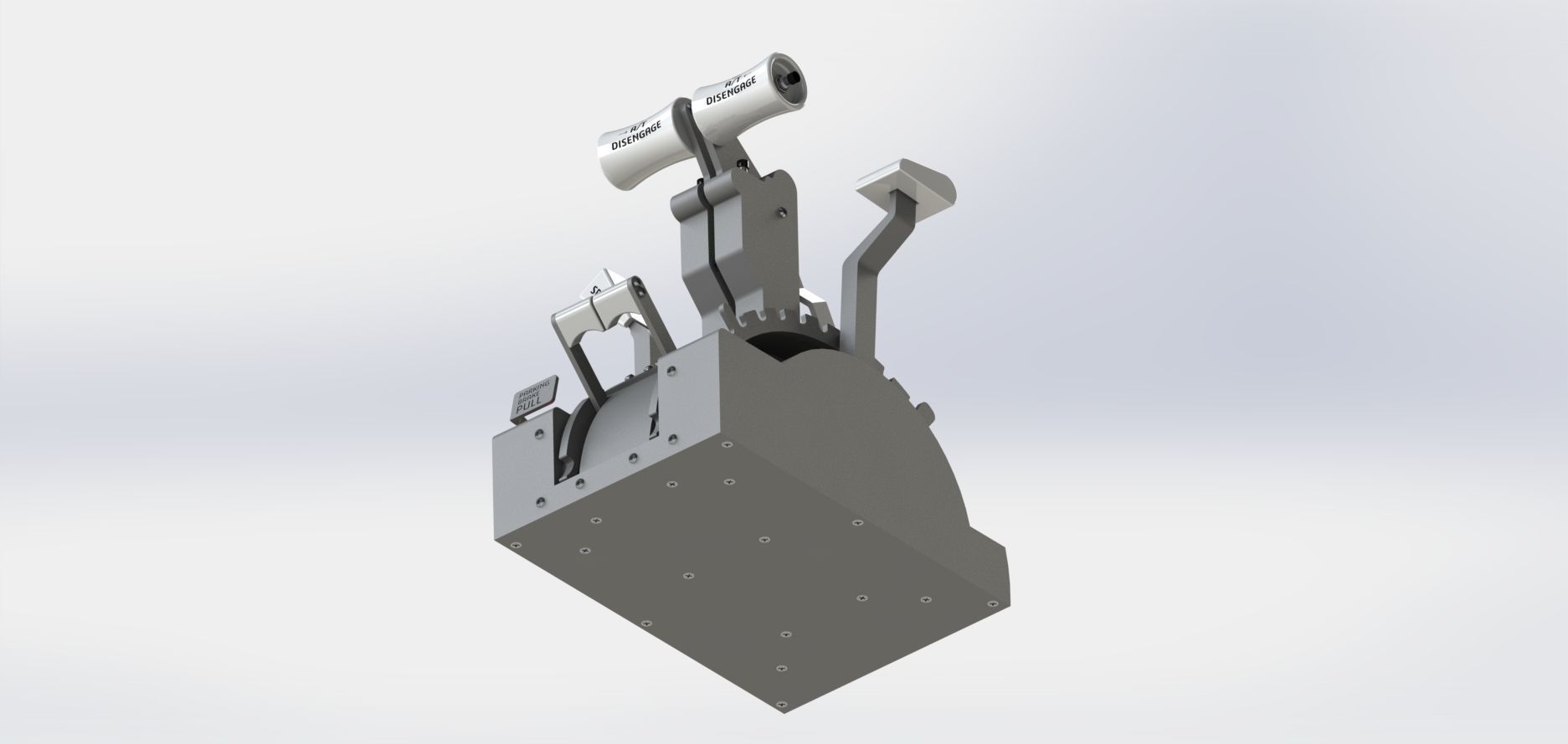

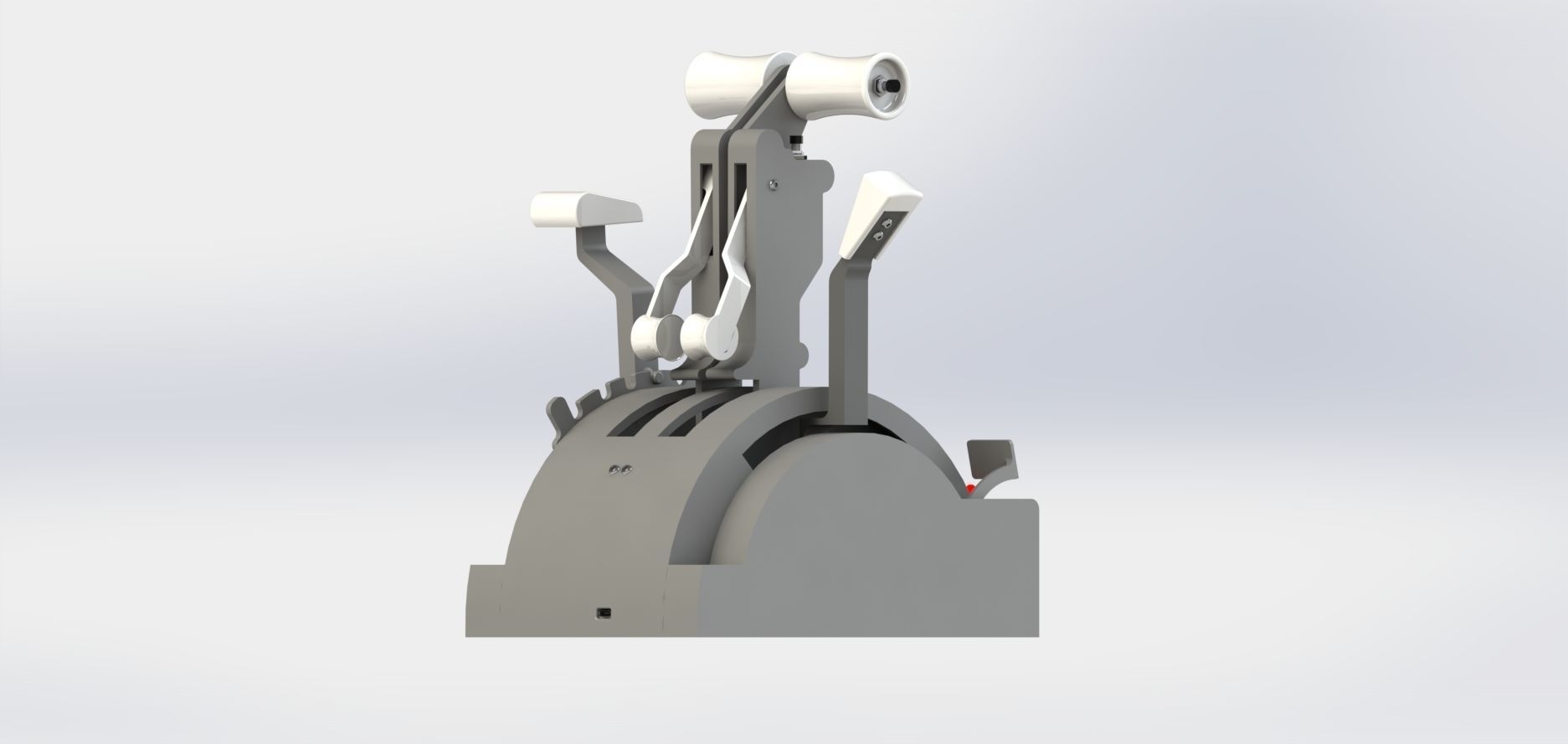

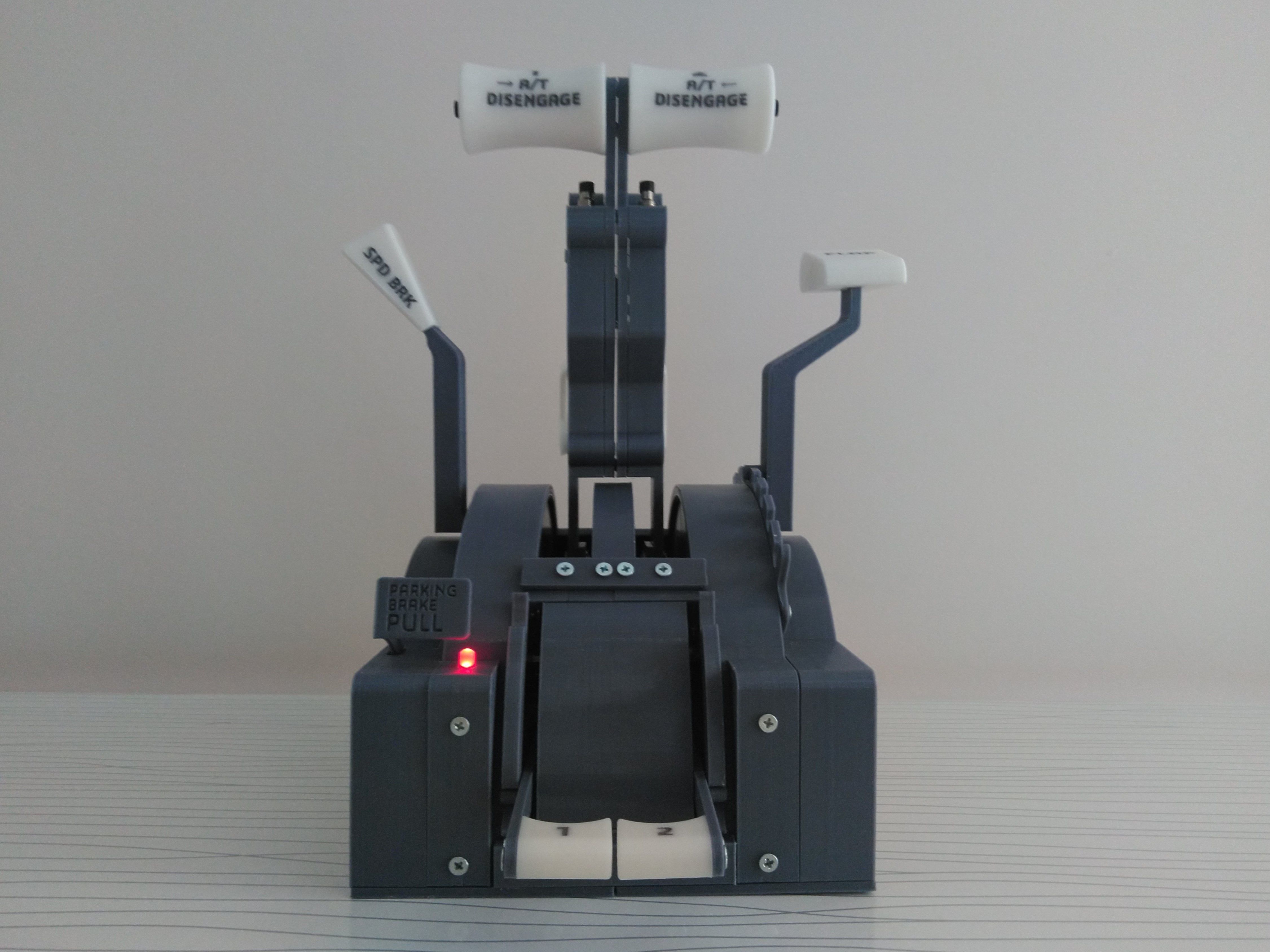

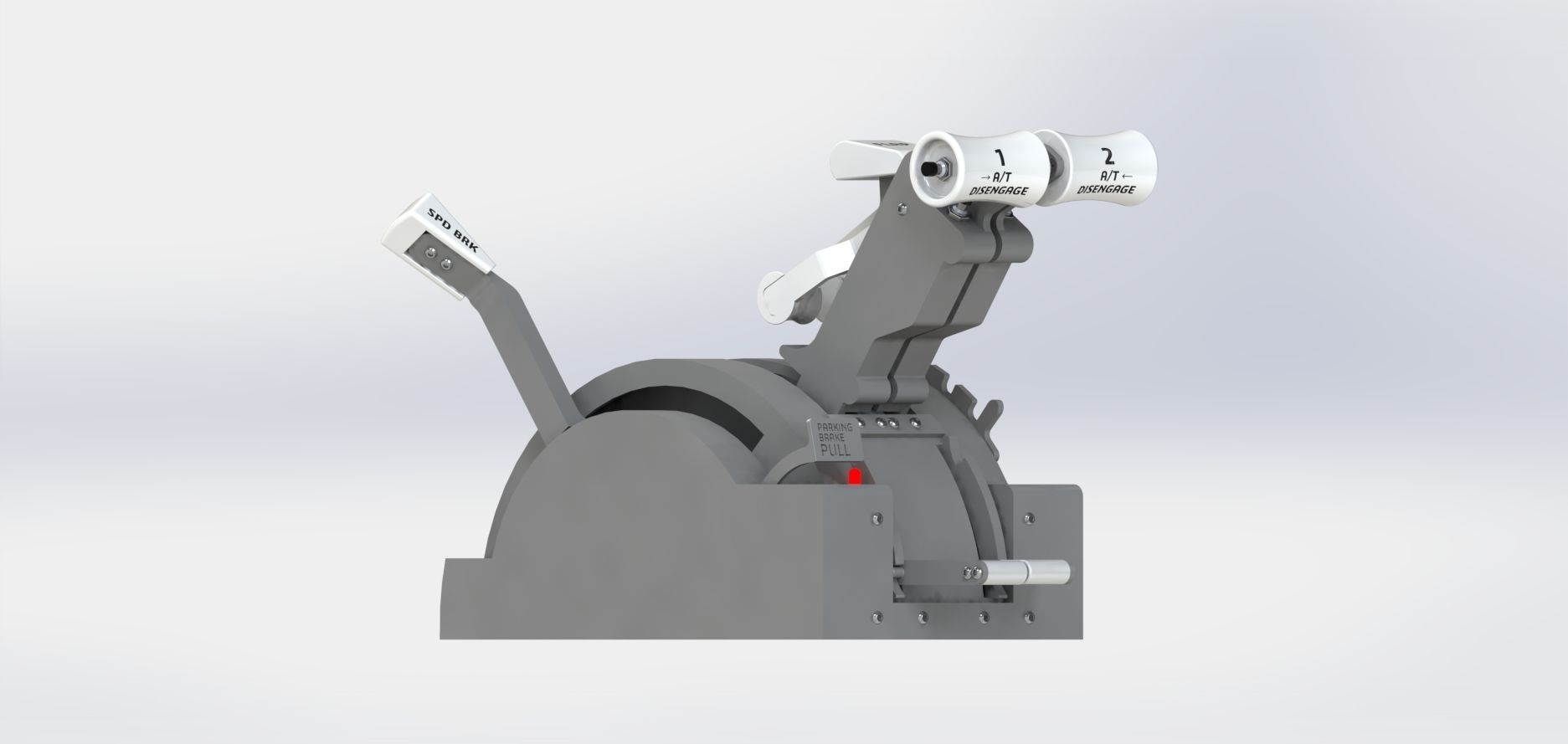

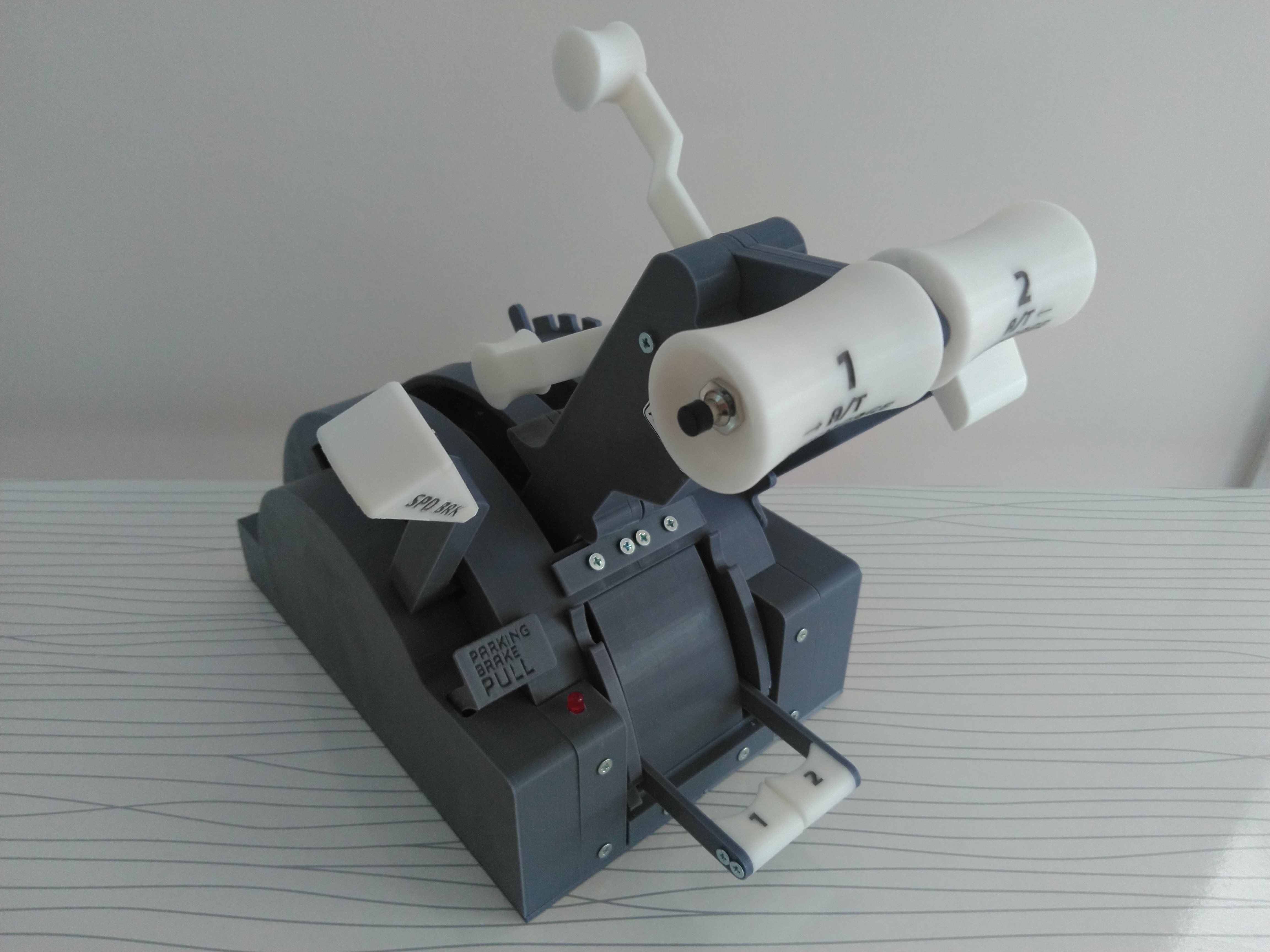

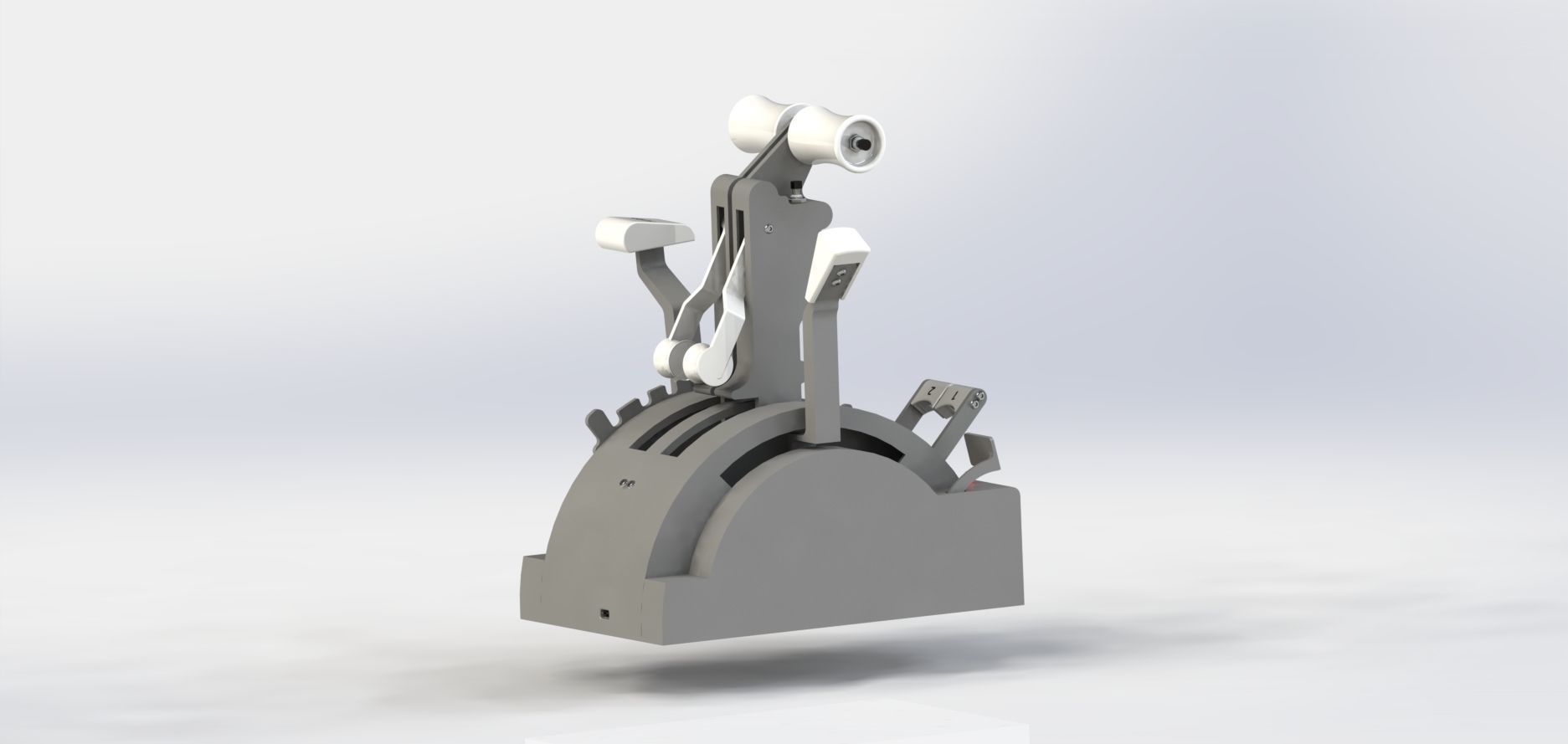

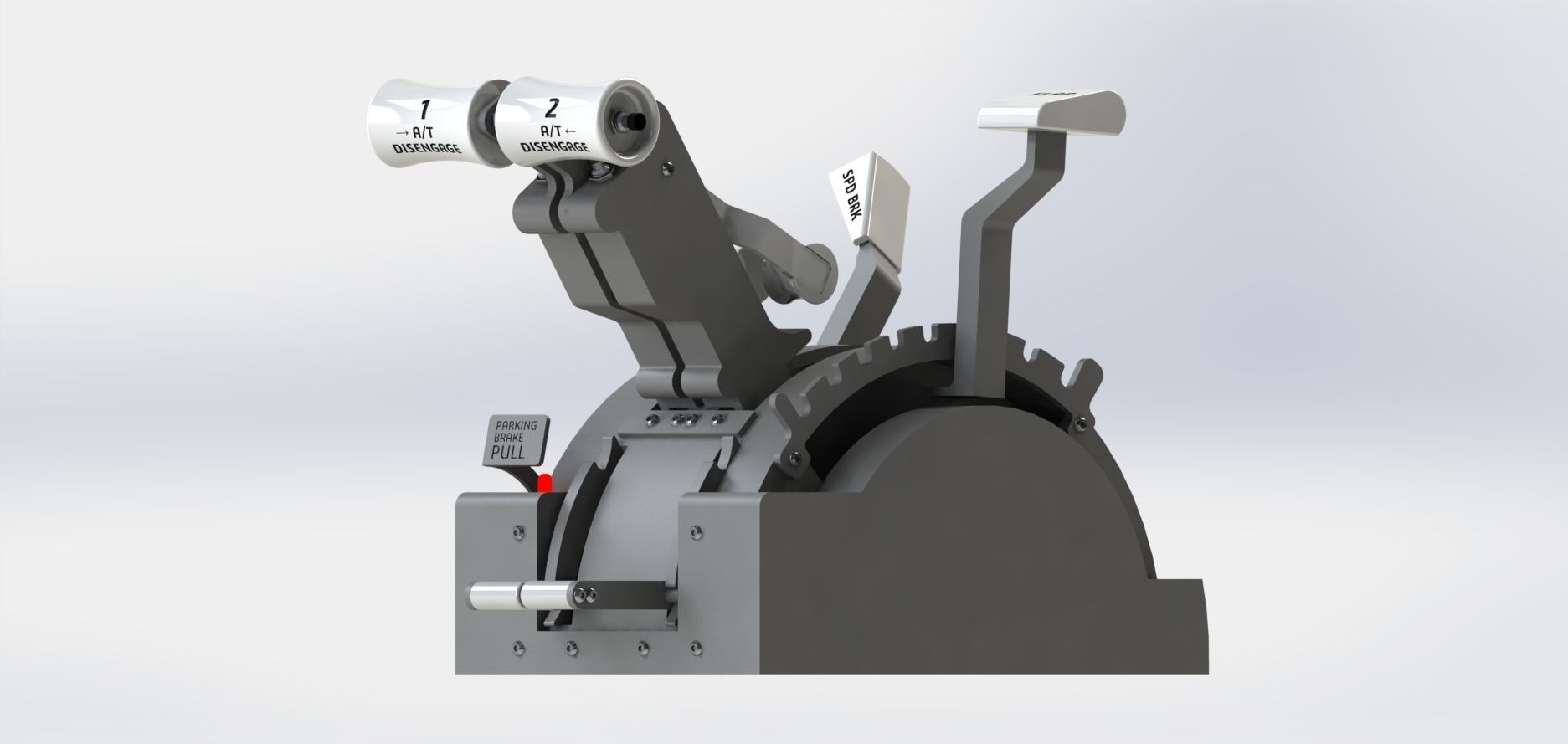

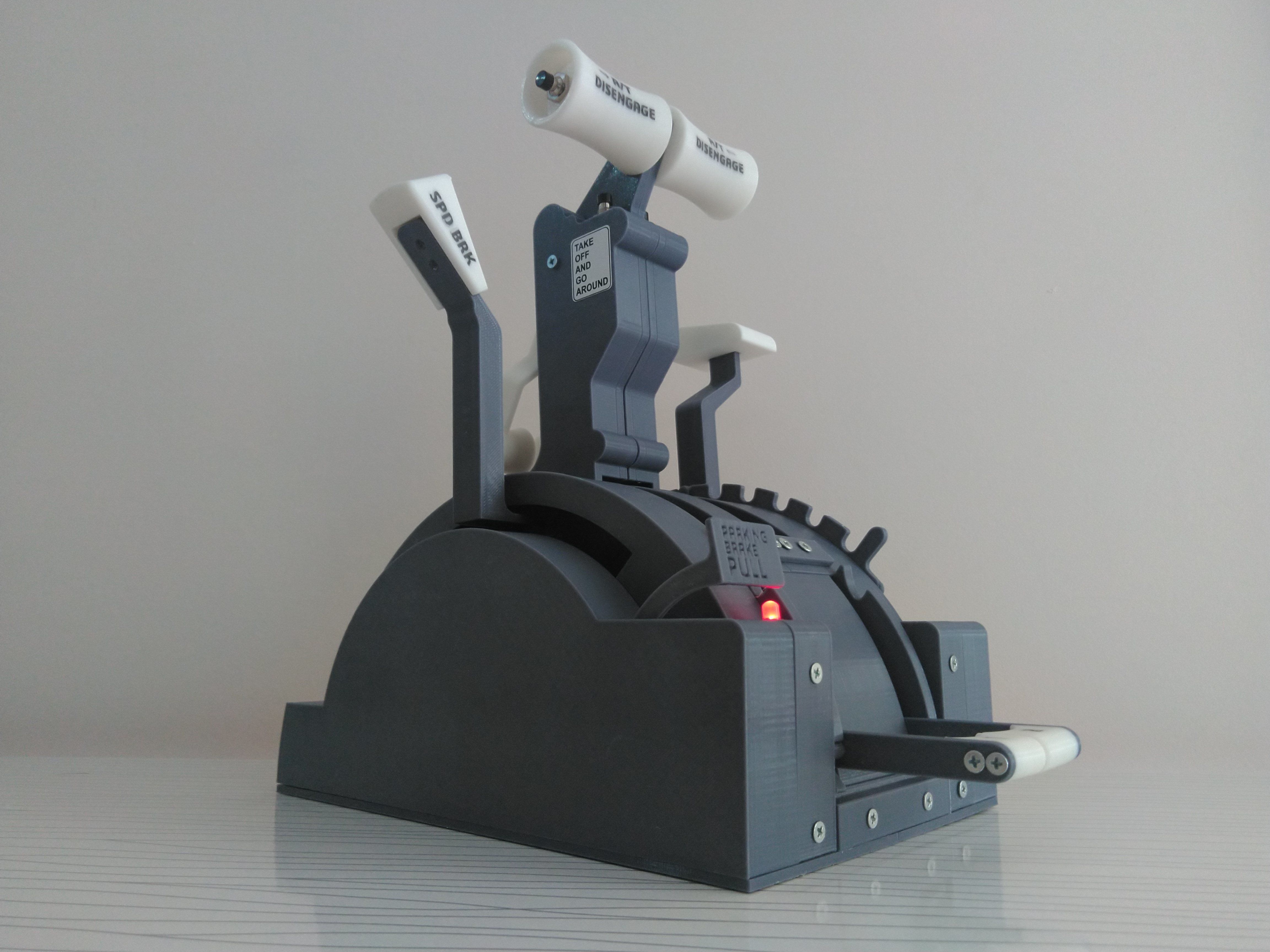

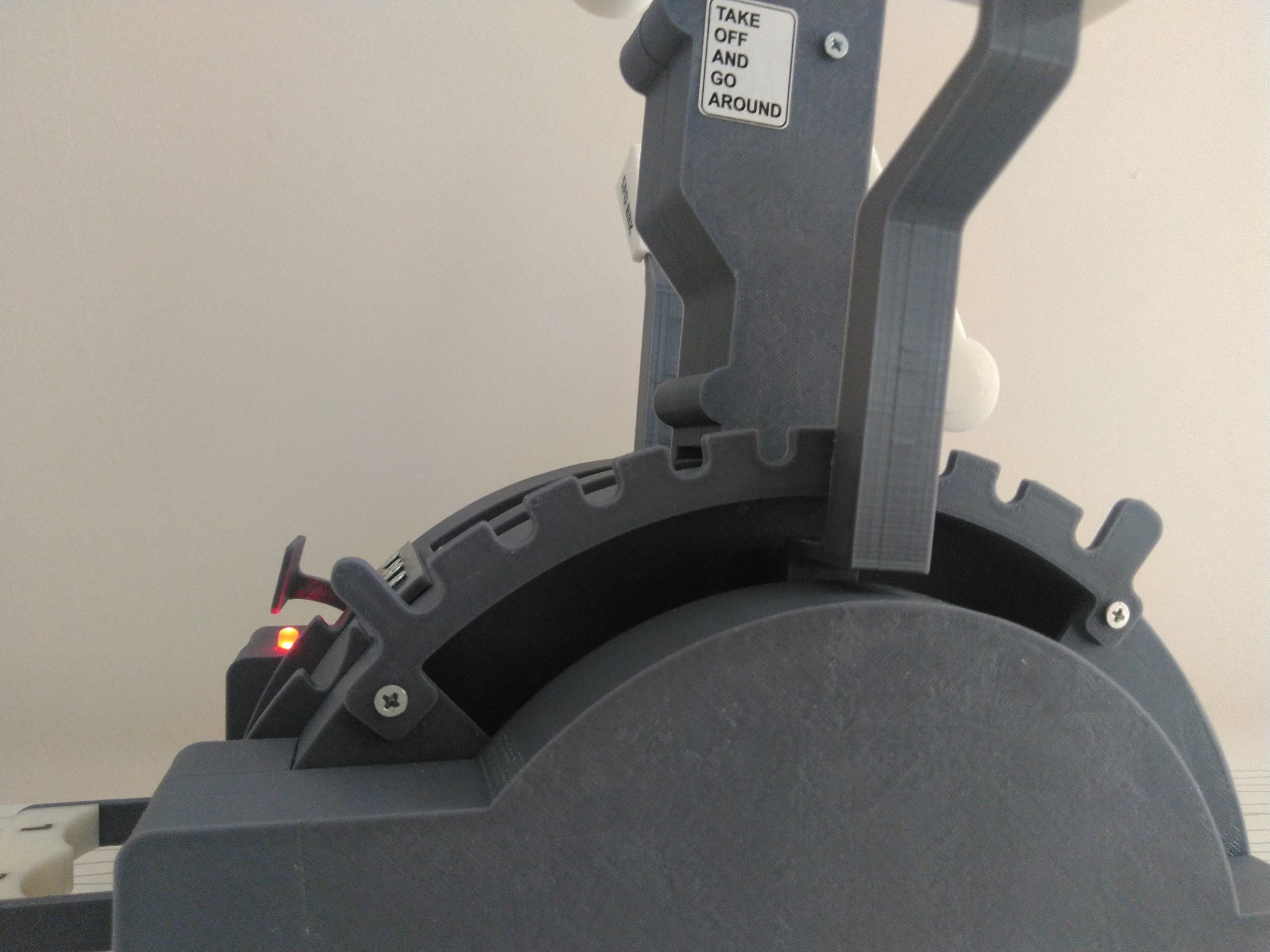

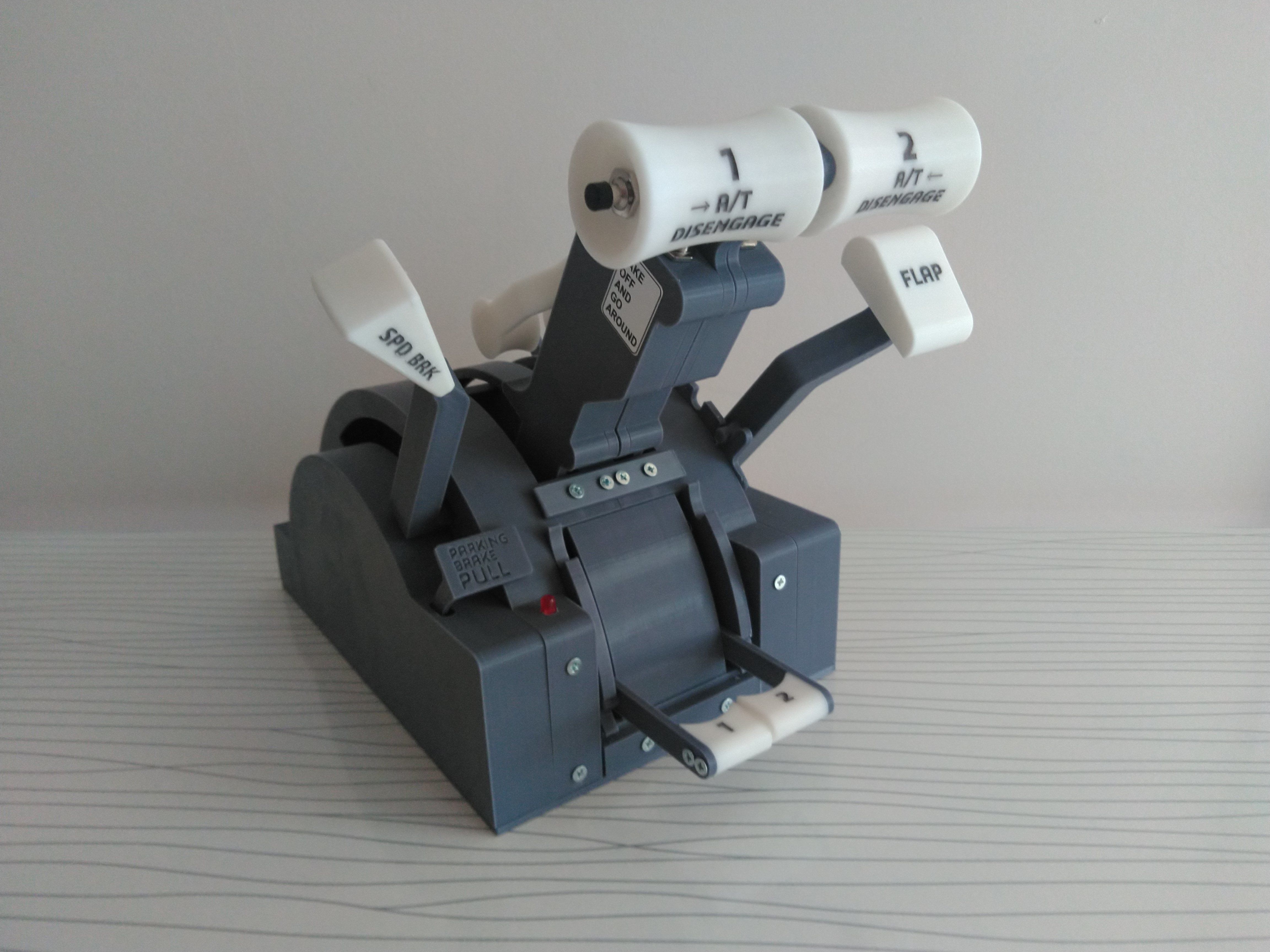

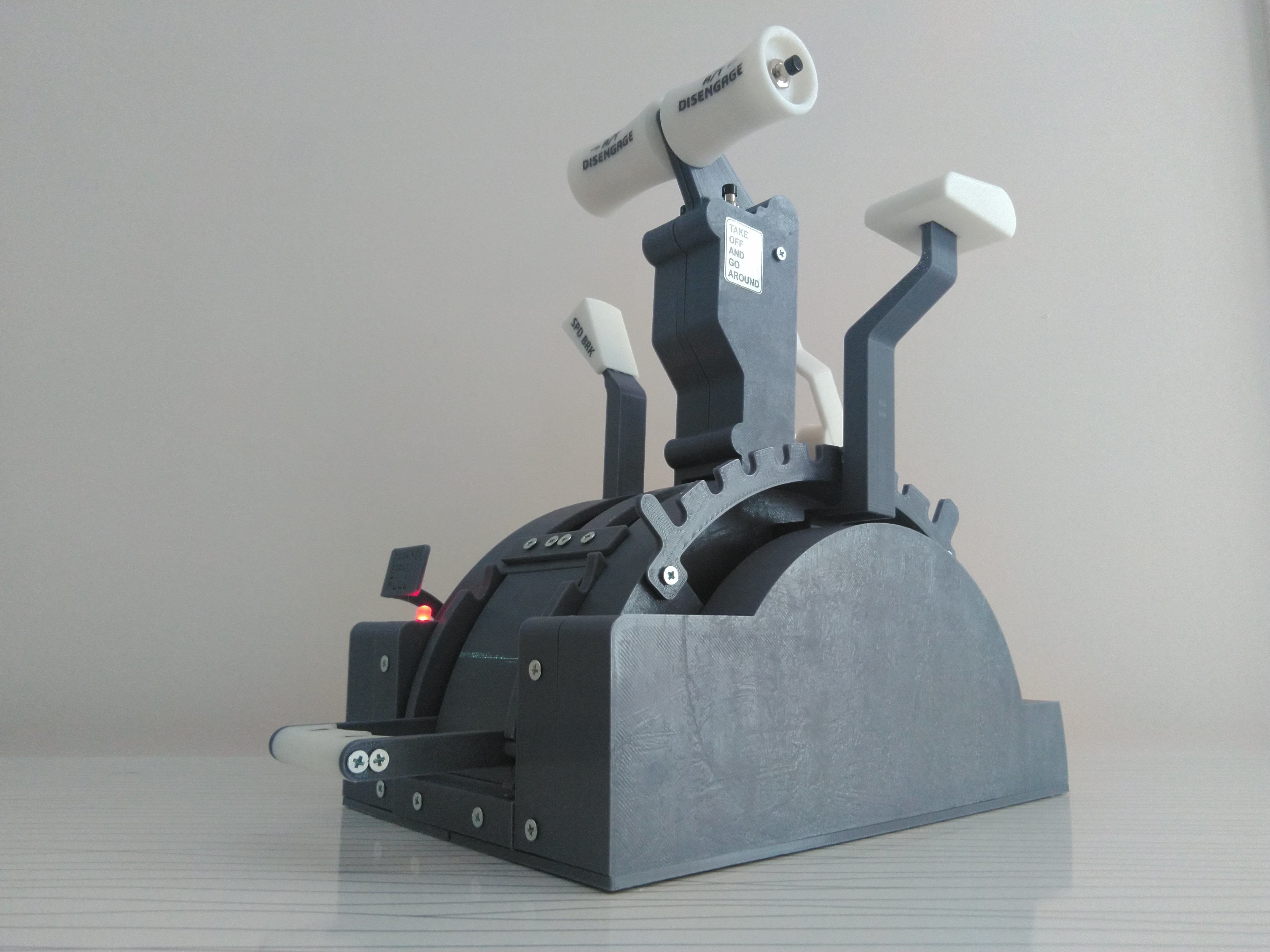

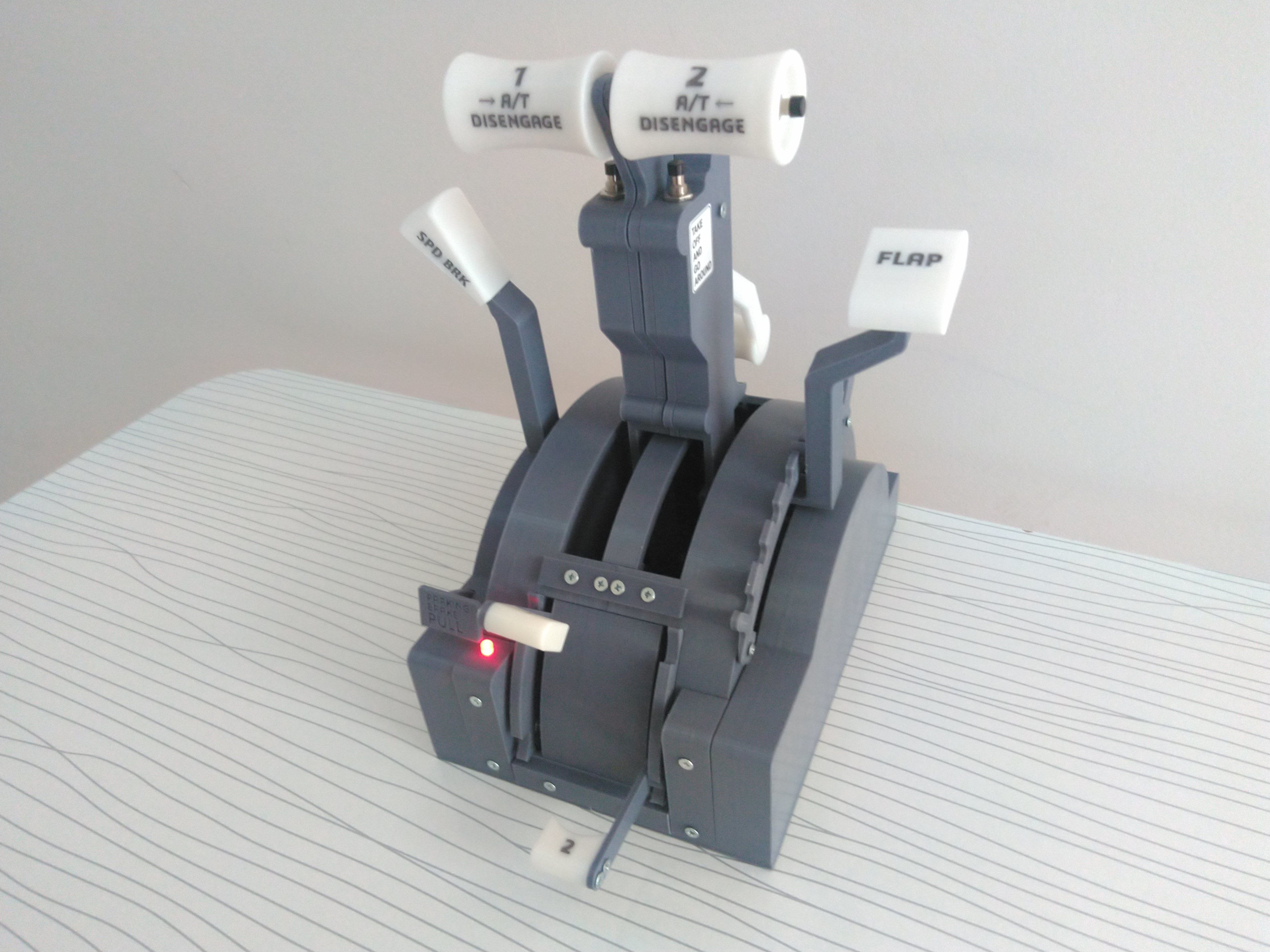

BOEING 737 THROTTLE QUADRANT 3D print model
Description
The product was inspired by Boeing 737 throttle quadrant.
Following circuit boards are suitable to use with this device:
- Joystick USB Interface
- Arduino Pro Micro
- Arduino Leonardo
- Arduino Uno R3(ATmega16u2)/ Unojoy
- Arduino Mega
- and so on...
The materials you need:
- 4x Linear Rotational Potentiometer
- 5x Limit Switch
- 4x Push Button
- A lot of M3 screw and nut
- 1x Red LED
- 1x 330ohm resistor (for LED)
- 3x Rubber band
Video of the product: https://bit.ly/2A01EOc
All buttons on the product are working.
The ducts inside of the device hide the cables and make them invisible.
It is very simple to set up, there are instruction images and videos for each step in the files you download.(FSUIPC installation instructions are also included)

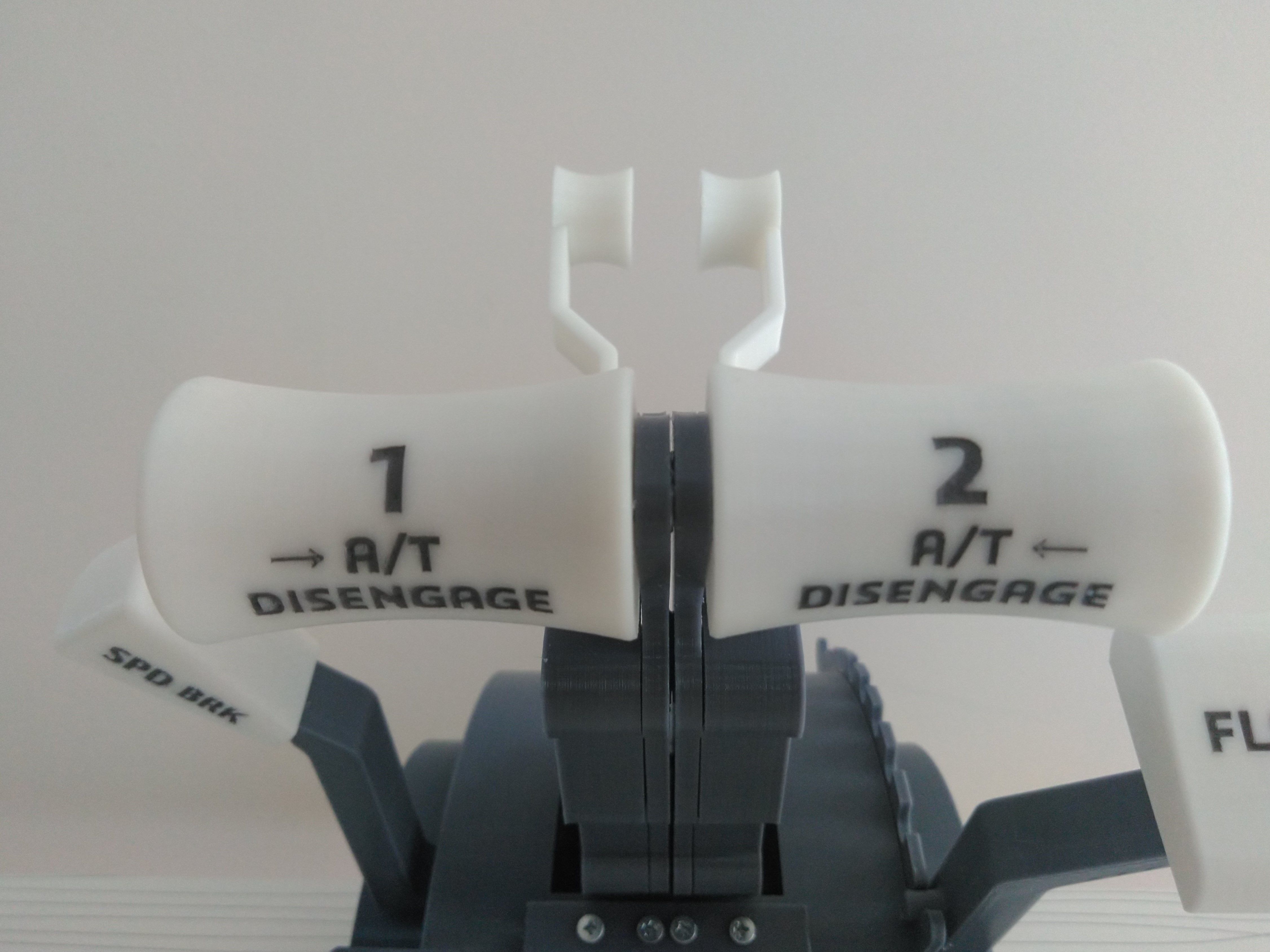

I made a video about how to paint the texts on the product (SPD BRK, A / T disengage, etc.) with special painting technique and added it to the files.
This model is designed to be produced by a 3D printer with a tray of at least 200x200mm. *
