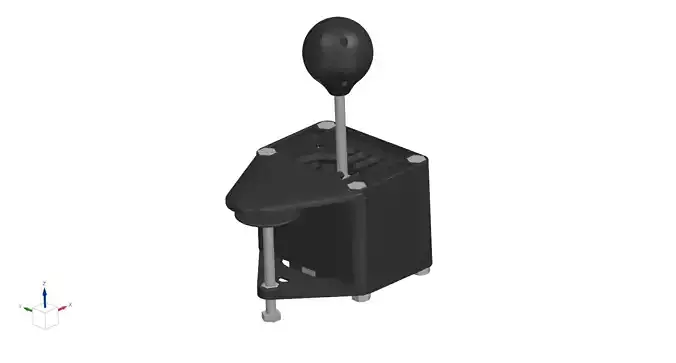

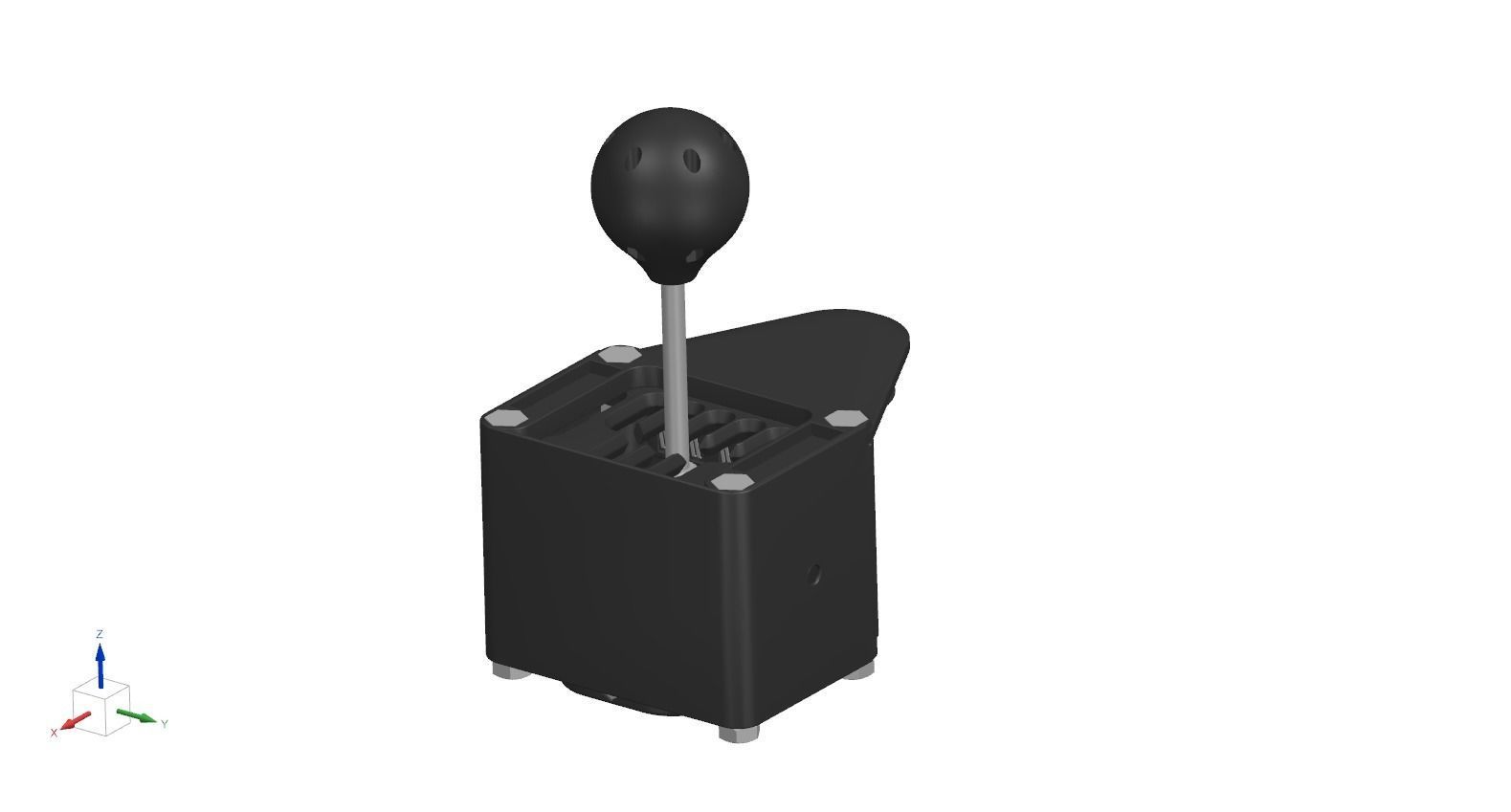

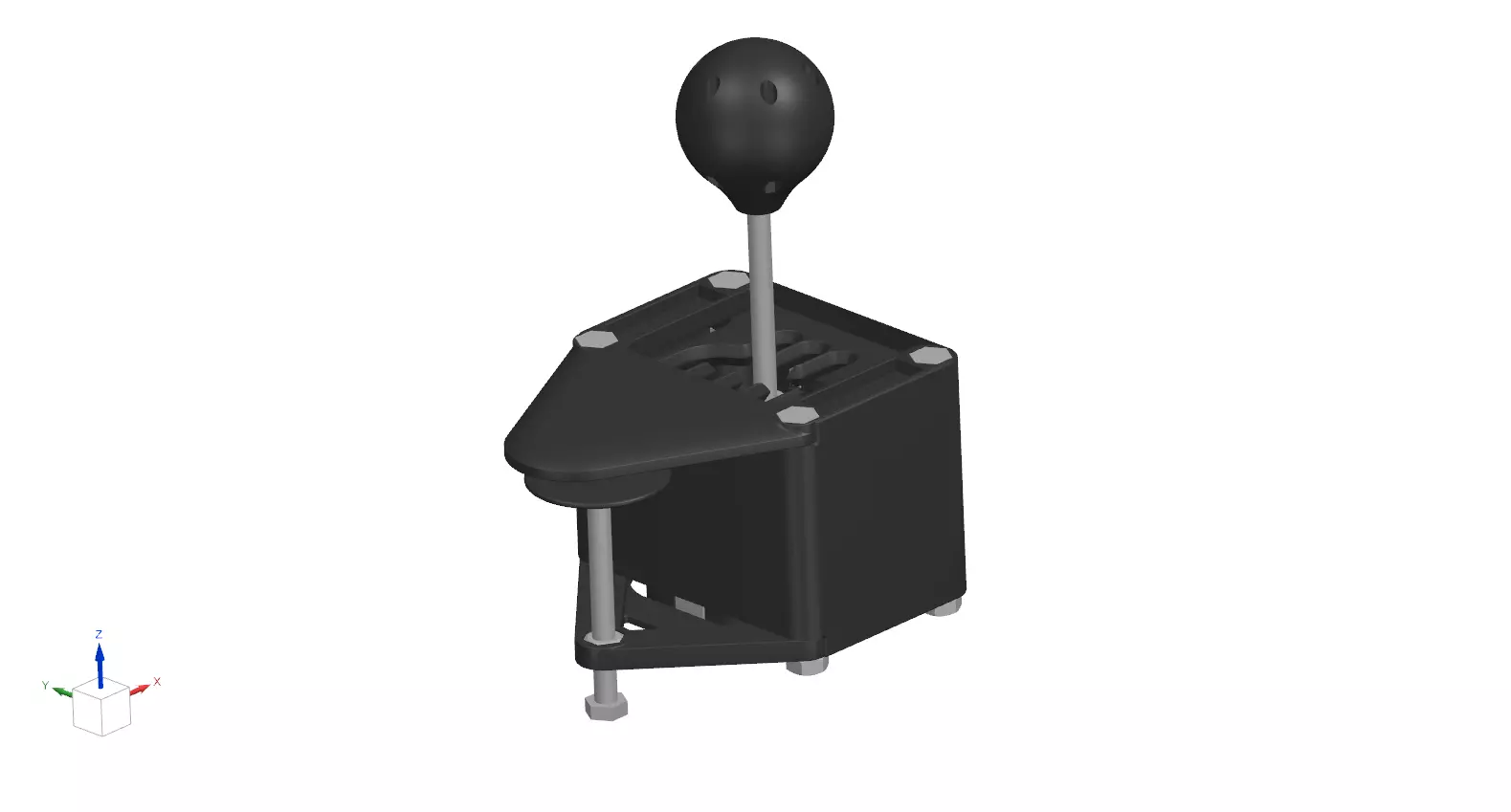

7 Speed Shifter for Sim Racing 3D print model

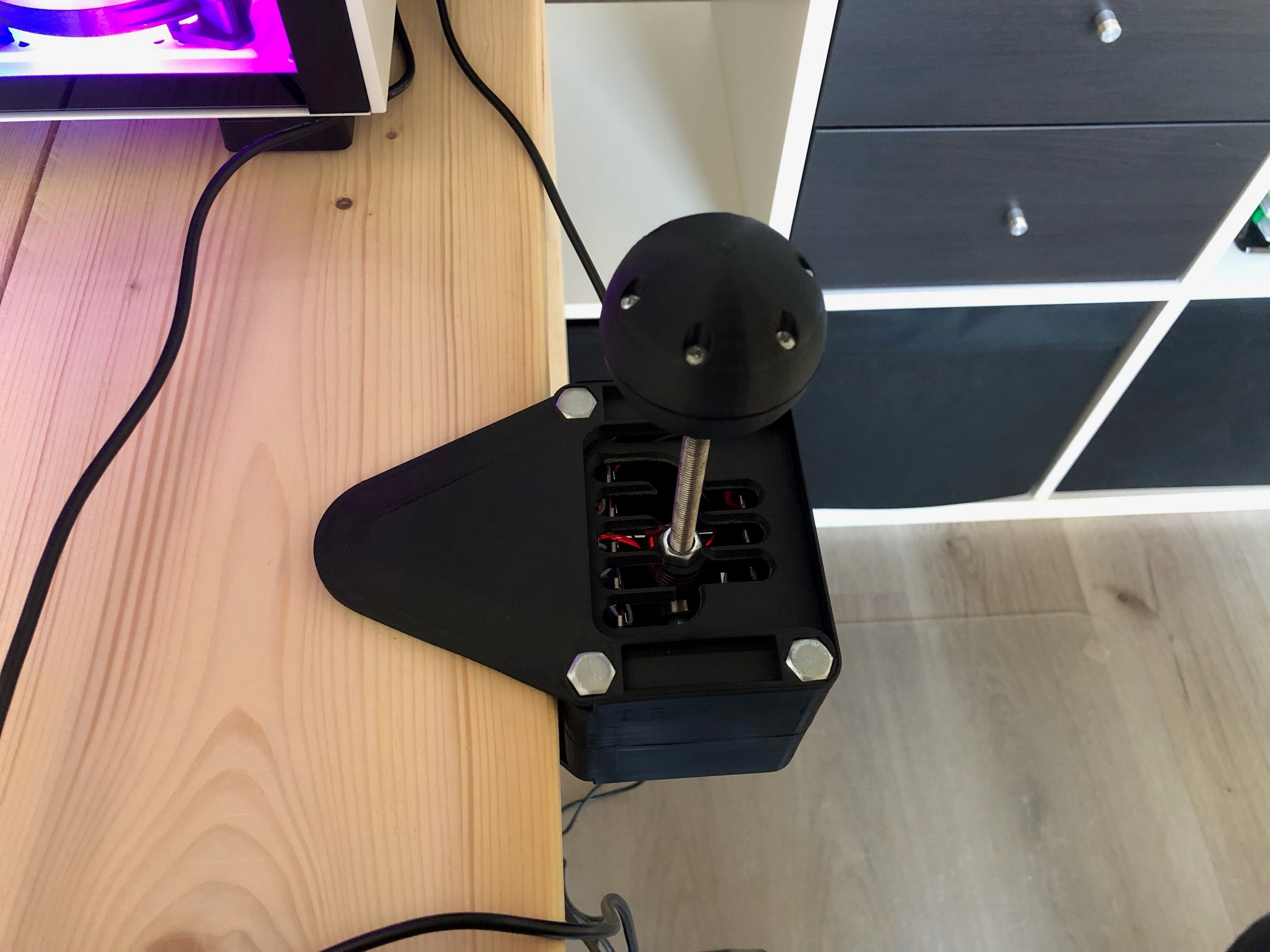

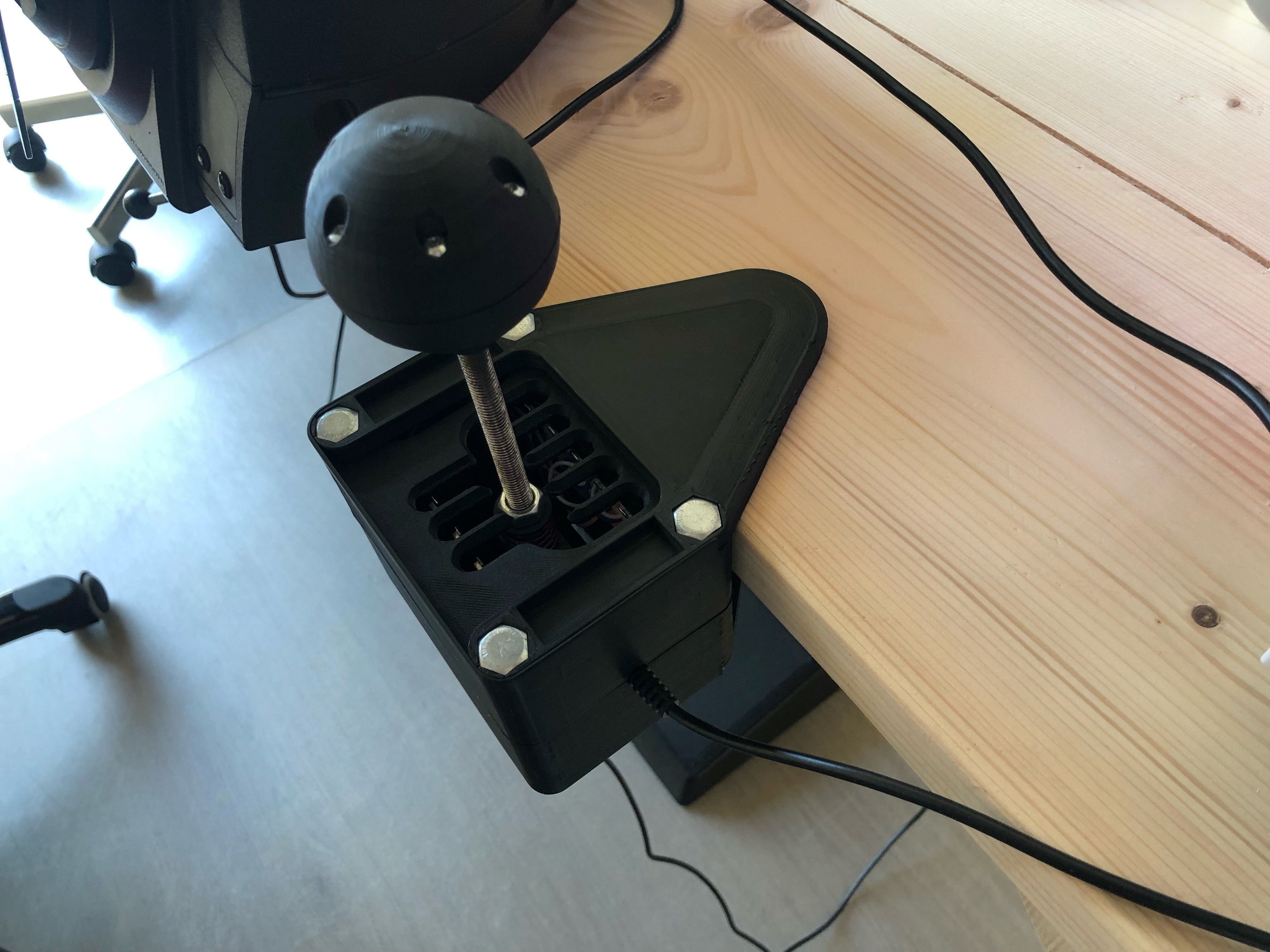

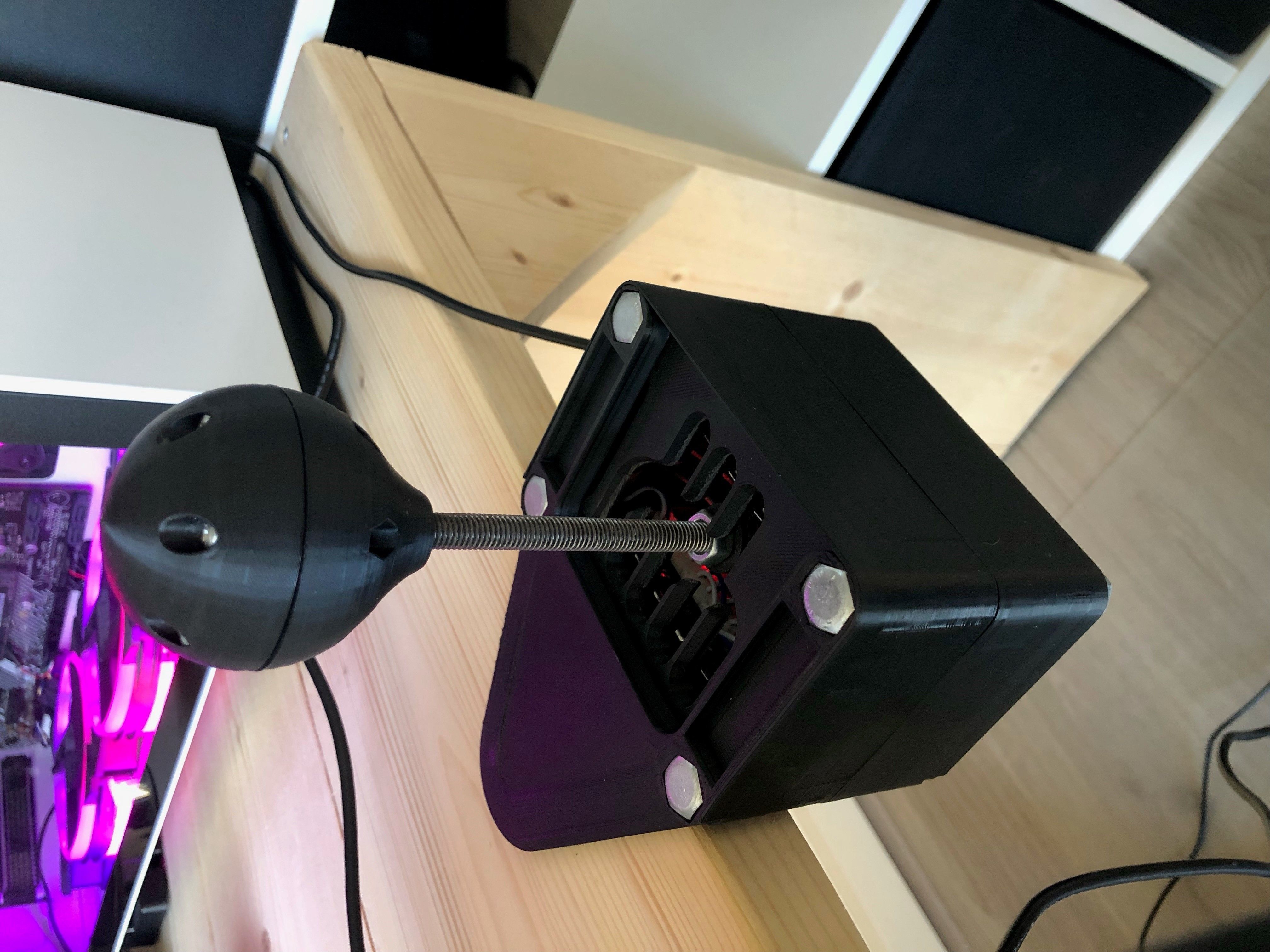

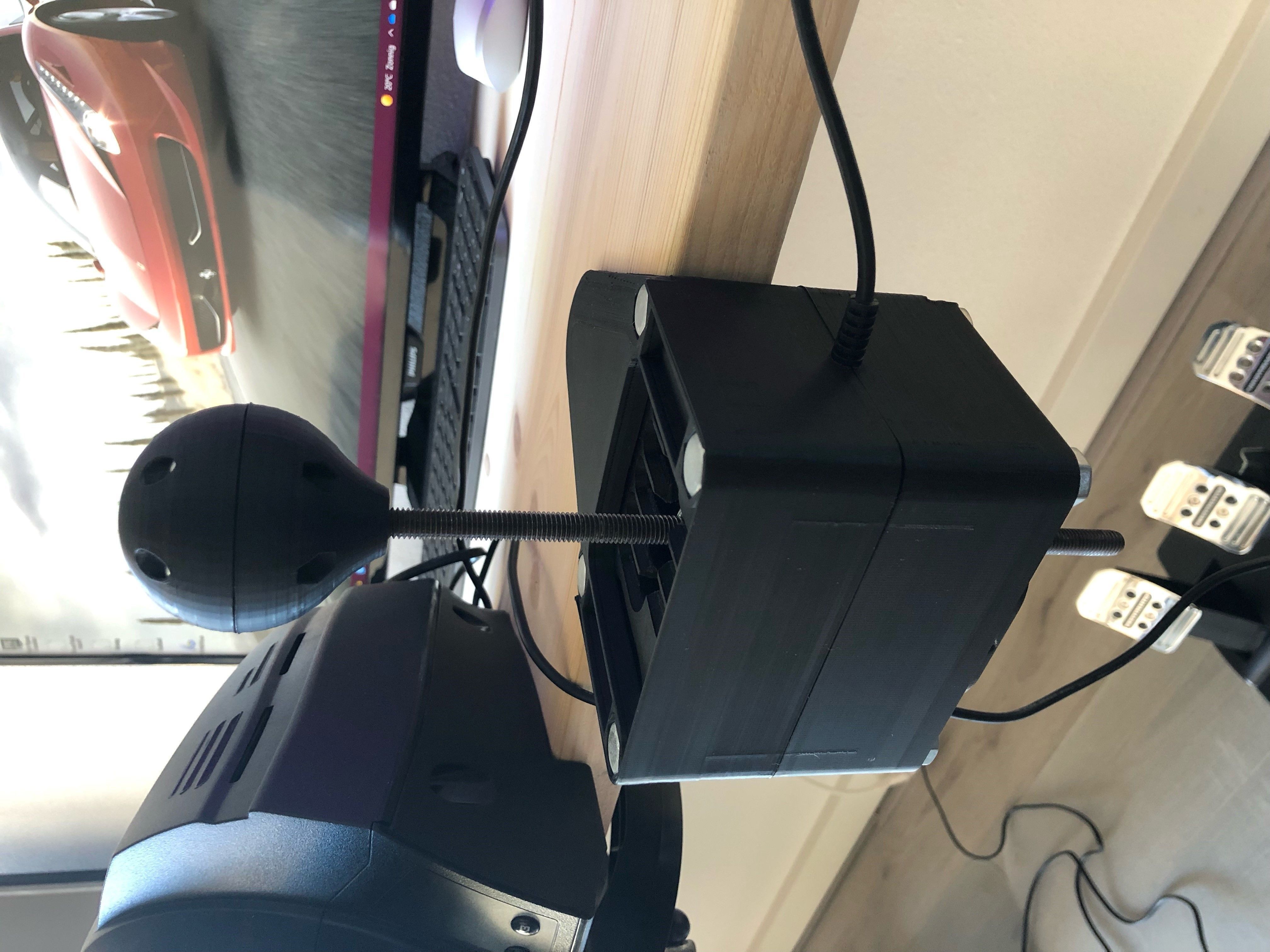

7 Speed + Reverse shifter for use in sim racing. One of the main priorities during the design phase was robustness of the product. The drawback is the amount of filament needed for printing but it reduces the plasticky feel and durability of the product. During usage it becomes immediately clear that the shifter can easily handle powerful shifts without any damage.

To complete the product some more extra hardware is needed.

• M8 Threaded Rod
• 4x M8x80
• 2x M8x20
• 2x M8 Lock Nut (optional)
• 18x M8 Nut
• M8 Male Ball Joint
• 2x M5x12
• 2x M5 Lock Nut
• 2x 605H Bearings
• 2x 688H Bearings
• 1:10 scale RC car spring (stiff)
• 6x M3x25
• 6x M3 Nut
• 8x Lever Switches
• USB Encoder (e.g. joystick encoder board)

If you have questions or suggestions do not hesitate to contact me.
