5 Button - Switch Panel 3D print model

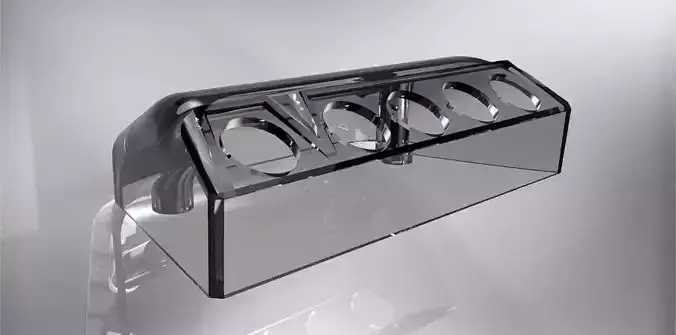

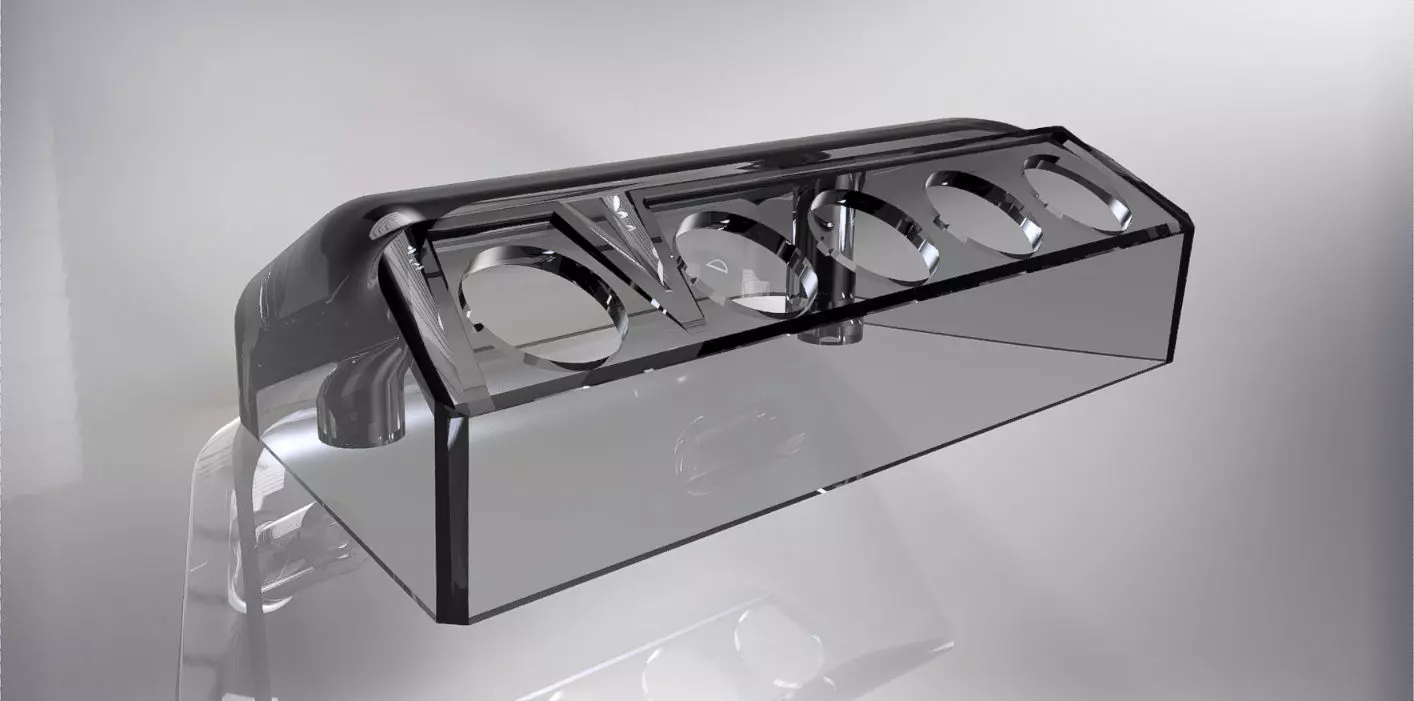

This Panel has been created to incorporate standard-size switches and a terminal strip. whilste giving basic water protection.

Important design features:

-No Support Structure needed to print (everything is designed with overhang)

-Flat surface, where switches are clipped in, so you can change the layout by simply editing the extrusion in the ipt-file

-Basic water protection

-Integrated hubs to screw the Panel down

-Strengthened stress points (variable material diameter in the entire panel)

-Multiple iterations have been tested

-Mounted vertically or horizontally on a flat surface

The electrics used in the picture are called:

-Double Row 4 Position Screw Terminal Strip (To connect everything to mass) (

-Round Rocker Switches with Self-Locking (The actual switches) (both about 5€ / 7$)

Printing tips:

-This has been designed with an exact fit, meaning if you print it you should increase the size in your slicer to make up for shrinkage of your material. f.e.: PLA: Shrinks about 2-2,5% - So you should print this object about 2-2,5% larger, to make sure that the switches fit.

-Print it right side up. No support needed!
