CX5 Armrest latch replacement

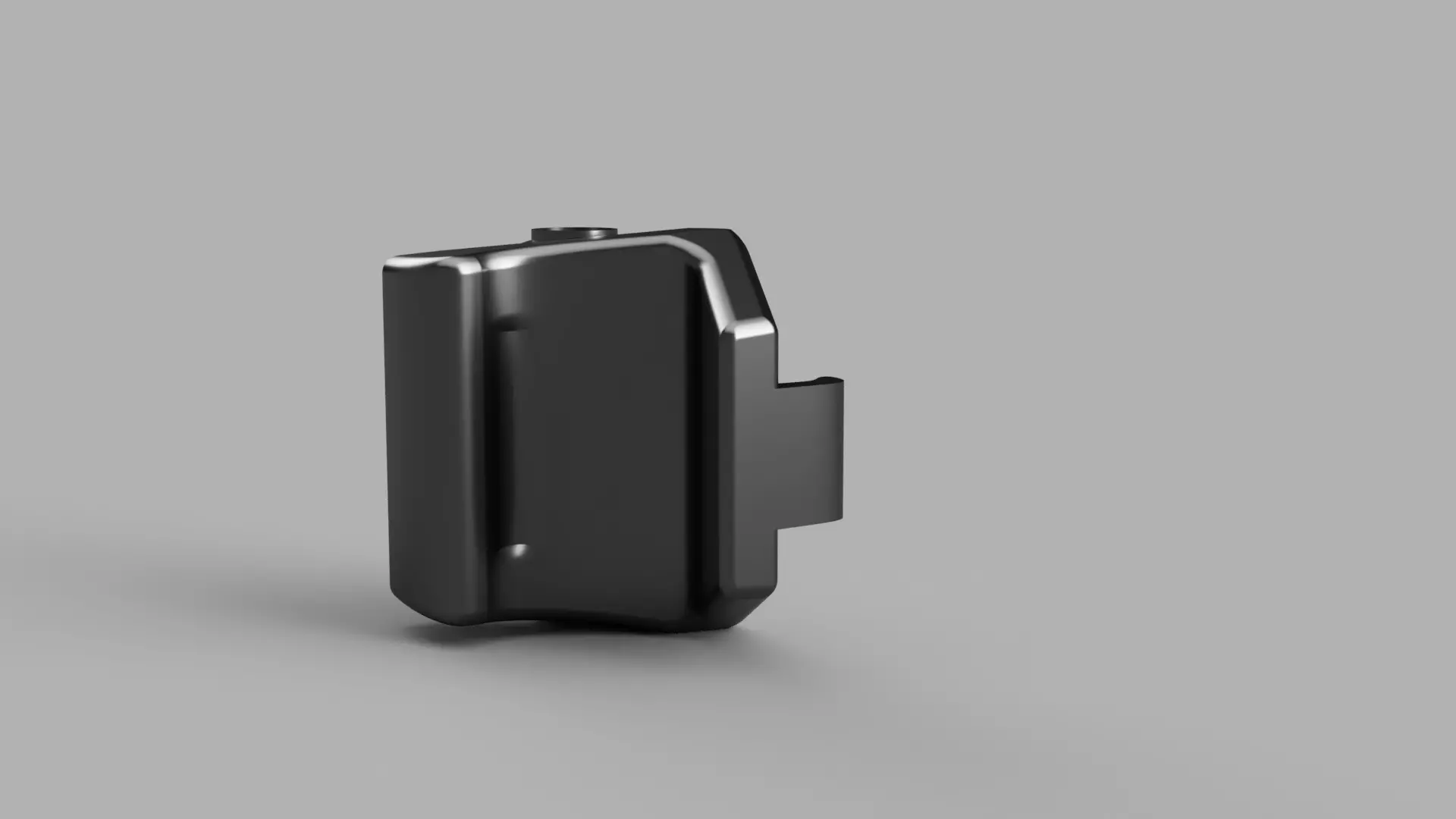

CX5 Armrest latch replacement 3D print model

Description

A common part to break, specifically at the hook. This part can easily be printed and replaces the original part perfectly. High infill (>25%) recommended for durability of the part. Print with supports and oriented as shown for maximum strength. Designed in Fusion 360.

Item rating
5 0
B
borca-lucian2025-06-29 19:47:28 UTC
Recommended
L
lukeavyner2024-09-20 08:47:38 UTC
Recommended
Works perfectly
A
awesometech2023-03-24 21:26:21 UTC
Recommended
Fit perfectly on my 2016 CX-5 GT. Used tree supports, printed on Bambu X1C in Hatchbox PLA-CF. Thank you!
L
loweryjk2022-07-24 16:53:54 UTC
Recommended
This worked perfectly on my car. It's even better than the original part! It needed no alterations. I just printed and replaced. Perfect!
L
lj-show692022-03-31 19:03:22 UTC
Recommended
Excellent model to print for a piece that breaks in the CX5. Thank you so much as it was a perfect print and fit for replacement. Much appreciated!
CX5 Armrest latch replacement
$4.00

Royalty Free License
CX5 Armrest latch replacement
$4.00

Royalty Free License
Response 25% in 48.0h
3D Modeling

3D Model formats

Format limitations
  • Stereolithography 1 (.stl)445 KB
  • OBJ 1 (.obj, .mtl)472 KB
  • Autodesk FBX 1 (.fbx)252 KB
  • 3D Manufacturing File 1 (.3mf)137 KB

3D Model details

  • Ready for 3D Printing
  • Publish date2021-12-18
  • Model ID#3456142
