UPDATE: Compatibility now added for 4320 V2 short nose and standard version. Please use the new bumper mount with the 4320 V2 front chassis brace (match standard and long nose versions accordingly).

3 new styles of bumpers designed specifically for the Crawler 4320. These bumpers allow a standard 1/10 RC winch to be mounted to increase the scale realism of your rig.

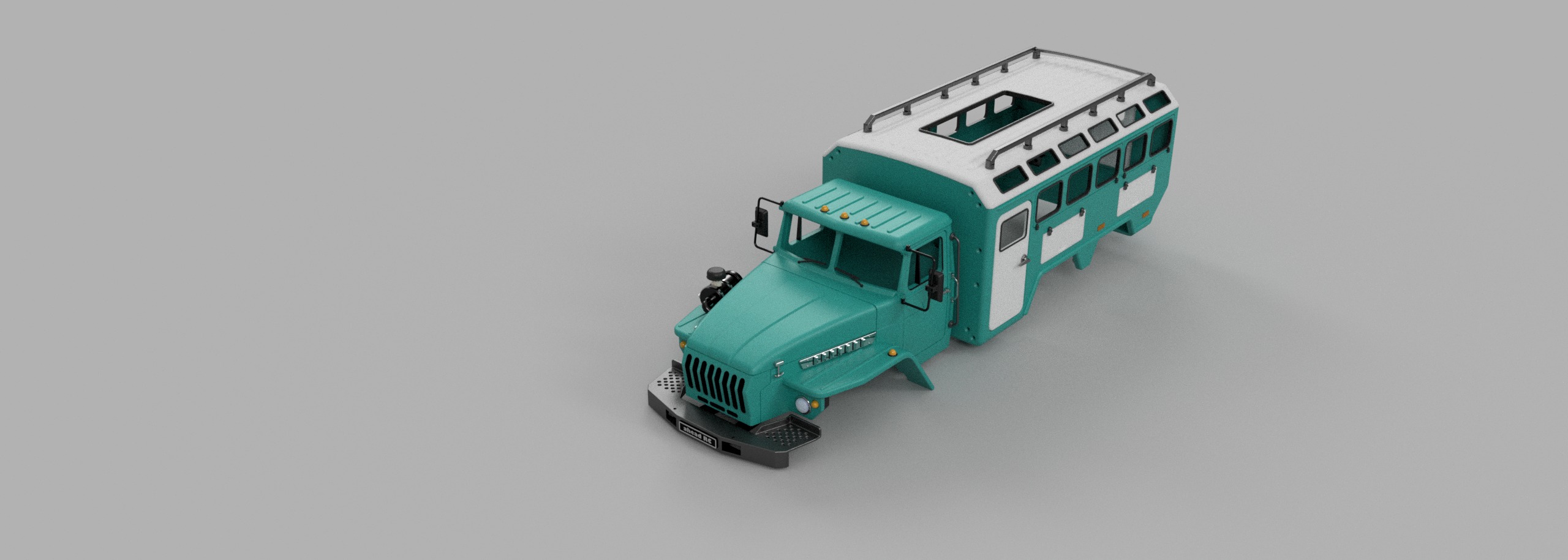

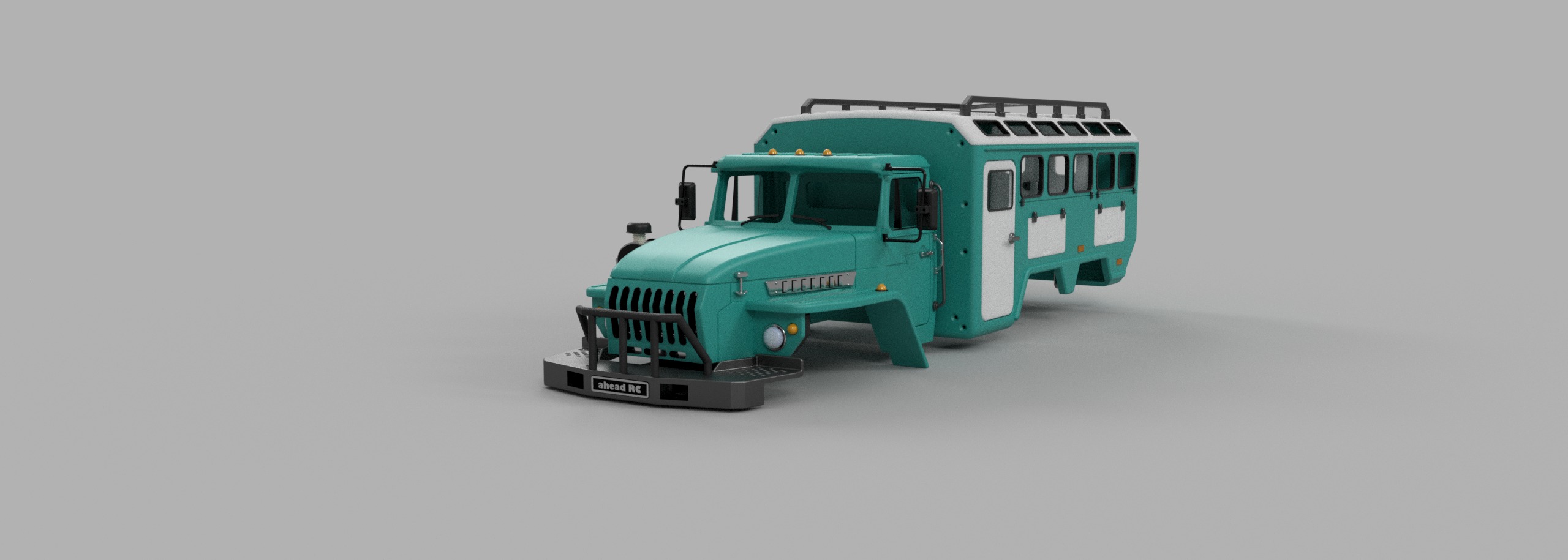

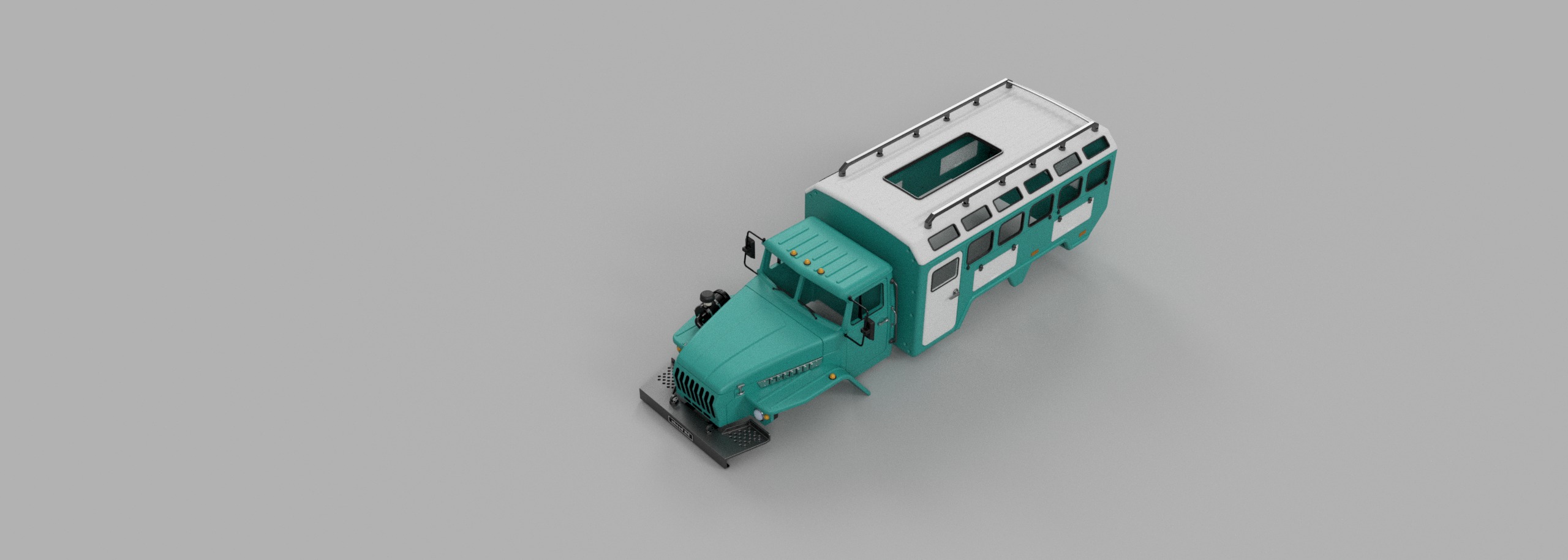

4320 front cab and expedition cab are sold separately

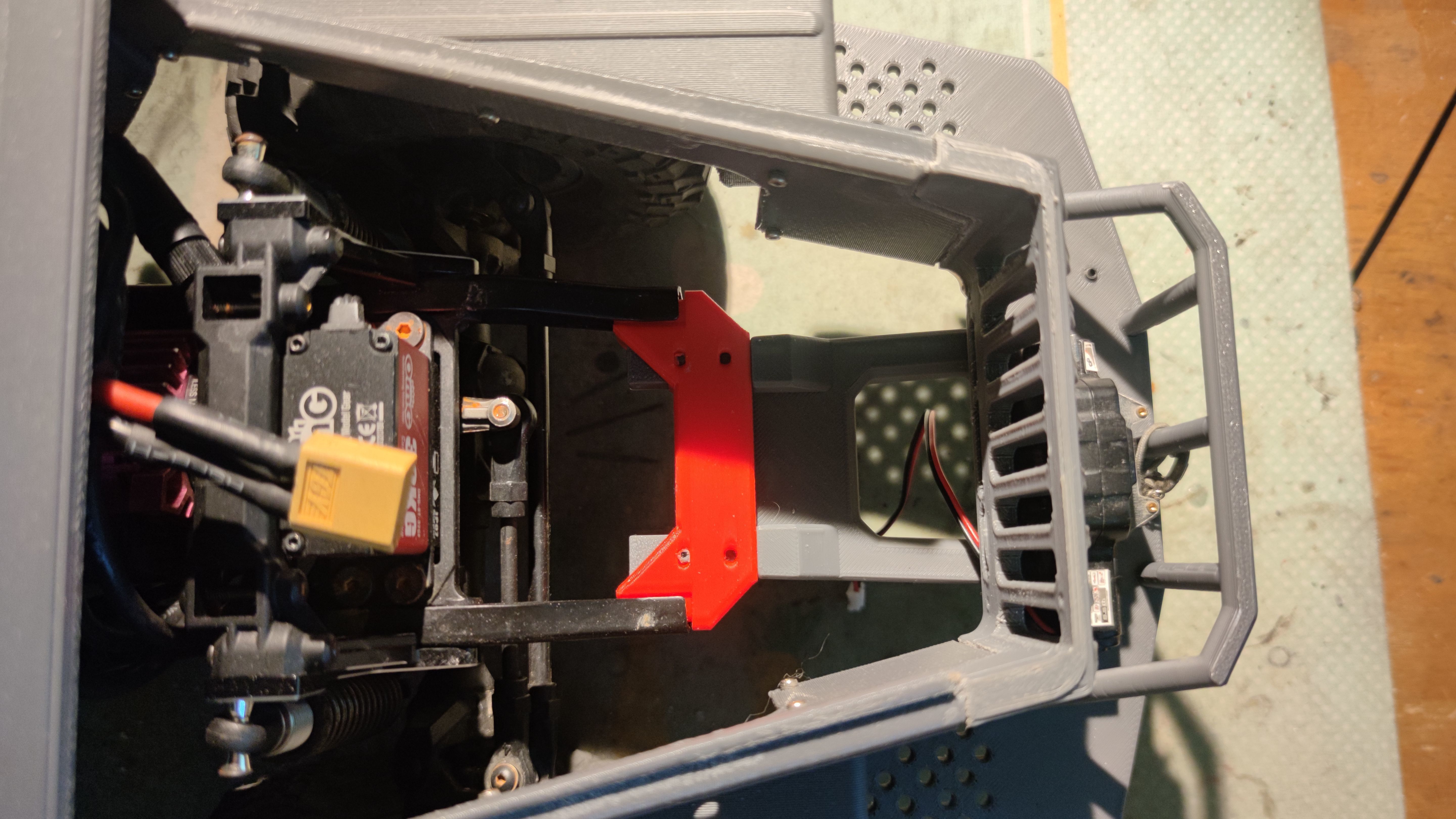

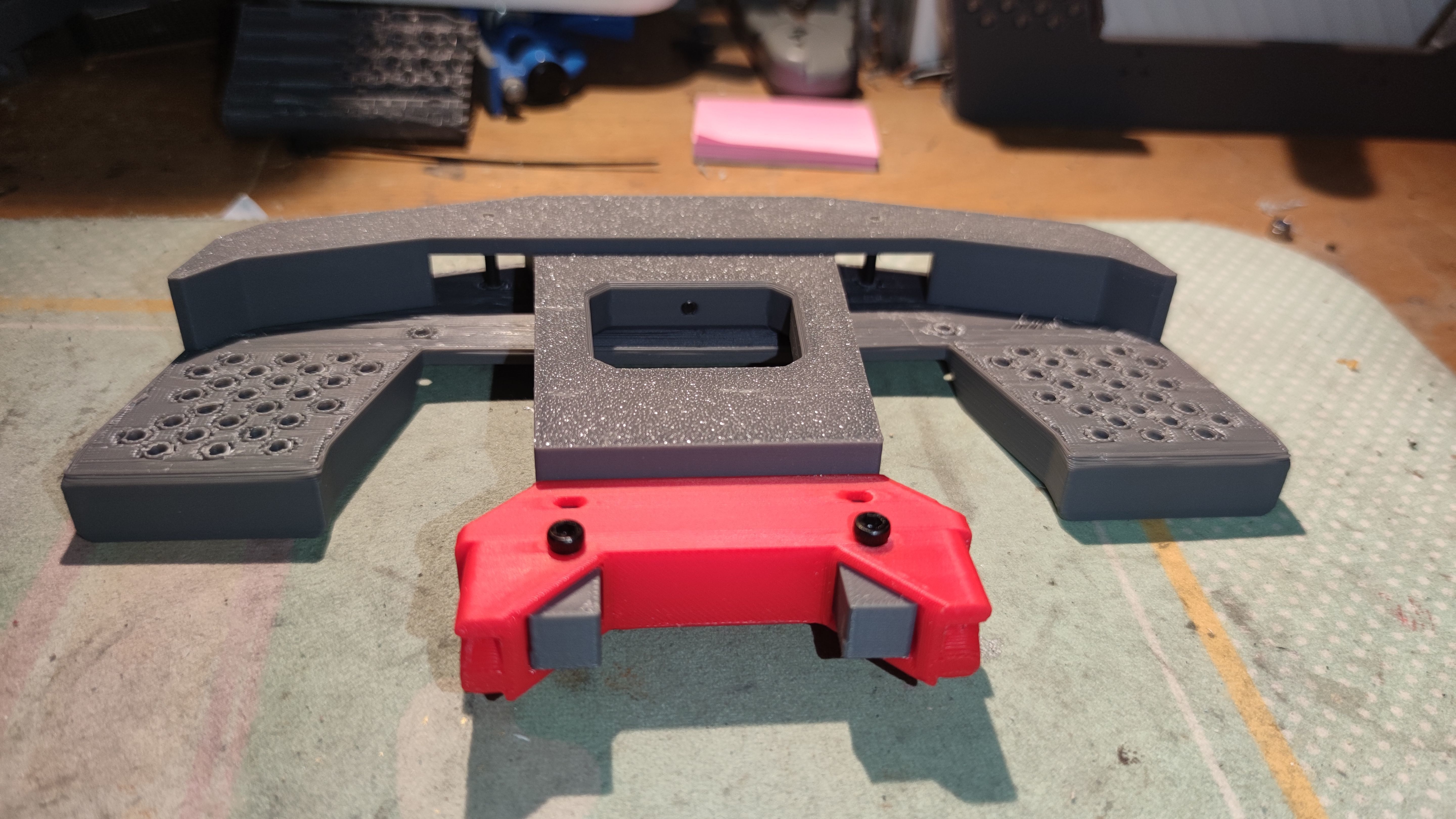

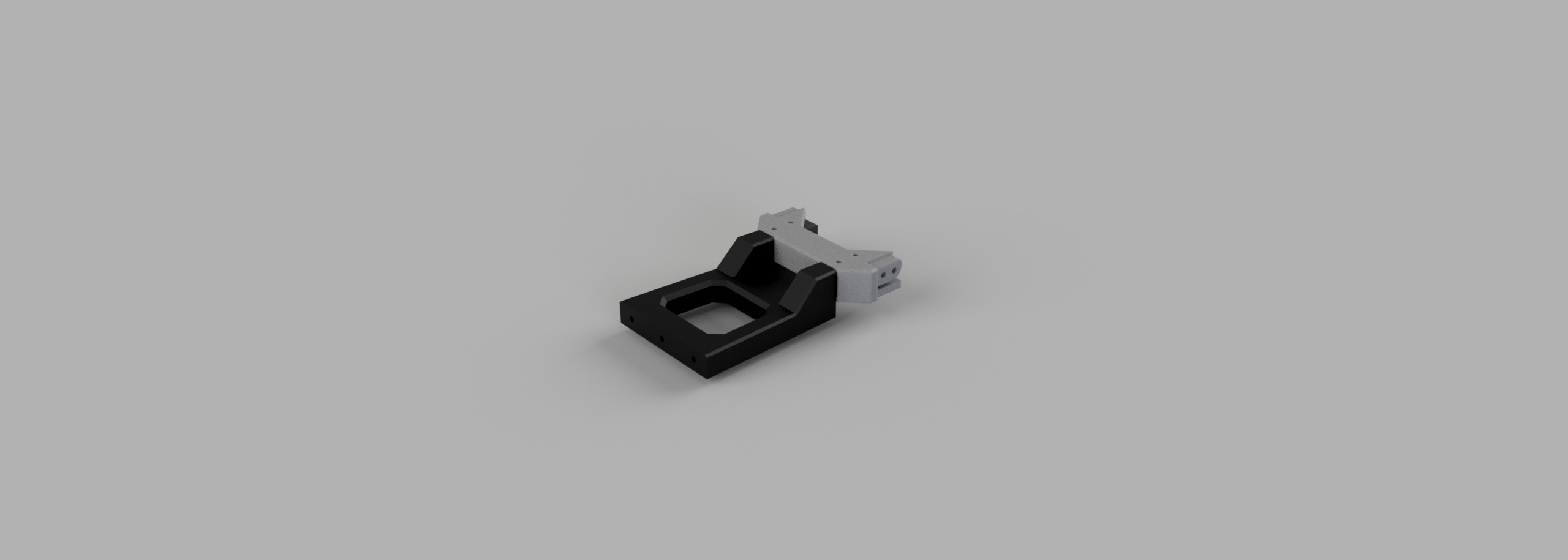

Bumper mounts are included, but they are specific to the TRX6 and TRX4 platforms. If you are using our Crawler 4320 Single Cab body, this will be a direct fit. Bumper mounts for other chassis rails can be designed. Let me know!

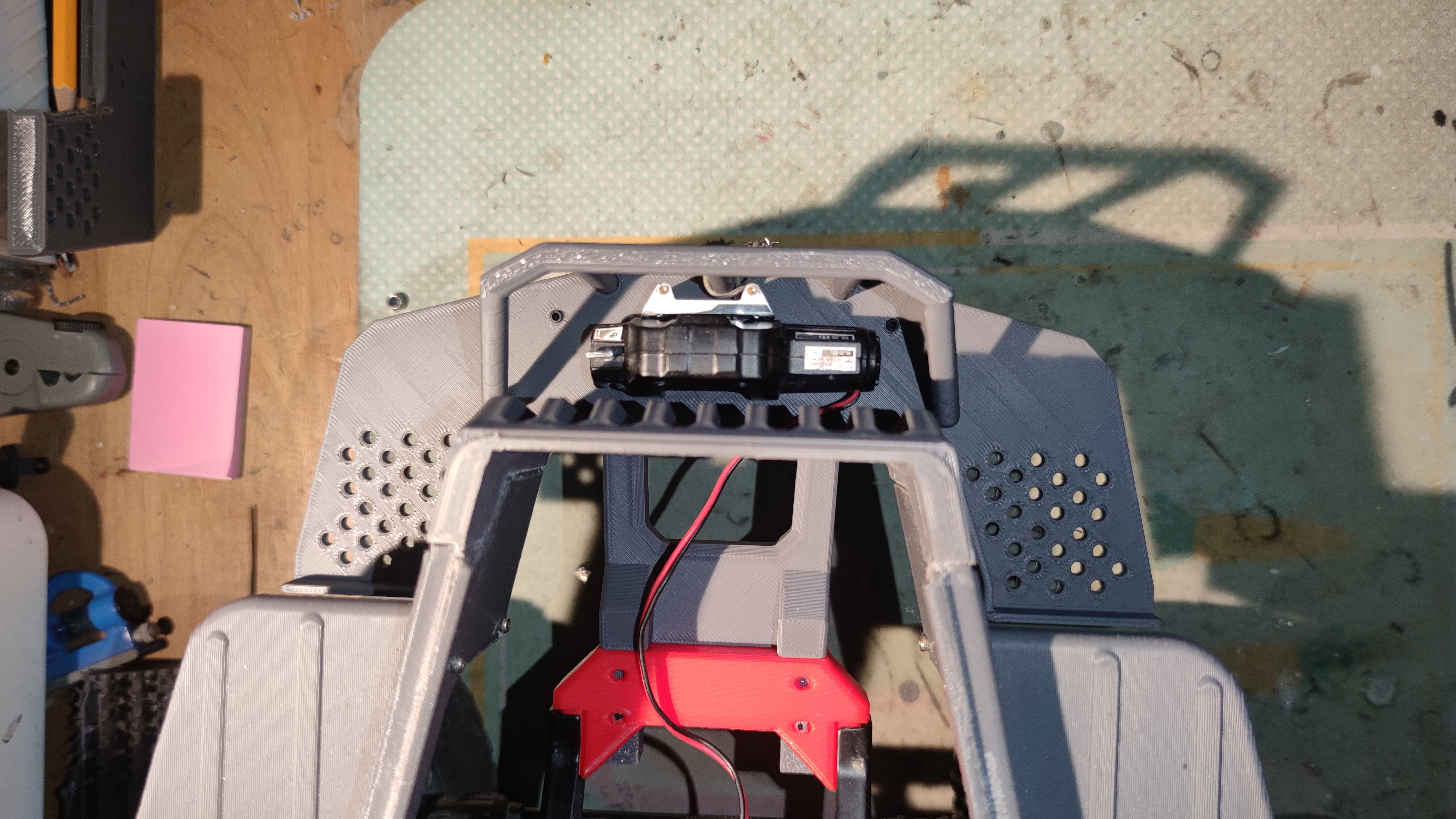

To mount the winch, you will have to do some DIY and drill your own holes into the bumper, because there are too many different styles of winch mounting plates available.

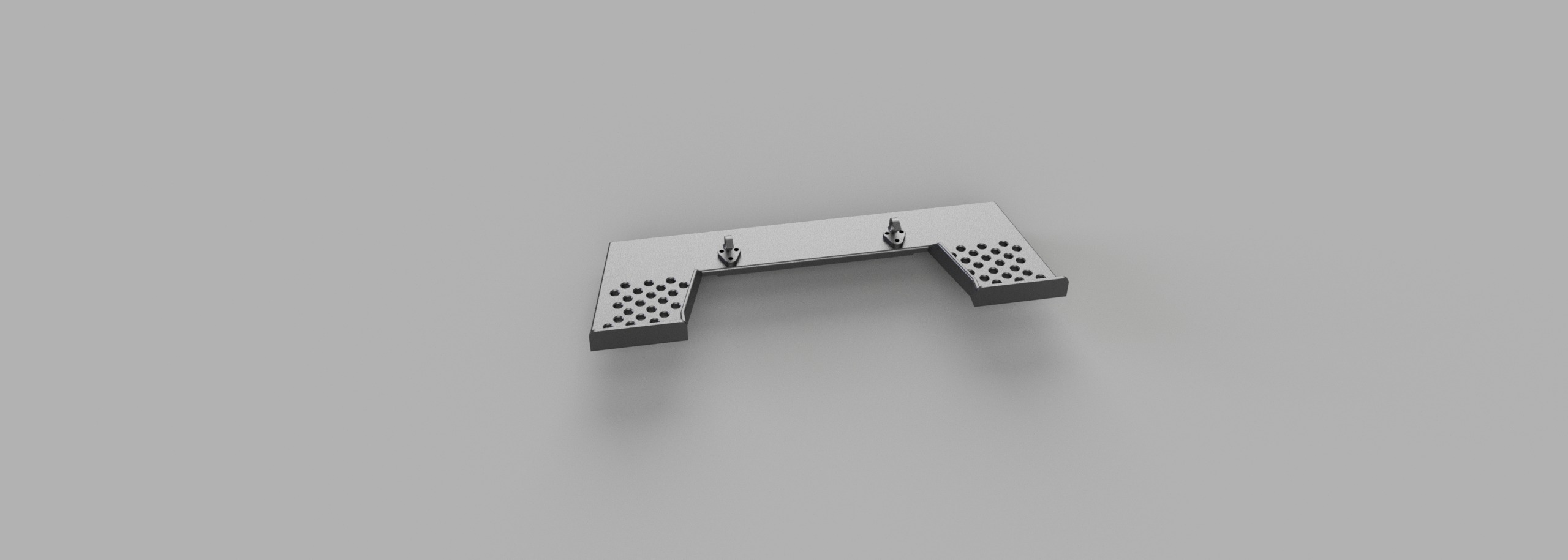

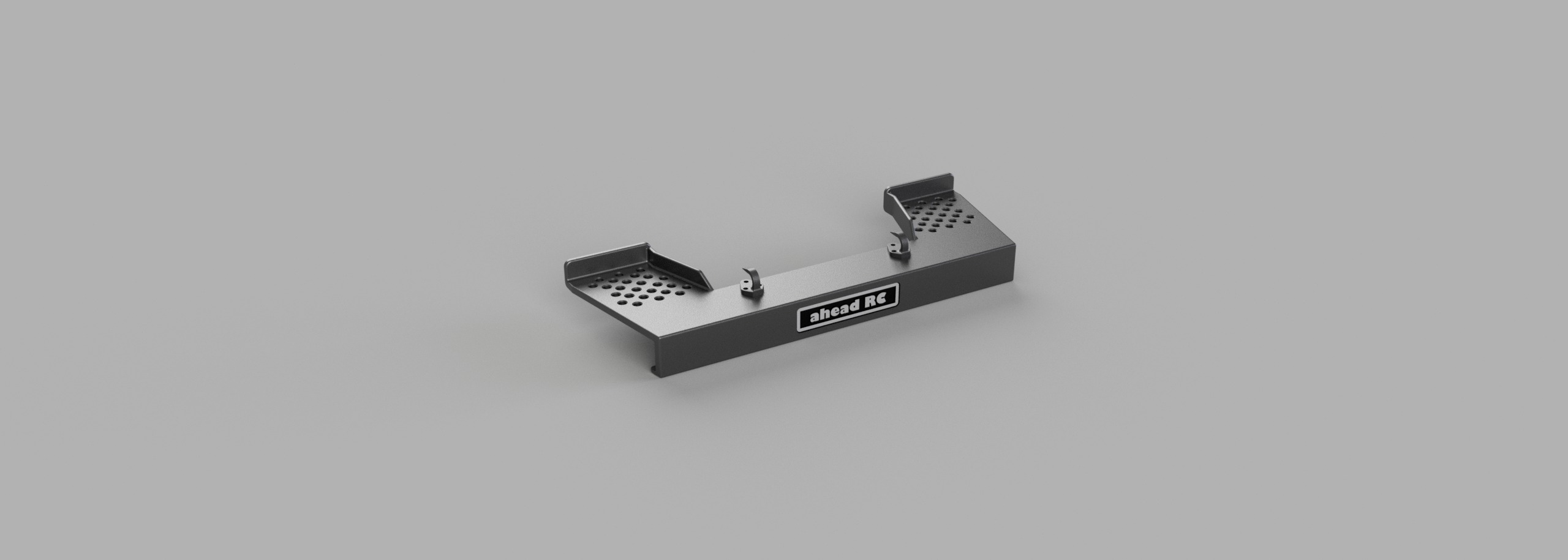

There are 2 styles of “small” bumpers.Sticking to the aesthetics of the stock bumper with tow hooks, this one is slightly extended for space to mount a winch.The angled bumper allows for better side clearance and loses its tow hooks, but in turn has 2 tow openings with holes for M3x20mm grub screws as tow points.

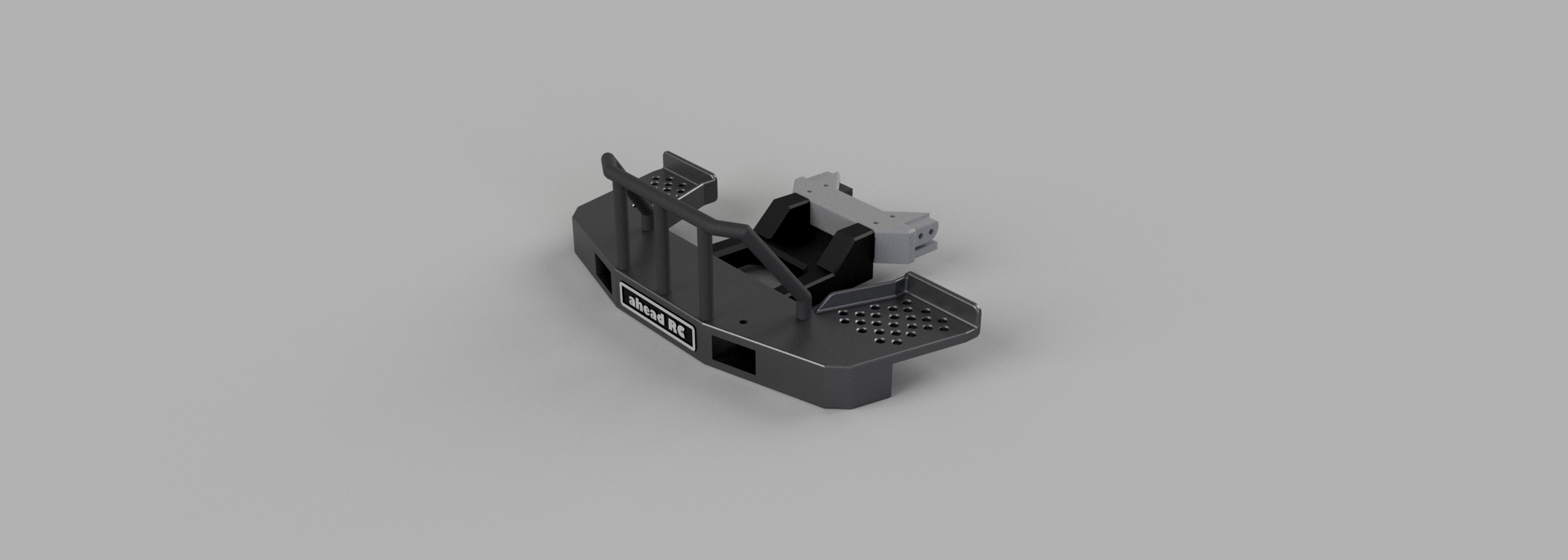

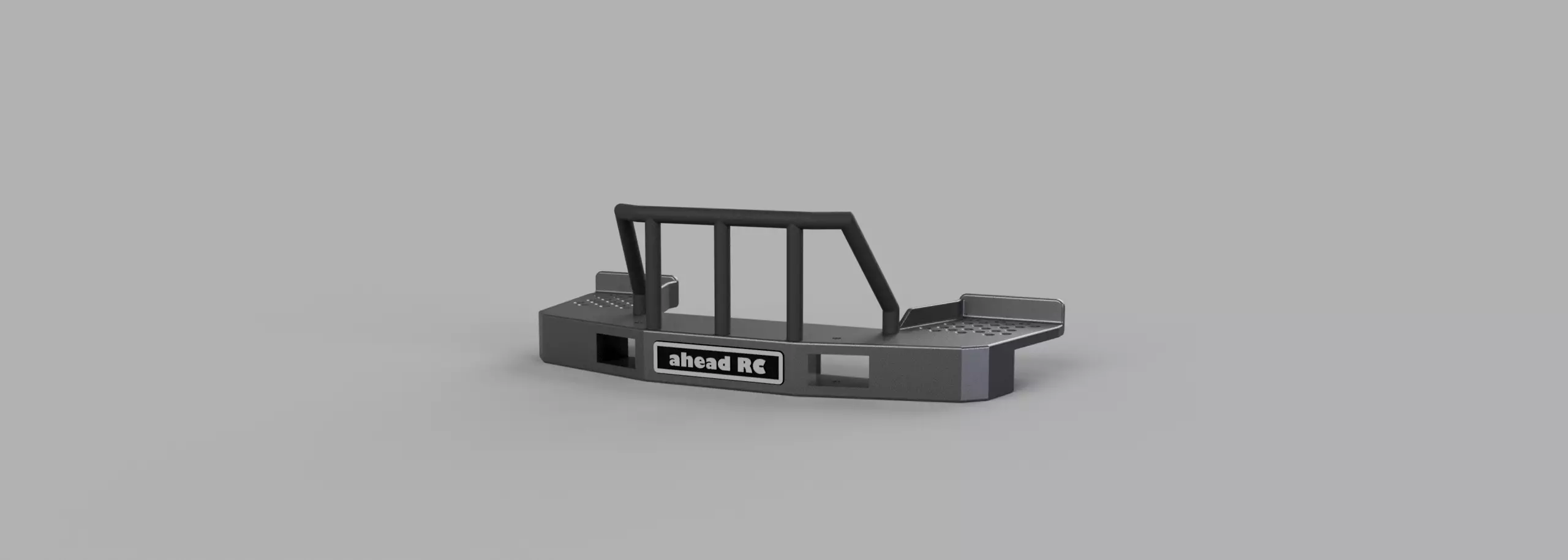

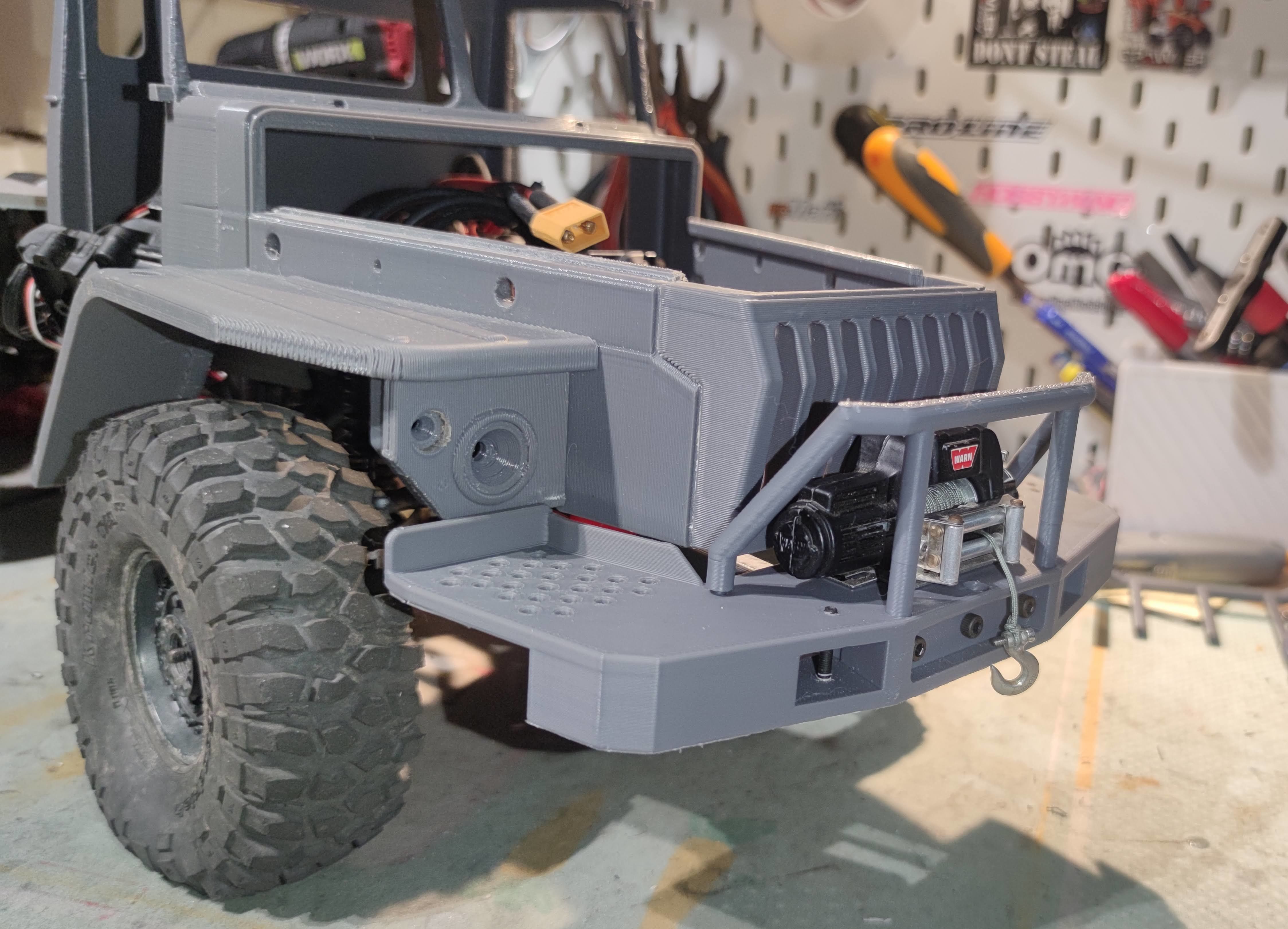

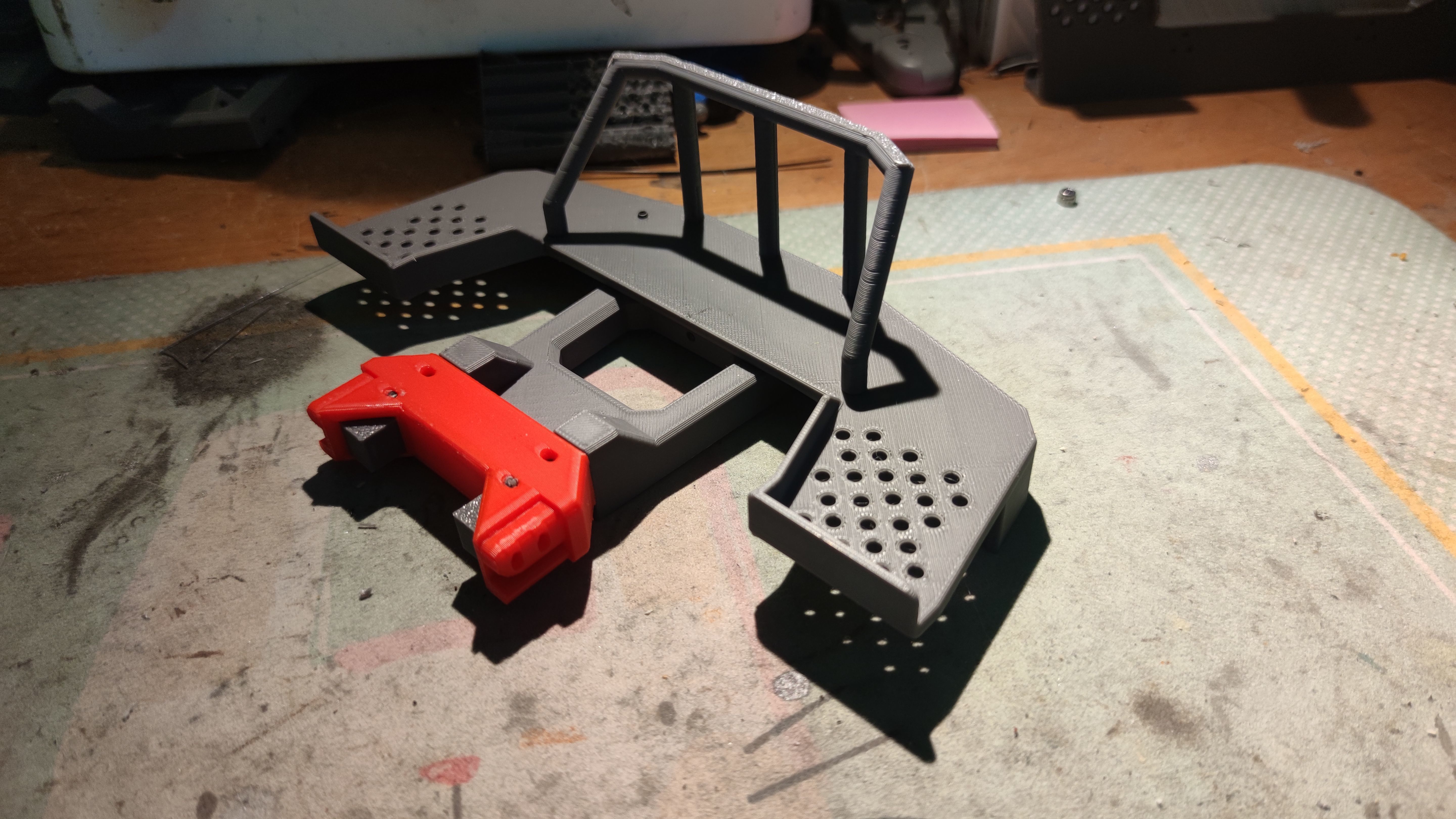

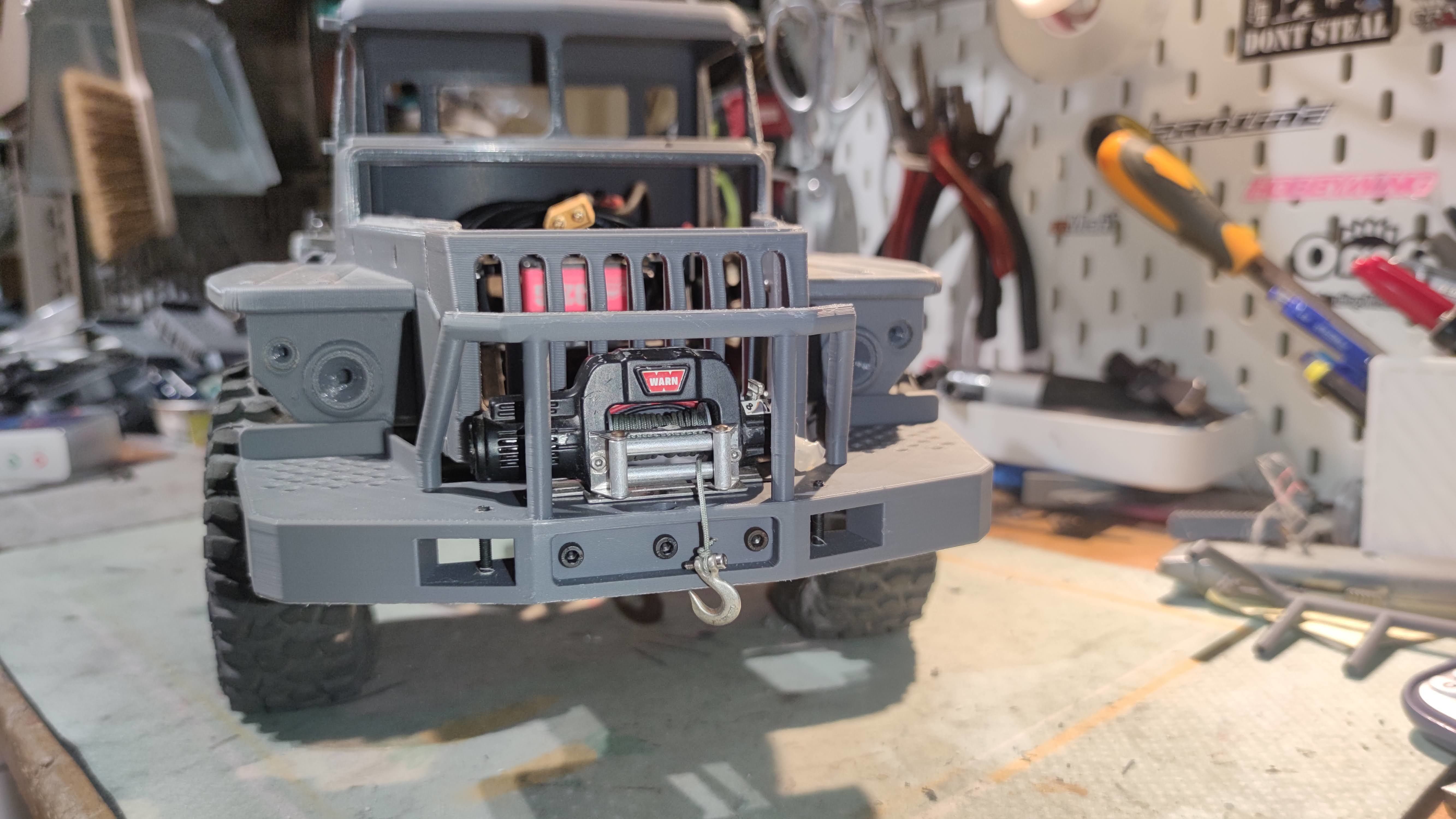

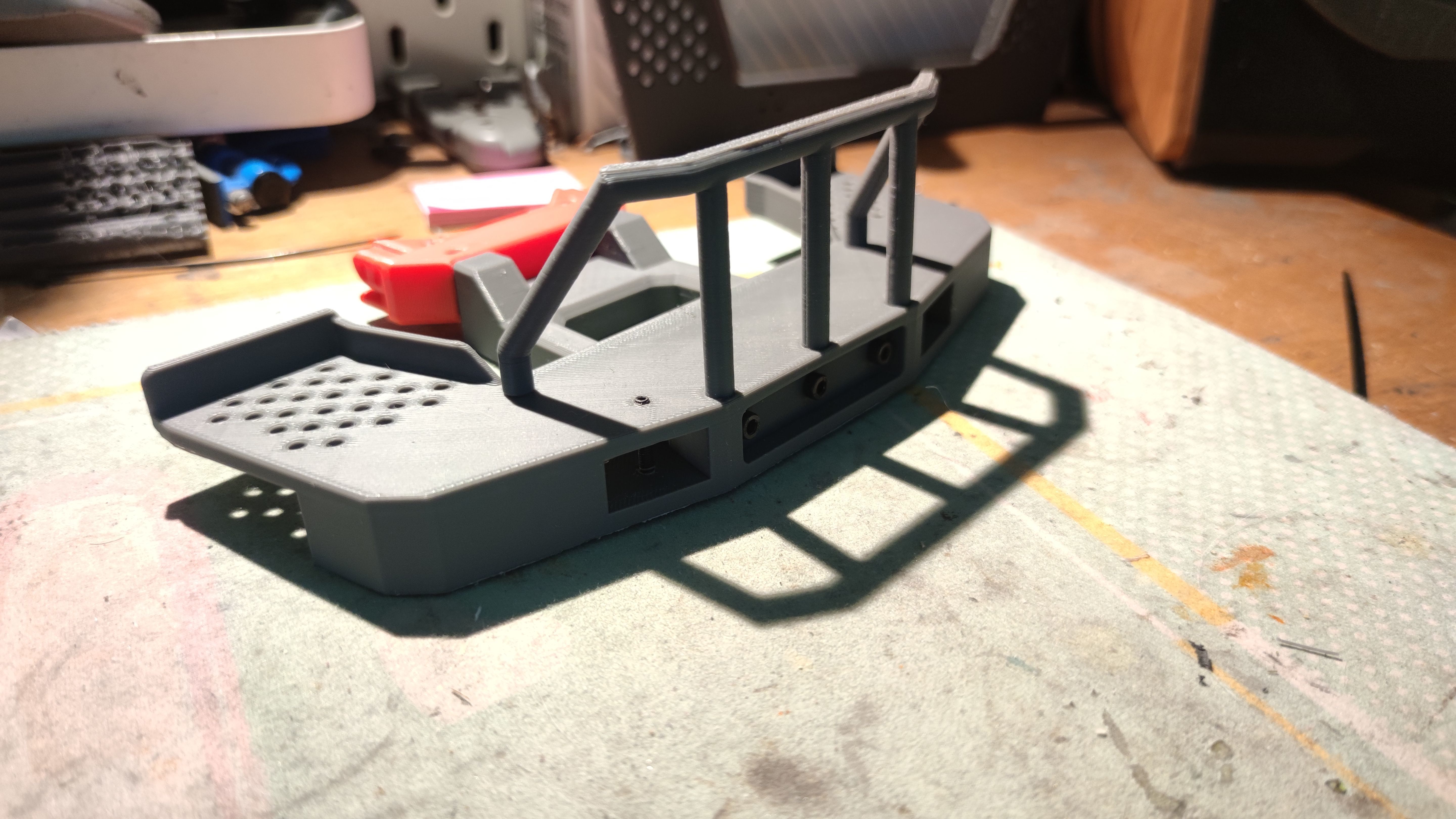

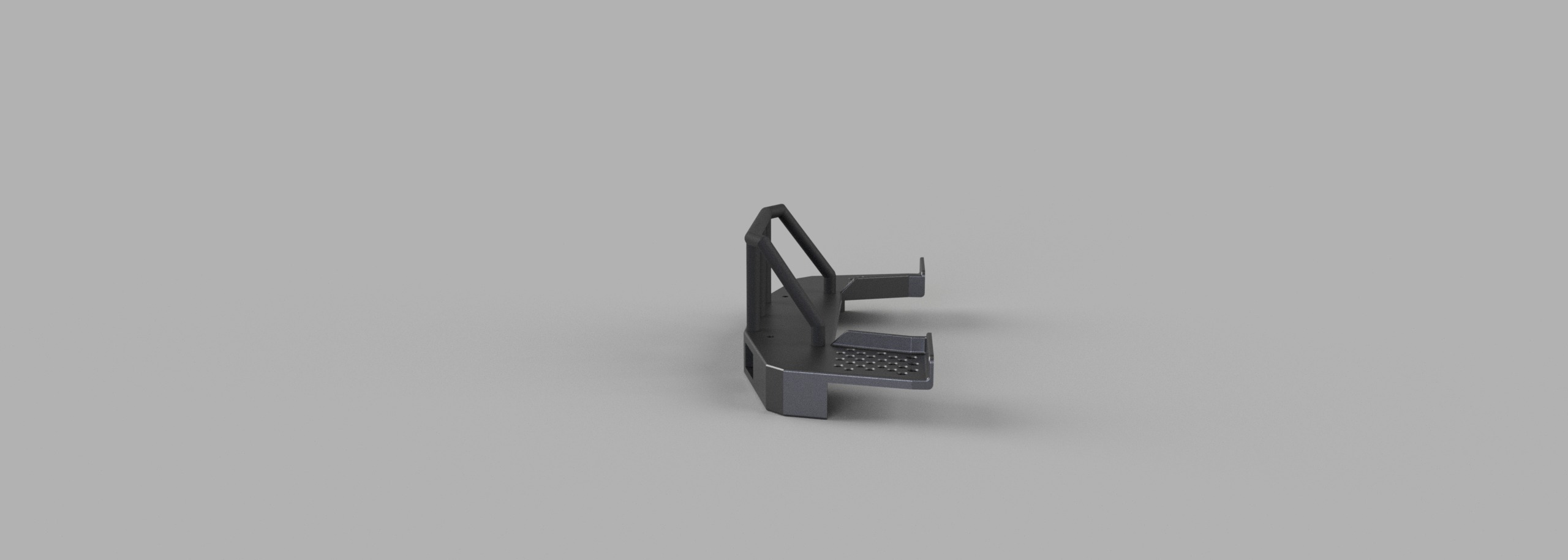

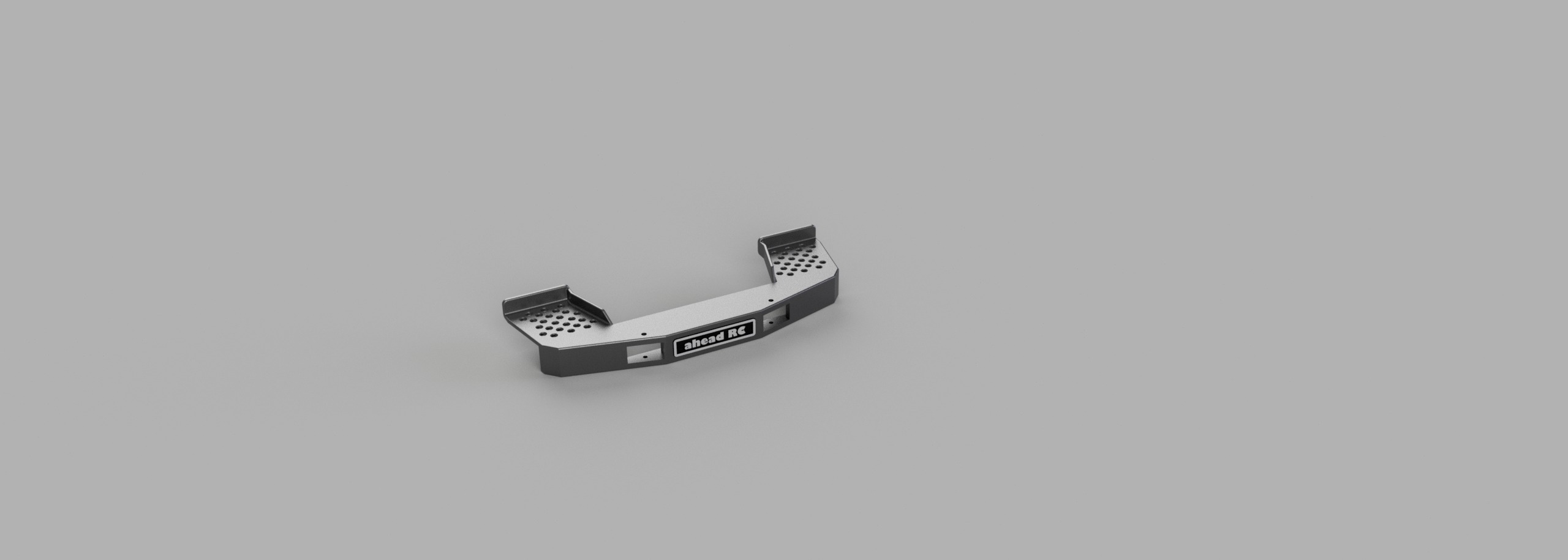

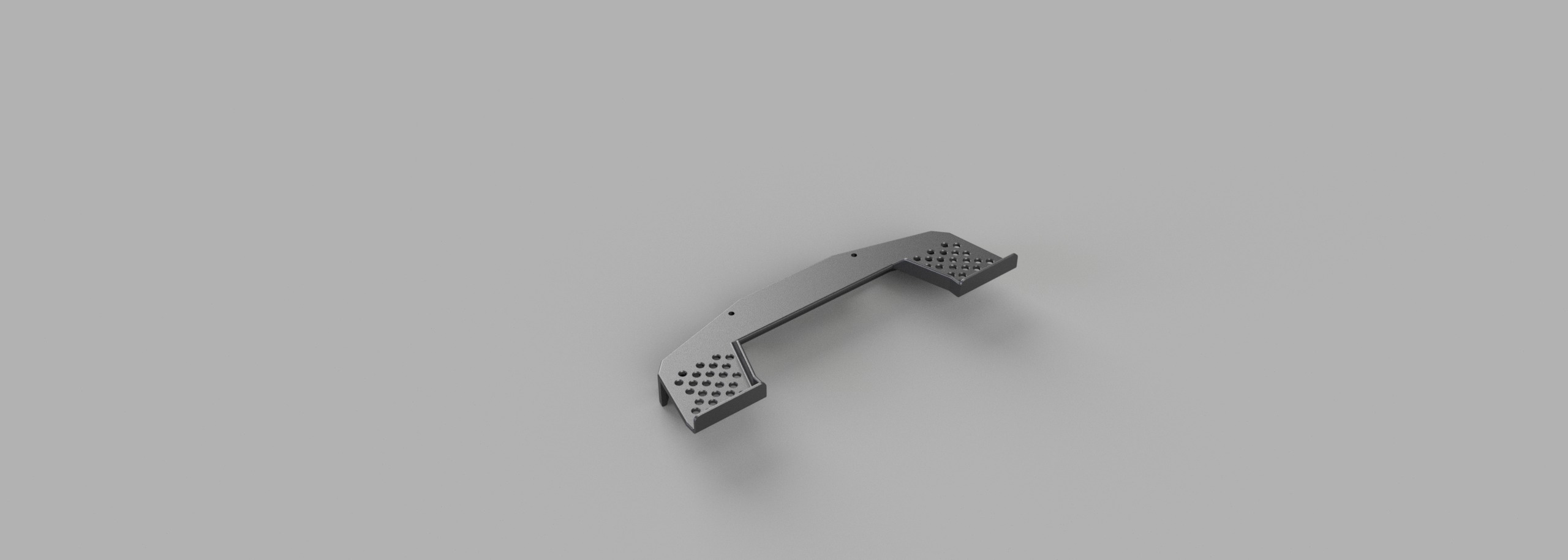

The large bumperThe large bumper is essentially an extended version of the angled bumper. It also comes with 2 styles of bull bars, which can be mounted on to the bumper and have enough space to also mount a winch.

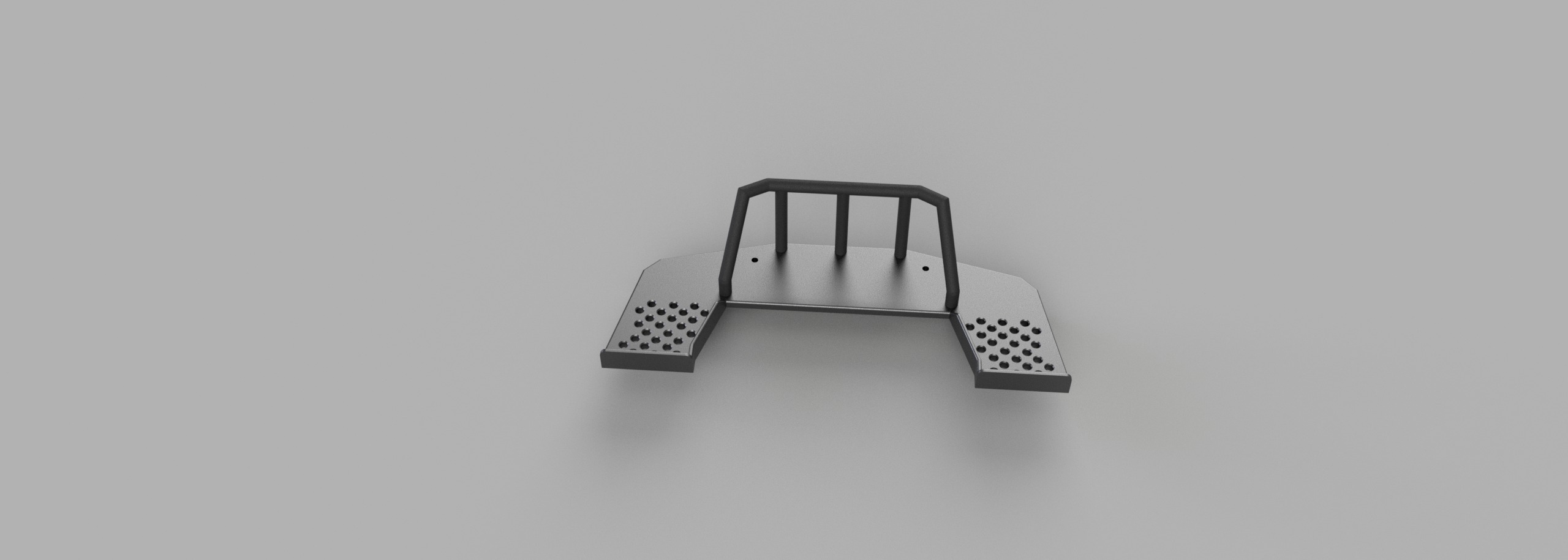

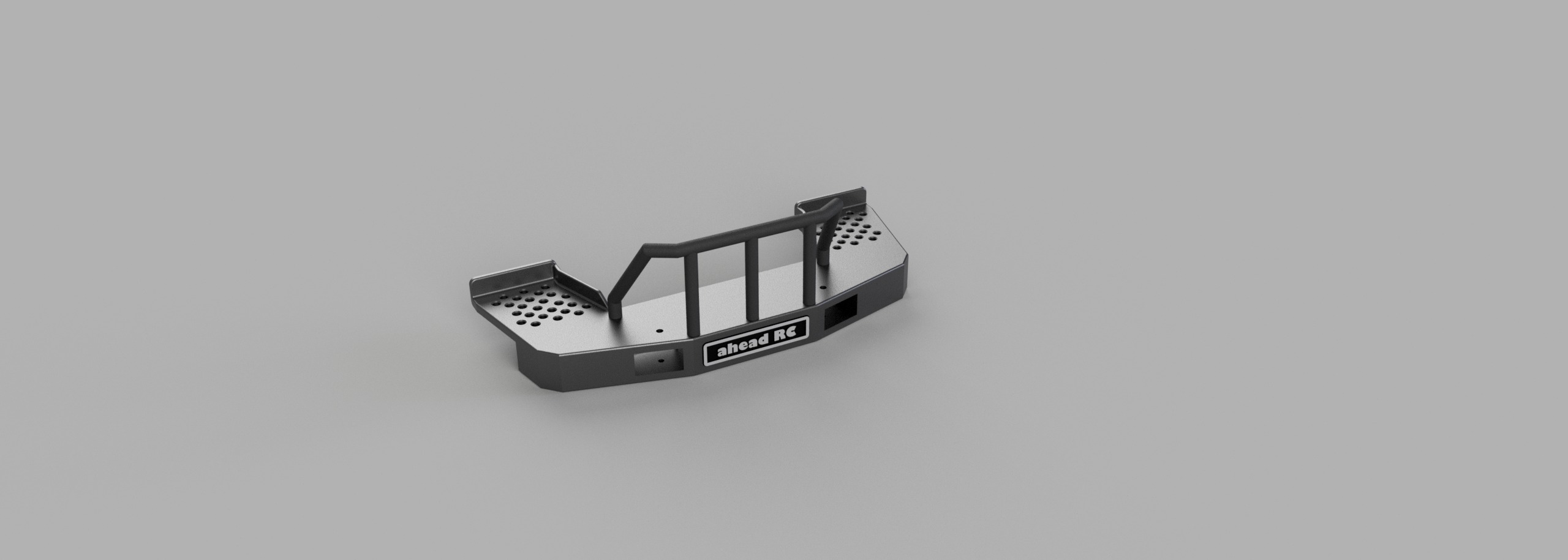

Bull barsSplit bull bar parts allow printing multiple pieces, and assembling them.Combined bull bar, is a 1 piece print. The recommended version, without the need for supports (turn the bull bar upside down with the holes facing up)Combined bull bar (alt ver) is the same bull bar but with the middle vertical bar deleted. This should allow more space for a fairlead if your winch is not offset mounted.

Hardware required:M2x5mm socket head x6M3x15mm socket head x2M3x20mm grub screw x6M3x10mm socket head x2M4x20mm grub screw x2M3x15 socket head x3 (for mounting small bumpers)M3x30mm socket head x3 (for mounting big bumper)

.STEP file for the number plate is also included in case you want to design your own.

Should you need any help, please do not hesitate to contact us!

FDM printing:

PLA+ filament0.4mm (0.6mm nozzle) layer heights20 - 50% infill density Supports are necessary
