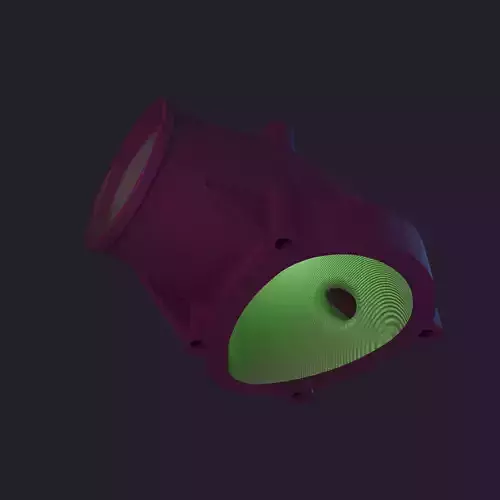

C20xe Powercap 71 mm with fitting 20mm RIGHT PIPE

C20xe Powercap 71 mm with fitting 20mm RIGHT PIPE 3D print model

Description

This is POWERCAP for the standard Opel / Vauxhall C20XE Inlet Manifold. Adding this part will result in more sensitive throttle and increased power. Inlet pipe diameter is 71 mm, no fitting for idle valve. The inlet pipe goes at an angle of 5 degrees to the transverse axis of the car. Recommended ABS (or Nylon-Carbon) printing, mechanical and chemical post-processing.

Print Settings Rafts: Yes Supports: Yes Resolution: 0.4mm Infill: 100%

I recommend after printing to align the irregularities of the plane under the throttle gasket. Use 240 grit sandpaper, then 500 or 1600 grit on glass and with added water.

Feel free to write to me if you need additional variants of shape or part size for your particular variant. I will gladly complete the additional options.

Works great with this gasket https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/opel-c20xe-throttle-gasket

Item rating
0 0
C20xe Powercap 71 mm with fitting 20mm RIGHT PIPE
$15.00

Royalty Free License
C20xe Powercap 71 mm with fitting 20mm RIGHT PIPE
$15.00

Royalty Free License
Response 95% in 4.9h
3D Print Modeling
Rendering
Hire me

3D Model formats

Format limitations
  • OBJ (.obj, .mtl)1.87 MB
  • AutoCAD (.dwg)2.05 MB
  • Parasolid (.x_t, .x_b)653 KB
  • Stereolithography (.stl)2.19 MB
  • STEP (.stp)1.5 MB

3D Model details

  • Publish date2024-01-08
  • Model ID#5012637
  • Ready for 3D Printing
