V4 JLB CHEETAH RC CAR TRUGGY 1 8 PREMIUM 3D print model

[¯`·..·[ V4 JLB CHEETAH RC CAR TRUGGY 1:8 ]·..·´¯]

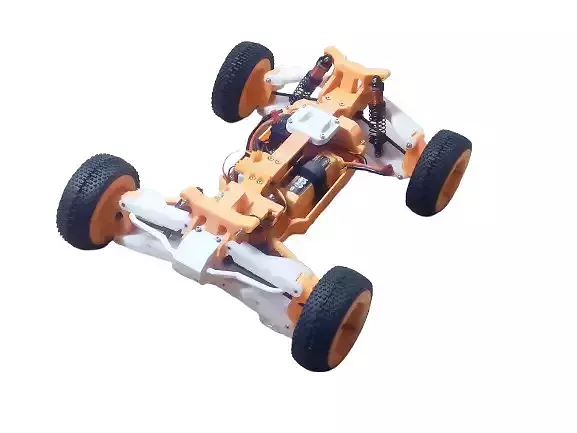

JLB CHEETAH V4 is the Updated version of the V2.0 / V2.5 / V3 / V3.5All parts are compatibles betweenV2.0 / V2.5 / V3 / V3.5 (rétro compatibility)No need to reprint everything.This is the complete JLB CHEETAH V4 printed version, ready to run.Lucky hazard It's now compatible with Aliexpress metal steering linkages 105mmNew DIRECT DRIVE STEERING SYSTEM Best for BashNew REVERSE ACKERMANN STEERING SYSTEM Best for max anglesReinforced Shocks Absorber TowerReinforced Motor Mount and Transmission CoverReinforced RimsNew Steering Cup Hubs and linkages (+metal Linkages 105mm)New Chassis

BUILD GUIDE :

https://docs.google.com/presentation/d/1jabhHdwHruR_a4ibou3fMm3Z3C0JivmusydT-Vo3oH4/edit?usp=sharing

TEST DRIVE :

https://www.youtube.com/watch?v=OAT00DGrQRY

BUILDING VIDEO LINK :

https://youtu.be/ltlX8YH-RXE

PREMIUM VERSION GOT :New DIRECT DRIVE STEERING SYSTEM Best for BashNew REVERSE ACKERMANN STEERING SYSTEM Best for max anglesNew Steering Cup Hubs and linkageNew additional Battery Side MountNew Slim / Medium / Wide / Extra Wide ChassisNew Body Mount + Body upper protectionNew Wheelie BarAll Type Motors Mounts D36 D42 D49++All RIMS Sizes and offsets STL kitDUAL Motors Capability PLA or Metal DUAL Motors Transmission Cover PLA or Metal Big ESC Hobby wing Max8(6S) or Max6(8S) Dual Place CapabilityFPV ProtectionLower Protection PateGopro mountMore adjustment holesFresh Update and UpgradeThanks from the creator

NEEDS :

• TPU ( 500g )ArmsBumpers

• PLA Plus ( 1Kg )All the Rest

TOOLS :

Hallen H2.5mm(for M3 Screws) / H1.5(for Pinion) Long Nose Pliers ThreadLocker Grease Clamp Gaskets

HARDWARE STORE :

Rolling 6800ZZ ABEC 7 ( X 8) Metal Steering Linkages 105mm ( X 2) Washers M3 ( X 100) Lock Nuts M3 ( X 100) Screws M3 x 5mm Hexa ( X 8) (Motor Mount)M3 x 8mm Hexa ( X 10 (Direct drive Steering) M3 x 14mm Hexa ( X 10) (Steering Cup Hub) M3 x 20mm Hexa ( X 60) (ALL THE REST) M3 x 30mm Hexa ( X 2) (Shocks Absorbers / Reverse Ackermann Steering) M3 x 40mm Hexa ( X 24) (ARMS / Reverse Ackermann Steering)

TAGS :

• JLB CHEETAH
• Ender 3 compatible
• PreOriented STL PARTS
• 3D Printed RC Car
• Reverse Ackermann Steering Compact System or direct drive steering
• Full Metal transmission
• Metal Steering Linkages Compatible 105mm
• Brushless Motor 3650 up to 4268 (3650 min recommended 3200KVmax)
• 3S -4S - 6S
• DUAL3S = 6S / DUAL4S = 8S / DUAL6S = 12S (soon DUAL8S = 16S $$$)
• ESP Front Gyroscope
• Pinion and Gearing 0.8 Module (32 Diametral Pitch) - No cogging issues
• Metal Differential mechanism Central axis Central drive shaft Motor-Gear
• Printed Beadlock Rims 2.2p or 3.2p -No Ballooning issues for 2.2p 3.2p Tires
• Dogbones Haxa 17mmm
• Strong modulable design easy replace
• Standards Parts
• 4 Arms = 1 Arm (Lowers and Uppers)
• 4WD -2WD -4x4 -2x4
• With or Without Anti roll Bar
• 1:8 Hardware
• No Glue Only M3 Screws Washers and LockNuts
• LED Light System Front and Rear
• Drift
• GoPro Mount
• Body Mount + upper protection
• Wheelie Bar

TAGS:

RC car, jlb, 1:8, 4WD, Ender3, CHEETAH
