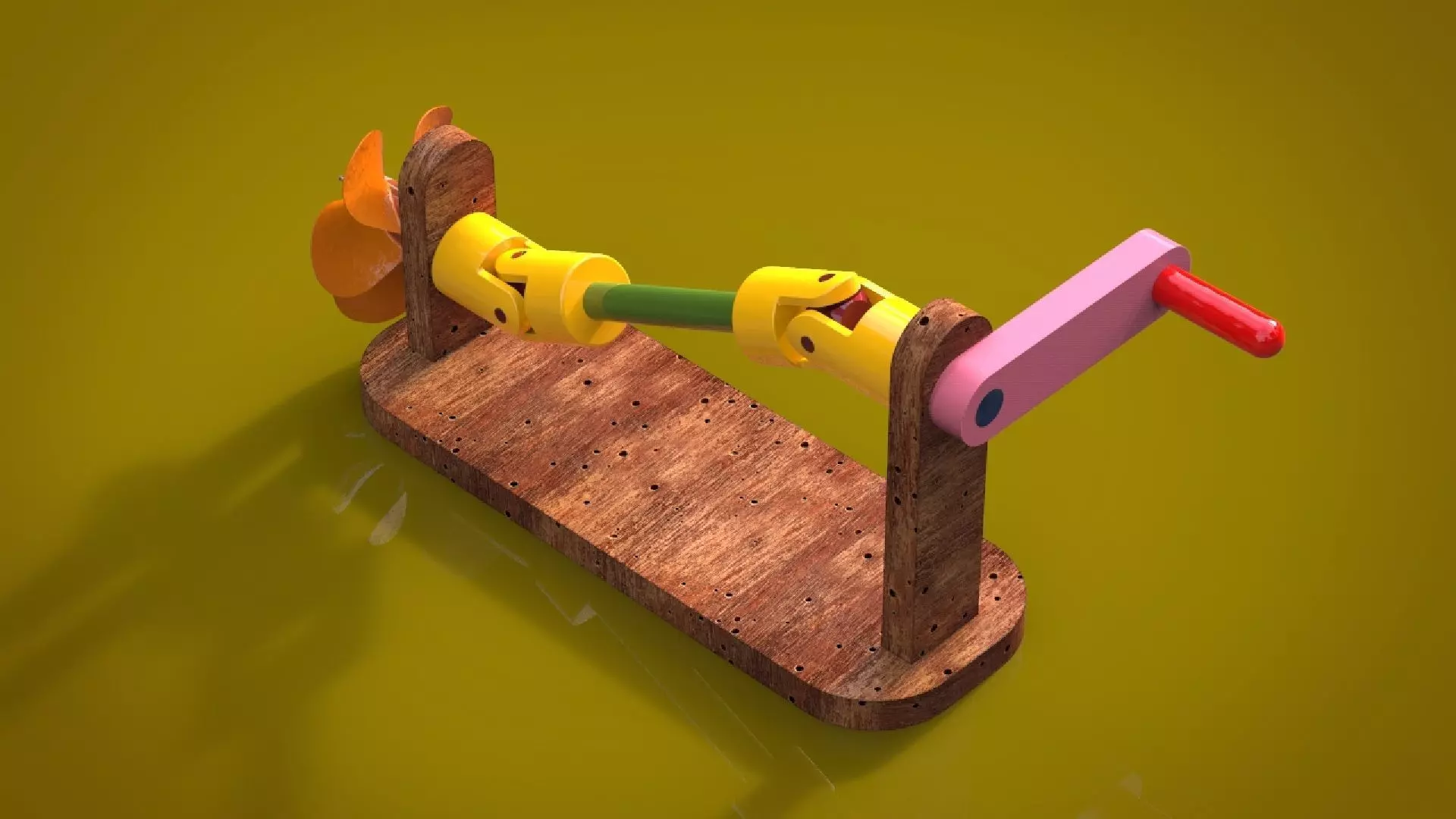

Universal Coupling / Joint. Used for connecting moving shafts whose axis are inclined to each other. The model was made using Solid Edge and rendered in KeyShot.

Includes Solid Edge Part files (.par), Solid Edge Assembly file (.asm) and Solid Edge Draft file (.dft). SolidWorks Part files (.sldprt), SolidWorks Assembly file (.sldasm), Autodesk Inventor Part files (.ipt) and Autodesk Inventor Assembly file (.iam) of the model are added as well.

Other converted file formats are also included. File formats (.step, .iges, .sat, .x_t, .3mf) were exported using SolidWorks 2022. File formats (.obj, .stl) were exported using Autodesk Inventor 2023. File formats (.fbx, .glb) were exported using Marmoset Toolbag 4. Also included are the KeyShot 11 Package files (.ksp) which include the used materials, textures and HDRI files in the KeyShot renders.

All of the above rendered images and animations of the model are included in zip files.

A 3D pdf file of the model is added as well.
