TRAFFIC PUZZLE 3D print model

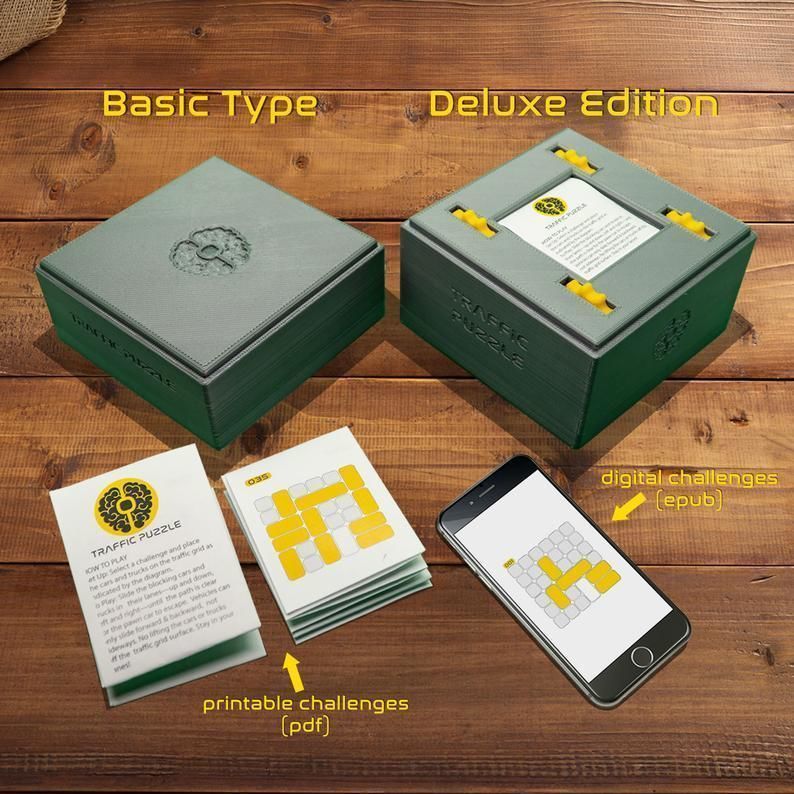

3D MODEL DESCRIPTION Game Definition: This puzzle is the unique redesigned version of the classic sliding block puzzles. This is a single player and portable logic game. Roll type (so deluxe version) contains 40 challenges. The basic version contains 63 challenges. Challenges are in order from easy to difficult.

Game Rules: Select a challenge and place the cars and trucks on the traffic grid as indicated by the diagram. Slide the blocking cars and trucks in their lanes—up and down, left and right until the path is clear for the pawn car to escape. Vehicles can only slide forward & backward, not sideways. No lifting the cars or trucks off the traffic grid surface. Stay in your lanes!

Required Materials: -3D Printer -Colour Printer -PLA Filaments -A4 Papers -Scissors -Glue

3D PRINTING SETTINGS Material: PLA 1.75 mm Printer: Tevo Tarantula Pro Nozzle Diameter:0.4 mm Slicer: Simplify3D

STL Files and Printing Settings: -Board (%10 infill-%20 Support infill & normal) 5 hours 10' / 19,73 m -Cover (Basic) (%10 infill-%30 Support infill /In the upside down position & from build platform only) 5 hours 10' / 20,89 m -Cover (Deluxe) (%10 infill-%30 Support infill /In the upside down position & from build platform only) 7 hours 18' / 27,23 m -Wheel for Cover (%10 infill-%50 Support infill/ In a horizontal position & from build platform only) 1 hour 9' / 3,19 m -Bus (%10 infill-%10 Support infill & from build platform only) 36' / 2,03 m -Truck(%10 infill-%10 Support infill & from build platform only) 39' / 2,07 m -Pickup (%10 infill-%10 Support infill & from build platform only) 29' / 1,12 m -Sedan (%10 infill-%10 Support infill & from build platform only) 29' / 1,26 m -Station Wagon (%10 infill-%10 Support infill & from build platform only) 30' / 1,30 m

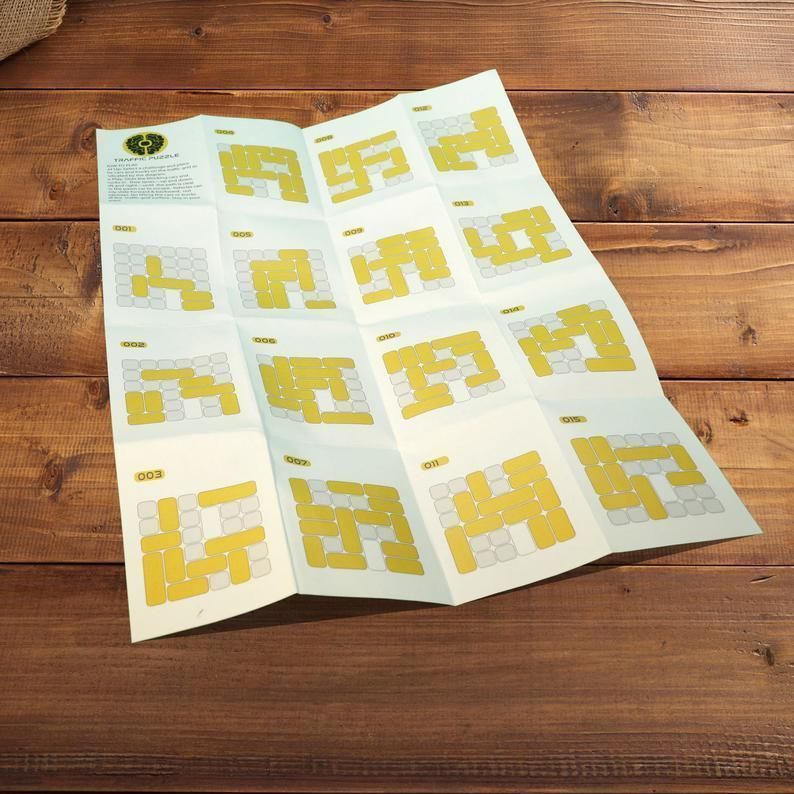

Documents and Printing Settings: -Game Challanges Map Type-A4_CMYK (It is ideal for professional printers. Prefer Duplex and fit actual size (%100) print.) -Game Challanges Map Type-A4_RGB (It is ideal for home printers. Prefer Duplex and fit actual size (%100) print.) -Game Challanges Roll Type-A4_CMYK (It is ideal for professional printers. Prefer one page and fit actual size (%100) -Game Challanges Roll Type-A4_RGB (It is ideal for professional printers. Prefer one page and fit actual size (%100) -Traffic Puzzle Challenges Book_epub (If you have trouble viewing it, try scroll mode.)

Printing time and filament consumption may vary depending on printer settings.
