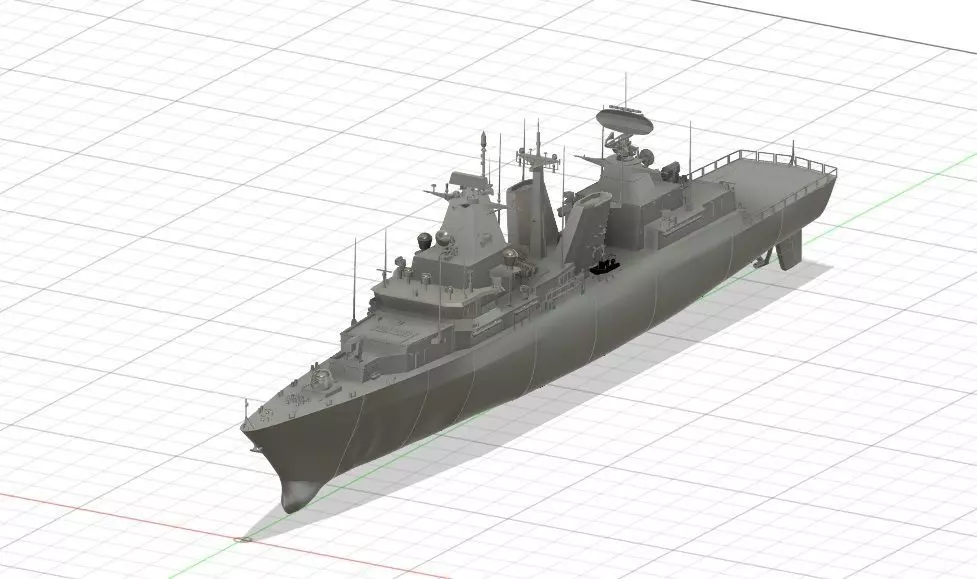

I'm offering a 1:100 scale RC-ready model of a German Navy frigate, specifically the Brandenburg-class frigate.

The hull is constructed from nine sections that can be glued and/or screwed together. At 1:100 scale, the model is approximately 138 cm long and weighs just under 3 kg (without electronics).

All parts are designed to be printed in a 220 x 220 x 250 mm build volume.

I've printed two of these ships myself in PLA; ABS/PETG are also suitable.

All 144 files are compatible with FDM printing, but I recommend resin printing some parts (e.g., MLG27mm).

All parts are suitable for FDM printing. Included in the package:

All files needed to build the ship, including, for example:

(excerpt only)

• Hull
• Superstructure
• Sensors (navigation radar(s), radio masts, fire control,main radar system)
• Effectors (76mm, missile bays, MLG, MASS, Exocet/Harpoon)
• Details (railings, bulkheads, pre-wetting)
• RC parts (rudder, servo arms, connectors)

Special features:

• RC prepared (servo mounts for 40 x 20 x 38.5 mm,motor mounts for 540 motors)
• Rotating main radar systems (via N20 geared motor)

Required to build the model as a static display:

• This file
• Approx. 24x M3 screws and nuts
• Optional: glue, square magnets (10x5x2 mm),round magnets (4 mm diameter, 2 mm height)

For operation, see below. Required:16 additional M3 screws and nuts, approximately 10 M2x12 screws or longer, and 10 nuts, motors, speed controller, servo, transmitter/receiver, sealant (spray or resin), shaft and stern tube (approx. 235 mm), shaft coupling.

Assembly instructions:

I started with the hull, gluing and screwing two parts together at a time. Then I completed the hull.

Next, the shaft, followed by the joint, and thenthe motors. After that, the superstructure can be completed, and finally, the details.

If you have any questions, you can reach me via Discord (https://discord.gg/8eJMqSwg) or here via thecomment section. Please use this option if you have any questions.

I personally revised almost all the files for this model in version 2 (offered here).

https://www.youtube.com/watch?v=D3IoobX34rY (No. 1),

Regards Flo

ChangelogJune 12, 2025:Added hull number, stern number, and flight deck designation for all 4 ships

September 7, 2025 Update 01:Stern section with a rudderMidsection with torpedo launcher and torpedo tubesStabilizing fins3D printing settings

Hull:Printed vertically, 100% infill, manual supports at the connectors.

The rest: Compatible with 0.2mm layer height and standard settings.

I tried to avoid supports where possible, using manual ones; otherwise, mostly standard. Tree supports have proven effective for radar systems and effectors (except MASS and 76mm).

!! The files are named as follows !!

x2 means print twice,

m means mirror.
