Disclaimer

This is an unofficial fan model inspired by the Fate franchise. It is intended for personal, non‑commercial use only. The creator is not affiliated with TYPE‑MOON.

3D printing settings

Key Features

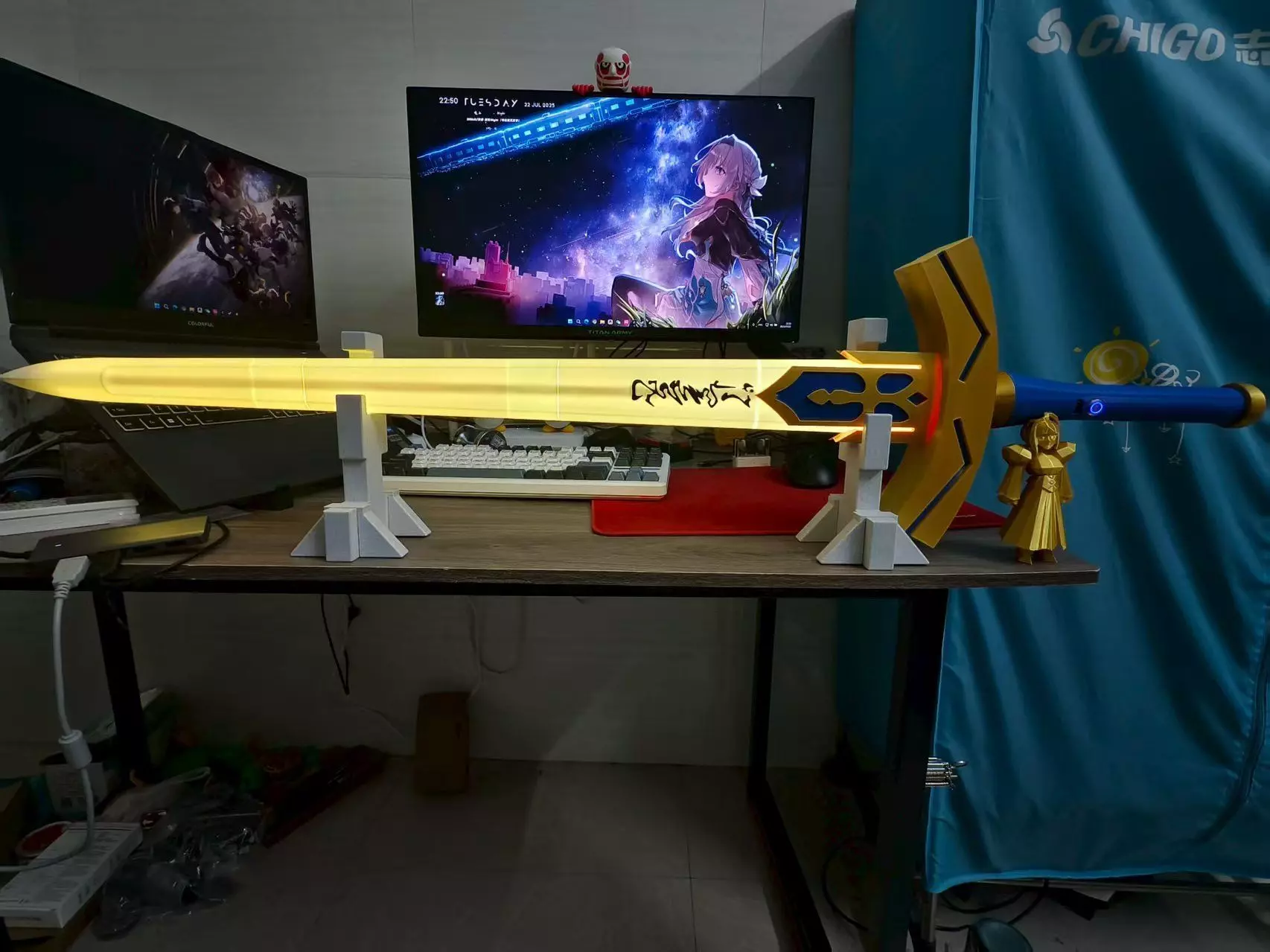

100 % Printable — Split for printers ≥ 220 × 220 × 250 mm; faithful 1 m replica of Excalibur with tight tolerances.

Electronics‑Ready — Internal channels for a Motion‑Activated Sound & Light Props Kit‑02‑ZC010 and an 815 mm 256‑RGB 5050 LED strip; no cutting or drilling required.

Material Friendly — Blade and guard designed for PLA; hilt halves recommended in PETG for extra toughness, yet all common filaments work fine.

Cost‑Effective — Total filament usage ≈ 550 g.

Wire‑Safe Reverse Thread — Left‑hand thread on the handle prevents shearing the LED‑strip cable during tightening.

Recommended Print Settings

Please refer to the supplied All in one.3mf project file for pre‑oriented parts and built‑in reinforcements. Open it with Bambu Studio, as its bundled AMS data, profiles, and G‑code can prevent PrusaSlicer from loading it.

Colour Code

Green — surfaces that need glue.

Tip: Print the blade segments in PLA for rigidity and the hilt parts in PETG for improved toughness. Apply medium‑viscosity CA glue to the green‑coded areas and test‑fit each segment before final assembly.
